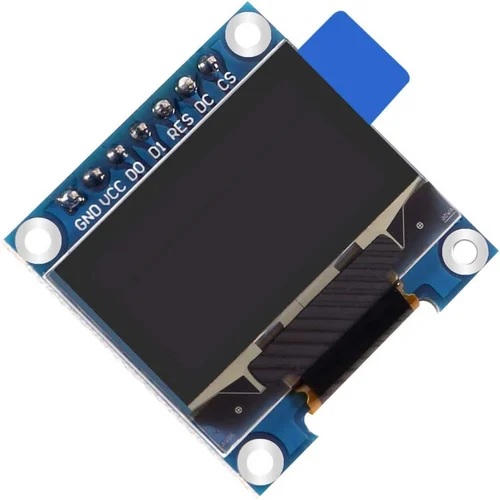

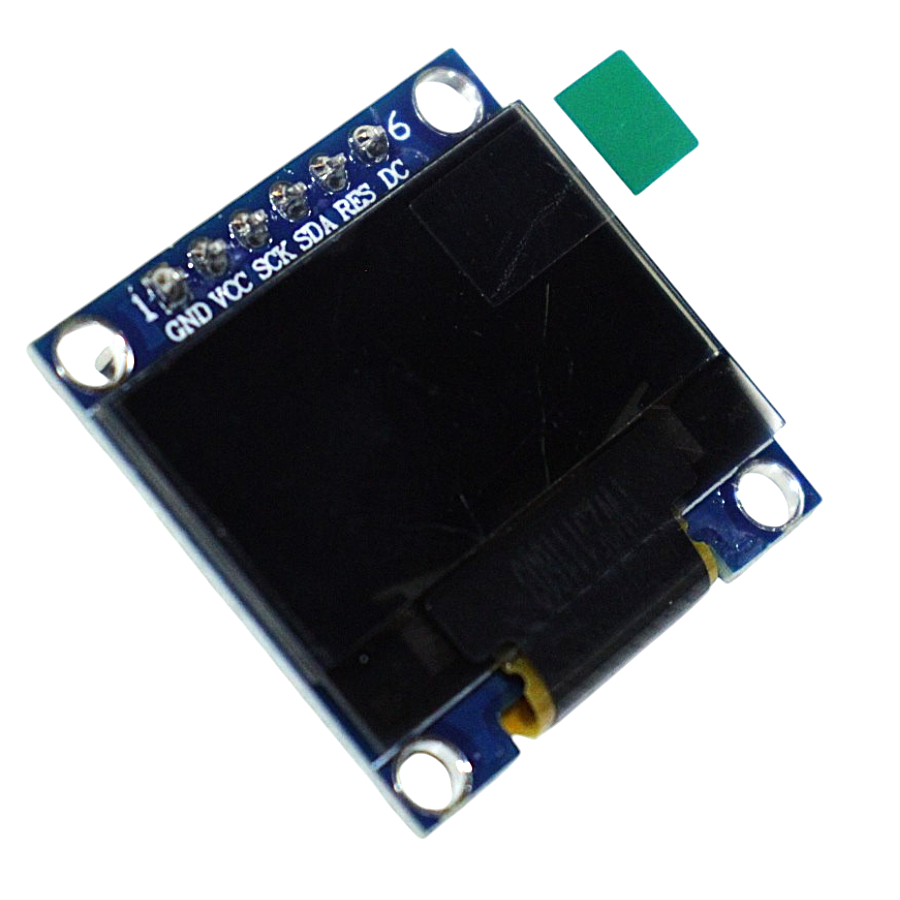

0.96 Inch SPI OLED LCD Module + CSpin 7pin (with GND VCC) White SSD1306 Chip
The 0.96-inch SPI White OLED Display module is a versatile screen that works seamlessly with any microcontroller supporting SPI or I2C protocols. With a resolution of 128×64 pixels, it provides clear graphics and text display capabilities.

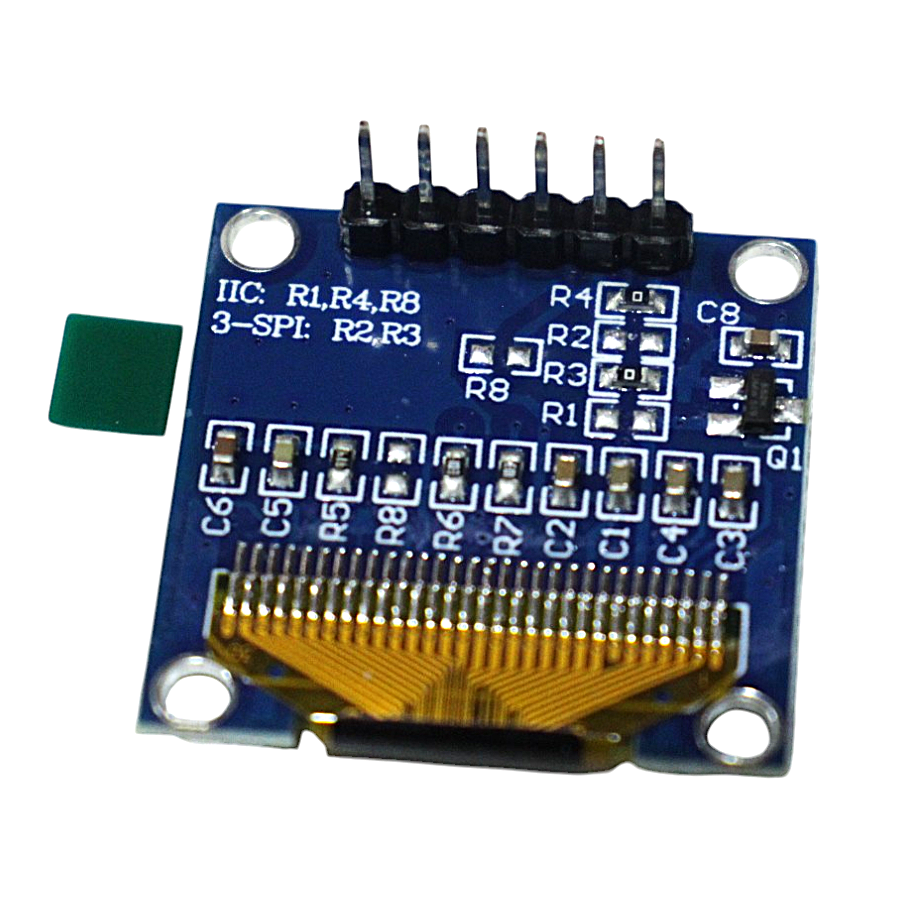

To configure the OLED Display module for I2C communication, a few adjustments are needed. First, resolder the resistor at position R3 to R1, and short the R8 resistor with solder (essentially creating a 0-ohm connection). The pull-up resistors R6 and R7 are already soldered, so no further action is required for those.
After making these modifications, the module will be ready for I2C communication. The CS (Chip Select) pin is optional and can be connected to GND. The DC (Data/Command) pin sets the address, and for standard addressing, it should also be connected to GND.
For the RES (Reset) pin, it needs a low pulse at startup and a high voltage during operation, just like in SPI mode. To ensure stable operation, it’s recommended to connect a 100nF capacitor to GND and a 10k resistor to VCC.
Specifications
- No Backlight required as the display is self-illuminating.
- Low Power Requirement
- Large Viewing Angle
- Full Compatible with Arduino
- Support for SPI and I2C
- Factory configured for SPI protocol (can easily change to IIC)
- Better performance characteristics than traditional LCD and LED displays.
- Only Need 2 I/O Port Control
PACKAGE INCLUDES
1 X 0.96″ Inch SPI OLED LCD Module + CSpin 7pin (with GND VCC) White SSD1306 Chip
