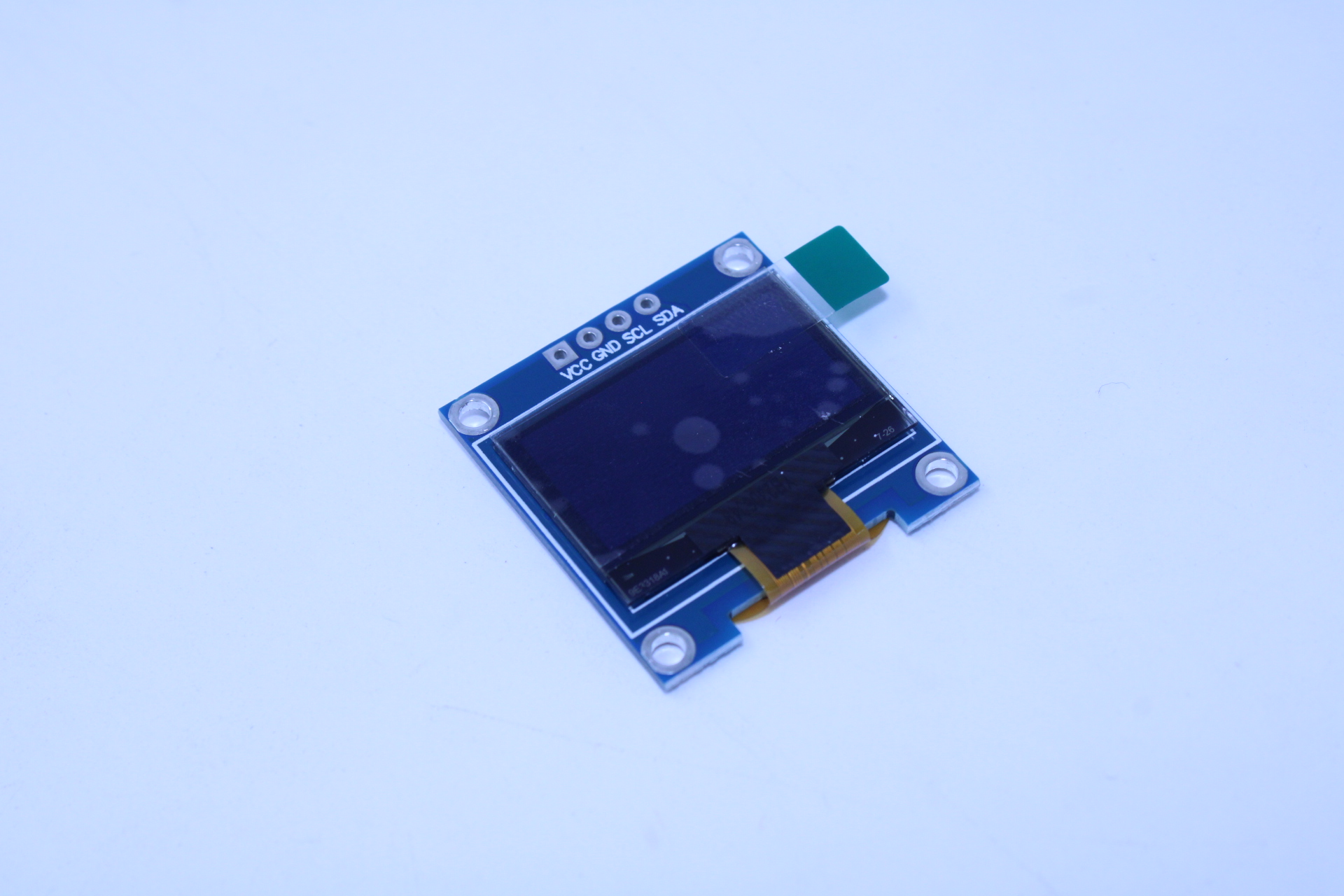

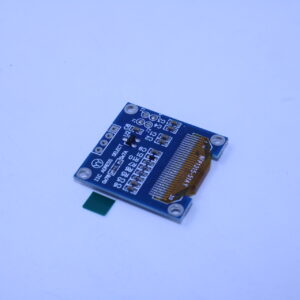

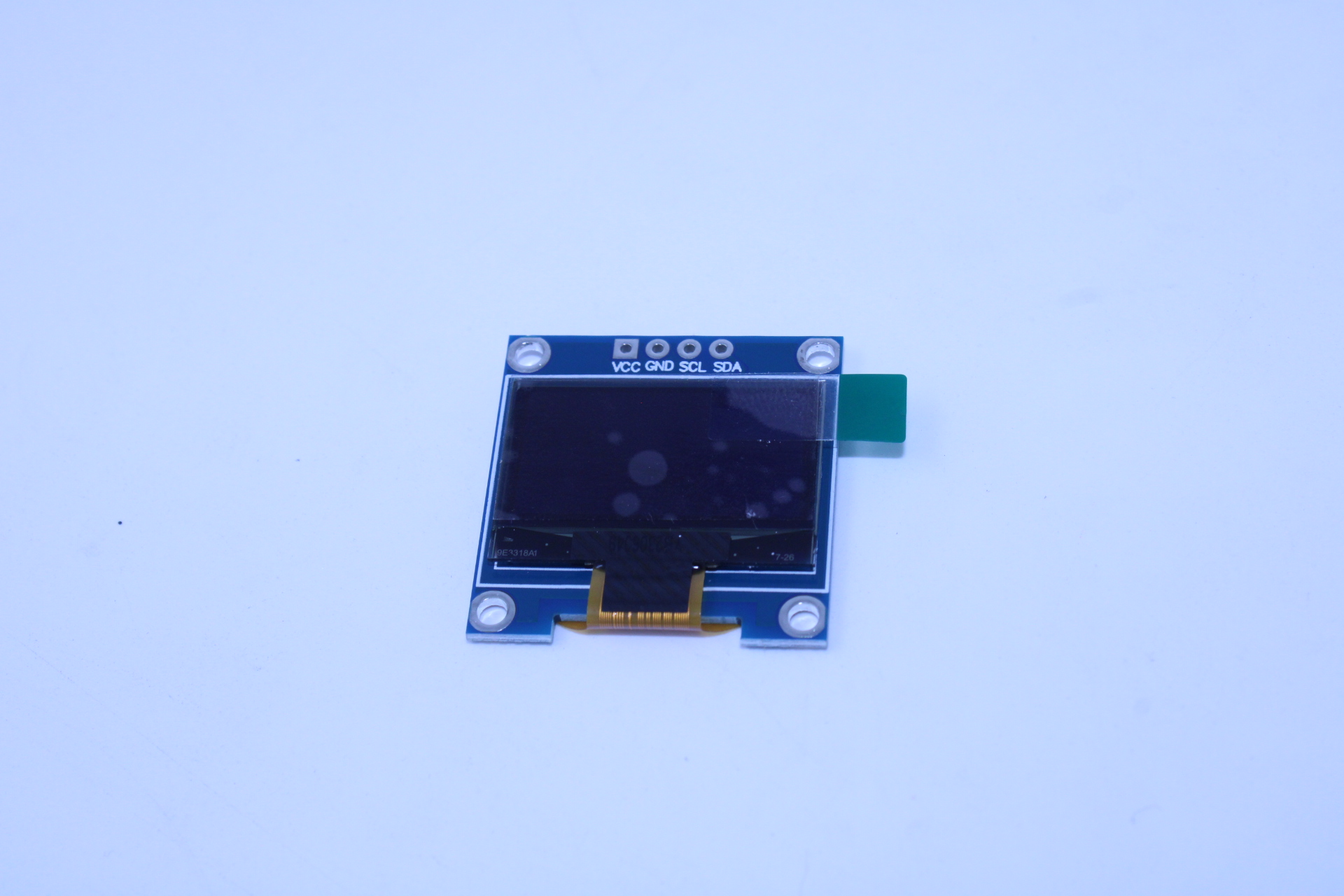

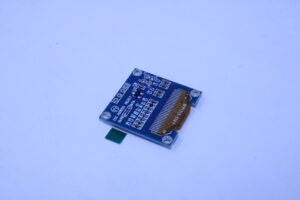

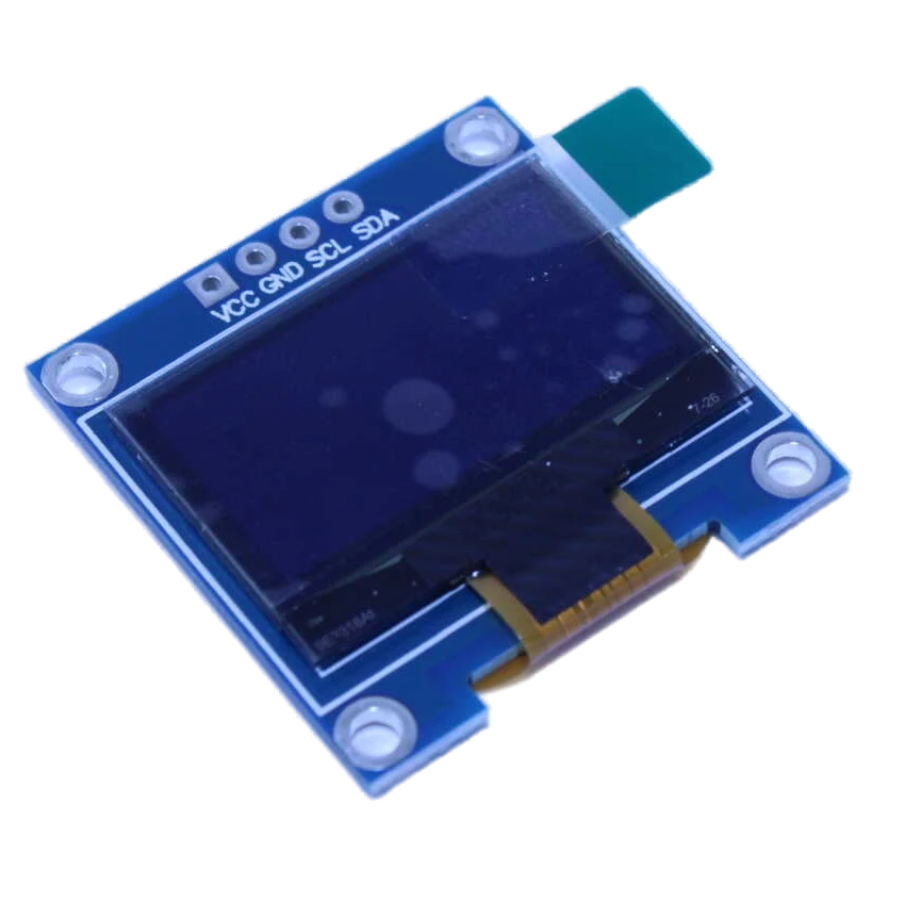

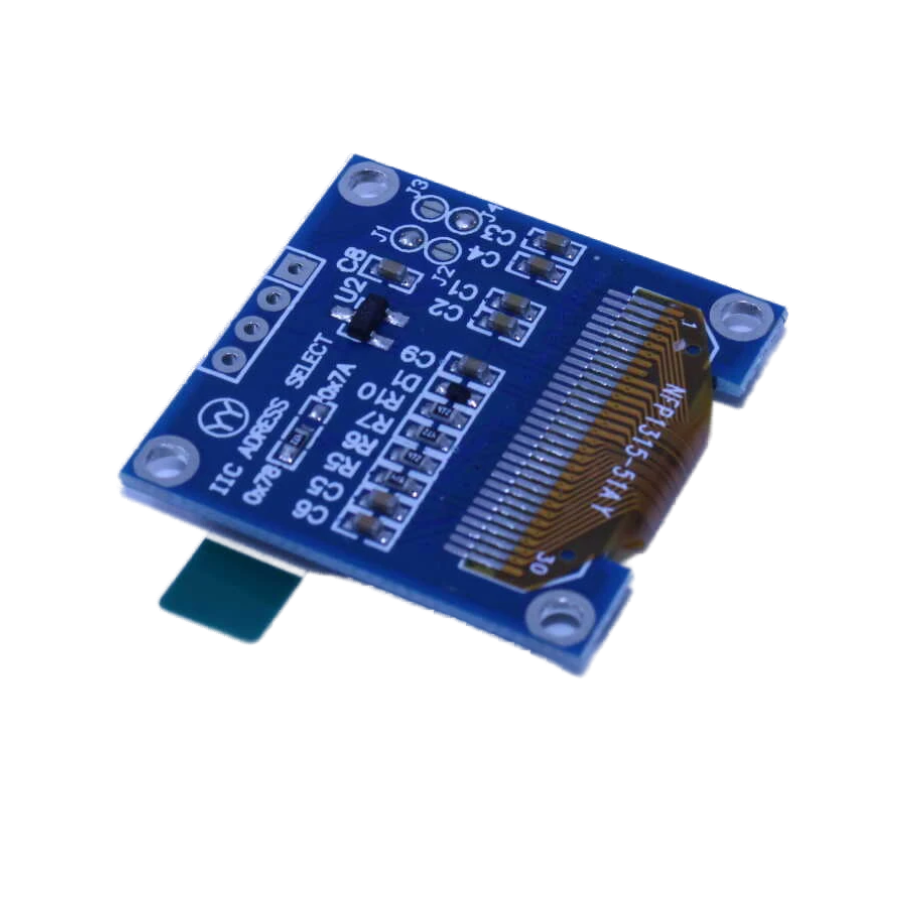

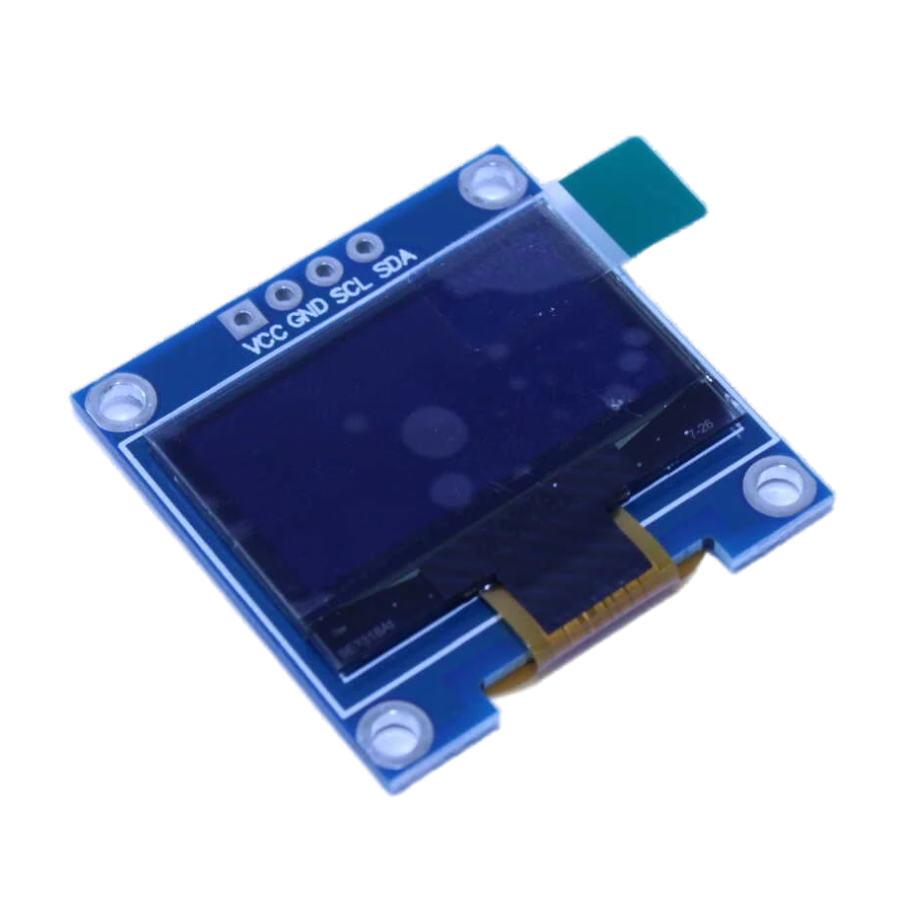

0.96 Inch I2C/IIC 4pin OLED Display Module (Blue) (Pin not include)
The 0.96-inch I2C/IIC 4-pin OLED Display Module in blue offers outstanding visual performance and versatility for a variety of electronic projects. Featuring OLED technology, it provides high brightness, excellent contrast, and energy efficiency, all without the need for a backlight. With a resolution of 128×64 pixels, it delivers clear, sharp visuals.
This OLED module can be easily interfaced with any microcontroller via SPI/IIC/I2C protocols, ensuring broad compatibility with many electronic devices. It comes with a pre-soldered 4-pin male header for quick and easy installation.
Features:
- High Brightness and Contrast (Adjustable)
- Embedded Driver/Controller
- Display Size: 0.96″
- Resolution: 128 x 64 pixels
- Interface Modes: I2C/IIC
- Working Voltage: 3.3V
- Control Chip: SSD1306
Interface Pins:
- VCC: 3.3V – 5V
- GND: Ground
- SCL: Serial Clock
- SDA: Serial Data
Specifications:
| Pixel Colour | Blue |
|---|---|
| Resolution | 128 x 64 Pixels |
| Active Display Area | 21.74 x 10. 86mm |
| Driving Voltage | 3.3-5V |
| Operating Temperature | -40º~70º Celsius |
| Interface Type | I2C IIC |
| Length (mm): | 27.5 |
| Width (mm): | 27.5 |
| Height (mm): | 11 |
| Weight (g): | 7 |
| Shipping Weight | 0.01 kg |
| Shipping Dimensions | 5 × 5 × 2 cm |
This OLED display module is suitable for a wide range of applications where high-quality visual output is required, making it an excellent choice for various electronic projects.
Package Includes
1 x 0.96 Inch I2C IIC 4pin OLED Display Module BLUE
