Buy breakout boards online in India at Zbotic. Our breakout board collection includes ready-made PCB modules that expose the pins of small ICs and sensors to breadboard-friendly 2.54mm headers. Available for USB connectors, SD cards, accelerometers, gyroscopes, and other components. These boards simplify prototyping by providing easy access to component pins with proper power regulation and pull-up resistors where needed.

2 columns grid
3 columns grid
4 columns grid
List
More
Show

In stock

t18xu8mi
Frequency Adjustable Pulse Generator Module NE555
Quick View

Frequency Adjustable Pulse Generator Module NE555

SKU: AI0165 ₹27.14 (₹23.00 + GST)

Quick Overview

  • Input Voltage: 5V-15VDC
  • Output amplitude: 4.2V V-PP to 11.4V V-PP.
  • Output Current : 15mA for 5V & 35mA for 12V.
  • Color: Blue
  • Working voltage: 5-12V
  • Size: 25x 13 x 12 mm (LxWxH)
  • Minimum – 50% duty cycle, 3.7 Hz & Maximum – 98% duty cycle, 1.3KHz
Add to cart Add to Compare

In stock

1c80ybph
Mp3 Module - MP3-TF-16P MP3 SD Card Module with Serial Port
Quick View

MP3-TF-16P MP3 SD Card Module with Serial Port

SKU: AI0569 ₹105.02 (₹89.00 + GST)

Supports sampling rates (KHz): 8 / 11.025 / 12/16 / 22.05 / 24/32 / 44.1 / 48

24-bit DAC output, dynamic range support: 90dB, SNR support: 85dB

Fully supports FAT16, FAT32 file system

Maximum support 32G TF card

Support U disk to 32G, 64M bytes of NORFLASH

Add to cart Add to Compare

In stock

ptxsfh59
USB Female to 2.54mm Breakout Board with Direct 4P Adapter Board
Quick View

USB Female to 2.54mm Breakout Board with Direct 4P Adapter Board

SKU: AI0518 ₹12.74 (₹10.80 + GST)
  • Input Type: USB- Female
  • Board Sze: 17 mm  x 17 mm
  • Weight: 3gm
Add to cart Add to Compare

In stock

3b374jsr
Esp-01 Board - ESP-01 Adapter 3.3V 5V Board
Quick View

ESP-01 Adapter 3.3V 5V Board

SKU: AI0168 ₹56.64 (₹48.00 + GST)

QUICK OVERVIEW

On-board level shift circuit

Arduino UNO R3 and the compatible board can directly connect to this module;

Interface logic voltage: 3.3V / 5V compatible(On-board level shift circuit);

Working voltage: 4.5~5.5V (Onboard 3.3V LDO Regulator);

Working current: 240mA(MAX).

Add to cart Add to Compare

In stock

4an9s6wg
Usb 3.1 Female Board - USB 3.1 Female Socket Type C Connector 24 Pins Breakout PCB Board...
Quick View

USB 3.1 Female Socket Type C Connector 24 Pins Breakout PCB Board

SKU: AI1131 ₹55.46 (₹47.00 + GST)

24 pin Breakout

PCB Size: 25 x 40 mm

Connector: C type Female

Add to cart Add to Compare

In stock

Shift Register Breakout - 74HC595 Board Module
Shift Register Breakout - 74HC595 Board Module
Quick View

Shift Register Breakout – 74HC595 Board Module

SKU: AI0196 ₹80.24 (₹68.00 + GST)

Quick Overview

  • SOIC version of the 74HC595 shift register IC
  • The Serial in and out pins are on opposite sides of the board
  • All pins from the IC are broken out to standard 0.1″ spaced headers.
Add to cart Add to Compare

In stock

gx40m00e
W25q32 Module - W25Q32 32Mbit 4Mbyte Capacity Flash Storage Module
Quick View

W25Q32 32Mbit 4Mbyte Capacity Flash Storage Module

SKU: AI0517 ₹45.31 (₹38.40 + GST)

Quick Overview

  • Support SPI interface
  • Provide STM32 test code
  • Capacity: 32M-bit / 4M-byte
  • The clock frequency is less than 104MHz
  • Operating voltage: 2.7~3.6V
  • Size: 14mm * 15mm
Add to cart Add to Compare

In stock

5zpozau6
Micro Usb Type Adapter - Micro USB Type B Mike Patch Straight Plug Adapter Plate Welding Head-2pcs.
Quick View

Micro USB Type B Mike Patch Straight Plug Adapter Plate Welding Head-(Pack of 2)

SKU: AI2535 ₹14.99 (₹12.70 + GST)

QUICK OVERVIEW:

  • MICRO USB ( 5pin, B type, female connector )
  •  Base Material: FR4.
  •  Board Thickness: 1.6mm.
  •  Size: 16 x 14.5 mm .
Add to cart Add to Compare

In stock

83e26iqq
2 Channel Logic Level Converter 3.3V 5V TTL
Quick View

2 Channel Logic Level Converter 3.3V 5V TTL

SKU: AI3420 ₹52.86 (₹44.80 + GST)

QUICK OVERVIEW:

  • Material: Plastic + metal
  • Portable, small, easy to use.
  • Comes with 2 rows of 6pin, unsoldered.
  • The compatible breadboard can be directly inserted into the breadboard.
Add to cart Add to Compare

In stock

mefn8bo2
NANO IO Shield V1.0
Quick View

Blue NANO IO Shield V1.0 Simple Expansion Board Finished Board

SKU: AI2943 ₹116.82 (₹99.00 + GST)

QUICK OVERVIEW:

  • Type: Voltage Regulator
  • Supply Voltage: 3 – 5V
  • Compatible with Arduino NANO
  • All digital and analogue pins breakout
  • Compact size
  • Leads all pins out, convenient for wiring and doing experiments.
Add to cart Add to Compare

In stock

99ykq6va
W25Q128 Large Capacity Flash Storage Module
Quick View

W25Q128 Large Capacity Flash Storage Module

SKU: AI6310 ₹152.22 (₹129.00 + GST)
  1. Using serial Nor flash external expansion memory chip W25Q128.
  2. Operating Voltage: 2.7-3.6V
  3. Support the SPI interface.
  4. Capacity: 128M-bit / 16M-byte
  5. Clock Frequency: ≤ 104MHz
Add to cart Add to Compare

In stock

W25Q64-Storage-64Mbit-8MByte-FLASH-Data-Flash-module-4
64mbit 8mbyte Data Module - 64Mbit 8MByte Data Flash module SPI Interface BV/FVinter
Quick View

64Mbit 8MByte Data Flash module SPI Interface BV/FVinter

SKU: AI1583 ₹71.98 (₹61.00 + GST)
  • IC: 25Q64FVSIG-1935
  • Capacity: 64M-bit / 8M-byte
  • Clock frequency: <104MHz
  • Working voltage: 2.7V ~ 3.6V
  • Current: 4mA
  • Dimensions (LxWxH): 15.5 x 14.5 x 3.7 mm
Add to cart Add to Compare

In stock

30hasmal
Usb Type Female Module - USB Type-B Female Head to DIP 4 pin Breakout PCB Module
Quick View

USB Type-B Female Head to DIP 4 pin Breakout PCB Module

SKU: AI2634 ₹17.11 (₹14.50 + GST)

QUICK OVERVIEW:

  • Connector Type: USB Type -B
  • Compatible Devices:  Printer Dev. Board etc
  • PCB Size: 20 x 20 mm
  • Weight: 4gm
Add to cart Add to Compare

In stock

WEMOS CH340G Breakout 5V 3.3V USB to Serial Module.....
Ch340g Module - WEMOS CH340G Breakout 5V 3.3V USB to Serial Module
Quick View

Wemos CH340G Breakout 5V 3.3V USB to Serial Module

SKU: AI1118 ₹80.24 (₹68.00 + GST)



5V (The max current depends on your USB port, usually 500mA)

3.3V (Using LDO, 300mA MAX)

Use CH340G with stable performance.

Driver: 1. CH340G USB to UART driver.

Add to cart Add to Compare

In stock

808wgm5e
Icsh044a Module - ICSH044A ICSTATION Blackberry Trackball Breakout Board 360 Degree Trajectory Ball Module
Quick View

ICSH044A ICSTATION Blackberry Trackball Breakout Board 360 Degree Trajectory Ball Module

SKU: AI0947 ₹379.96 (₹322.00 + GST)



Operating Voltage: 2.5-5.25 V

Operating Temperature:20~70 °C

Material: Plastic.

Application: Electronic Circuits.

Dimensions: 28 x 22 x 8 (LxWxH) mm

Weight: 2 gm

Add to cart Add to Compare

Out of stock

Joystick Module
Out of Stock
Joystick Module
Quick View

Joystick Module

SKU: AI0133 ₹49.32 (₹41.80 + GST)

Quick Overview

  • Operating Voltage: 5V
  • Interface: 2.54mm pin leads
  • Potentiometer Resistance: 10k ohms
  • Output: Analog signals for X and Y axes
  • Dimensions: Standard size for electronic building blocks
  • Switch: Press-able switch included
  • Compatibility: Widely compatible with Arduino and other DIY projects
  • Dimensions: 34 x 34 x 15 (LxWxH) mm.
  • Weight: 10gm (without Hat).
Add to Compare

Out of stock

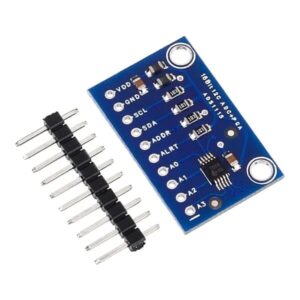

ADS1115 16-Bit ADC- 4 Channel with Programmable Gain Amplifier
Out of Stock
I2c Module 297851 - ADS1115 16-Bit ADC- 4 Channel with Programmable Gain Amplifier
Quick View

I2C ADS1115 16 Bit ADC 4 channel Module with Programmable Gain Amplifier

SKU: AI1463 ₹120.36 (₹102.00 + GST)
  • Wide Supply Range: 2.0v To 5.5v
  • Low Current Consumption
  • Continuous Mode: Only 150µa Single-shot
  • Auto Shut-down
  • Programmable Data Rate: 8SPS to 860SPS
  • It has Internal low-drift voltage reference
Add to Compare

Out of stock

Mini Micro SDCard Reader Module1
Out of Stock
Mini Module - Mini Micro SDCard Reader Module
Quick View

Mini Micro SDCard Reader Module

SKU: AI0577 ₹37.05 (₹31.40 + GST)

Supports FAT file system SD carrier

Supports playing of 4Bit ADCPM format files

Recognize the voice files automatically

Support microprocessor and key control

Audio output: 16bitDAC and PWM

Add to Compare

Out of stock

pnqnf2fr
Out of Stock
Usb Board - robu-2-21
Quick View

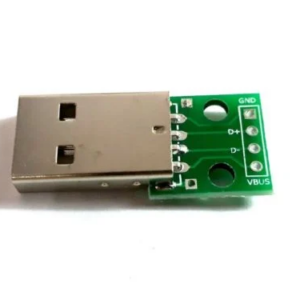

USB Type A Breakout Board – Male

SKU: AI0519 ₹9.32 (₹7.90 + GST)
  • USB Type: Type-A
  • PCB Size : 15x15mm
Add to Compare

Out of stock

s-l1600-16-300x300
Out of Stock
I2C Bi-Directional logic Level Converter- 4 Channel
Quick View

I2C Bi-Directional logic Level Converter- 4 Channel

SKU: AI2197 ₹17.94 (₹15.20 + GST)

Quick review :

  1. Material: ABS + metal
  2. Dimensions: 16 x13 x 3 (L x W x H) mm
  3. Weight: 2gm
  4. Mutual transform between 5V TTL and 3.3V TTL
  5. Four channels of logic and high voltage low voltage logic can two-way transform
  6. Portable and lightness, with 2 rows 6 pin contact pins
Add to Compare

Out of stock

MCU-Micro USB Breadboard 5V Power Supply Module
Out of Stock
MCU-Micro USB Breadboard 5V Power Supply Module
Quick View

MCU-Micro USB Breadboard 5V Power Supply Module

SKU: AI1585 ₹8.50 (₹7.20 + GST)
  • Interface: USB OTG
  • Connector Type: USB Micro Female
  • Size: 15 x 13mm
  • Breakout Signals Pin Spacing : 0.1 inch / 2.54mm
  • Mounting Holes: Yes
  • PCB Color: Blue
Add to Compare

Out of stock

Out of Stock
Micro SD Card Reader Module
Quick View

Micro SD Card Reader Module

SKU: AI0035 ₹32.69 (₹27.70 + GST)

Quick Review

  • Power Supply: 4.5V – 5.5V, 3.3V
  • Positioning Holes: 4 M2 screws positioning hole diameter of 2.2mm
  • Control Interface: GND, VCC, MISO, MOSI, SCK, CS
  • Size: 45 x 28mm
  • Net weight: 6g
Add to Compare

Out of stock

Out of Stock
DC Power Module DC Power Adapter Plate
Quick View

DC Power Module DC Power Adapter Plate

SKU: AI0520 ₹32.69 (₹27.70 + GST)

  • Compatible with connector size: 5.5×2.1 mm.
  • Power output interface: 2 VCC, 2-way GND
  • Reliable and safe connection
  • Size: 26×12×13(L×W×H) mm
  • Hole Diameter: 6.5mm
  • Pin Diameter: 2.1mm
  • It has wide use for safe and reliable connection between various Application and power sources
Add to Compare

Out of stock

CJMCU-MCP4725-I2C-DAC-Breakout-Board-1
Out of Stock
Mcp4725 Board - CJMCU MCP4725 I2C DAC Breakout Development Board
Quick View

CJMCU MCP4725 I2C DAC Breakout Development Board

SKU: AI2172 ₹115.64 (₹98.00 + GST)

Quick review :

  1. 12-bit resolution
  2. Small package
  3. 2.7V to 5.5V supply
  4. Internal EEPROM to store settings
  5. I2C Interface (Standard, Fast, and High-Speed supported)
Add to Compare

Out of stock

I2C Bi-Directional Logic Level Converter- 2 Channel
Out of Stock
I2c Converter 310622 - I2C Bi-Directional Logic Level Converter- 2 Channel
Quick View

I2C Bi-Directional Logic Level Converter- 2 Channel

SKU: AI1582 ₹18.05 (₹15.30 + GST)
  • Dimensions: 11×15 x 2 (L x W x H) mm
  • Weight: 1gm
  • Mutual transform between 5V TTL and 3.3V TTL
  • Two channels of logic and high voltage low voltage logic can two-way transform
  • Portable and lightness, with 2 rows 4 pin contact pins
Add to Compare

Out of stock

AI5230..1
Out of Stock
Sn65hvd230 - AI5230...3
Quick View

SN65HVD230 CAN Board Network Transceiver Evaluation Development Module

SKU: AI5230 ₹217.12 (₹184.00 + GST)
  1. Onboard CAN transceiver SN65HVD230
  2. Powered from 3.3V
  3. Features ESD protection
  4. Connecting MCUs to the CAN network
  5. Compatible with PCA82C250
Add to Compare

Out of stock

Serial Port Mini RS232 to TTL Converter Adaptor Module Board MAX3232-2pcs.
Out of Stock
Rs232 Module - Serial Port Mini RS232 to TTL Converter Adaptor Module Board MAX3232-2pcs.
Quick View

Serial Port Mini RS232 to TTL Converter Adaptor Module Board MAX3232(Pack of 2)

SKU: AI1444 ₹50.50 (₹42.80 + GST)

QUICK OVERVIEW

  • High speed, replaceable MAX232 based. The device fitted supports up to 120kbps
  • Works with PCs or Laptops
  • Supports microcontroller UARTs – 5V TTL signal levels.
  • Single DC supply: wide input range for 4201 or 5V for 4202 and 4203
  • Small PCB footprint of 50´40mm
  • Low current status LED(s)
  • Very low power consumption
Add to Compare

Out of stock

olyxrqkf
Out of Stock
Ne555 Module 459870 - NE555 Frequency Adjustable Pulse Generator Module
Quick View

NE555 Frequency Adjustable Pulse Generator Module

SKU: AI4048 ₹40.12 (₹34.00 + GST)
Color: Blue Working voltage: 5-12V Minimum – 50% duty cycle, 3.7 Hz & Maximum – 98% duty cycle, 1.3KHz 100% Brand new and high quality A single channel output, the output duty cycle square wave is about fifty percent. Onboard adjustable resistance, resistance can be controlled to adjust the output frequency. Best choice for yourself or your friend. You will not be disappointed.
Add to Compare

Out of stock

uz6a3p7b
Out of Stock
Irf520 Module - IRF520 MOSFET Driver Module for Arduino ARM Raspberry pi
Quick View

IRF520 MOSFET Driver Module for Arduino ARM Raspberry pi

SKU: AI2498 ₹35.05 (₹29.70 + GST)

QUICK OVERVIEW:

  • Voltage: 3.3 – 5V.
  • Ports: Digital Level.
  • Output load voltage: 0-24 V.
  • Output load current: <5A (1A above need to add heat sink).
  • Platform: Arduino, MCU, ARM, raspberry pi.
  • Using original IRF520 Power MOS, you can adjust the output PWM
Add to Compare

Out of stock

PAM 8610 Digital Stereo Class-D Amplifier Board 2x15W Output.3
Out of Stock
Class-D Amplifier Board
Quick View

PAM 8610 Digital Stereo Class-D Amplifier Board 2x15W Output

SKU: AI3441 ₹99.12 (₹84.00 + GST)



Dual-Channel Stereo Output

Run-on 7V to 15V power Supply

32 Steps DC volume control has a +32dB to -75dB range.

40 pin QFN 6 x 6 mm package.

Much higher efficiency in terms of cost and performance than competitors’ ICs

Add to Compare

Out of stock

tmihb1eo
Out of Stock
Mini Digital Power Amplifiers 3W Dual Track Red PAM8403
Quick View

Mini Digital Power Amplifiers 3W Dual Track Red PAM8403

SKU: AI0664 ₹42.72 (₹36.20 + GST)
Input Voltage : 2.5-5.5 V(USB power supply). Output Impedance : 4 ohm. Efficiency : 90%. Frequency Response : 150 Hz – 20 KHz. Input Impedance : 2 Kohm. Dimensions : 15 x 20 mm.
Add to Compare

Out of stock

h3rkt4y5
Out of Stock
Waveshare Pcie To Wire - Waveshare PCIe To M.2 E KEY HAT for Raspberry Pi 5
Quick View

Waveshare PCIe To M.2 E KEY HAT for Raspberry Pi 5, Compatible With NGFF (M.2 E Key) Wireless NIC, HAT+ Standard, Raspberry Pi 5 PCIe HAT

SKU: AI7609 ₹890.90 (₹755.00 + GST)

Quick Overview:

  • Pi 5 PCIe M.2 WiFi/BT.
  • A/E/E Key, SMA.
  • USB Bluetooth.
Add to Compare

Out of stock

ul9ctixp-removebg-preview
Out of Stock
Adafruit Infineon Trust M Breakout Board - j0a4c77a-removebg-preview
Quick View

Adafruit Infineon Trust M Breakout Board – STEMMA QT / Qwiic

SKU: AI1782 ₹742.22 (₹629.00 + GST)
Overview
  • Contents:Board(s)
  • Function:Security
  • Platform:STEMMA QT
  • Type:Interface
  • Utilized IC / Part:SLS32AIA
Add to Compare

Out of stock

I2s Decoder - cy837cxa-removebg-preview
Out of Stock
I2s Decoder - cy837cxa-removebg-preview
Quick View

Adafruit I2S Stereo Decoder – UDA1334A Breakout

SKU: AI1755 ₹872.02 (₹739.00 + GST)
Overview
  • Data Interface:I²S
  • Number of Bits:16, 20, 24
  • Number of DAC’s:1
  • Supplied Contents:Board(s)
  • Utilized IC / Part:UDA1334A
Add to Compare

Out of stock

Adafruit DS3502 I2C Digital 10K Potentiometer Breakout – STEMMA QT/Qwiic
Out of Stock
Ds3502 Breakout - Adafruit DS3502 I2C Digital 10K Potentiometer Breakout – STEMMA QT/Qwiic
Quick View

Adafruit DS3502 I2C Digital 10K Potentiometer Breakout – STEMMA QT/Qwiic

SKU: AI1745 ₹754.02 (₹639.00 + GST)
Overview
  • The microcontroller adjusts the resistance itself
  • Control Interface: I2C
  • Resistance Value: 0 – 10kΩ
  • Number of Positions: 128
Add to Compare
