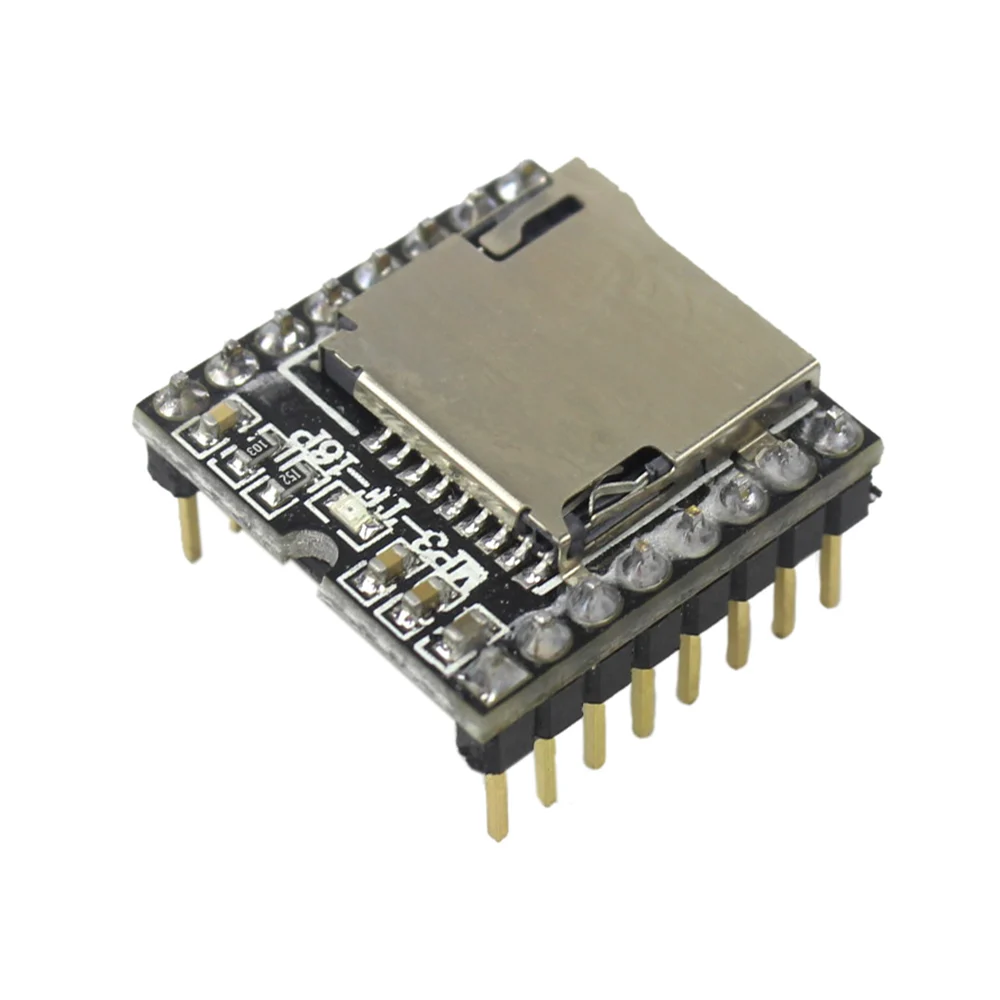

The MP3-TF-16P MP3 Disk TF Card Module Serial Port is a low-cost MP3 module that can be directly connected to a speaker. It can work independently with a battery, a speaker and a keypad, or it can be controlled by a serial port, such as by an Arduino UNO or any microcontroller with a serial port. The module has a built-in hardware decoder for MP3, WAV and WMA formats.
The software supports the TF card driver and the FAT16 and FAT32 file systems. It can play the specified music with simple serial commands, as well as perform other functions related to music playback. It is easy to use, stable and reliable, without requiring complex low-level operations.
Application
Car navigation voice broadcast
Road transport inspectors, toll voice prompts
The train station, bus station voice prompts security check
Electric power, telecommunications, financial operating room voice prompts
The vehicle into or out of the channel to verify the voice prompts
Border control channel voice prompts
Multi-channel voice alarm or voice guidance equipment operation
Electric sightseeing bus safety with voice notices
24-bit DAC output, dynamic range support: 90dB, SNR support: 85dB.
Fully supports FAT16, FAT32 file system, maximum support 32G TF card, support U disk to 32G, 64M bytes of NOR FLASH.
A variety of control modes are available. IO control mode, serial mode, AD key control mode.
The broadcast language spots feature, you can pause the background music being played. Advertising finished playing back background sound to continue playing.
The audio data is sorted by folder, supports up to 100 folders, folders can assign every 255 Tracks
7,30 level adjustable volume, adjustable EQ 6.

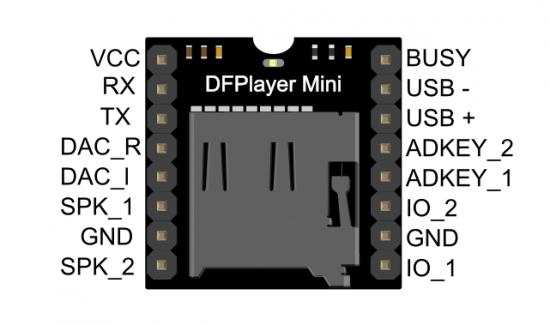

Wiring Diagram :
specification-
Input Supply voltage (V)
3.2 ~ 5
DAC output
24-bit
SNR
85 dB
Supports sampling rates (KHz)
8 / 11.025 / 12/16 / 22.05 / 24/32 / 44.1 / 48
Operating Temperature (°C)
-40 ~ +70
Humidity Range
5% ~ 95%
Length (mm):
21
Width (mm)
21
Height (mm)
10
Weight (gm)
5
Shipping Weight
0.01 kg
Shipping Dimensions
8 × 6 × 3 cm
Package Includes
1 x MP3-TF-16P MP3 Disk TF Card Module Serial Port.

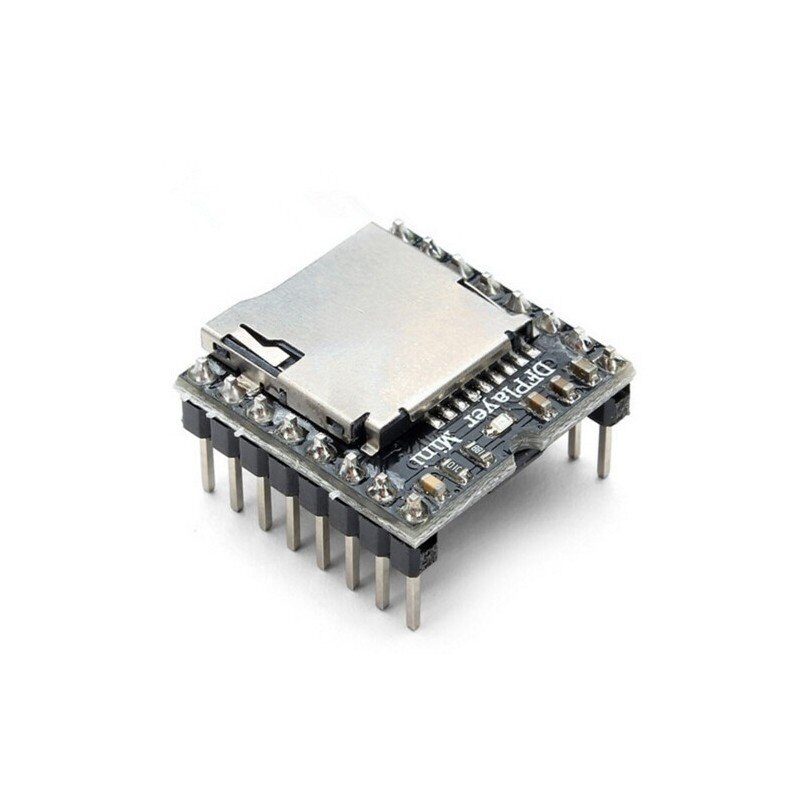

The MP3-TF-16P MP3 SD Card Module with Serial Port is a versatile breakout board used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
Integrating into a custom electronics project
Learning and experimenting with circuits
Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
