Product Description

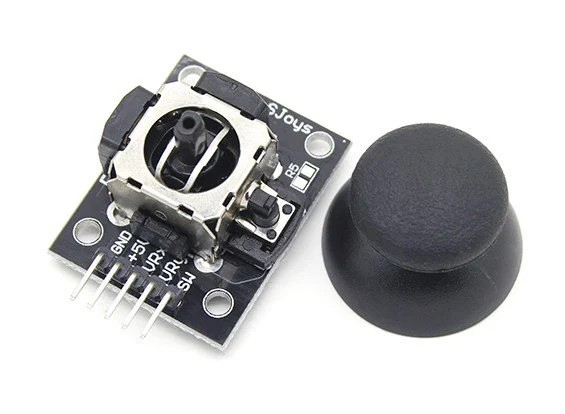

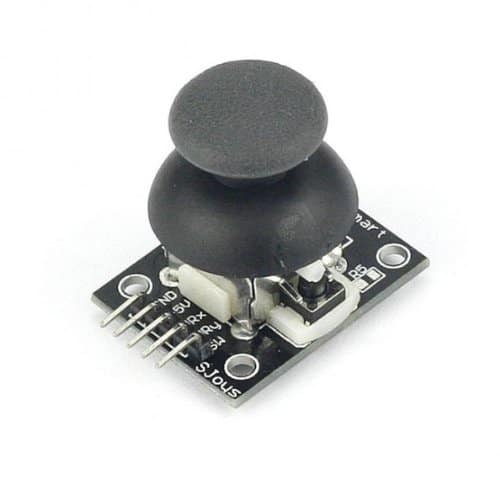

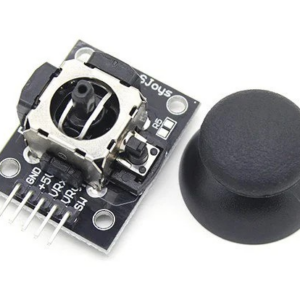

- The Arduino Joystick Module offers precise control across two axes, allowing users to measure position coordinates on the X and Y axes through joystick movement. It includes a pressable switch, similar to that found on an XBOX controller, which activates when the joystick is pressed down.
- This module features two 10k potentiometers for the X and Y axes, generating analog signals that facilitate 2D movement control. During operation, it outputs two analog values that correspond to the joystick’s direction. Powered by a 5V supply, the output analog values range from approximately 0V to 5V, depending on the joystick’s tilt direction.
Features:
- 2.54mm pin interface leads for easy connection.
- Long service life and stable performance ensure reliability.
- Standard interface and electronic building blocks simplify integration.
- Widely used in Arduino DIY projects for various applications.
- The cross rocker acts as a two-way 10K resistor, providing precise control over the joystick’s movements in different directions. Whether you’re building robotic projects, gaming consoles, or interactive displays, the Joystick Module offers versatile control and seamless integration for Arduino-based projects.
Specificati0ns:
| Specification | Details |
|---|---|
| Operating Voltage | 5V |
| Interface | 2.54mm pin leads |
| Potentiometer Resistance | 10k ohms |
| Output | Analog signals for X and Y axes |
| Dimensions | Standard size for electronic building blocks |
| Switch | Press-able switch included |
| Compatibility | Widely compatible with Arduino and other DIY projects |
Package Includes
- 1 x JoyStick Module Knob Hat
Video
Technical Specifications
| SKU | AI0133 |
|---|---|
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Joystick Module is a versatile breakout board used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
