64Mbit 8MByte Data Flash module SPI Interface BV/FVinter

Looking for 64mbit 8mbyte Data Module? 64Mbit 8MByte Data Flash module SPI Interface BV/FVinter is available at Zbotic with fast shipping across India.

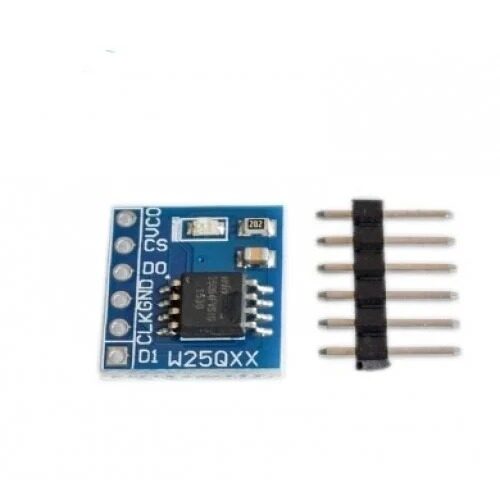

The  64Mbit 8MByte Data Flash module SPI Interface BV/FV provides a solution to problems with a lack of space for data storage on systems with limited space. Very efficient, the 25Q series provides high flexibility and better performance when compared to common Serial Flash devices.

So this module is an ideal solution for the temporary saving of data. This integrated circuit (25Q64FWSIG-1935) has a very good quality with a large memory capacity and very low consumption. The module can have many uses. For example, you can use to build devices that carry them with you and store data with GPS (geographical location store) or acceleration in certain circumstances in the car.

It can use for data storage as if it were the hard disk of a computer; it is not volatile and because it is solid-state there is no risk of damage to moving parts. The main advantage of the 25Q64FVSIG-1935Flash Memory Module is that it is already soldered onto a board, eliminating the need for soldering by the user, making the doors available through DIP pins (attached to a pin bar).

With high efficiency, the matrix is organized into 32,768 programmable pages of 256 bytes each, where up to 256 bytes can be programmed at a time. Pages can be erased entire (whole chip) or in groups of 16 (4 KB in the industry), groups of 128 (32 KB in block) or groups of 256 (64 KB).

It also has 2,048 sectors and 128 blocks that can be deleted, respectively. Small 4KB sectors enable greater flexibility in applications that require parameter and data storage.

Features:

1. Capacity: 64M-bit / 8M-byte.

2. Clock frequency: <104MHz.

3. Greater flexibility and performance.

4. Low energy consumption.

5. It accompanies pin bar.


Package Includes:

1 x  64Mbit 8MByte Data Flash module SPI Interface BV/FV.

About 64mbit 8mbyte Data Module

64Mbit 8MByte Data Flash module SPI Interface BV/FVinter is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by Generic, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.

Product Details

• Brand: Generic
• SKU: AI1583
• Category: Breakout Board

Why Buy from Zbotic?

Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about 64mbit 8mbyte Data Module and other products.

Applications

64mbit 8mbyte Data Module can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your 64mbit 8mbyte Data Module today and start building.

64Mbit 8MByte Data Flash module SPI Interface BV/FVinter Overview

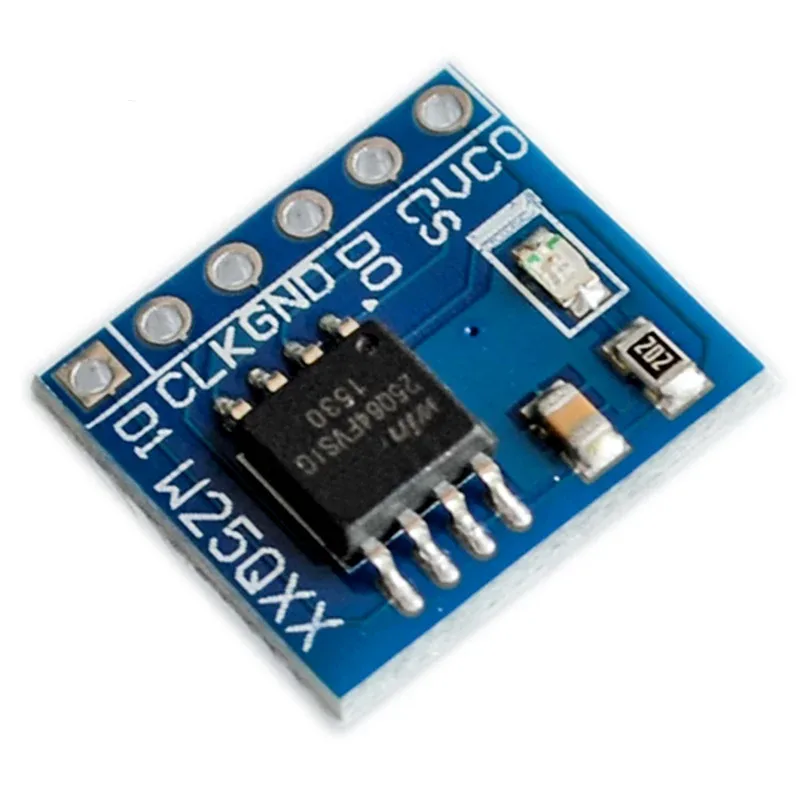

The 64Mbit 8MByte Data Flash module SPI Interface BV/FVinter is a compact SPI NOR flash memory breakout board based on the 25Q64FVSIG-1935 IC. It provides 8 MB of non-volatile storage for microcontroller projects requiring reliable data retention with low power consumption.

Key Features of 64Mbit 8MByte Data Flash module SPI Interface BV/FVinter

• 8 MByte (64 Mbit) storage capacity for extensive data logging or firmware storage
• High-speed SPI interface (up to 104 MHz clock frequency) for fast read/write operations
• Wide operating voltage range: 2.7 V to 3.6 V compatible with 3.3 V systems
• Ultra-low active current: only 4 mA during read/write to conserve power
• Compact size (15.5 × 14.5 × 3.7 mm) ideal for space-constrained applications
• Genuine product with fast shipping from Zbotic across India

Applications and Use Cases

• Firmware storage for embedded controllers, bootloaders and over-the-air updates
• Data logging of sensor readings (temperature, humidity, pressure) in IoT devices
• GPS waypoint recording in portable navigation units
• Audio sample buffering for low-power audio playback modules
• Storage of calibration tables for precision instrumentation
• Backup of configuration settings in industrial automation systems

How to Use 64Mbit 8MByte Data Flash module SPI Interface BV/FVinter

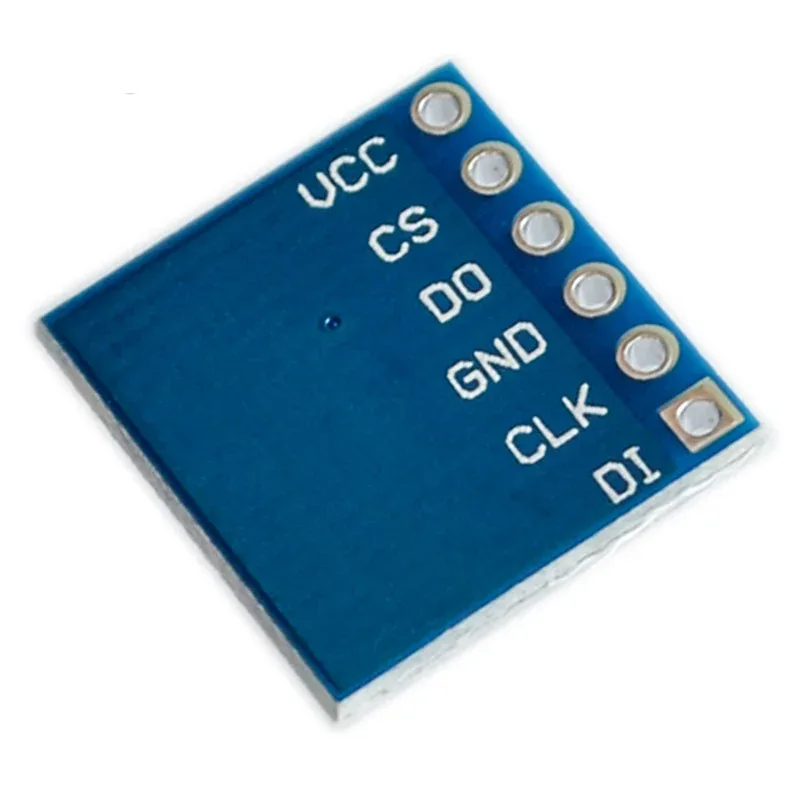

Connect the module’s SPI pins (CS, SCLK, MOSI, MISO) to your microcontroller’s SPI interface, apply a 2.7 V–3.6 V supply and common ground. Initialize the SPI peripheral at up to 104 MHz, send the appropriate commands (e.g., Read, Page Program, Sector Erase) as specified in the 25Q64 datasheet, and monitor the busy flag to manage write cycles safely.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

Can I use this module with Arduino or Raspberry Pi?

Yes. The module’s SPI interface is fully compatible with Arduino (SPI library) and Raspberry Pi (spidev). Ensure you operate at 3.3 V levels and configure the chip select and clock pins correctly.

How do I erase and write data to the flash?

Use the Sector Erase (4 KB sectors) or Bulk Erase commands, then program data in 256-byte page increments. Monitor the status register’s busy bit to know when each operation completes.

What is the typical power consumption in standby mode?

When not actively reading or writing, the 25Q64FVSIG draws only a few microamps in deep power-down mode, making it suitable for battery-powered applications.
