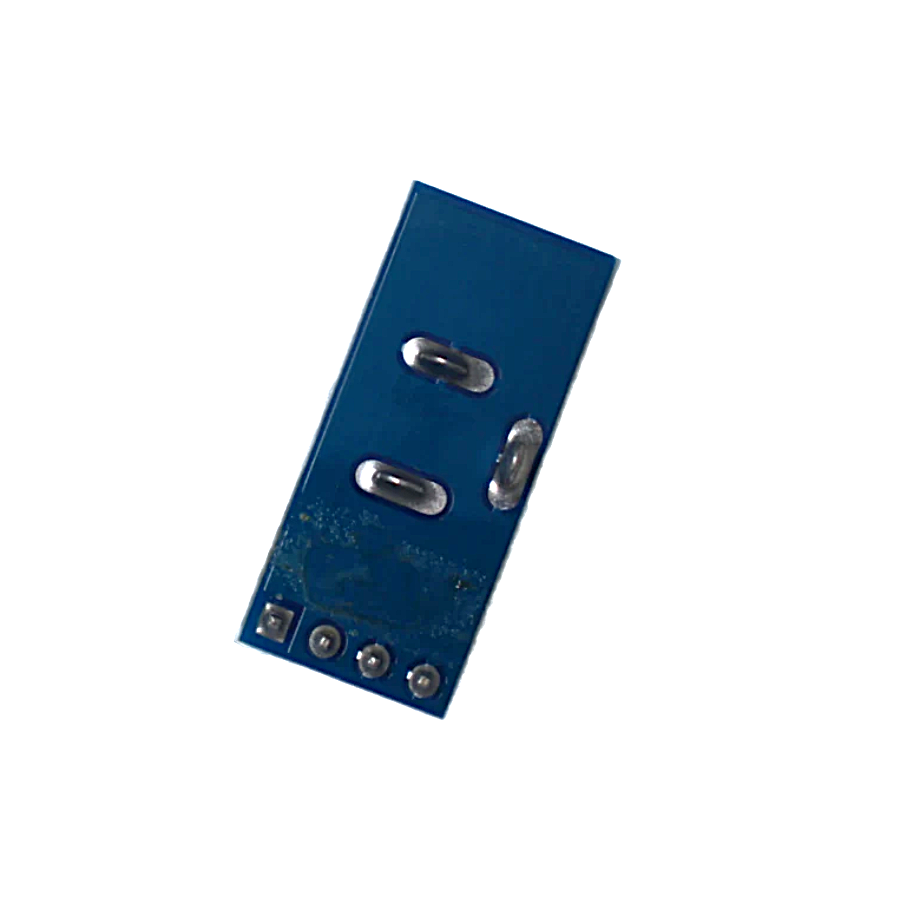

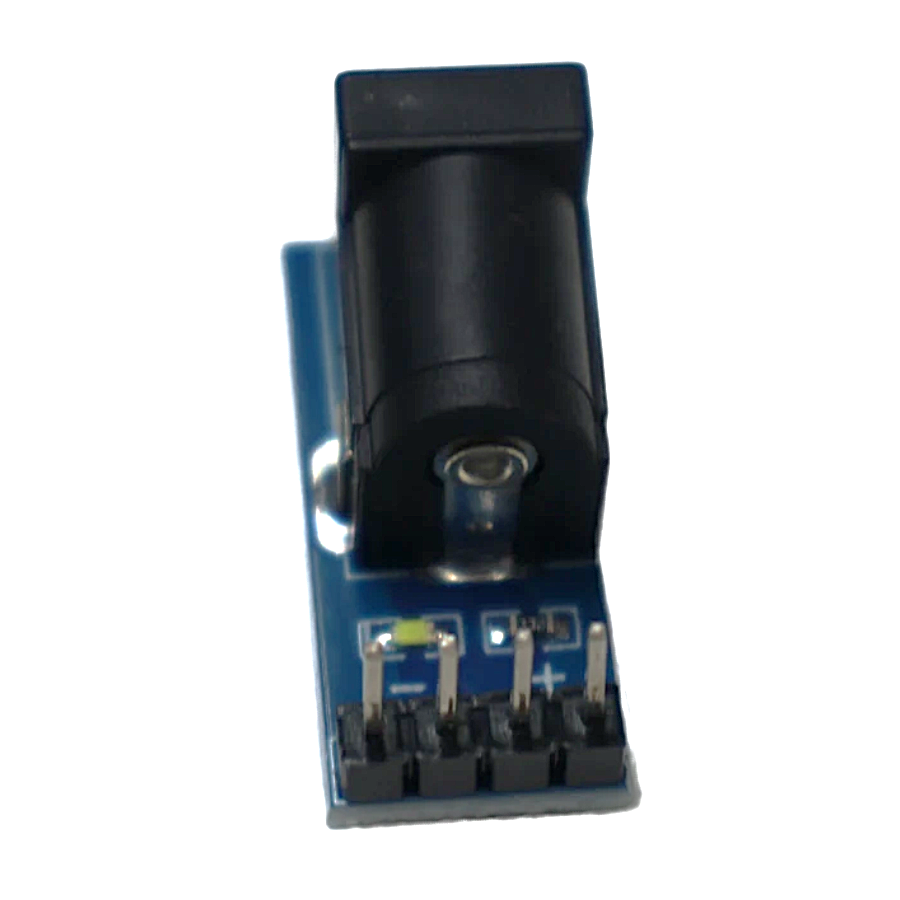

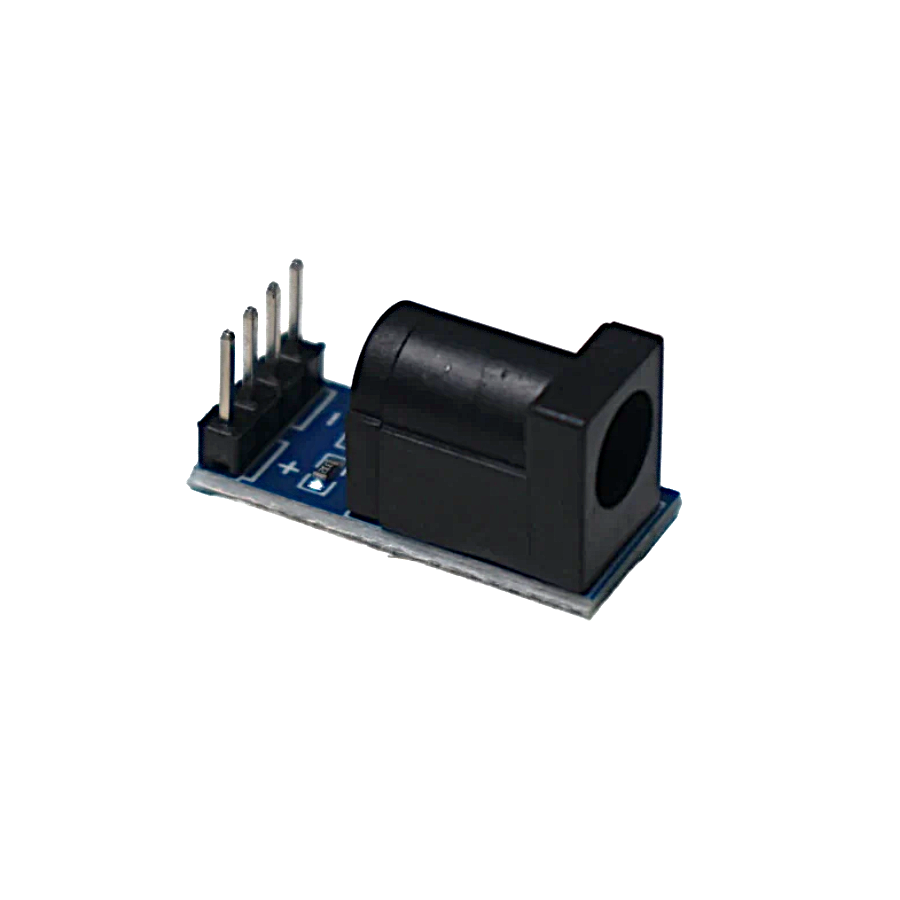

DC Power Module DC Power Adapter Plate
- The DC Power Module DC Power Adapter Plate provides a safe and reliable solution for connecting your project to a power source. Commonly used in industrial applications, this module offers an efficient way to interface with various power sources, allowing for easy and systematic connection and disconnection.
- Ideal for DIY projects, the DC Power Adapter Plate ensures a secure and safe power connection, protecting your circuit from short circuits. It is especially useful in prototyping, offering a convenient way to connect different power sources and power adapters to your application. This module is a practical choice for anyone looking to streamline their power management in electronics projects.
Features
- Compatible connector size: 5.5×2.1 mm.
- Power output interface: 2 VCC, 2-way GND
- This DC Power Module DC Power Adapter Plate has wide use for safe and reliable connection between various Application and power sources
Specifications;
| Power output interface | 2 VCC, 2-way GND |
|---|---|
| Compatible connector size | 5.5×2.1 mm |
| PCB Size ( L x W ) mm | 25 x 12 |
| Weight (g): | 3 |
Package Includes
- 1 x DC Power Module DC Power Adapter Plate
DC Power Module DC Power Adapter Plate Overview
The DC Power Module DC Power Adapter Plate is a compact breakout board designed to connect a 5.5×2.1 mm barrel jack to dual power rails. It provides two VCC and two GND outputs for easily distributing DC power to prototypes and electronic modules.
Key Features of DC Power Module DC Power Adapter Plate
- Compatible with standard 5.5×2.1 mm DC barrel connectors
- Dual power rails: 2 VCC outputs and 2 GND outputs
- Compact footprint: 26×12×13 mm for space-saving installations
- 6.5 mm mounting hole for secure attachment
- 2.1 mm pin diameter ensures snug connector fit
- Reliable and safe connections for protected circuits
- Fast shipping from Zbotic
Applications and Use Cases
- Breadboard prototyping with external DC adapters
- Powering microcontrollers like Arduino and Raspberry Pi
- Industrial control setups requiring secure power feeds
- Embedded robotics projects needing stable DC input
- LED strip installations using standard adapters
- Laboratory bench power distribution for testing modules
How to Use DC Power Module DC Power Adapter Plate
Mount the module using the 6.5 mm hole, insert a 5.5×2.1 mm DC barrel plug into the female jack, then connect your wires or header pins to the VCC and GND pads. Ensure polarity is correct before powering up to protect your circuit from short-circuit damage.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What barrel jack size does this module accept?
This adapter plate is designed for 5.5×2.1 mm DC barrel connectors, the industry standard for most power adapters.
How many outputs are available on the module?
The board provides two VCC outputs and two GND outputs, allowing parallel connection of multiple devices.
Can I mount this module inside an enclosure?
Yes, the 6.5 mm mounting hole lets you secure the module with a screw inside project boxes or panels.
Technical Specifications
| SKU | AI0520 |
|---|---|
| Weight | 0.00455 kg |
| Availability | Out of Stock |
Applications & Use Cases
The DC Power Module DC Power Adapter Plate is a versatile breakout board used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
