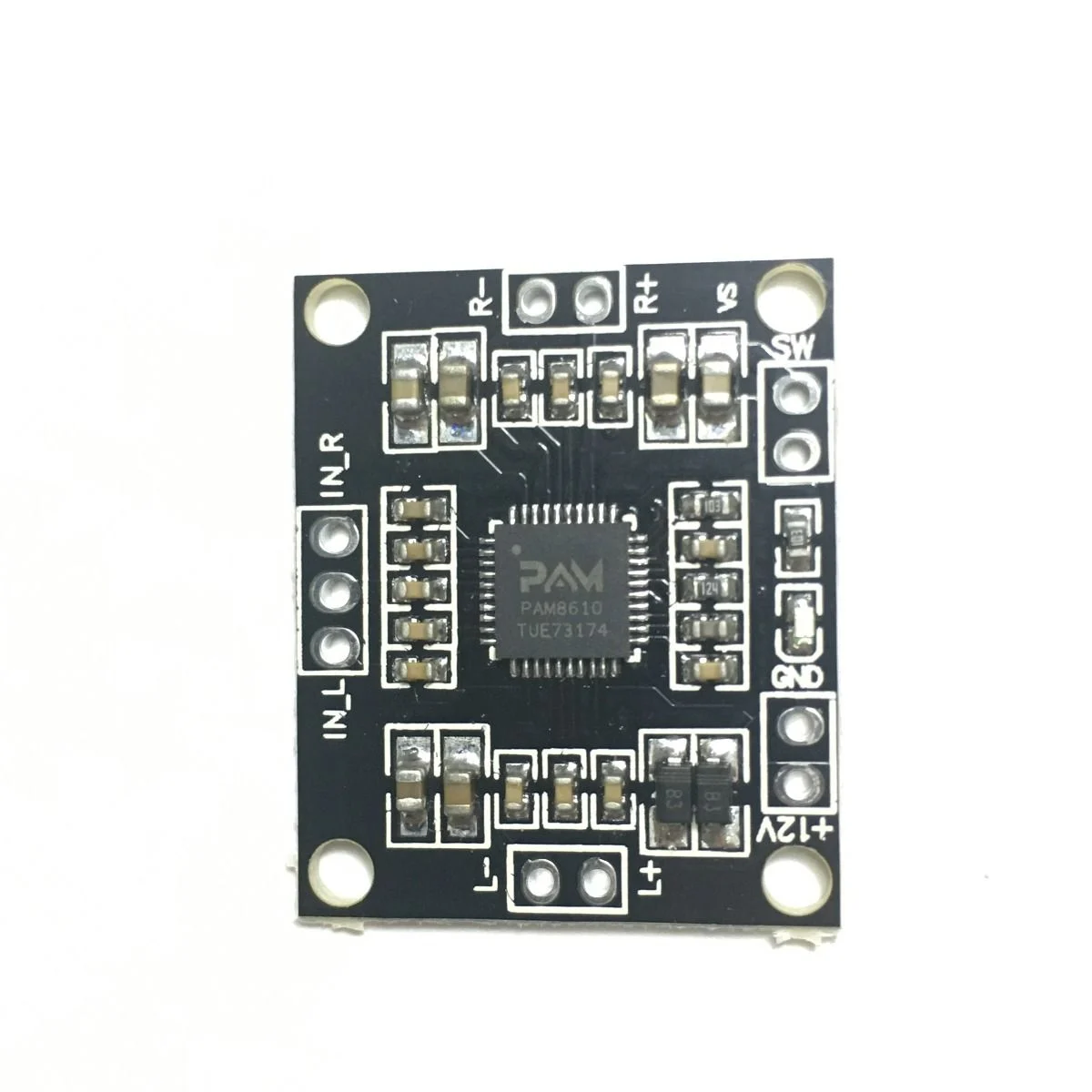

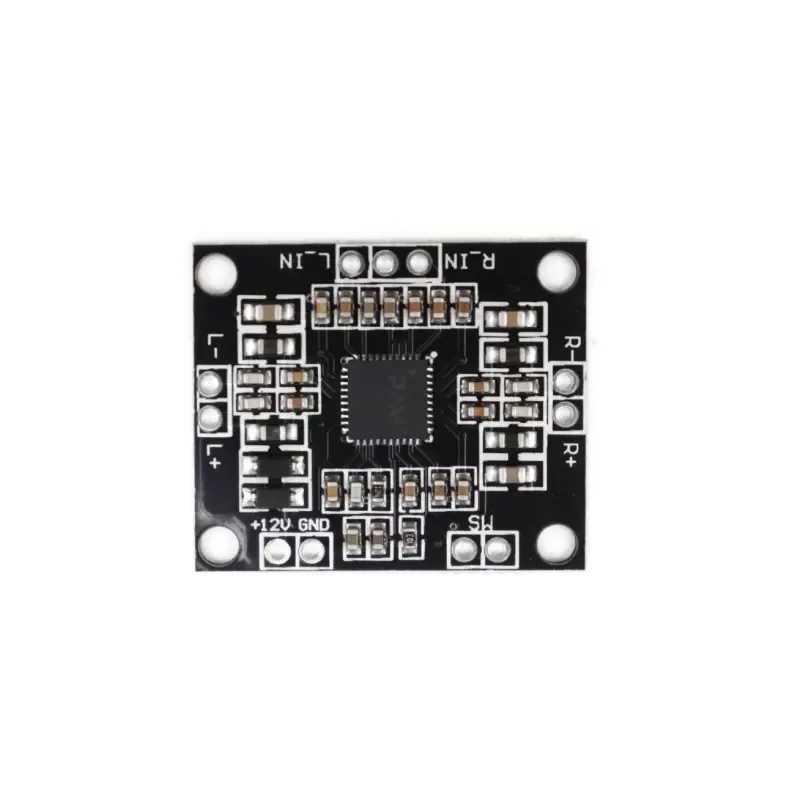

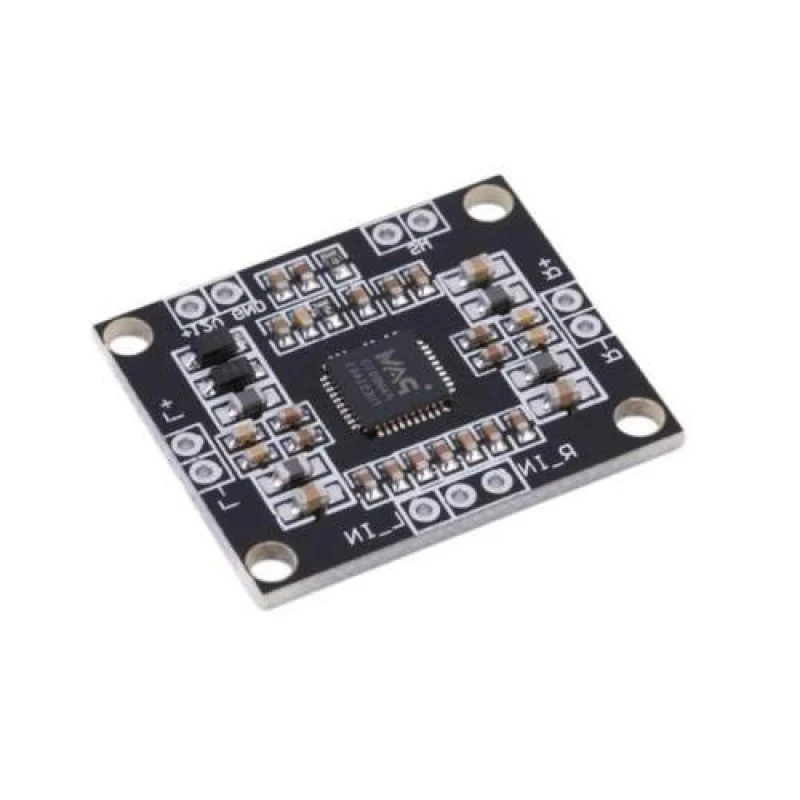

PAM 8610 Digital Stereo Class-D Amplifier Board 2x15W Output
The PAM8610 is a stereo Class-D audio amplifier that delivers 15W per channel, featuring a DC volume control for precise sound level adjustment. With a low total harmonic distortion plus noise (THD+N) of 0.1%, minimal electromagnetic interference (EMI), and strong power supply rejection ratio (PSRR), it ensures high-quality audio performance.
The DC volume control allows sound levels to be adjusted across a range of 32 steps, from 32dB to -75dB.
Operating on a supply voltage of 7V to 15V, the PAM8610 offers higher efficiency compared to competing amplifiers.
Designed to minimize cost and board space, the PAM8610 requires only a few external components.
Housed in a compact 40-pin QFN package (6 x 6 mm), this amplifier provides a stereo output of 2x15W.

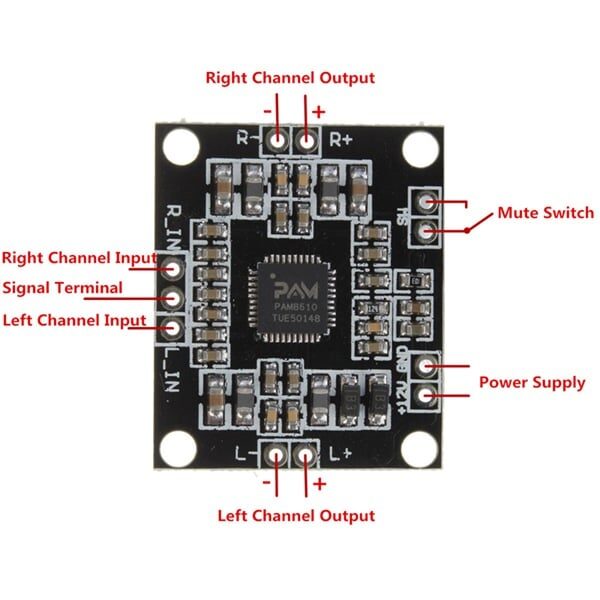

How to use:
- The power supply voltage limit is 16.5V, do not use more than this voltage.
- The power supply is recommended for 12v, 3A power supply filter better.
- 4-8 inch stereo speakers recommended.
- Do not short-circuit the audio output to each other or shorted to ground.
- Carefully check before electricity, ensure the wiring is correct before electricity.
Features:
- This plate with a switching function, SW short, will turn off the power amplifier.
- Working Mode: Class D (PWM modulation type).
Specification:
| Model | PAM 8610 |
|---|---|
| Input Voltage (V) | 7 ~ 15 |
| Working Mode | Class D (PWM modulation type) |
| Power (W) | 15 |
| Length (mm): | 30.5 |
| Width (mm) | 25.5 |
| Height (mm) | 2.6 |
| Weight (gm) | 5 |
| Shipping Weight | 0.01 kg |
| Shipping Dimensions | 15 × 10 × 6 cm |
Package Includes:
Technical Specifications
| Package Quantity | 15 pcs |
|---|---|
| SKU | AI3441 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The PAM 8610 Digital Stereo Class-D Amplifier Board 2x15W Output is a versatile breakout board used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
