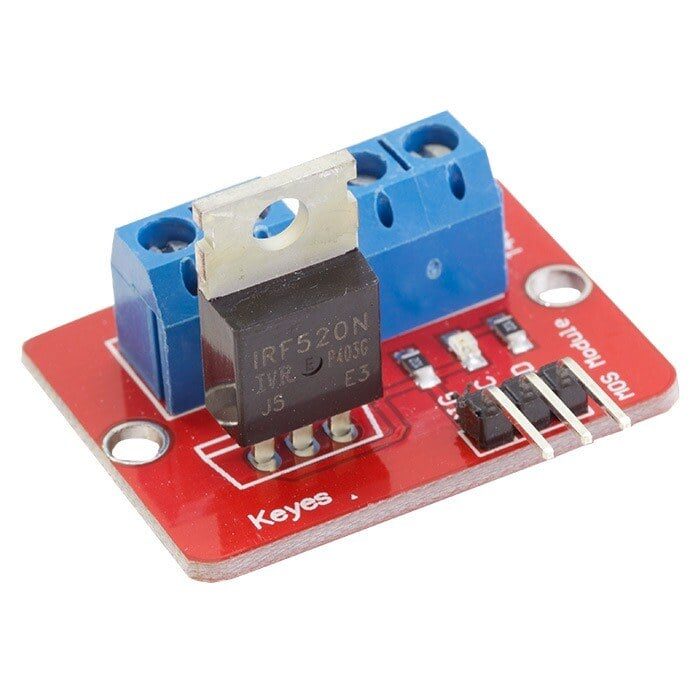

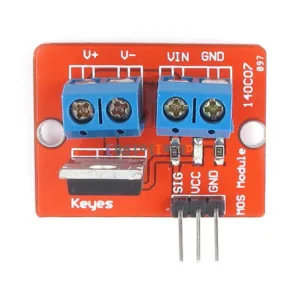

Product Description:
The IRF520 MOSFET Driver Module is a small circuit board that can control a large amount of current and voltage from a single digital pin of your microcontroller. It uses the IRF520 MOSFET transistor to switch high-power DC devices, such as motors, pumps, or LEDs.
This module is easy to connect to your Arduino or any other 3-5V microcontroller. You can use a PWM pin to vary the current and speed of your device. The module can handle up to 24V and 5A of power.

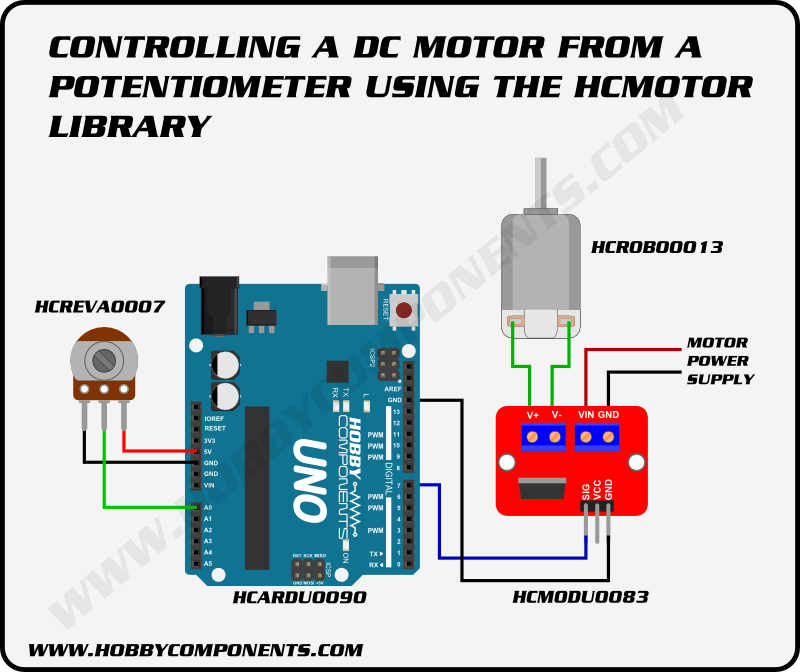

The main application of this module is to drive a DC motor for robotics projects, but you can use it for any DC load that needs a lot of power. The module has screw terminals for connecting your power source and your load. It also has an LED that shows when the load is on or off.
The module works as follows:
– You connect your power source to the Vin and GND terminals.
– You connect your load to the V+ and V- terminals.
– When the SIG pin is HIGH, the LED turns on, and the MOSFET connects the V- terminal to the GND terminal, completing the circuit for your load.
– When the SIG pin is LOW, the LED turns off, and the MOSFET disconnects the V- terminal from the GND terminal, breaking the circuit for your load.
– The V+ terminal is always connected to the Vin terminal.
You can also power this module from your Arduino, by connecting the VCC pin to the 5V pin and the GND pin to the GND pin on your Arduino.

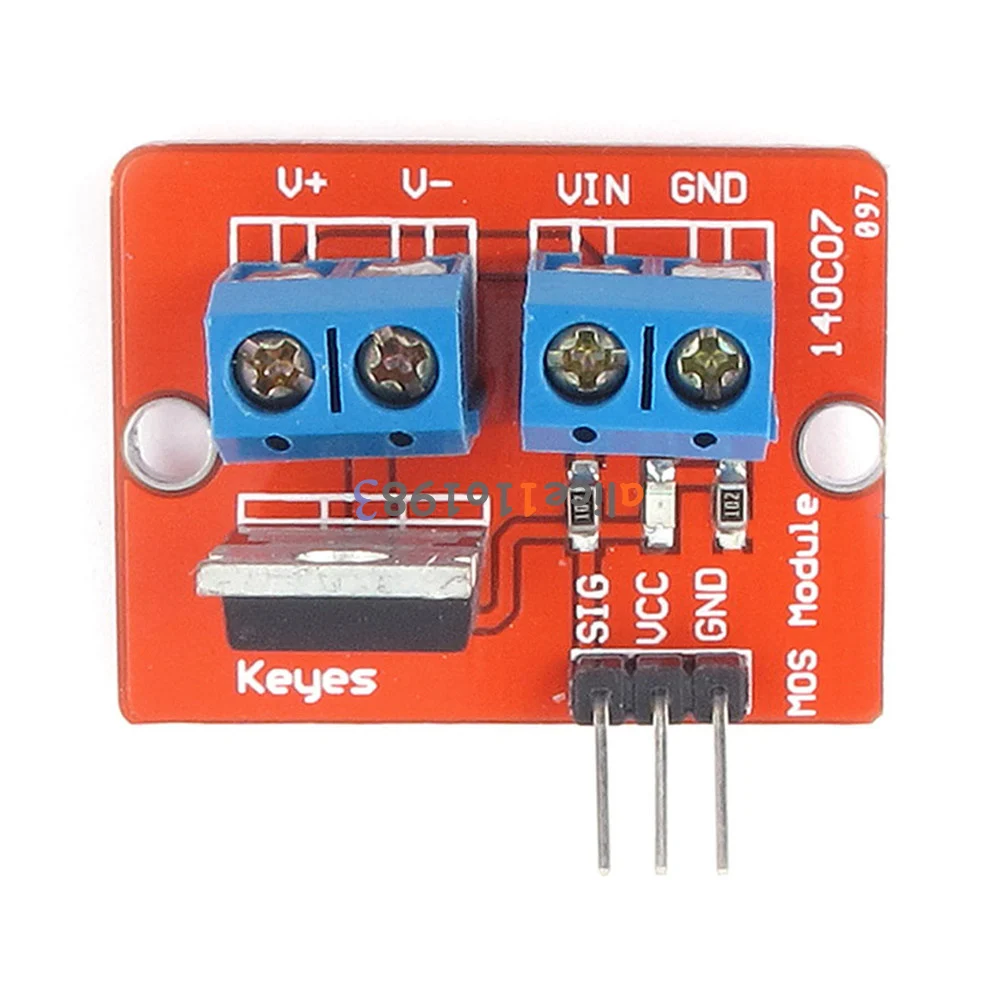

Pin Connections :
Features :
- Using original IRF520 Power MOS, you can adjust the output PWM
- Arduino drive up to 24V allows the load, such as LED lights, DC motors, miniature pumps, solenoid valves
- PWM dimming LED can be used to achieve step less dimming, variable speed motor.
Specification-
| Operating Voltage (VDC) | 3.3 ~ 5 |
|---|---|
| Ports | Digital Level |
| Output load voltage(V) | 0 to 24 |
| Output load current(A) | <5 (1A above need to add heat sink) |
| Platform | Arduino, MCU, ARM, Raspberry PI |
| Length (mm): | 34 |
| Width (mm) | 30 |
| Height (mm) | 18 |
| Weight (g): | 10 |
| Shipping Weight | 0.015 kg |
| Shipping Dimensions | 4 × 4 × 3 cm |
Package Includes :
1 x IRF520 MOSFET Driver Module.
Technical Specifications
| Brand | Arduino |
|---|---|
| Model | IRF520 |
| SKU | AI2498 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The IRF520 MOSFET Driver Module for Arduino ARM Raspberry pi is a versatile breakout board used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
