This is the Red variant of the Mini Digital Power Amplifiers 3W Dual Track Red PAM8403 in Breakout Board. Available at ₹42.72 (₹36.20 + GST) with free shipping across India.

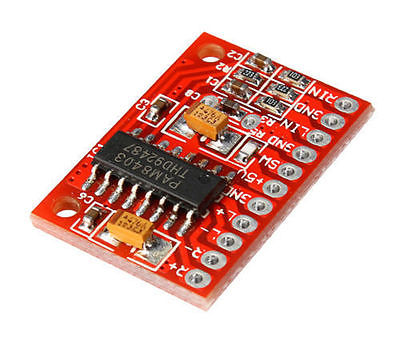

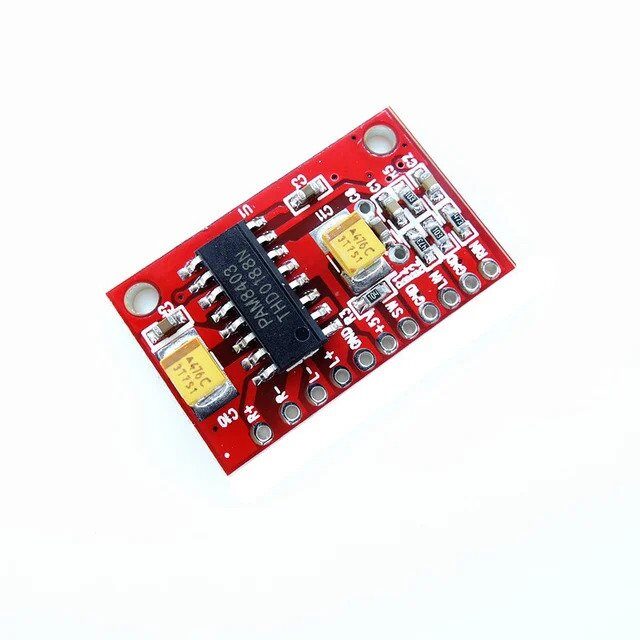

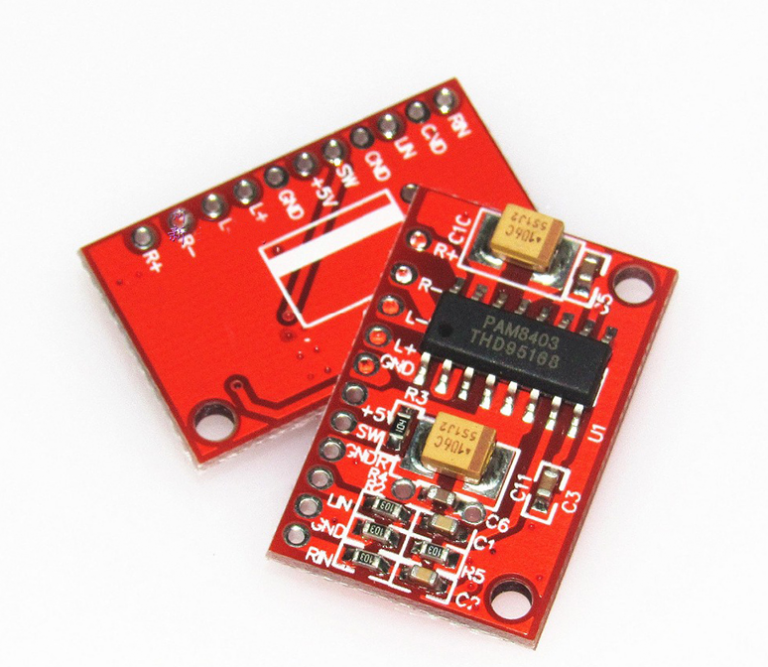

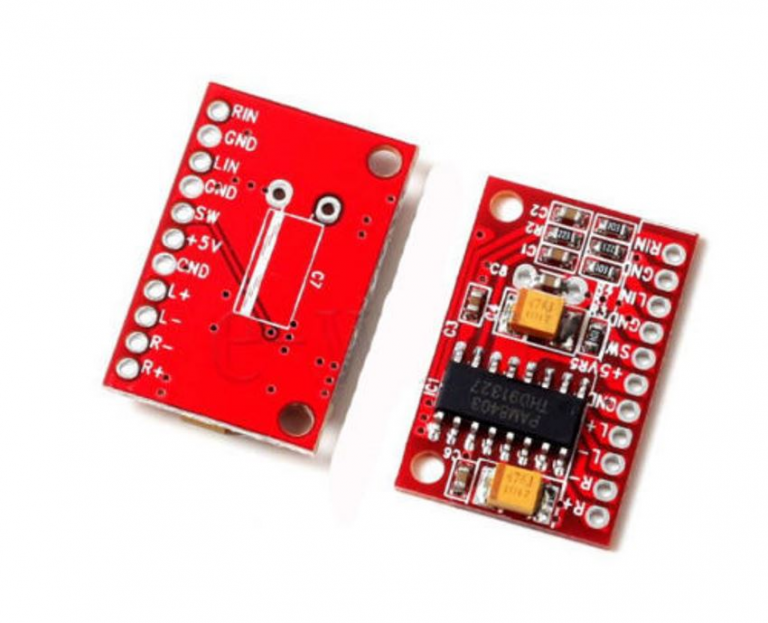

Mini Digital Power Amplifiers 3W Dual Track Red PAM8403
The Mini Digital Power Amplifiers 3W Dual Track Red PAM8403 combines the performance of Class AB power amplifiers with the efficiency of Class D power amplifiers. It does not need a low-pass filter at the output, unlike traditional Class D amplifiers, which reduces noise and saves space. It is ideal for portable applications because it requires very few external components.
The PAM8403 can deliver 3W of power with more than 90% efficiency and has both system shutdown and mute control features. It also has a special line architecture that improves noise immunity and reduces RF interference.
PAM8403 Features: Filterless Class D amplifier with low quiescent current and low EMI. Up to 3W output power at 4 ohm load and 5v power supply. High efficiency up to 90%, low THD, low noise. Short circuit current protection, thermal protection. Minimal external components, saving cost and space.
Features
A d-type amplifier without a filter, low quiescent current, and low EMI.
When connects with a 4-ohm load and 5V power supply, the output power can be up to 3W.
Low THD, low noise.
Short circuit protection; thermal protection.
Specifications:
Operating Voltage (VDC):
2.5 ~ 5.5
Output Power(Watt)
3W+3W.
Input Impedance
2 Kohm.
Output Impedance
4 ohm.
Efficiency
90%.
No. of Sound Channel
2
Frequency Response
50 Hz – 20 KHz.
Dimensions (LxWxH) mm
15 x 20 x 4
Weight (g):
5
Package Includes
1 x Mini Digital PAM8403 Power Amplifiers 3W Dual Track Red.
Mini Digital Power Amplifiers 3W Dual Track Red PAM8403 Overview
The Mini Digital Power Amplifiers 3W Dual Track Red PAM8403 is a compact Class D audio amplifier module designed to drive two 4 Ω speakers at up to 3 W per channel. Its filterless design and low quiescent current make it ideal for space-constrained portable audio projects and DIY electronics.
Key Features of Mini Digital Power Amplifiers 3W Dual Track Red PAM8403
Filterless Class D amplifier delivers up to 3 W per channel into 4 Ω loads
High efficiency over 90% reduces heat and power consumption
Wide input voltage range: 2.5 V to 5.5 V (USB-powered ready)
Built-in mute and shutdown control pins for easy system integration
Low EMI design with special line architecture for improved noise immunity
Compact PCB size (15 × 20 mm) with 2 kΩ input impedance and 150 Hz–20 kHz frequency response
Genuine product, fast shipping from Zbotic
Applications and Use Cases
Portable Bluetooth speaker amplifiers
Raspberry Pi or microcontroller-based audio projects
DIY intercom and public announcement systems
Handheld gaming console audio output
Robotics voice feedback and alert systems
Compact multimedia and headphone docking stations
How to Use Mini Digital Power Amplifiers 3W Dual Track Red PAM8403

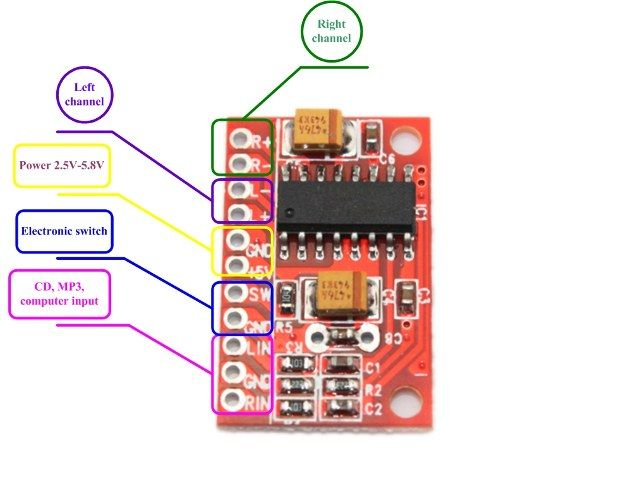

Connect a stable 2.5–5.5 V supply (such as USB 5 V) to the VCC and GND pins, feed your audio source into the left and right input pins, and wire 4 Ω speakers to the corresponding L+/L– and R+/R– outputs. Use the mute and shutdown pins to control audio on/off in your circuit. Secure the module on your project board and enjoy high-fidelity audio without external output filters.
Why Buy from Zbotic?
Genuine Products: All items sourced from authorized distributors
Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
Free Shipping: Free delivery on qualifying orders
COD Available: Cash on Delivery, UPI, cards, net banking
Technical Support: Expert help for setup and troubleshooting
Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What input voltage range does the PAM8403 amplifier support?
The module operates from 2.5 V up to 5.5 V, making it compatible with standard USB 5 V supplies and small battery packs.
Do I need external low-pass filters on the outputs?
No. The PAM8403’s filterless Class D architecture eliminates the need for external output filters, saving board space and components.
Can I use 8 Ω speakers with this amplifier?
Yes, you can connect 8 Ω speakers, but the maximum output power will drop to around 1.5 W per channel compared to 3 W on 4 Ω loads.
The Mini Digital Power Amplifiers 3W Dual Track Red PAM8403 is a versatile breakout board used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
Integrating into a custom electronics project
Learning and experimenting with circuits
Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
