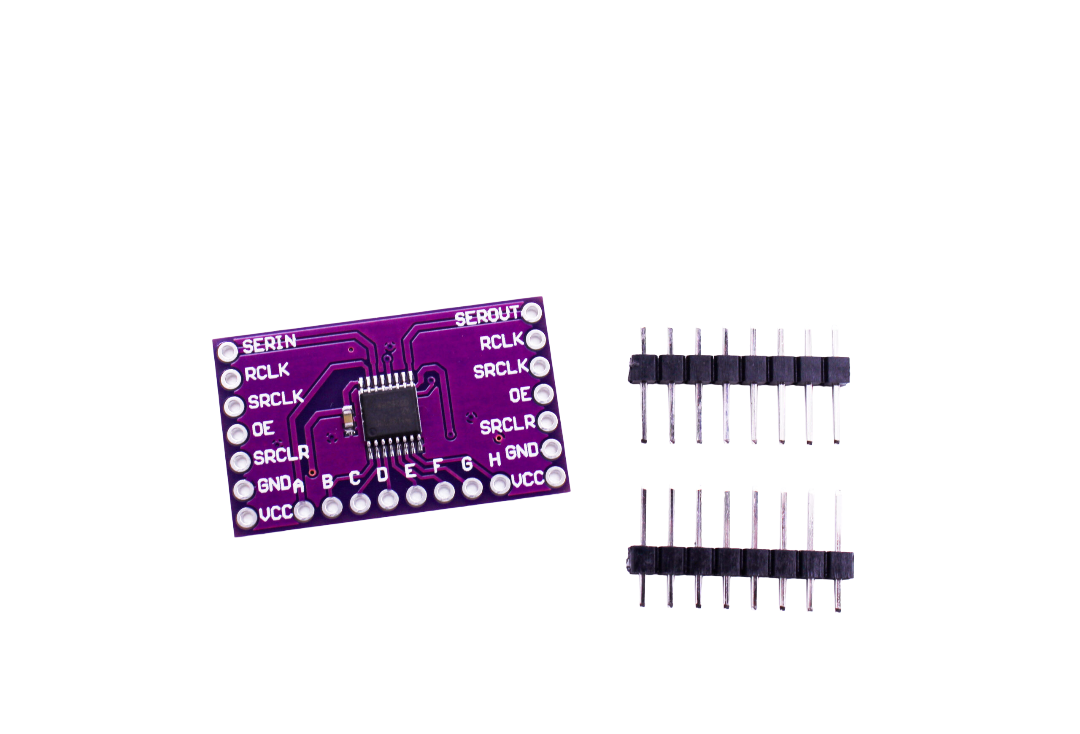

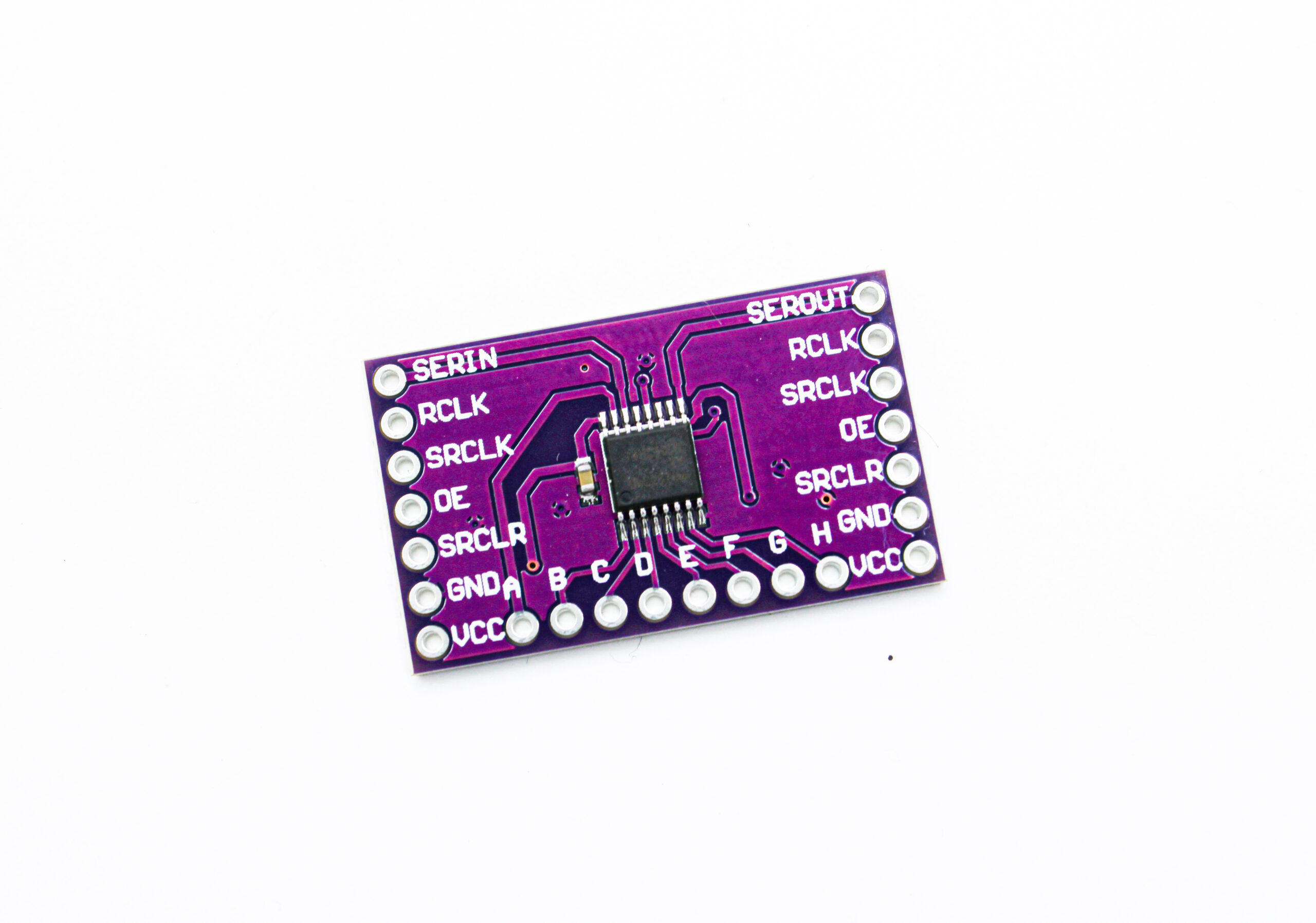

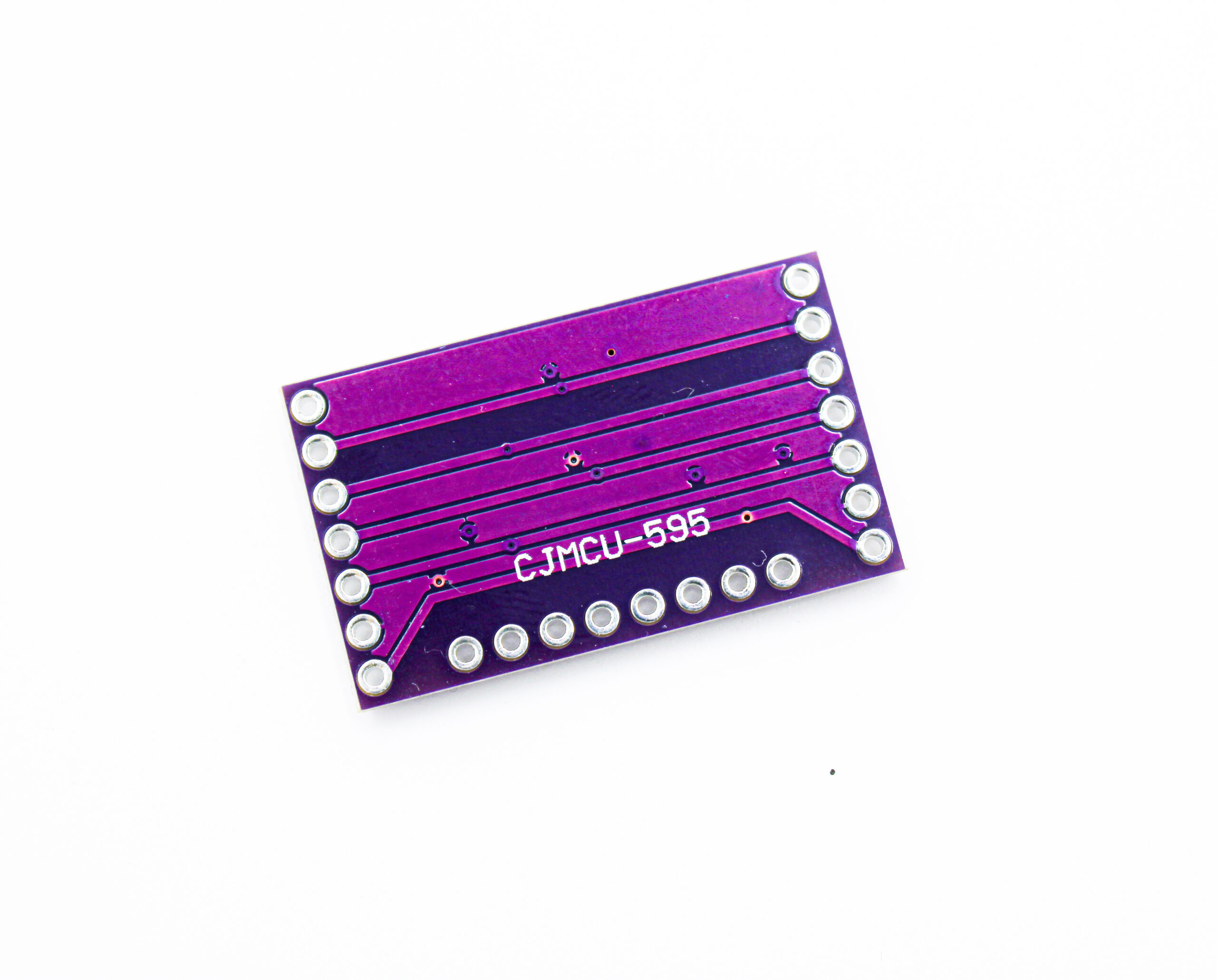

Shift Register Breakout – 74HC595 Board Module

₹95.0 ( +GST 18% )

  • ⚡ Dispatched within 24 hours*
  • 💸 COD Orders above 250rs*
  • ✅15 days warranty*
  • 🛠️ Dedicated Technical Support Team
  • 🚚 Free shipping on orders above Rs 499/- for b2c customers

QUICK OVERVIEW

  • SOIC version of the 74HC595 shift register IC
  • The Serial in and out pins are on opposite sides of the board
  • All pins from the IC are broken out to standard 0.1″ spaced headers.

For B2B Enquiry Email Us:- [email protected]

50 in stock

Compare
Add to wishlist
SKU: AI0196 Categories: Breakout Boards, Electronic Modules Tags: 74HC595, 74HC595 Shift Register, Breakout Module, SparkFun
Share:
  • Description
  • Additional information
  • Reviews (0)
  • COO Info
Description

Product Description

This is a breakout for the SOIC version of the 74HC595 shift register IC. Clock in data and latch it to free up IO pins on your micro. All pins from the IC are broken out to standard 0.1″ spaced headers. The Serial in and out pins are on opposite sides of the board with the remaining pins carried over so that multiple shift register boards can be chained together.

74HC595 contains a 8 bit serial input, parallel output shift register, which provides data for a 8 bit D type storage register. 74HC595 storage register with three state outputs. The shift register and the storage register are independent of the clock. 74HC595 shift register with the highest priority direct clear SRCLR Serial input (SER) and serial output for cascading. When the output enable OE . When the output is high, the output of the 74HC595 will be in a state of high resistance.

Whether the shift register clock (SRCLK) or the memory register clock (RCLK), is the rising edge of the trigger. If the two clocks are bound together, the shift register will always be ahead of the storage register a clock pulse.

Features

  • SOIC version of the 74HC595 shift register IC
  • The Serial in and out pins are on opposite sides of the board
  • All pins from the IC are broken out to standard 0.1″ spaced headers.
  • Dimension: Approx. 30*26*4mm

Package Includes

  • 1x 74HC595 Shift Register Breakout Module



Resources

1.Schematic

2.Eagle Files

3.Shift Register Tutorial

4.Datasheet (MM74HC595M)

5.7-Segment Library

6.GitHub (Design Files)
