This is the White variant of the White Reed Switch Y213 2*14mm Normal Open in Vibration/Tilt Sensor and Modules. Available at ₹9.56 (₹8.10 + GST) with free shipping across India.
Product Description

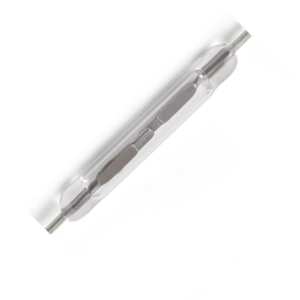

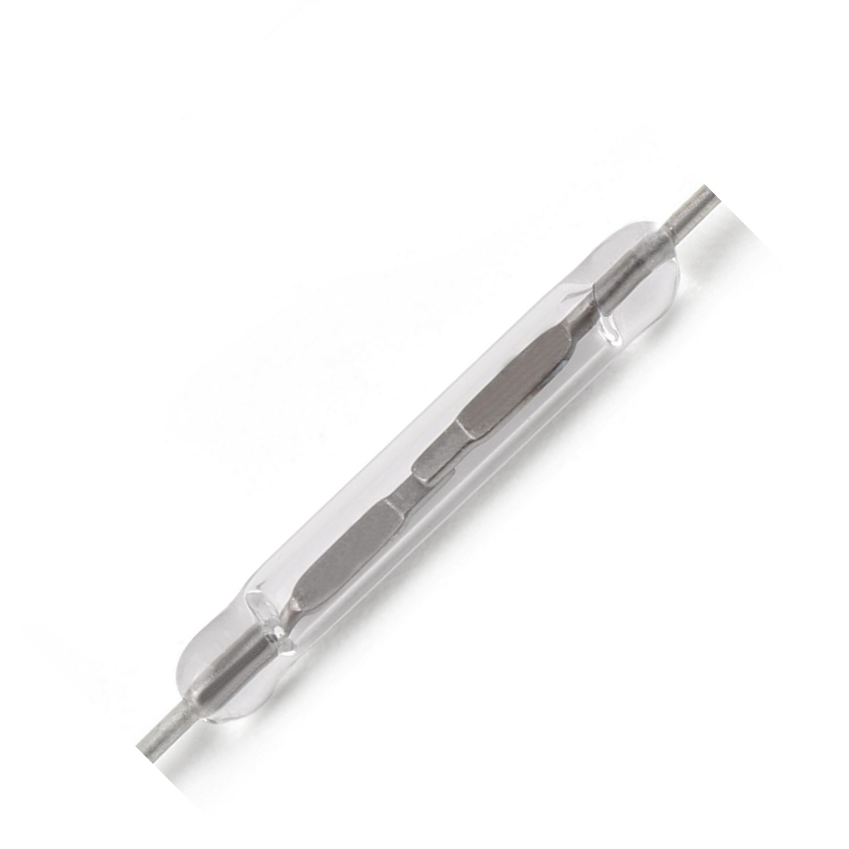

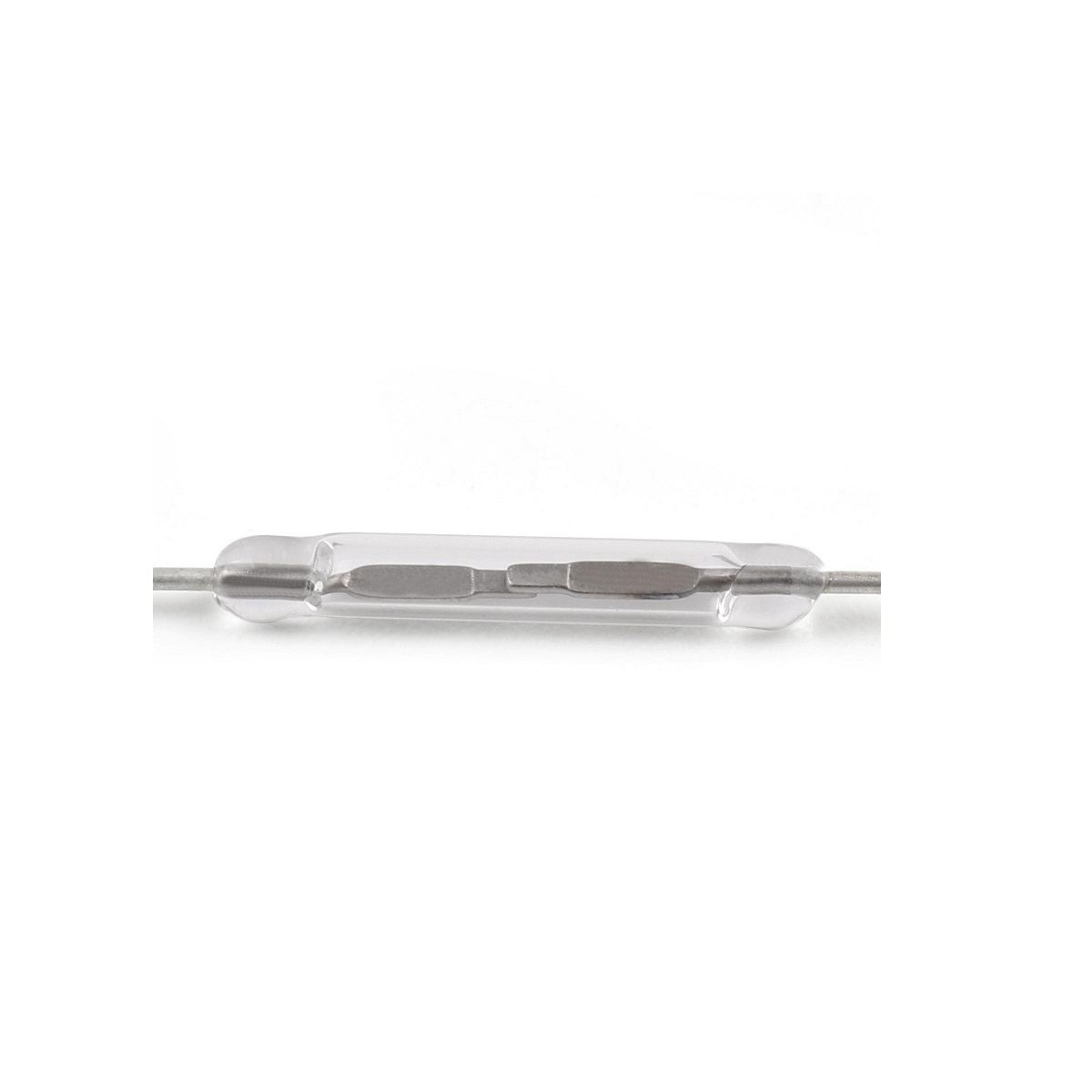

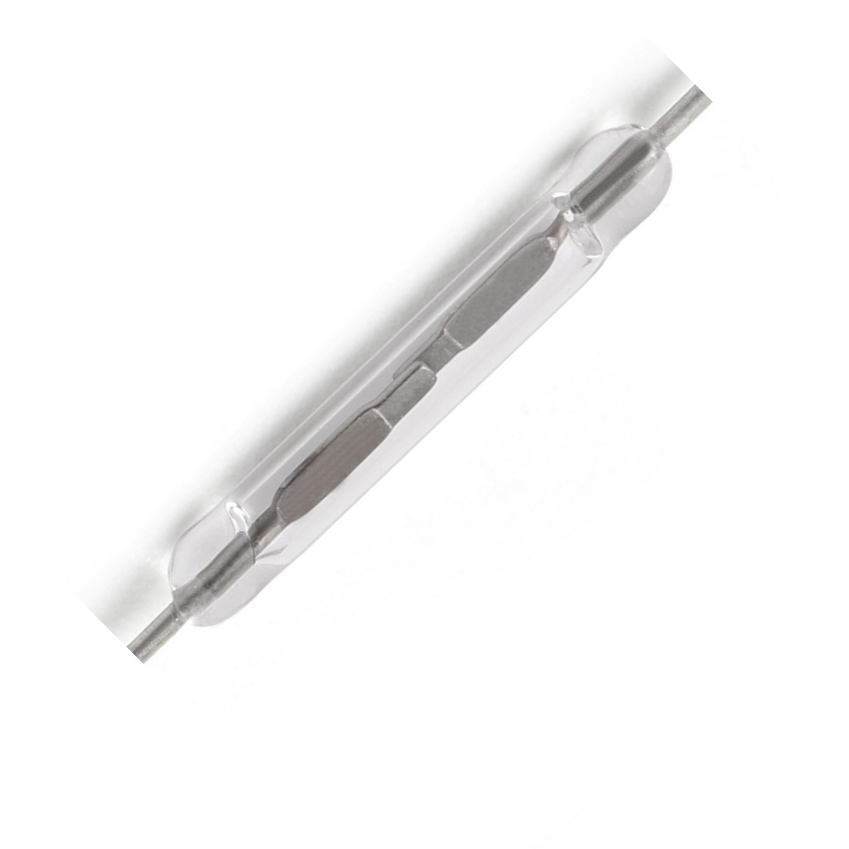

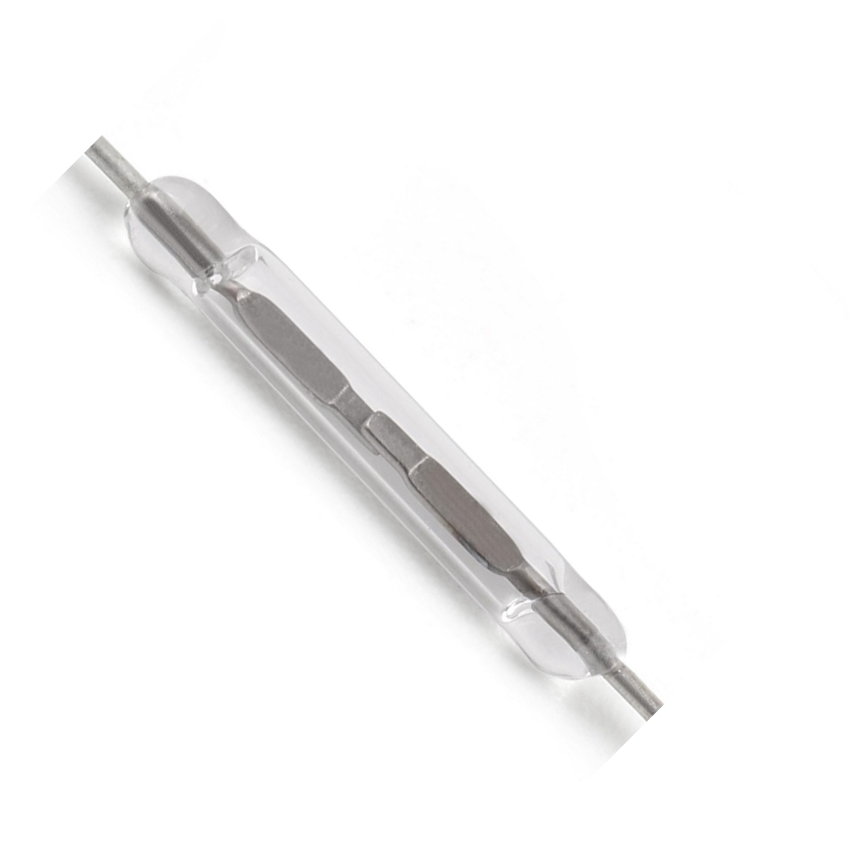

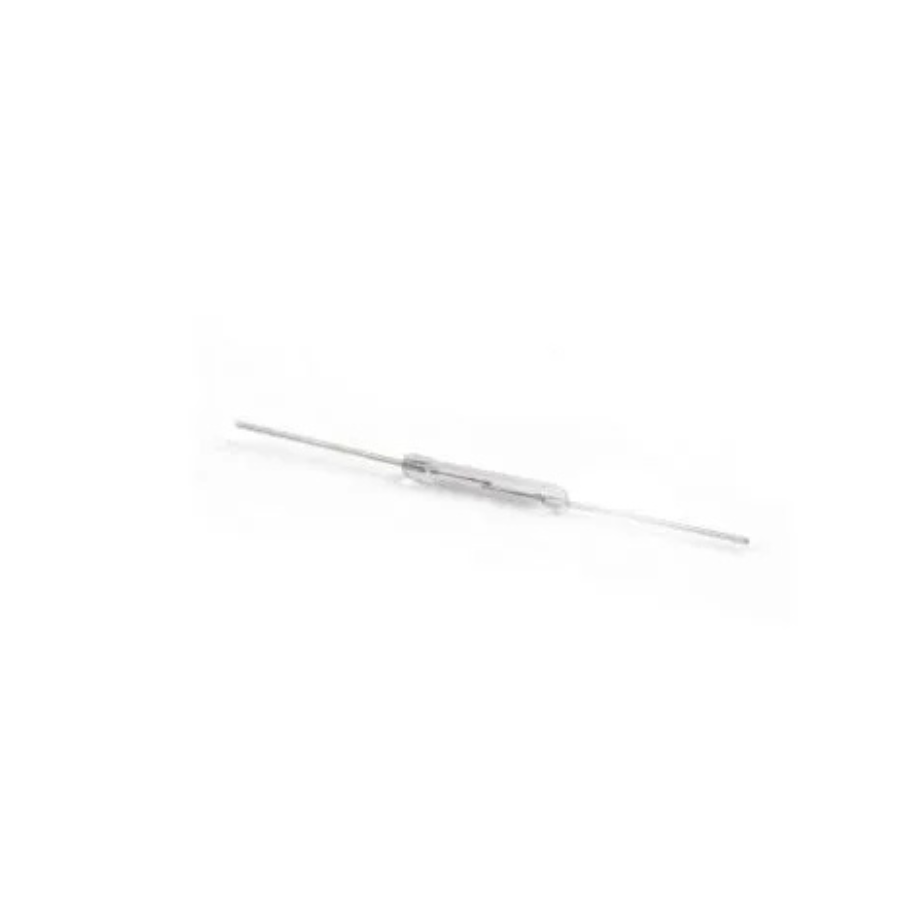

This is a 2 x 14 mm Reed Switch with a Normally Open Contact.
The switch has two ferrous pins inside that are attracted to each other when a magnetic field is present, closing the switch. When the magnetic field is gone, the pins separate and the switch opens. This allows for a non-contact switching mechanism. The switch can handle up to 1.2A of current.
This module is versatile and can work in various environmental conditions. It has a reliable operating temperature range of -50°C to 140°C.
Features:
- Small Module.
- Very easy to use.
- Direct connection in the circuit.
Specification:
| Glass Length | 14mm |
|---|---|
| Glass Diameter | 2mm |
| Total Length | 45mm |
| Max. Switching Voltage | 300 VDC |
| Min. Breakdown Voltage | 150 VDC |
| Max. Contact Rating | 10W |
| Max. Switching Current | 0.55 A |
| Max. Operate time | 0.45 ms |
| Bounce time | 0.25 ms |
| Max. Release time | 0.35 ms |
| Resonant Frequency | 5000 HZ |
| Max. Operating Frequency | 400 HZ |
| Shipping Weight | 0.001 kg |
| Shipping Dimensions | 6 × 1 × 1 cm |
Package Includes:
1 x White Reed Switch Y213 2x14mm Normal Open.
Tutorial:
MAX30102 Pulse Oximeter: SpO2 and Heart Rate Arduino
Table of Contents What Is the MAX30102 Sensor? How Pulse Oximetry and SpO2 Measurement Work MAX30102 Module Pinout...
Read More →
Capacitive Soil Sensor vs Resistive: Which Is More Accurate?
Table of ContentsIntroductionHow Resistive Soil Sensors WorkHow Capacitive Soil Sensors WorkAccuracy ComparisonDurability and LifespanWiring Both Sensors to ArduinoArduino...
Read More →
Sensor Accuracy vs Precision: Understanding the Difference
Every hobbyist, engineering student, or professional who has ever worked with sensors has encountered the terms accuracy and...
Read More →Technical Specifications
| Model | Y213 |
|---|---|
| Size | 14mm |
| Color | White |
| SKU | AI2841 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The White Reed Switch Y213 2*14mm Normal Open is a versatile vibration/tilt sensor and modules used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
