Product description:
Introducing the MAX7219 Dot LED Matrix Module MCU Control LED Display Module, a cutting-edge LED display module featuring the MAX7219 Driver chip for easy integration into your projects. This module allows you to create stunning animations and dynamic visual displays effortlessly.
The MAX7219 is a versatile integrated serial input/output common-cathode display driver, capable of controlling an 8-digit 7-segment digital LED display, bar graph display, or 64 individual LEDs. It includes a BCD encoder, a multi-channel scanning loop, and an 8×8 static RAM for data storage. With just one external register needed to set the current for each LED segment, operation is both efficient and straightforward.
Connecting multiple modules is simple—just link the output pins of one breakout board to the input pins of the next. This scalability allows you to connect numerous DOT LED Modules to your Arduino, enhancing your project’s versatility.
The module boasts a compact display size and requires only three communication wires from the MCU, making it perfect for space-constrained projects. Cascading multiple Matrix LED Modules is a breeze, offering design and configuration flexibility. Additionally, the PCB features M3 holes for easy mounting, making installation convenient.
Experience the versatility and ease of use of the MAX7219 Dot LED Matrix Module MCU Control LED Display Module, and bring your projects to life with captivating visual displays.
Pin Connection:
Dot LED Module to the Arduino
VCC – 5V
GND – GND
DIN – Pin 12
CS – Pin 10
CLK – Pin 11
Features:
- Compact display size
- Requires only 3 communication wires of MCU
- Easy cascading of multiple Matrix LED Modules
- PCB features M3 mounting holes for convenient installation
Specifications:
| Driver IC | MAX7219 |
|---|---|
| Input Voltage (V) | 5 |
| Max. Operating Current (mA) | 320 |
| LED Color | Red |
| Length (mm): | 32 |
| Width (mm): | 32 |
| Height (mm): | 6 |
| PCB Size ( L x W ) mm | 50 x 32 |
| Weight (g): | 20 |
Package Includes

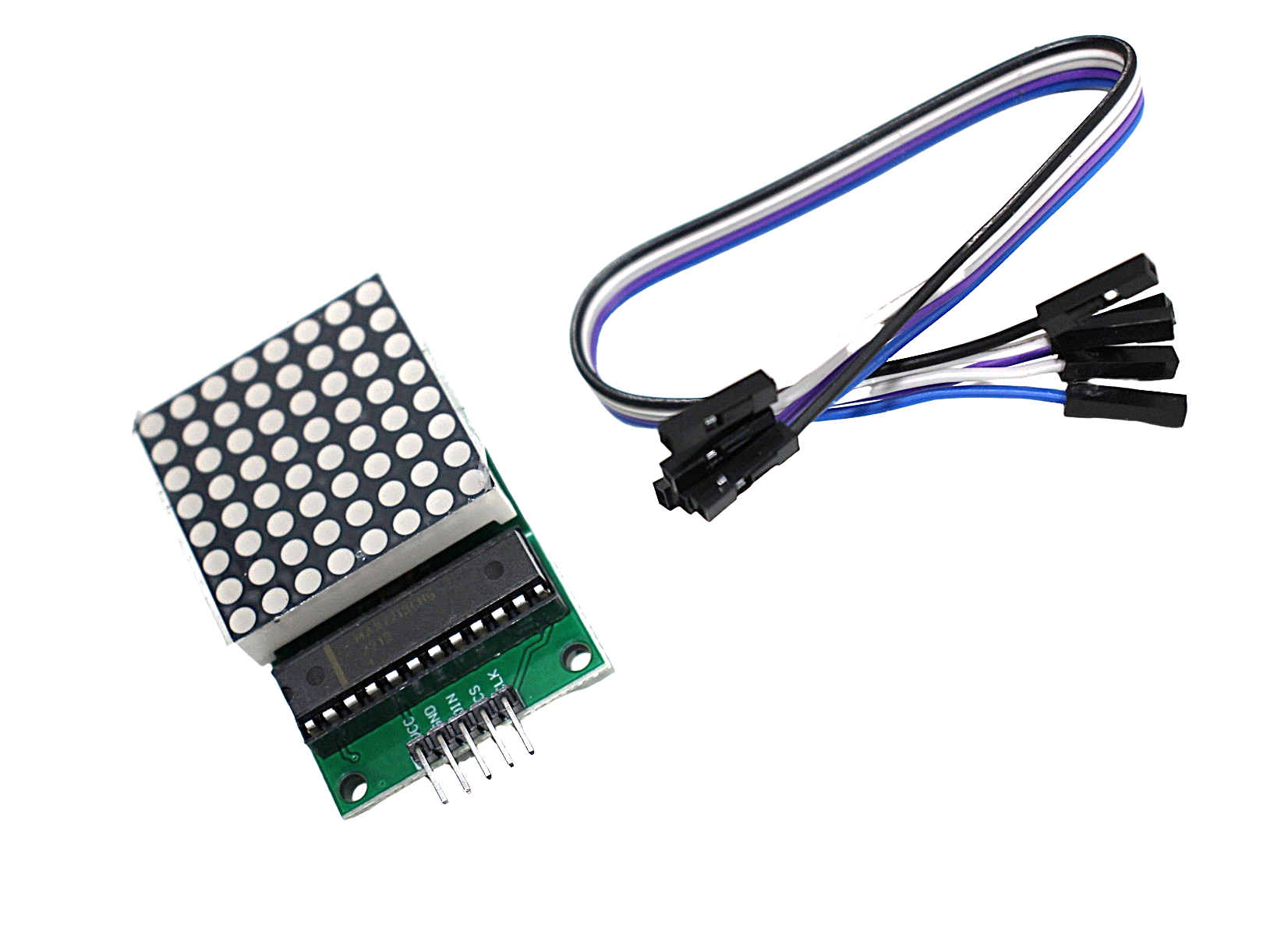

- 1 x Dot LED Matrix Module
- 1 x Connecting Wire
