PRODUCT DESCRIPTION
This module serves as a normally open vibration sensor, ideal for various applications such as triggering theft alarms, controlling smart vehicles, or building electronic projects. It’s important to note that this sensor only detects minor vibrations briefly, which is not sufficient to activate a relay. Therefore, connecting this module directly to a relay is ineffective.
When stationary, the vibration switch remains off, resulting in a high output signal, and the module’s green light stays unlit. Upon detecting vibration, the switch activates momentarily, causing the output signal to drop to low and the green light to flash.
By connecting the output to a microcontroller, you can monitor the high and low states, enabling the detection of vibrations in the environment and triggering an alarm if needed.
Connection
VCC: Connect the positive power supply
GND: Connect to the negative power supply
DO: The digital signal output
Features :
- Using the company’s high-sensitivity vibration switch, the default with SW-18015P vibration sensor.
- The comparator output, the signal clean, good waveform, driving ability, more than 15mA
- With a fixed bolt hole, easy to install.
- The use of wide voltage LM393 comparator.
Specification:
| Operating Voltage (VDC) | 3.3 ~ 5 |
|---|---|
| PCB Size ( L x W ) mm | 32 x 14 |
| Shipping Weight | 0.006 kg |
| Shipping Dimensions | 5 × 3 × 2 cm |
Package Includes :
1 x Normally open vibration sensor module.

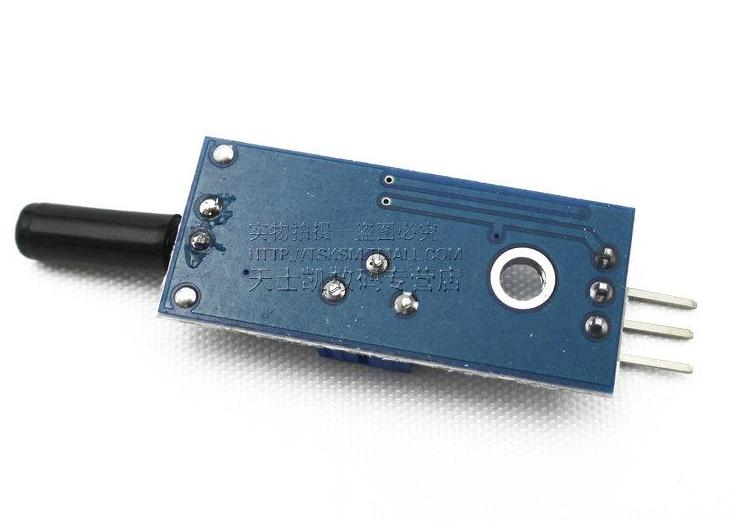

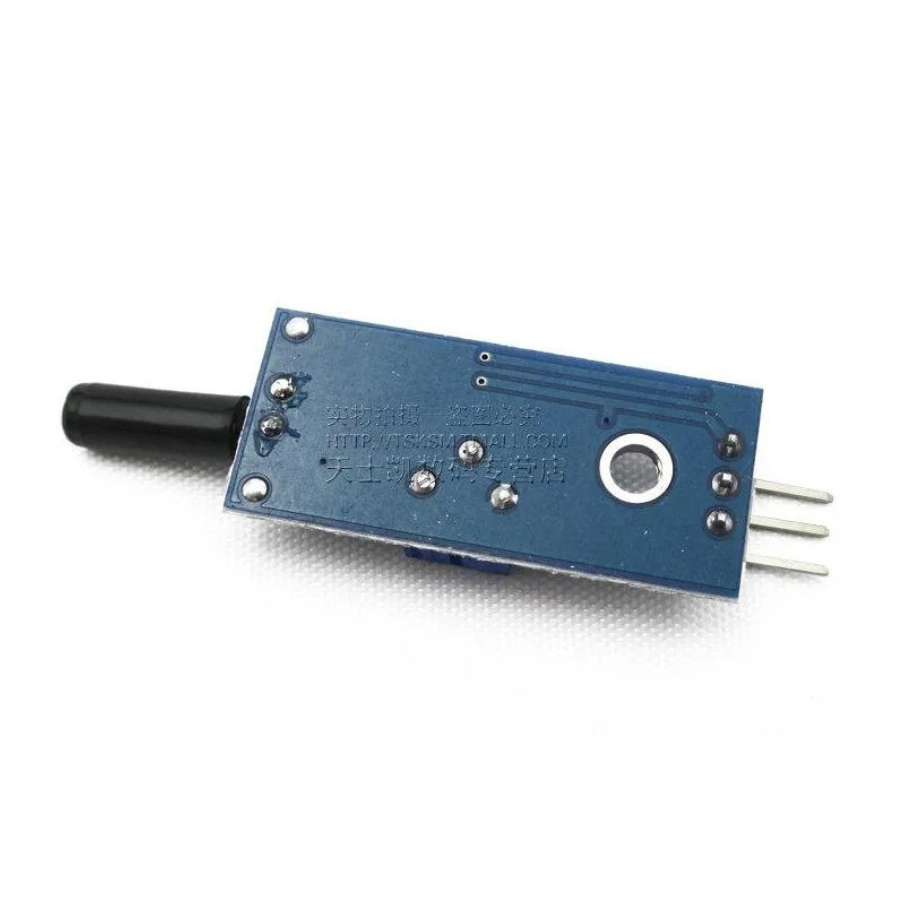

Normally open vibration sensor module Overview
The Normally open vibration sensor module features a high-sensitivity SW-18015P switch paired with an LM393 comparator, delivering clean digital output pulses when vibration is detected. Designed for 3.3 V–5 V operation, it’s ideal for integrating into microcontroller projects that require simple vibration sensing.
Key Features of Normally open vibration sensor module
- Operating voltage: 3.3 V to 5 V for compatibility with popular microcontrollers
- High-sensitivity SW-18015P vibration switch for reliable detection of minor shocks
- LM393 comparator output provides clean digital waveform and >15 mA drive capability
- Built-in green LED flashes on vibration, offering visual feedback
- Fixed bolt hole for secure and easy installation in any enclosure
- Fast shipping from Zbotic—get your module in 24 hours*
Applications and Use Cases
- Theft or tamper alarms that trigger on even slight movement
- Collision or bump detection in smart vehicles and robotics
- Vibration monitoring for manufacturing equipment or industrial machinery
- Interactive museum exhibits that respond to audience interaction
- Package or delivery drop detection in logistics systems
- DIY security gadgets and alarm systems using Arduino or ESP32
How to Use Normally open vibration sensor module
Connect VCC to your 3.3 V–5 V supply, GND to ground, and the OUT pin to a digital input on your microcontroller. Mount the module securely using the bolt hole, then read the pin: it remains HIGH when idle and goes LOW momentarily on vibration, with the on-board LED flashing to indicate each event.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can this module directly drive a relay?
No, the module’s low output pulse is brief and limited to 15 mA, which is insufficient to energize a relay coil. Use it to signal a microcontroller, then switch a relay via a transistor or MOSFET driver.
What is the output signal behaviour?
The output pin remains HIGH when no vibration is present and drops to LOW momentarily upon detecting vibration. A green LED flashes in sync with each detection, providing immediate visual feedback.
What voltage range does the module support?
This vibration sensor module operates over a wide 3.3 V–5 V range thanks to its LM393 comparator, making it fully compatible with both 3.3 V and 5 V microcontroller boards like Arduino, ESP32, and others.
