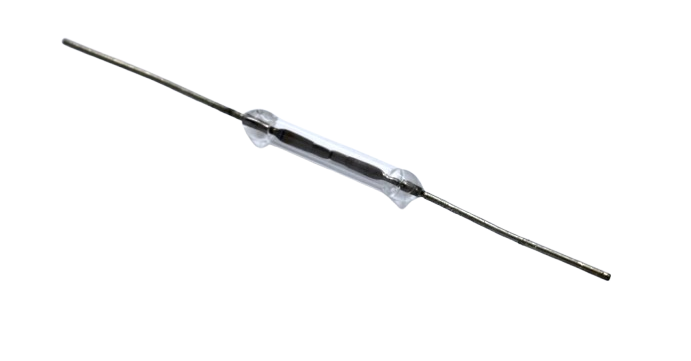

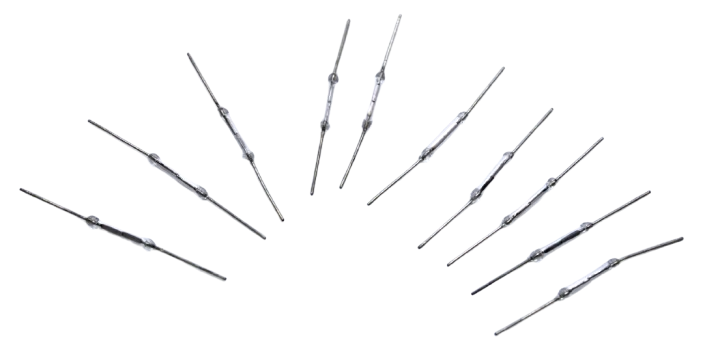

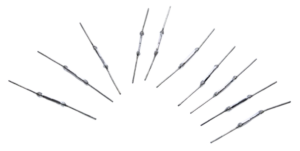

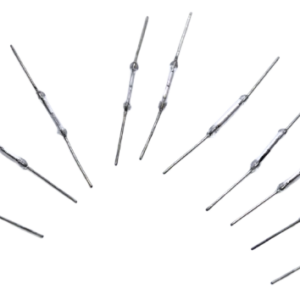

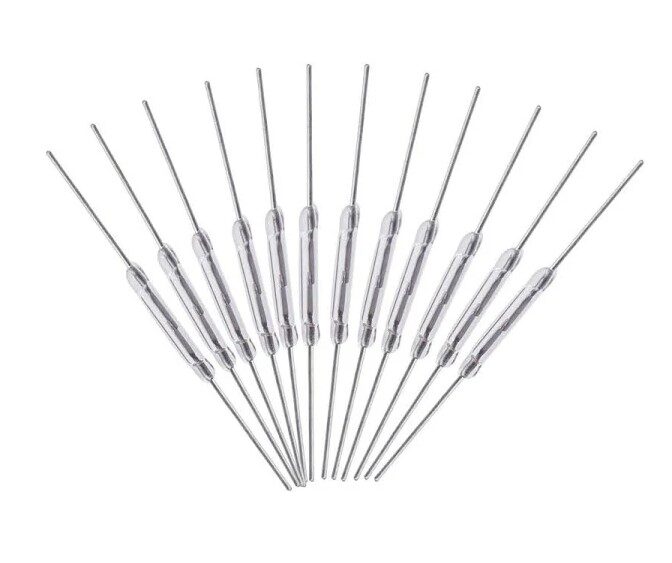

Reed Switch 2 x 14mm Magnetic Control Switch -Normally Open Contact-(Pack of 10 Pcs.)
Introducing our Reed Switch 2 x 14mm Magnetic Control Switch, designed for reliable and versatile functionality across various applications. This pack includes 10 normally open contact reed switches.
When exposed to a magnetic field, the two ferrous pins within the switch are attracted, closing the circuit. Once the magnetic field is removed, the reed switch opens again, providing a convenient non-contact switching solution. With a maximum switching voltage of 300VDC and a maximum current of 0.55A, it can handle up to 1.2A of current.
This compact module is easy to use and can be seamlessly integrated into your circuit. Its small size and sturdy construction make it suitable for a wide range of environmental conditions, ensuring reliable operation in temperatures from -50°C to +140°C.
Features:
- Small module with dimensions: 14mm glass length, 2mm glass diameter, and 45mm total length.
- Very easy to use, allowing for direct connection in the circuit.
- Maximum switching voltage: 300VDC
- Minimum breakdown voltage: 150VDC
- Maximum contact rating: 10W
- Maximum operate time: 0.45 ms
Specifications:
| Frequency (Hz) | 100 |
|---|---|
| Mech. & Electrical Lifecycle | ≈ 100,000 |
| Contact Resistance | 20mΩ |
| Insulation Resistance (MΩ) | 100 |
| Operating Temperature (°C) | -50 to 140 |
Experience the convenience and reliability of our Reed Switch 2 x 14mm Magnetic Control Switch pack. Whether you’re working on electronics projects, security systems, or automation applications, these reed switches offer dependable performance and easy integration.
Package Includes
- 10 x Reed Switch 2 x 14 mm Magnetic Control Switch
ICM-42688 6-Axis IMU: Low Noise Precision for Drones
When it comes to building high-performance drones and UAVs, the inertial measurement unit (IMU) is arguably the most...
Read More →
Temperature Sensors and Applications
The global temperature sensor market size is projected to grow from USD 6.3 billion in 2020 to USD 8.8 billion...
Read More →
Rain Sensor Module: Detection, Calibration and Projects
Monsoon seasons across India bring months of unpredictable rainfall — and for electronics makers, that rainfall is an...
Read More →Technical Specifications
| Dimensions | 2x14mm |
|---|---|
| Package Quantity | 14 pcs |
| SKU | AI0093 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Reed Switch 2 x 14mm Magnetic Control Switch -Normally Open Contact-(Pack of 10 Pcs.) is a versatile vibration/tilt sensor and modules used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
