TL-Smoother Eight Chip Module DFORCE Vibration Pattern Filter with Cable

TL-Smoother Eight Chip Module DFORCE Vibration Pattern Filter with Cable

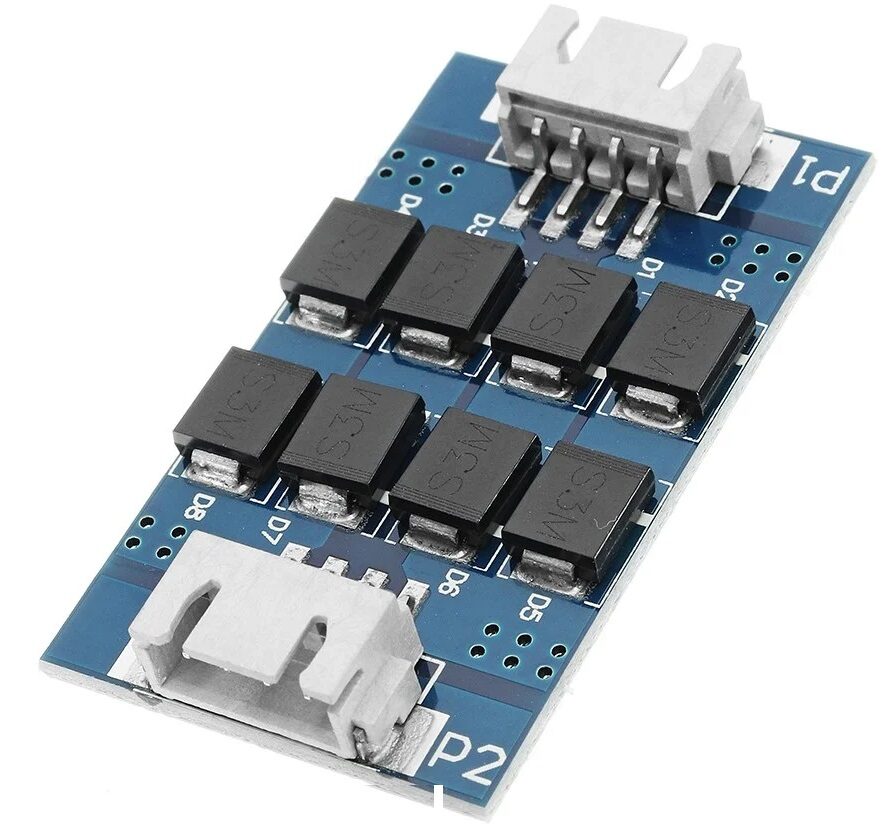

The TL Smoother Addon Module Board Kit is designed for 3D printers to eliminate motor clipping filters and pattern ripples, particularly when using the 8825 drive and low-resistance motors. It effectively removes the uneven signal wave at low speeds, ensuring a more consistent signal wave with the 8825 drive and a 24V power supply in Delta machines.

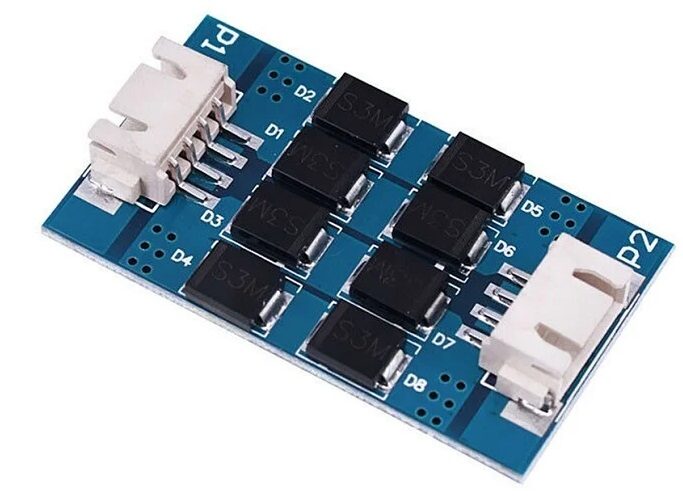

The TL-Smoother is an addon module for 3D printer stepper motor drivers. It is equipped with flyback diodes for the motor outputs, which also safeguard against inductance voltages when the driver is not powered.

This module ensures smoother motion, notably in delta-style 3D printers using DVR8825 stepper drivers or A4988/2 drivers. It is compatible with I3 and UM models, though the clipping effects may vary across different machines.

Please Note: If you are currently using Trinamic Drivers with SpreadCycle, or are considering upgrading to such drivers, then these TL-Smoothers may not offer the big benefit you’re expecting. This is because Trinamic’s patented SpreadCycle performs a very similar (albeit more efficient) smoothing/filtering process, with extra features like stealthChop that also assist in this regard.

---

Features

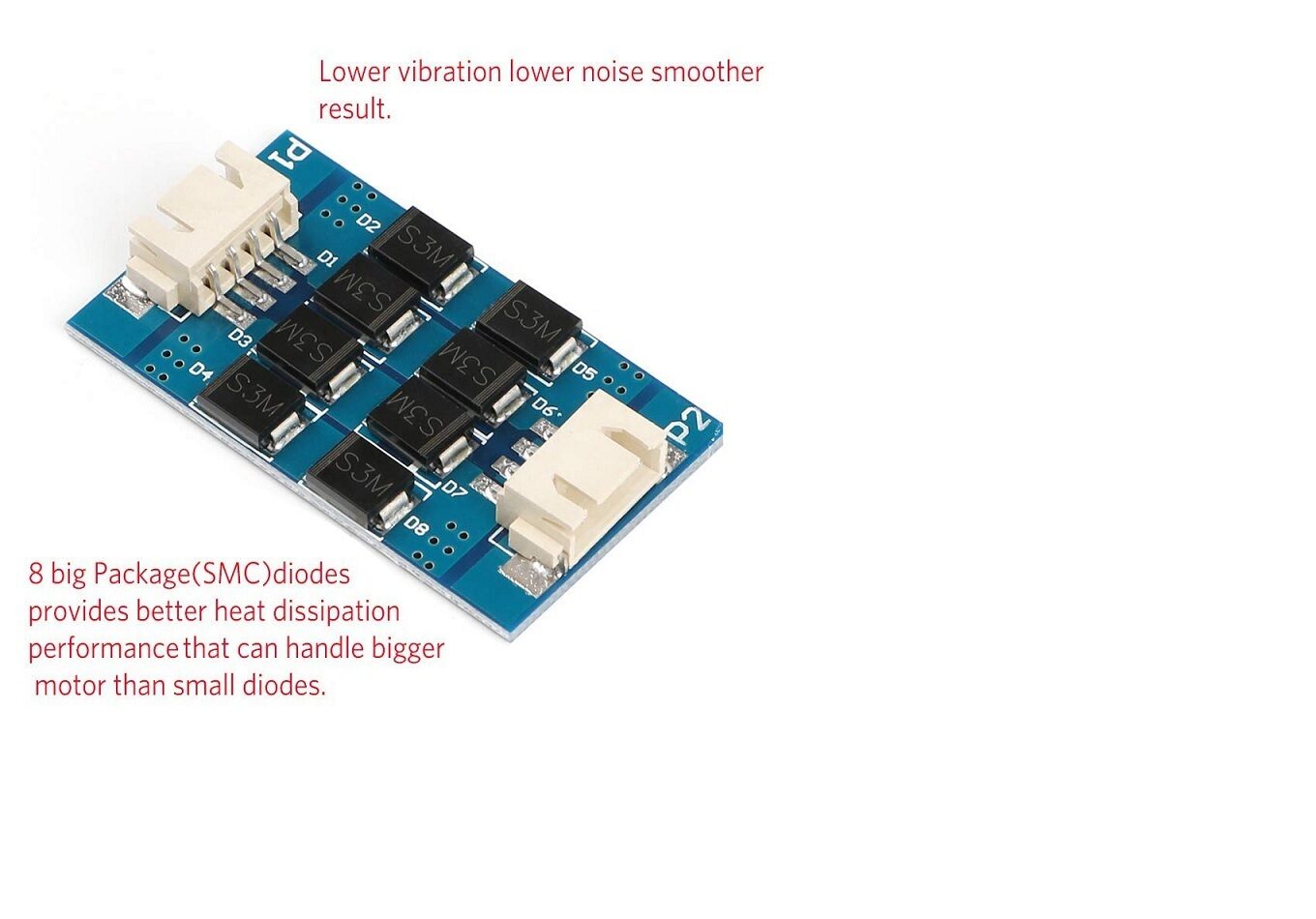

1. TL Smoother can effectively eliminate the mechanical chatter generated by 3D printer motors, especially for parallel arm configurations of the machine effect is significant. Lower vibration lower noise smoother result.
2. The TL-Smoother is an addon module for 3D printer stepper motor drivers.

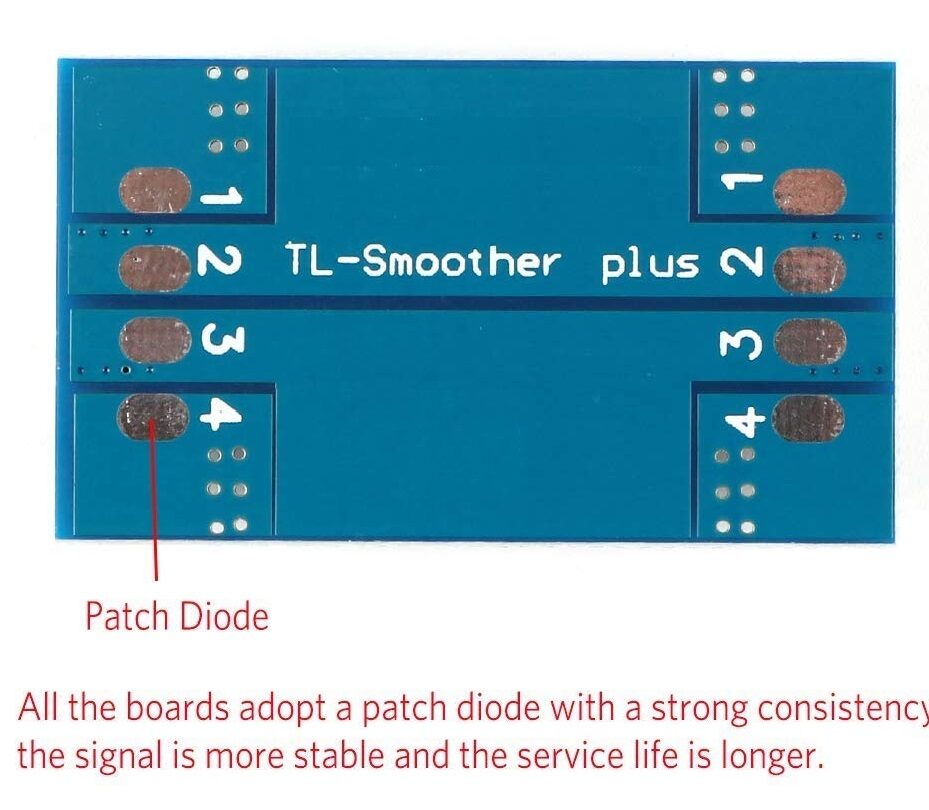

3. The board provides flyback diodes (freewheeling diodes) for the motor outputs, so they are also protected against inductance voltages in the unpowered state of the driver.
4. You will get smoother movement, especially on the delta-style 3D printer under DVR8825 stepper drivers or A4988 / 2 drivers.
5. I3 and UM models can also be used, and different machines will have different clipping effects.

---

Specifications:

No. of Flyback Diodes	8
Compatibility	A4988 Drivers, DRV8825 Drivers
Cable Type	4-Pin Female to 4-Pin Female
Mounting Points	Ø2.3mm Hole on Each Corner
Model No.	S3M : Surface Mount Flyback Diode
DC Blocking Voltage (VR)	1000V
Reverse Voltage (VRMS)	700V
Rectified Output Current (A)	3A @ TT = +75°C
Dimensions (LxWxH) mm	Approx. 50 x 25mm
Weight (g):	10

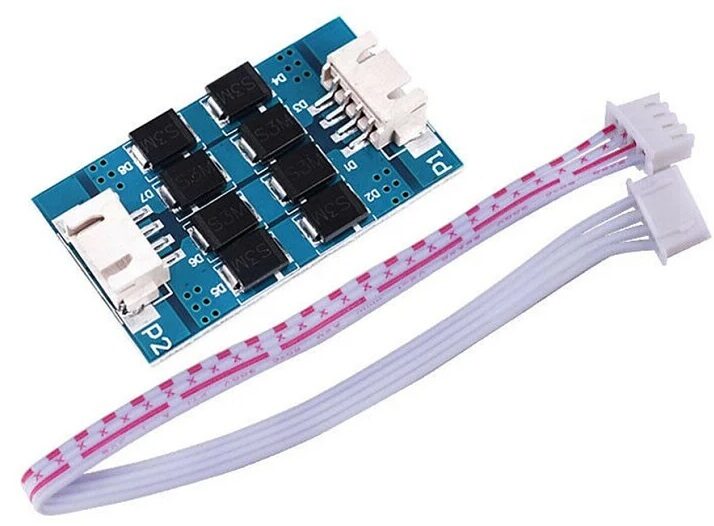

Package Includes

1 x TL Smoother Module

1 x cable
