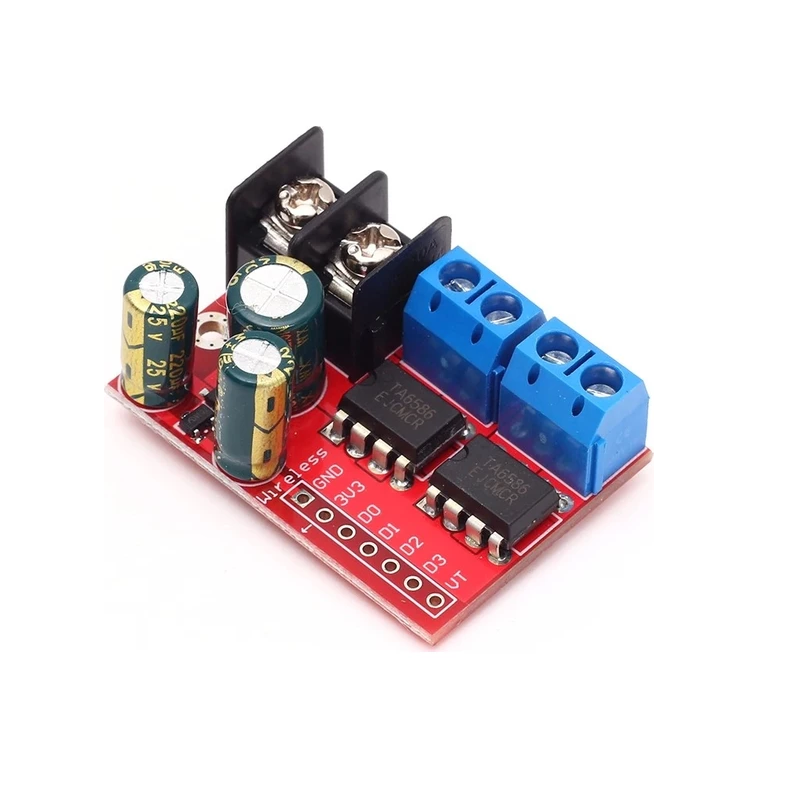

TA6586 Based Motor Driver Module
This TA6586 Based Motor Driver Module is a high power motor driver perfect for driving DC Motors and Stepper Motors. It uses the popular TA6586 motor driver IC. It can control up to 2 DC motors with directional and speed control.
This TA6586 Based Motor Driver Module is perfect for robotics and mechatronics projects and perfect for controlling motors from microcontrollers, switches, relays, etc. Perfect for driving DC and Stepper motors for micro mouse, line-following robots, robot arms, etc.

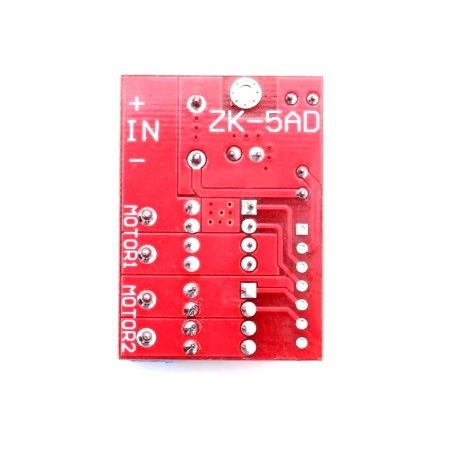

Pins:
- MOTOR1: Motor A output
- MOTOR2: Motor B output
- IN D1: 1st input for Motor A
- IN D2: 2nd input for Motor A
- IN D3: 1st input for Motor A
- IN D4: 2nd input for Motor B
Arduino Sketch Considerations:
The Arduino code sketch is pretty straightforward. Since there isn’t a library for the MX1919 Motor Controller you just have to declare which pins the controller is hooked to.
Features:
- Heavy-duty screw terminal for the input.
- Can be connected directly to the 433MHz receiver output.
- Can drive up to 5A of current.
- Drives 2 motors.
Specifications:
| Driver Model | TA6586 |
|---|---|
| Width (mm): | 27 |
| Height (mm): | 15 |
| Weight (g): | 12 |
Package Includes:
1 x TA6586 Based Motor Driver Module
TA6586 Based Motor Driver Module Overview
The TA6586 Based Motor Driver Module is a dual-channel driver board built around the TA6586 IC, designed to control two DC motors or a stepper motor with directional and speed control. Ideal for robotics and mechatronics, it accepts 3–14VDC and handles up to 5A, making it suitable for medium-power applications.
Key Features of TA6586 Based Motor Driver Module
- Dual motor channels for independent control of Motor A and Motor B
- Wide operating voltage range: 3–14VDC, supporting 5A peak current per channel
- Heavy-duty screw terminals for reliable power and motor connections
- Logic-level inputs (IN D1–D4) compatible with Arduino and Raspberry Pi GPIO pins
- Direct plug-in from 433MHz receiver outputs for remote-control setups
- Fast shipping from Zbotic: dispatch within 24 hours for in-stock items
Applications and Use Cases
- Line-following robots using two DC drive wheels
- Micro mouse and maze-solving robots requiring precise speed control
- Small robot arms with bidirectional motor actuation
- DIY remote-controlled cars or boats driven by 433MHz RF modules
- Stepper motor control in compact conveyor or positioning systems
How to Use TA6586 Based Motor Driver Module
Connect your 3–14VDC power supply to the module’s screw terminals and wire Motor A/B outputs to your DC motors. Use four logic input pins (IN D1–D4) to set motor direction and apply PWM on one input per channel for speed control. Interface these inputs directly with Arduino or Raspberry Pi GPIO pins, and ensure a common ground between controller and driver.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the maximum current this module can handle?
The TA6586 module supports up to 5A peak current per channel, suitable for medium-power DC motors.
Can I drive a stepper motor with this driver?
Yes, by wiring two windings of a unipolar or bipolar stepper to Motor A and Motor B outputs and sequencing IN D1–D4, you can achieve full-step control.
How do I control motor speed using Arduino?
Connect one of the IN D pins per motor to an Arduino PWM-capable pin (e.g., D3, D5) for speed control, and use the other IN pin for direction. Ensure the module and Arduino share a common ground.
