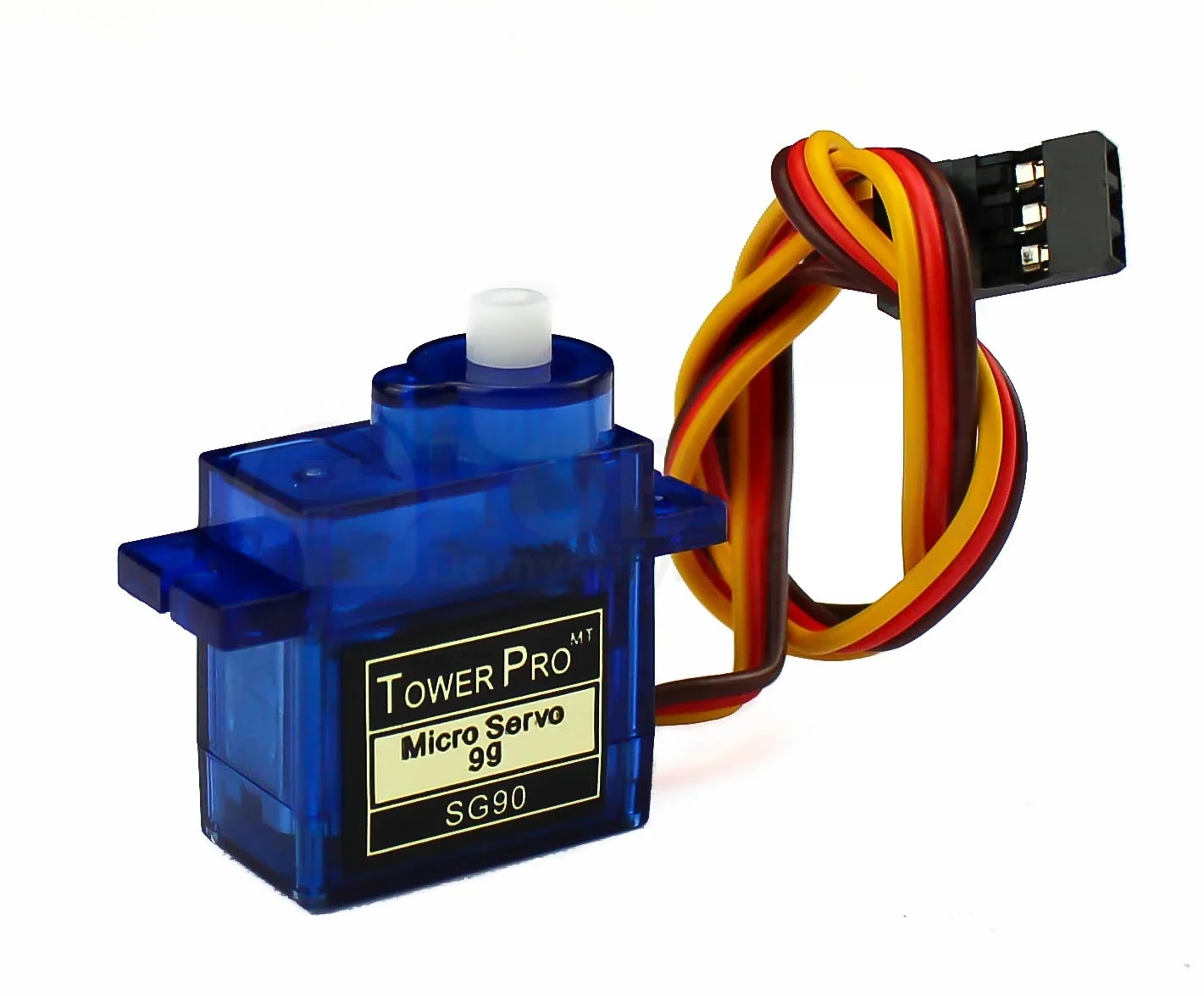

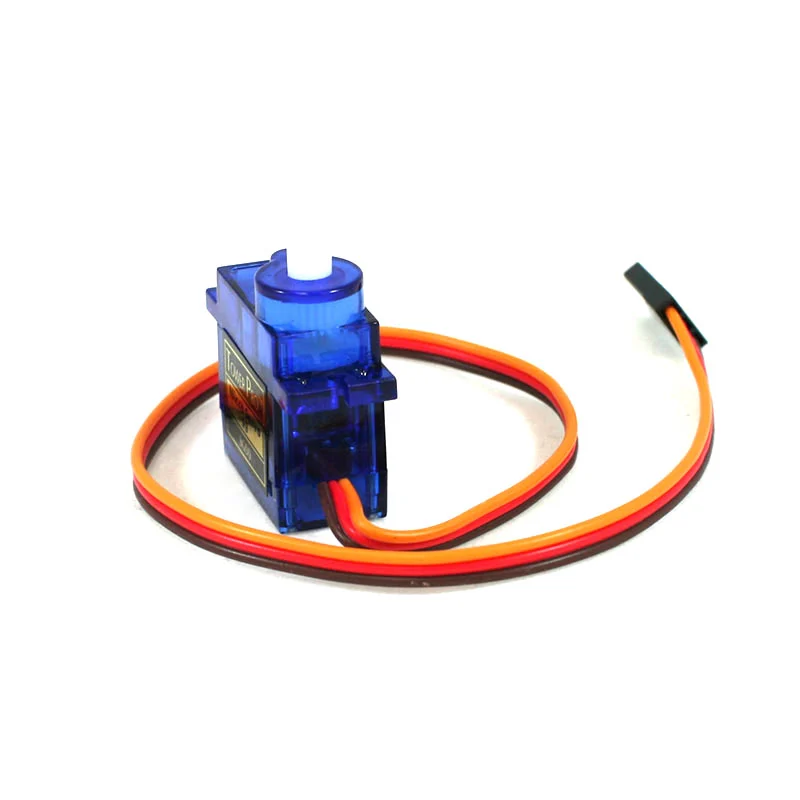

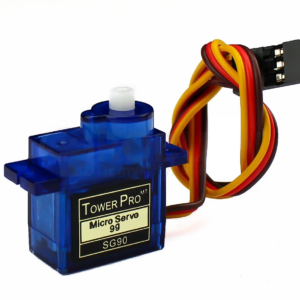

TowerPro Servo Motors are high-quality and affordable servos, suitable for a wide range of applications, including RC aircraft, automobiles, and robotics, or just for fun projects.
When purchasing Tower Pro motors in India, they are often not original, and these are no exception. These are not original Tower Pro Servos, but they are very cheap and serve the purpose. We tested them and found them to be of good quality for the price.

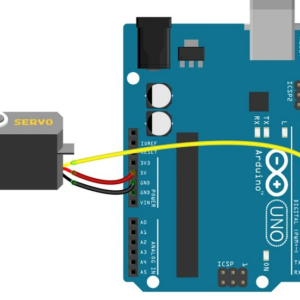

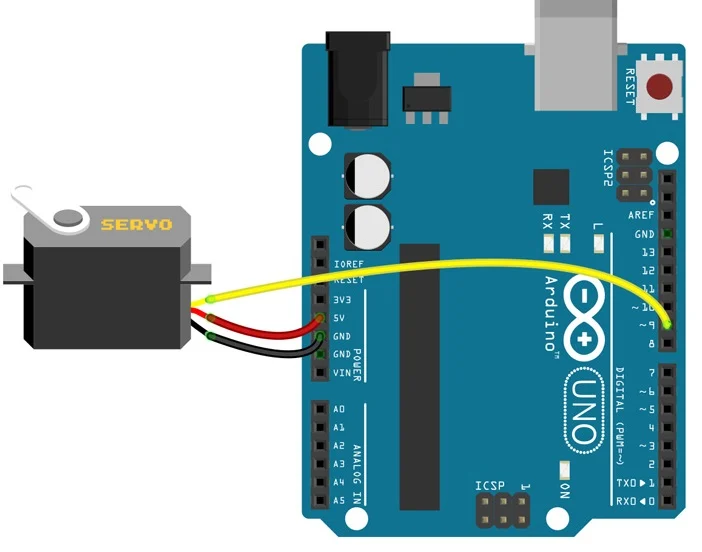

Wire Description:
– RED – Positive
– Brown – Negative
– Orange – Signal
We imported this copy of the original Tower Pro SG90 9g Mini Servo from our trusted supplier. This good quality servo motor is very close in performance to the original Tower Pro SG90 1.2kgCm 180-degree servo motor.
.
Features :
- High resolution
- Accurate positioning
- Fast control response
- Constant torque throughout the servo travel range
- Excellent holding power
specification-
| Model | SG90 |
|---|---|
| Weight(gm) | 9 |
| Operating Voltage (VDC) | 3.0 ~ 7.2 |
| Operating Speed @4.8V | 0.10sec/60° |
| Stall Torque @ 4.8V (Kg-Cm) | 1.2 |
| Stall Torque @6.6V (Kg-Cm) | 1.6 |
| Operating Temperature (°C) | -30 to 60 |
| Dead Band Width ( μs) | 7 |
| Gear Type | Glass Fiber |
| Rotational Degree | 180º |
| Servo Plug | JR |
| Cable Length (cm) | 25 |
| Length (mm) | 22.8 |
| Width (mm) | 12.6 |
| Height (mm) | 34.5 |
| Shipping Weight | 0.014 kg |
| Shipping Dimensions | 8 × 6 × 4 cm |

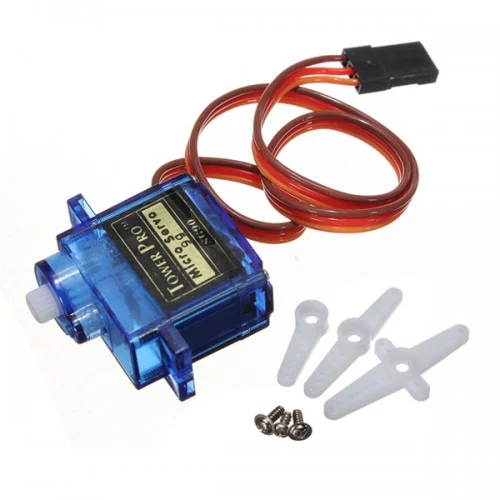

Package Includes :
1 x TowerPro SG90 9g Mini Servo Motor with Cable
1 x Set of Horns
- One Point
- Two Point
- Four Point
1 x Set of Screws
