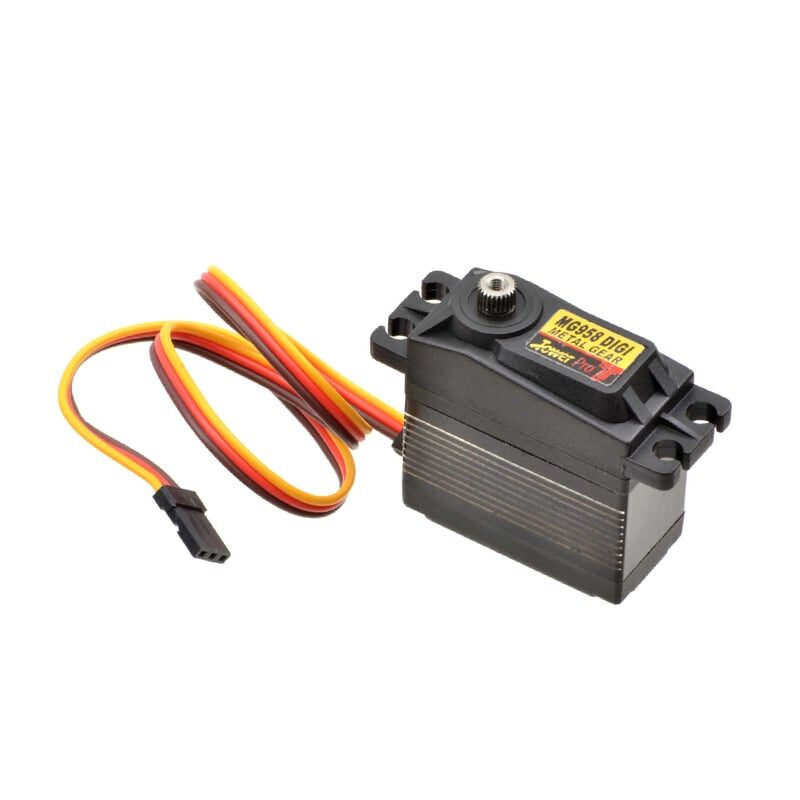

TowerPro MG958 Digital High Torque Metal Gear Servo Motor
Discover TowerPro Servo Motors – the ideal combination of quality and cost-effectiveness, crafted to cater to your varied requirements with accuracy. Perfect for enthusiasts of RC aircraft, automobiles, robotics, or those engaged in pioneering projects, these servos offer superior performance without the hefty price tag.
Although these TowerPro motors might not be the original brand, they are certainly capable of performing effectively without straining your finances. Subjected to rigorous quality checks, they have demonstrated dependability and efficiency across a range of uses.
For aficionados seeking authenticity and unparalleled performance, we suggest considering alternatives such as E Max Servos or Orange servos.
Wire Description:
Red: Positive
Brown: Negative
Orange: Signal
To cater to all your servo motor needs, we offer a wide range of accessories, ensuring a comprehensive solution for your projects. From servo arms to screws, we’ve got you covered.
Features:

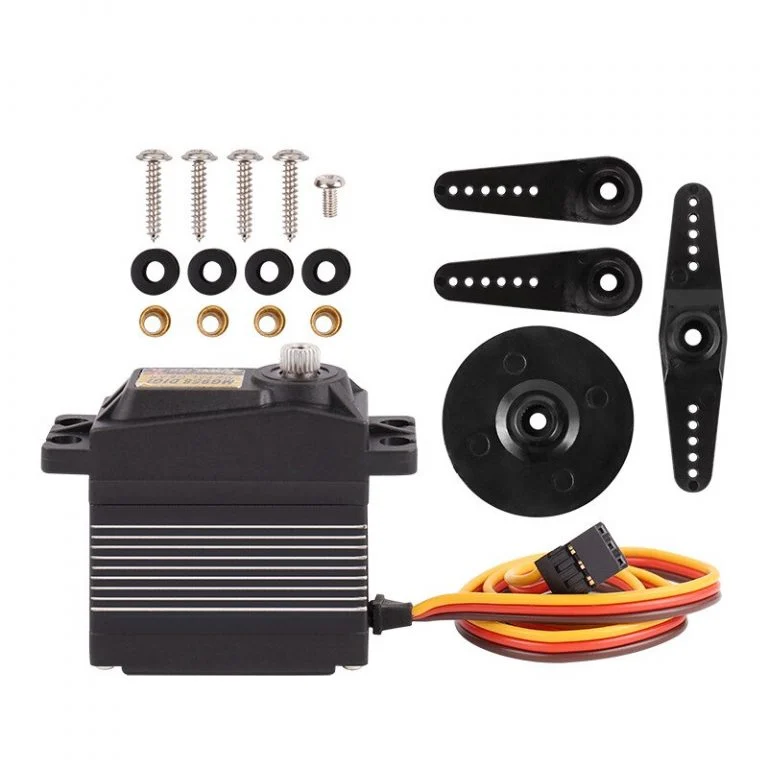

Servo arms & screws included, compatible with Futaba servo arm
CE & RoHS approved for quality assurance
Alloy case in the middle for durability
Metal gear for enhanced performance
Double ball bearing for smooth operation
Servo wire length: 32cm
Servo Plug: JR (Compatible with JR and Futaba)
Upgrade your projects with TowerPro Servo Motors and experience reliable, precise performance without compromising on quality or budget. Explore our range of servos and accessories today for all your project needs.
specification
Item Type:
TowerPro Servo Motor
Model Series:
MG Series
Torque Rating (kg-cm):
18 to 20
Model No.
MG958
Operating Voltage (VDC):
4.8 ~ 6
Operating Speed @4.8V
0.18sec/60°
Operating Speed @6.6V
0.15sec/60°
Stall Torque @ 4.8V (Kg-Cm)
18
Stall Torque @6.6V (Kg-Cm)
20
Current Draw at Idle(mA)
10mA
Current at No Load
170mA
Stall Current Draw (mA):
1600mA
Operating Temperature (°C)
0 to 55
Cable Length (cm)
32 cm
Servo Plug Type
JR (Fits JR and Futaba)
Bearing Type
Double ball bearing
Gear Type
Metal gear
Servo case
Alloy case in the middle
Package Includes:
1 x TowerPro MG958 Digital High Torque Metal Gear Servo Motor
The TowerPro MG958 Digital High Torque Metal Gear Servo Motor is a versatile towerpro and other servo motors used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
Integrating into a custom electronics project
Learning and experimenting with circuits
Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
