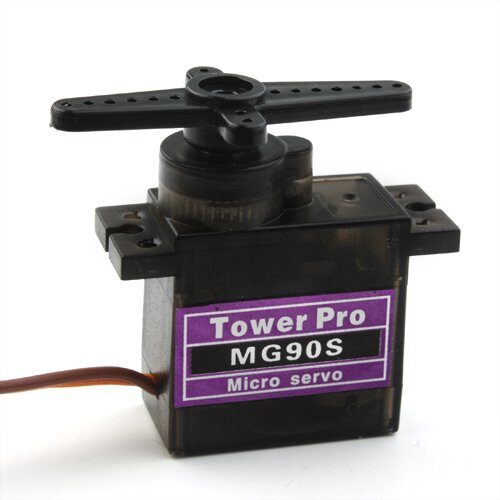

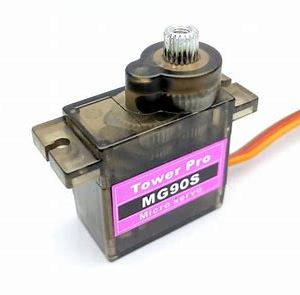

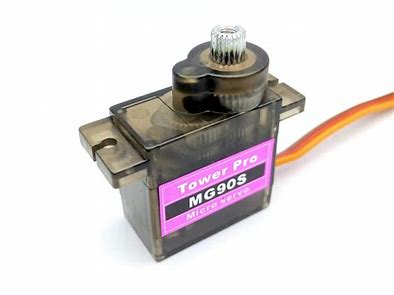

Towerpro MG90S Micro Digital Servo Motor (360° Continuous Rotation)
Presenting the Towerpro MG90S Micro Digital Servo Motor featuring 360° Continuous Rotation, an affordable and high-quality servo motor for diverse applications. Ideal for RC aircraft, automobiles, robotics, or any inventive project, these servo motors deliver dependable performance without breaking the bank.
Though not original TowerPro products, these motors have undergone extensive testing and are proven to be of commendable quality for their cost. They offer high resolution, precise positioning, swift control response, and consistent torque across the servo’s range of motion, guaranteeing superior performance for various uses.
Specifications include: Model: MG90S, Weight: 13g, Operating Voltage: 4.8V~6.6V, Servo Plug: JR, Stall Torque at 4.8V: 1.8kg-cm, Stall Torque at 6.6V: 2.2kg-cm.
Lightweight at only 13g and compatible with JR servo plugs, these motors are a breeze to incorporate into your projects. The Towerpro MG90S servo motors are an excellent choice for both hobbyists and professionals, offering robust performance and impressive holding power, a stellar addition to any toolkit.
Features :
- High resolution
- Accurate positioning
- Fast control response
- Constant torque throughout the servo travel range
- Excellent holding power
Specifications:
| Diameter of rotor (mm) | 4.8 |
|---|---|
| Weight (g): | 13 |
| Operating Voltage (VDC) | 4.8 ~ 6.6 |
| Operating Speed @4.8V | 0.10sec/60° |
| Operating Speed @6.6V | 0.08sec/60° |
| Stall Torque @ 4.8V (Kg-Cm) | 1.8 |
| Stall Torque @6.6V (Kg-Cm) | 2.2 |
| Operating Temperature (°C) | 0 to 55 |
| Dead Band Width ( μs) | 1 |
| Rotational Degree | 360º |
| Servo Plug | JR |
| Cable Length (cm) | 25 |
Package Includes:
- 1 x Towerpro MG90S Micro Digital 360 Degree Servo
- 1 x Set of Horns
- One Point
- Two Point
- Four Point
- 1 x Set of Screws
