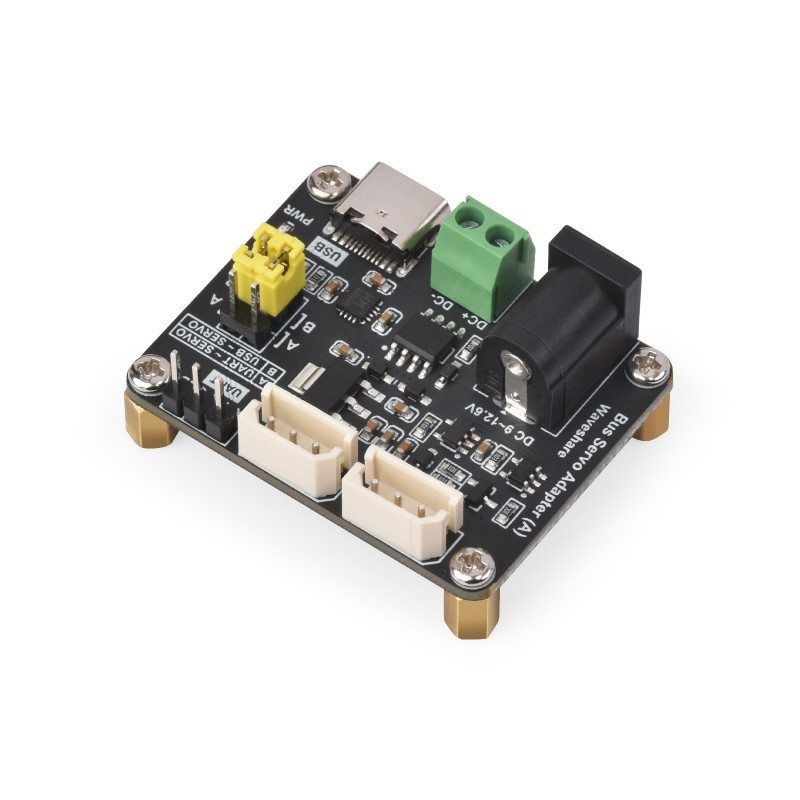

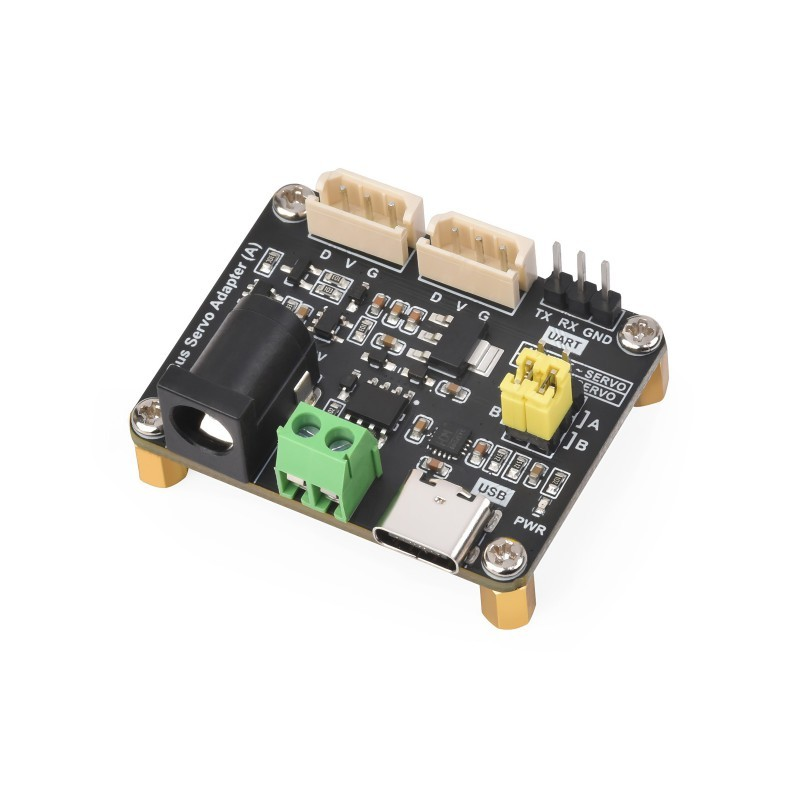

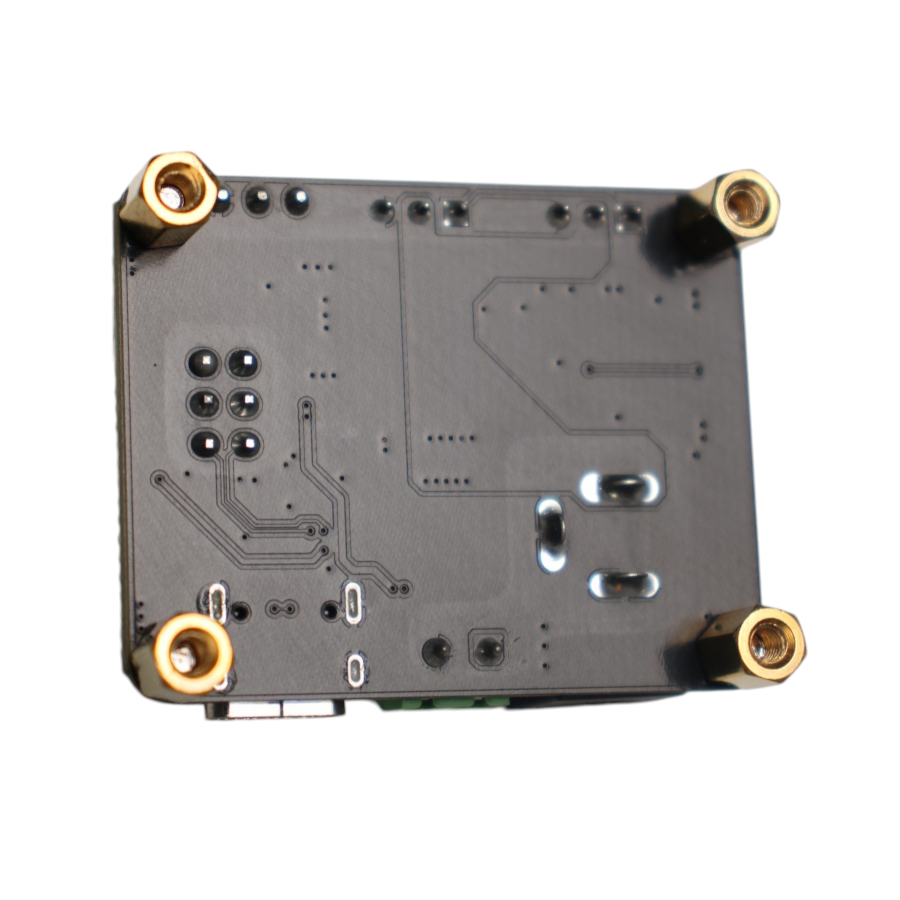

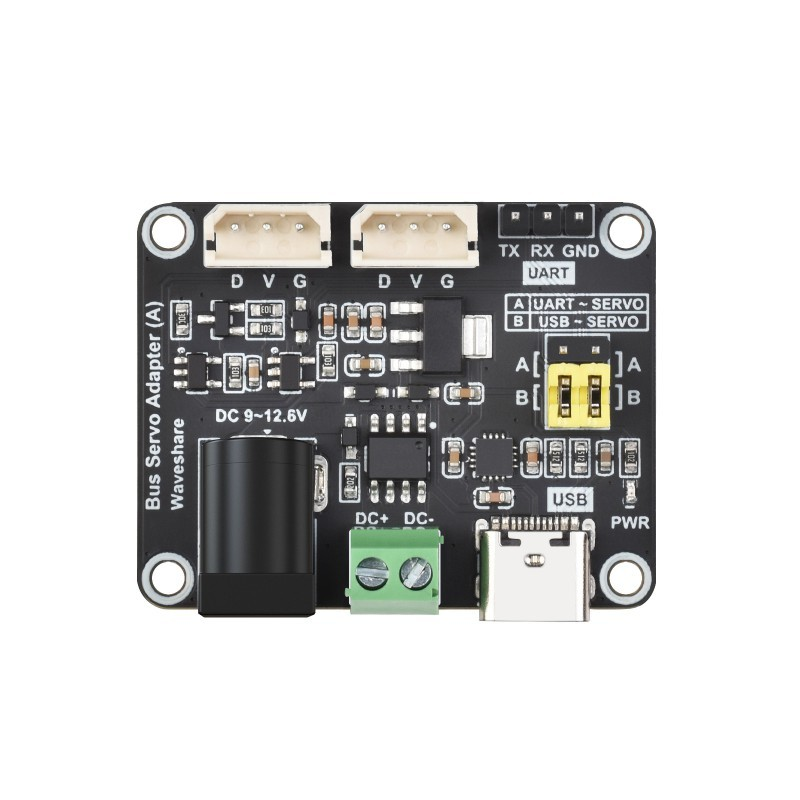

Serial Bus Servo Driver Board, Integrates Servo Power Supply And Control Circuit, Applicable For ST/SC Series Serial Bus Servos, Small In Size, Easy To Integrate
Features:
- Supports connecting to a host or MCU to control the serial bus servos
- Allows controlling up to 253 ST/SC series serial bus servos at the same time (sufficient power supply required)
- 9~12.6V voltage input (the input voltage and the servo voltage must be matched)
- Provides convenient serial bus servo control solutions
- Integrates control circuit to ensure the stable operation of serial bus servo
- Compact size and space-saving, suitable for integration into sorts of space-limited projects
Specification:
| Item Type: | Serial Bus Servo Driver Board |
|---|---|
| Power Supply (V) | 9~12.6V (ST series servo) |
| Connector: | 5.5 × 2.1mm DC |
| Mounting Hole Diameter (mm) | 42.00 × 33.00mm |
| Communication | UART |
Package Includes:

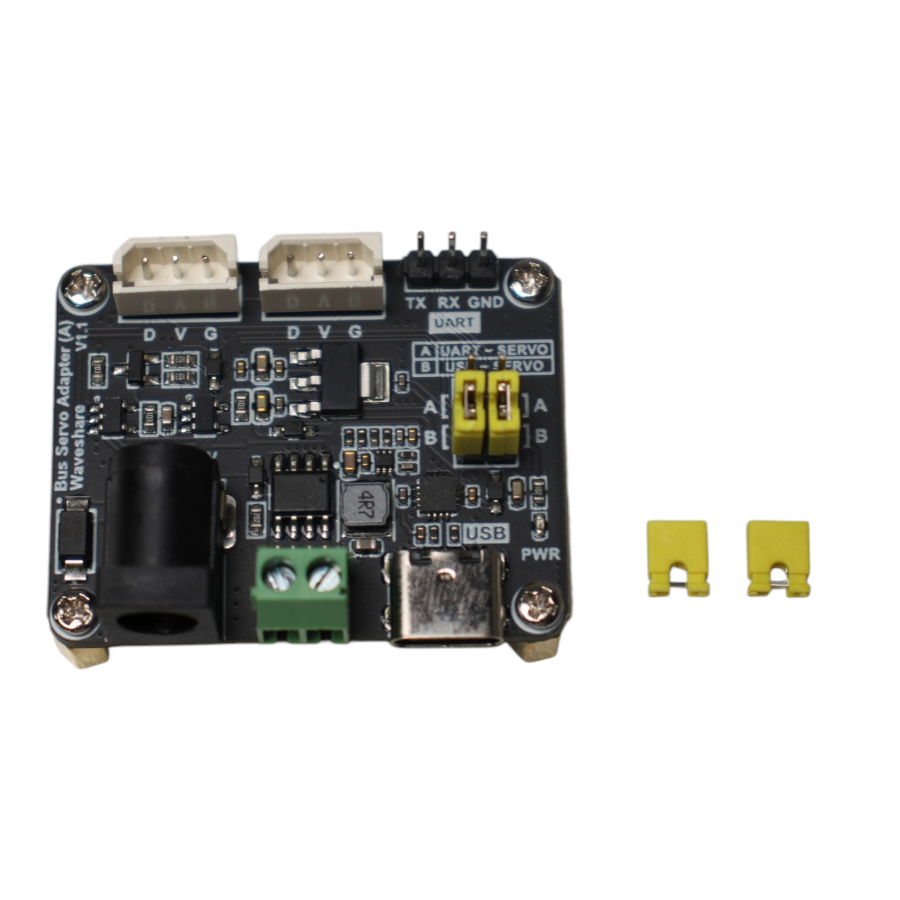

1 x Waveshare Serial Bus Servo Driver Board, Integrates Servo Power Supply And Control Circuit, Applicable for ST/SC Series Serial Bus Servos
Solenoid Guide: Door Locks, Valves, and Automation Projects
A solenoid is an electromechanical device that converts electrical energy into linear motion. When you energise the coil,...
Read More →
Automatic Solar Tracker Using Servo Motor and LDR Sensors
A fixed solar panel captures only a fraction of the sunlight it could if it were always pointed...
Read More →
Drone Motor Testing: Thrust Stand Build and KV Measurement
If you are building a drone, selecting the right motor-propeller combination is critical for flight performance. A drone...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Interface / Protocol | BLE |
| SKU | AI6658 |
| Weight | 0.02 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Waveshare Serial Bus Servo Driver Board, Integrates Servo Power Supply And Control Circuit, Applicable for ST/SC Series Serial Bus Servos is a versatile servo motor drivers used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
