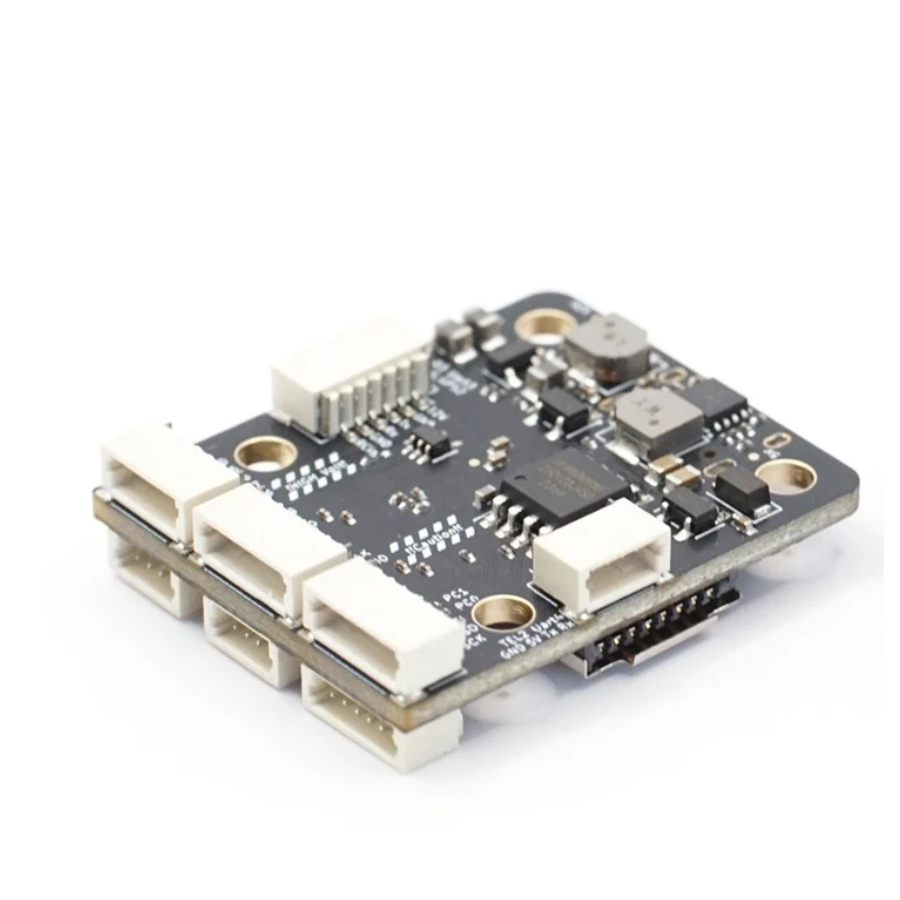

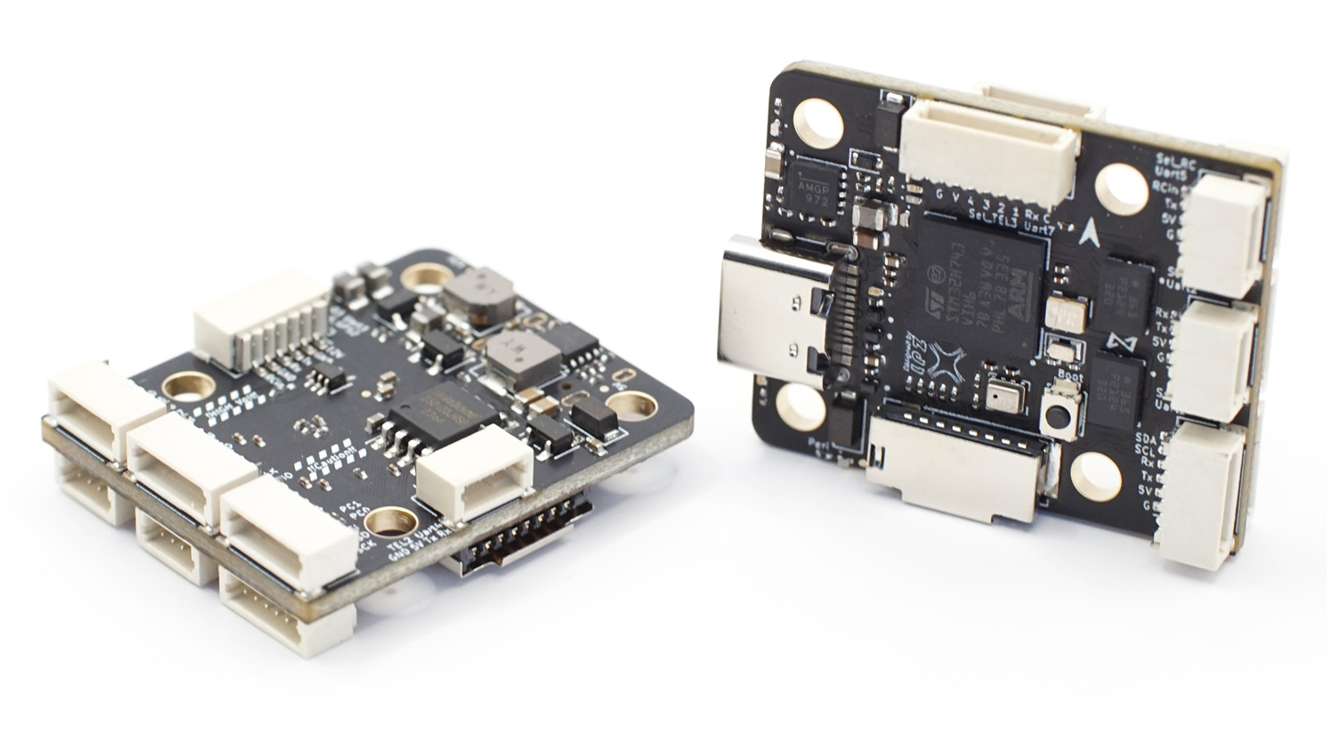

MicoAir NxtPX4v2 Flight Controller
Description:
MicoAir NxtPX4v2 Flight Controller is a compact, high-performance flight controller developed from the HKUST Aerial Robotics / Nxt hardware family. It features an STM32H743 MCU, dual BMI088 IMUs, an SPL06 barometer, and microSD storage, along with 7 UARTs, 8 PWM outputs, external I²C and SPI buses, and independent 5 V / 12 V BECs. The flight controller supports both ArduPilot and PX4 and is well suited to UAV projects that require substantial processing performance, redundant IMU sensing, and open hardware resources.
Key Features
| Item | Specification |
|---|---|
| Main MCU | STM32H743VIH6, 480 MHz, 2 MB Flash |
| IMU | Dual BMI088 IMUs |
| Barometer | SPL06 |
| Data logging | microSD card slot |
| Serial ports | 7 UARTs |
| Motor / servo outputs | 8 PWM outputs |
| Expansion buses | 1 external I²C, 1 external SPI, and 1 SWD interface |
| Analog sensing | 2 ADC channels for voltage and current monitoring |
| USB | USB Type-C |
| Regulated outputs | 5 V / 2.5 A and 12 V / 2.5 A |
| Firmware support | ArduPilot and PX4 |
| Mounting pattern | 20 × 20 mm, approximately 3 mm hole diameter |
| Overall dimensions | Approximately 27 × 32 × 8 mm |
| Weight | Approximately 6.5 g |
Hardware Specifications

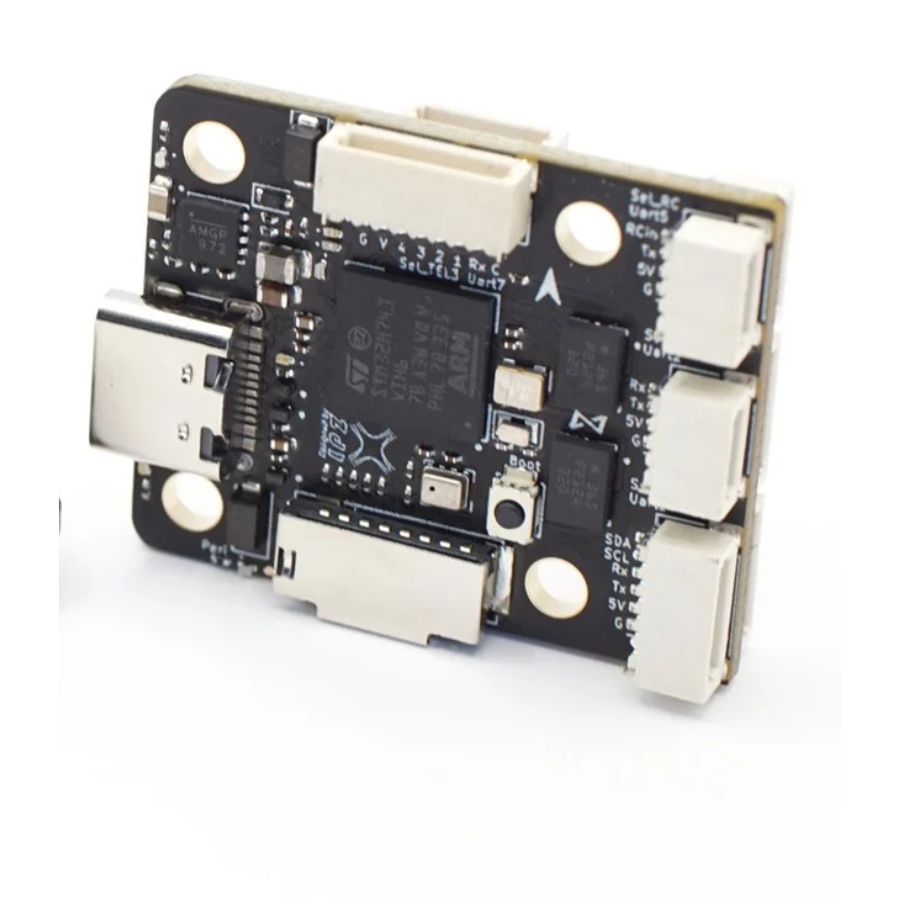

Processor and Sensors
The STM32H743VIH6 provides a 480 MHz clock speed and 2 MB of Flash. Two BMI088 IMUs provide independent inertial measurements for sensor-consistency checks and redundancy. The SPL06 provides barometric altitude measurements.
NxtPX4v2 does not include an onboard magnetometer. When heading information is required, connect a GPS module with an integrated magnetometer or a standalone magnetometer through the external I²C bus.
Interfaces and Outputs
- 7 UARTs for GPS, telemetry, digital video, receivers, ESC telemetry, and other devices.
- 8 PWM outputs, each usable for a motor or servo.
- 1 external I²C bus for magnetometers, airspeed sensors, and other devices.
- 1 external SPI bus for advanced expansion.
- 3 AUX GPIOs for custom functions.
- 2 ADC channels for voltage and current sensing.
- microSD for flight-log storage.
- SWD for low-level debugging and recovery.
Power and Mechanical Specifications
The flight controller provides regulated 5 V / 2.5 A and 12 V / 2.5 A outputs. The power input supports 3–6S batteries.

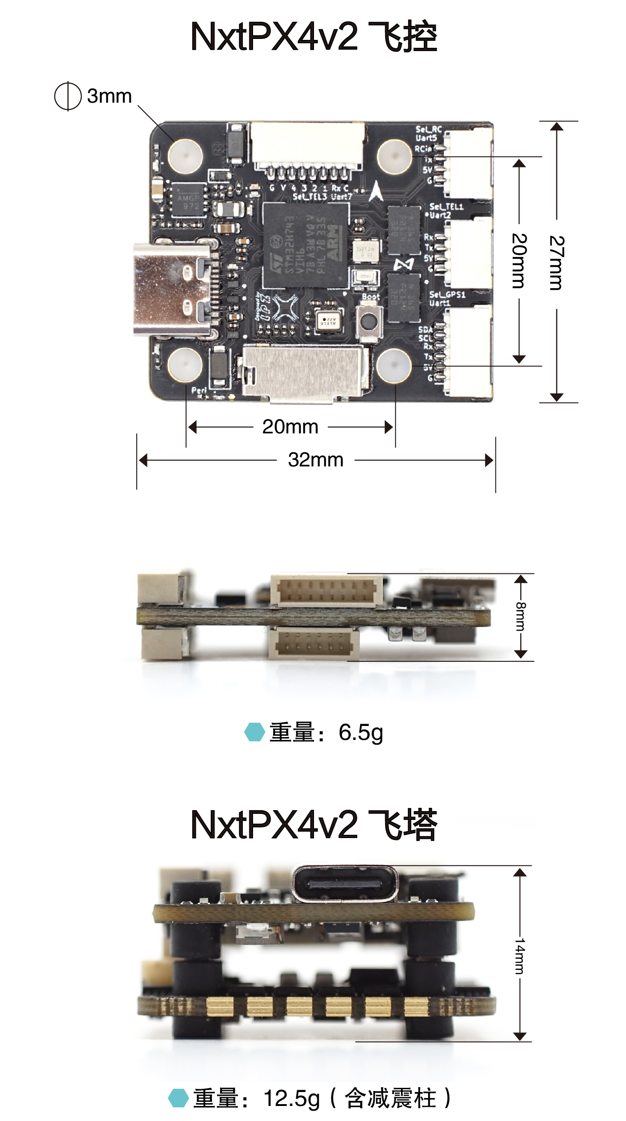

Dimensions and Installation
Installation recommendations:
- Use 20 × 20 mm soft-rubber standoffs or another vibration-isolated mounting structure.
- Install the board according to its arrow. If the board is rotated, configure the correct orientation in the firmware.
- Keep GPS antennas, power cables, and digital video-transmitter antennas away from the IMU area.
- Leave enough service clearance for the USB Type-C connector and microSD card slot.
- Dual IMUs improve diagnostic capability but do not replace proper mechanical vibration isolation.

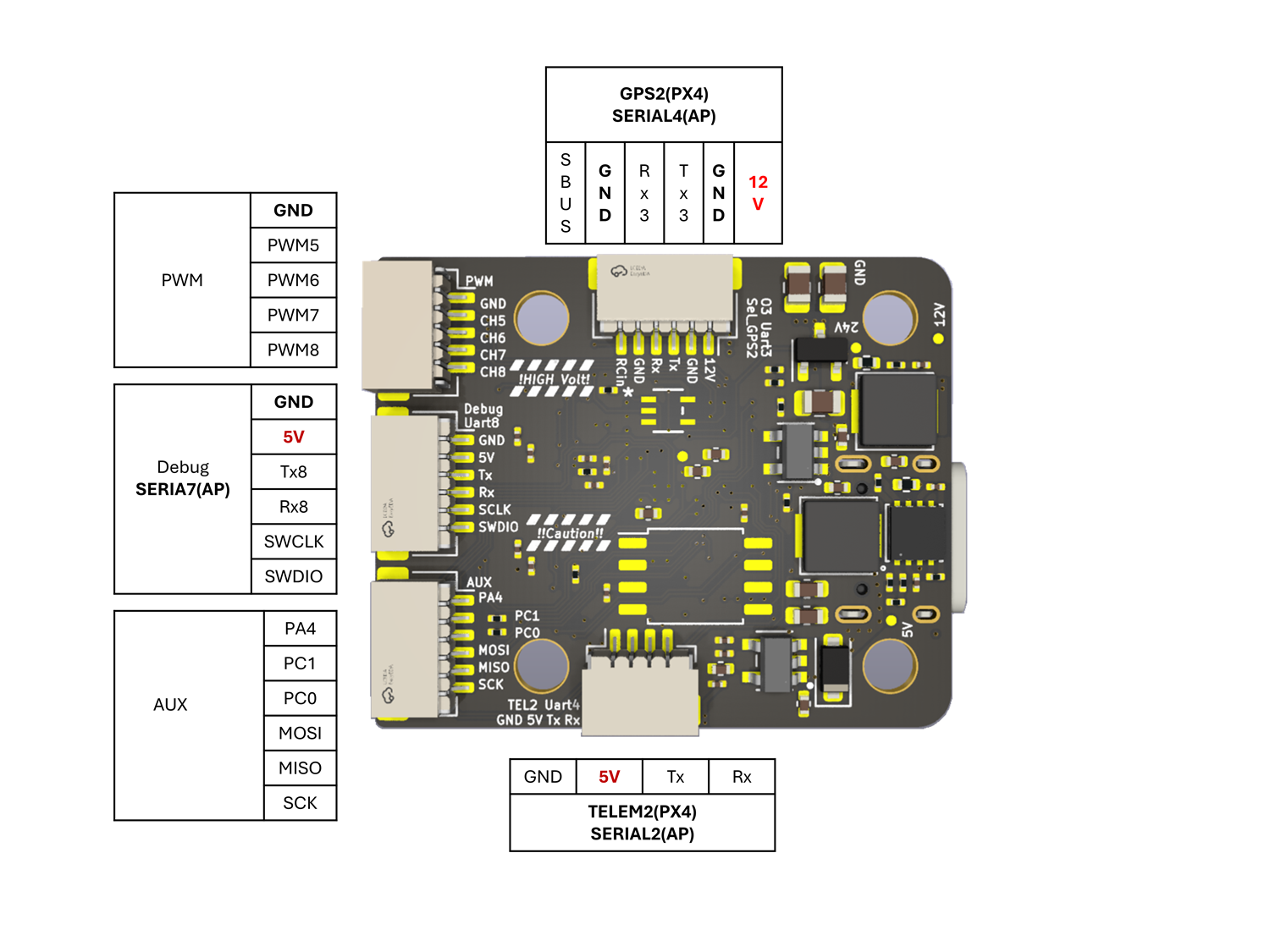

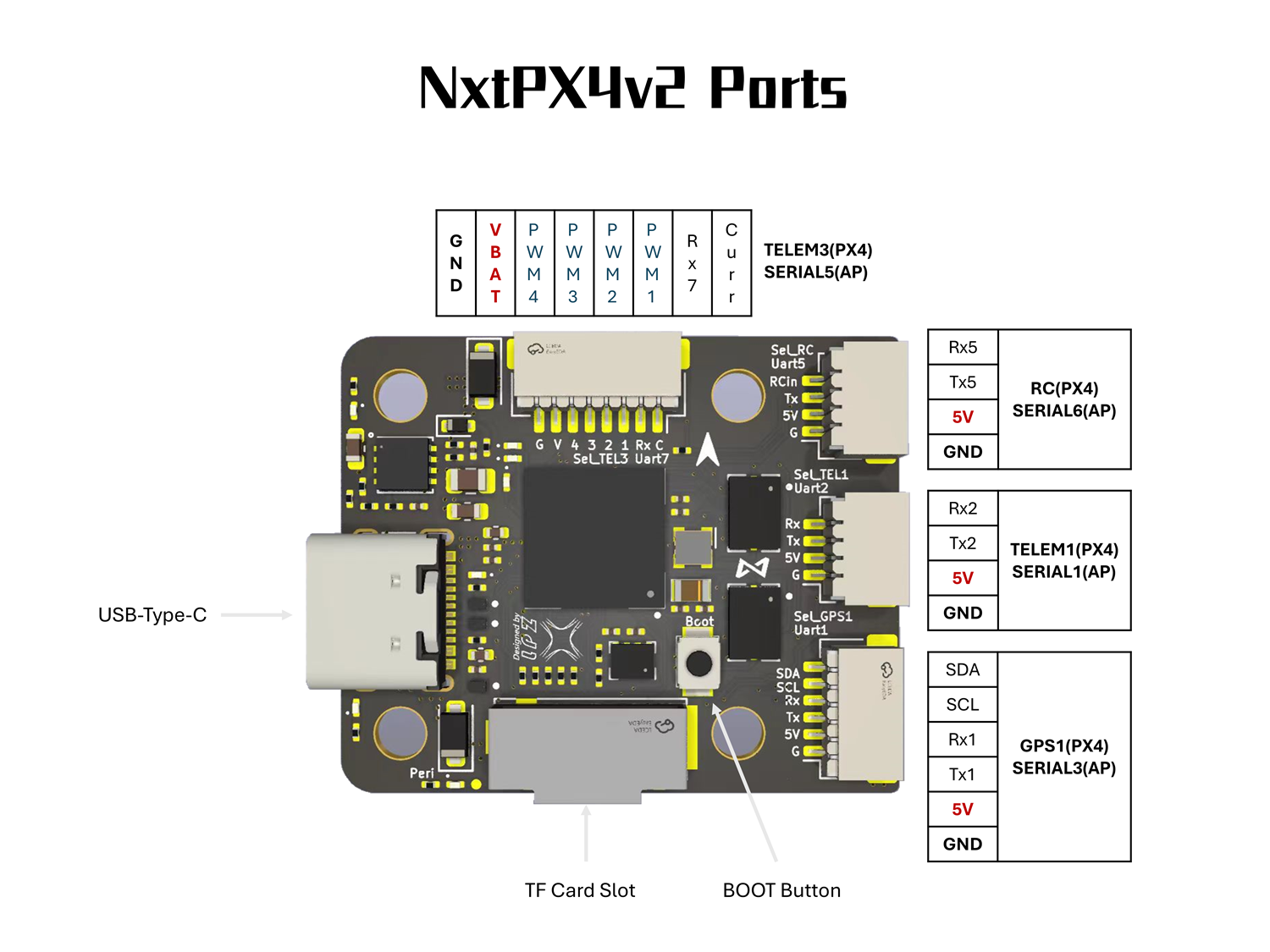

Interface Definitions

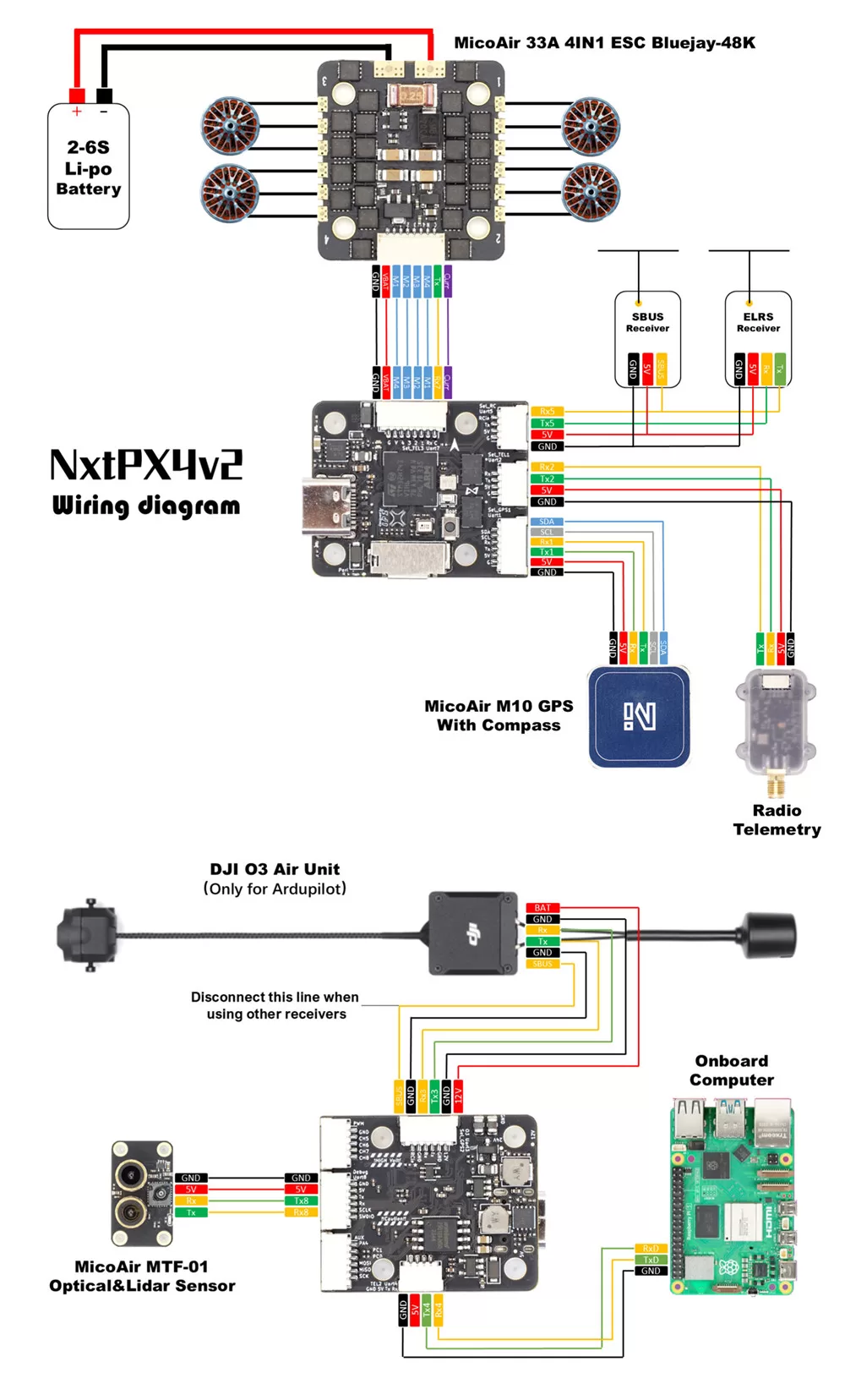

Typical Wiring:
Wiring principles:
- Connect a peripheral’s
TXto the flight controller’sRX, and itsRXto the flight controller’sTX. - Every serial peripheral must share a common ground with the flight controller.
- Connect the primary GPS to UART1 and an external magnetometer to the external I²C bus.
- Connect the DJI O3 to the dedicated UART3 interface, checking the 12 V pin and wire order before connection.
- Connect an SBUS or CRSF receiver to UART5.
Pacakge Includes:
1xMicoAir NxtPX4v2 Flight Controller
