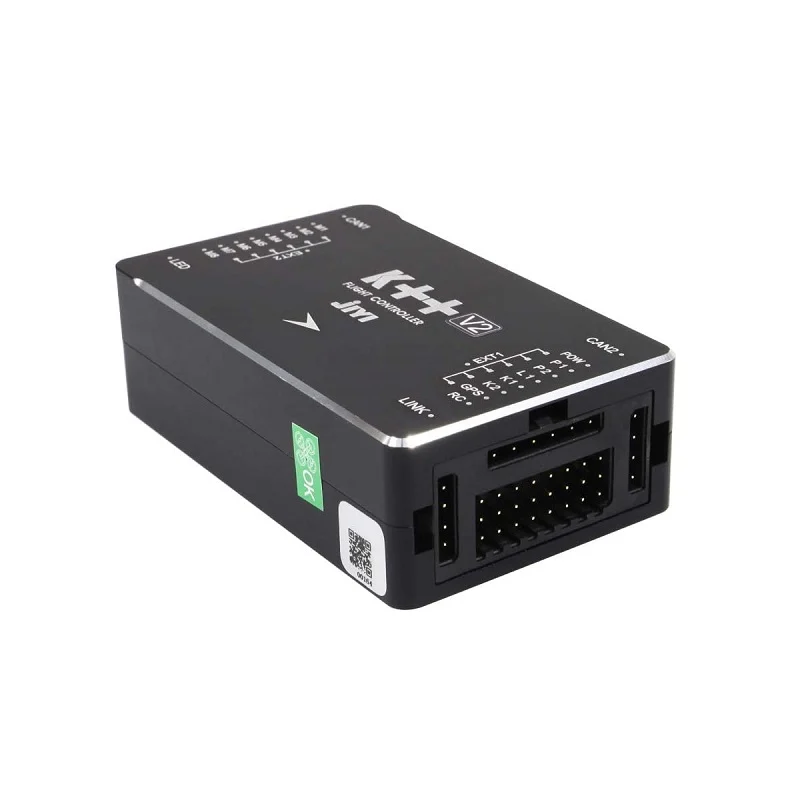

This Jiyi K++ V2 Flight Controller Kit is a professional-grade flight control developed by Jiyi and developed for industrial applications. It meets the needs of users such as plant protection, mapping, aerial photography, etc. Jiyi integrates the pursuit of high-quality products into the development of this flight control to make it more stable and reliable, but for the safety of you and others, it is strongly recommended that you remove the propeller when using the assistant software, and during the flight, experience Make sure the wiring is correct, the power supply is normal, and it is away from the crowd, vulnerable and dangerous goods.
Features:
- Terrain the following function, namely the imitation ground function
- Breakpoint continuous spray function
- One-key return function
- Precise spraying function
- Double water pump mode
- Water pump switch control function
- Water pump linkage control function
Specification-
| Supports | I4 , X4 four rotor ,iy6 , y6 , 16 , v6 six rotor v8 i8 x8 ix8 8 rotor |
|---|---|
| Battery Type | 3s -12s lithium polymer battery |
| Receiver Type | Sbus receiver |
| OS support | windows 7,8,10( 32 bit and 64 bit) |
| Accuracy | Horizontal direction : ±1.5m vertical direction ±0.5m |
| Step Angle | 30 degree Tilt angle |
| Maximum Yaw Speed | 150 Degree |
| Maximum Vertical Speed | 6m/s |
| Maximum Wind Resistance | wind 4 gust 5 |
| Power Consumption | <5w |
| Voltage Range of FC | 4.8V – 5.3V |
| PMU | 11.1V – |
| PMU 2 (UPS) | 11.1 – 50v (3s – 12s lipo recommended) maximum output current 3A at 5V |
| GPS | 5v |
| LED Voltage | 5V |
| Volatge | 3s – 12s |
| Shipping Weight | 0.38 kg |
| Shipping Dimensions | 18 × 13 × 5 cm |

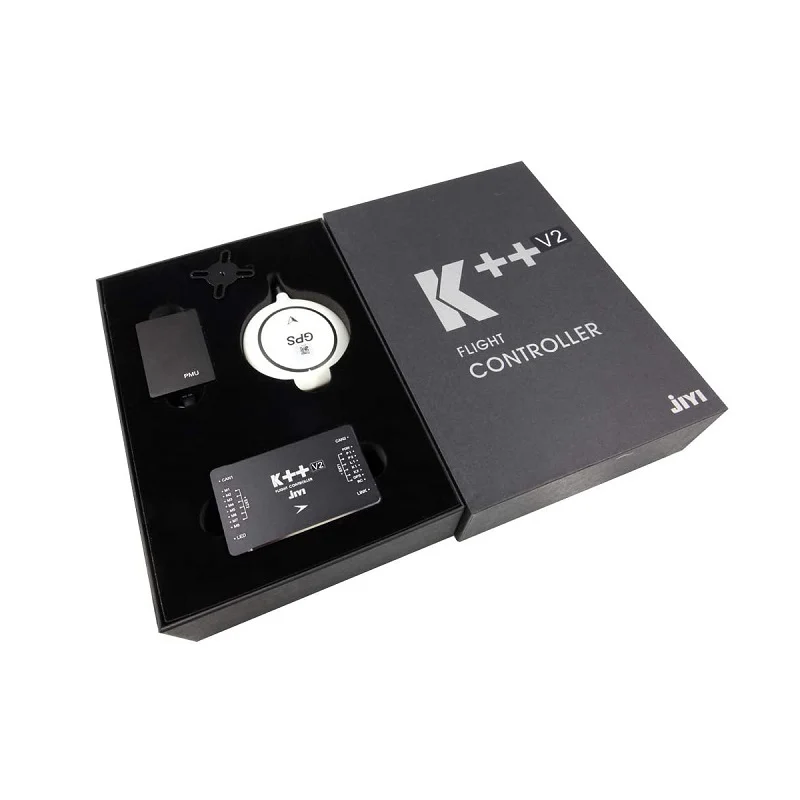

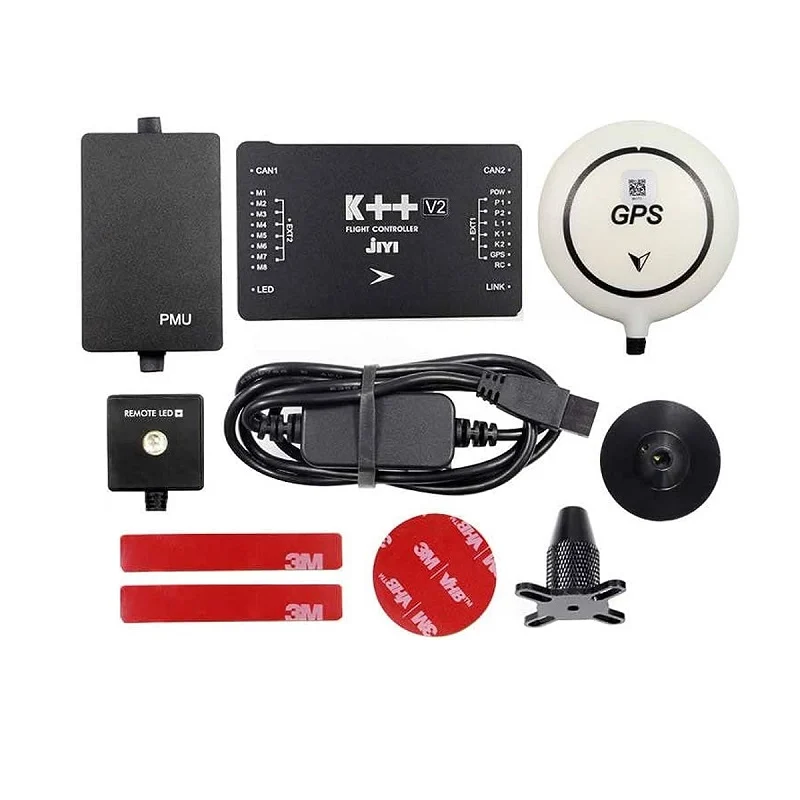

Package Includes:
1 x Jiyi K++ V2 Flight Controller Kit
Jiyi K++ V2 Flight Controller Kit Overview
The Jiyi K++ V2 Flight Controller Kit is a professional-grade control system designed for industrial UAV applications such as precise spraying, aerial mapping, and plant protection. Built with high stability and reliability in mind, this kit integrates advanced pump control functions and safety features to ensure efficient missions.
Key Features of Jiyi K++ V2 Flight Controller Kit
- Precise spraying function for uniform chemical or liquid distribution
- Double water pump mode to operate two pumps simultaneously or independently
- Water pump switch control and linkage control functions for flexible in-flight adjustments
- Terrain following (imitation ground) function to maintain consistent low-altitude spraying
- Breakpoint continuous spray function to resume from the last spray point after interruptions
- One-key return for automatic mission completion and safe UAV retrieval
- Genuine product—sourced directly from Jiyi
- Fast shipping from Zbotic with order tracking
Applications and Use Cases
- Precision agricultural spraying for crops, orchards, and vineyards
- Aerial mapping and surveying with integrated spray tasks for soil treatment
- Forestry pest control using dual-pump dispersion
- Environmental sampling and liquid dispersal over targeted zones
- Industrial site spraying for dust suppression or sanitization
- Plant protection missions in remote or difficult-to-access areas
How to Use Jiyi K++ V2 Flight Controller Kit
Install the controller into your UAV frame, connect the ESCs, power module, GPS, and water pumps according to the wiring diagram, then remove propellers before launching the Jiyi assistant software. Calibrate sensors and set spray parameters, waypoints, and return-altitude in the software. Confirm wiring and power supply are secure, then arm the system and start the mission—pump operations and spraying will follow your configured switches and linkage settings.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What pump configurations does the K++ V2 support?
The K++ V2 supports dual water pump operation in either independent or simultaneous modes. You can assign each pump to its own switch or link both pumps for higher-volume spraying.
How does the terrain following function work?
By using onboard sensors, the flight controller maintains a set distance from the ground (“imitation ground” mode), ensuring consistent altitude and uniform spray coverage across uneven terrain.
Can I adjust spray parameters during flight?
Yes. The kit’s switch control and linkage control functions allow you to start, stop, and adjust pump flow mid-flight directly from your transmitter without interrupting the mission.
