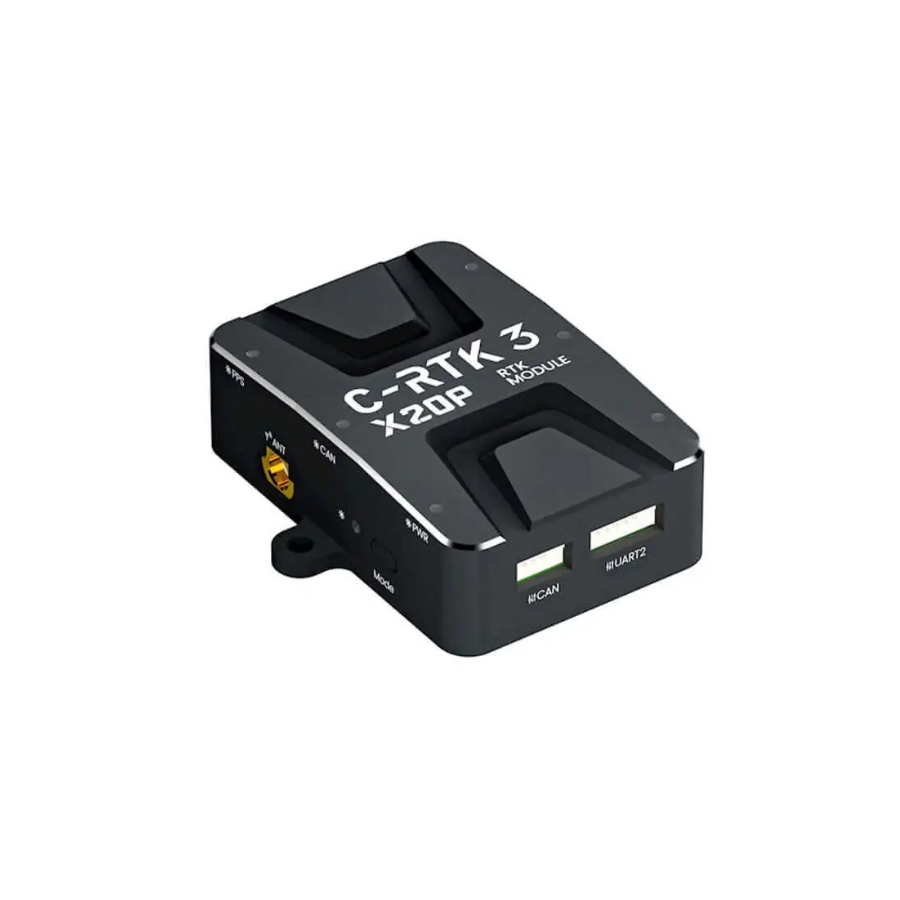

CUAV C-RTK 3 X20P High-Precision GNSS RTK Receiver

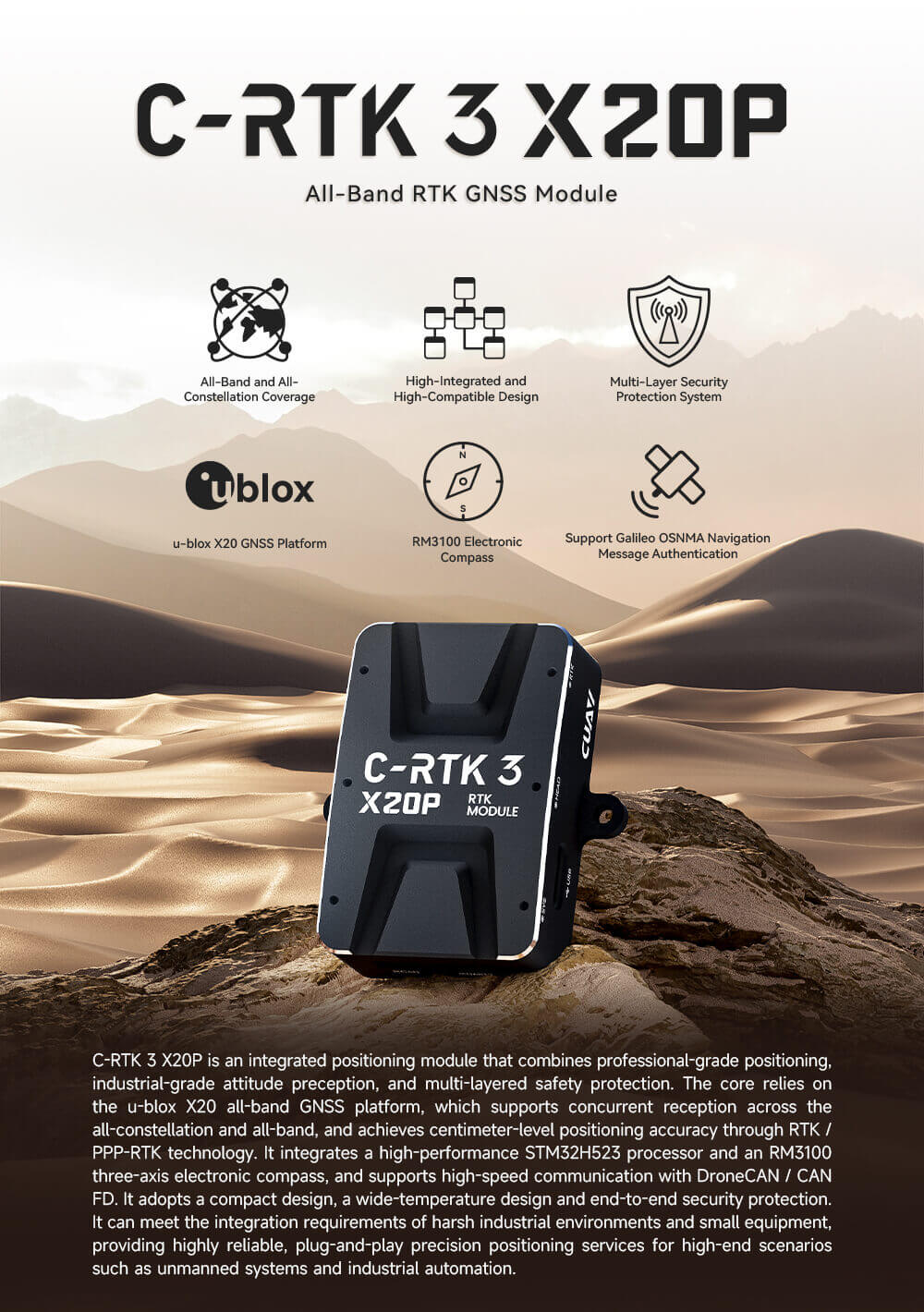

Description:
C-RTK 3 X20P is an integrated positioning module that combines professional-grade positioning, industrial-grade attitude perception, and multi-layered safety protection. The core relies on the u-blox X20 all-band GNSS platform, which supports concurrent reception across all constellations and all bands, and achieves centimeter-level positioning accuracy through RTK/PPP-RTK technology. It integrates a high-performance STM32H523 processor and an RM3100 three-axis electronic compass, and supports high-speed communication with DroneCAN/CAN FD. It adopts a compact design, a wide-temperature design, and end-to-end security protection. It can meet the integration requirements of harsh industrial environments and small equipment, providing highly reliable, plug-and-play precision positioning services for high-end scenarios such as unmanned systems and industrial automation.

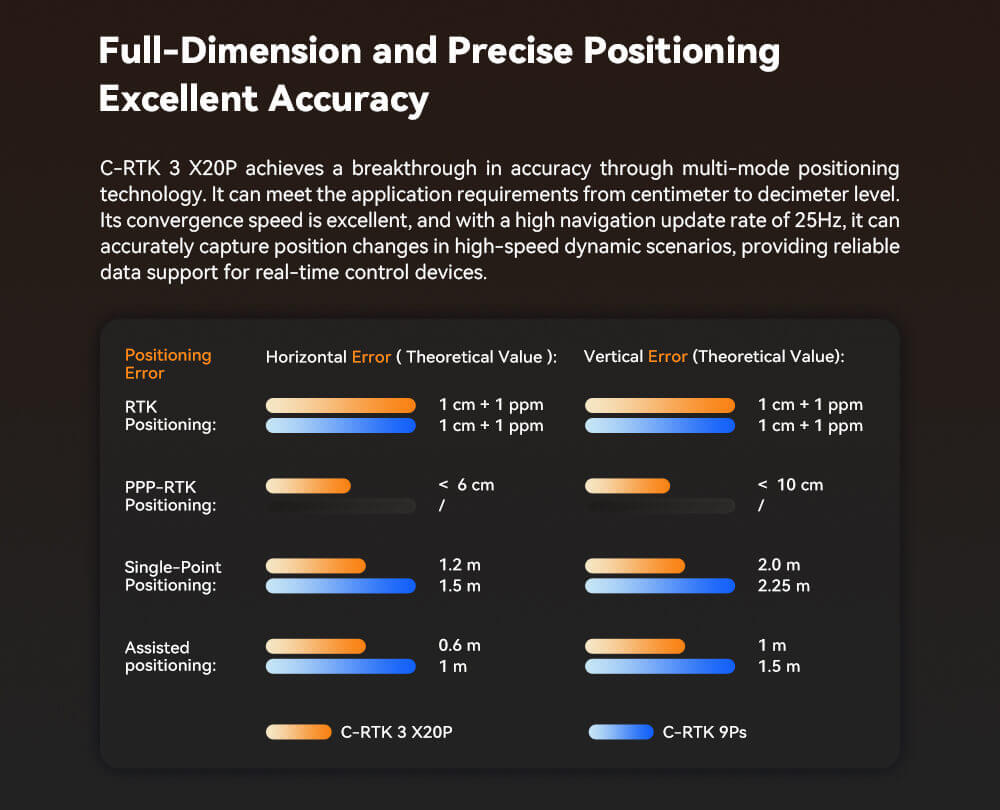

Full-Dimension and Precise Positioning | Excellent Accuracy
C-RTK 3 X20P achieves a breakthrough in accuracy through multi-mode positioning technology. It can meet the application requirements from the centimeter to decimeter level. Its convergence speed is excellent, and with a high navigation update rate of 25Hz, it can accurately capture position changes in high-speed dynamic scenarios, providing reliable data support for real-time control devices.

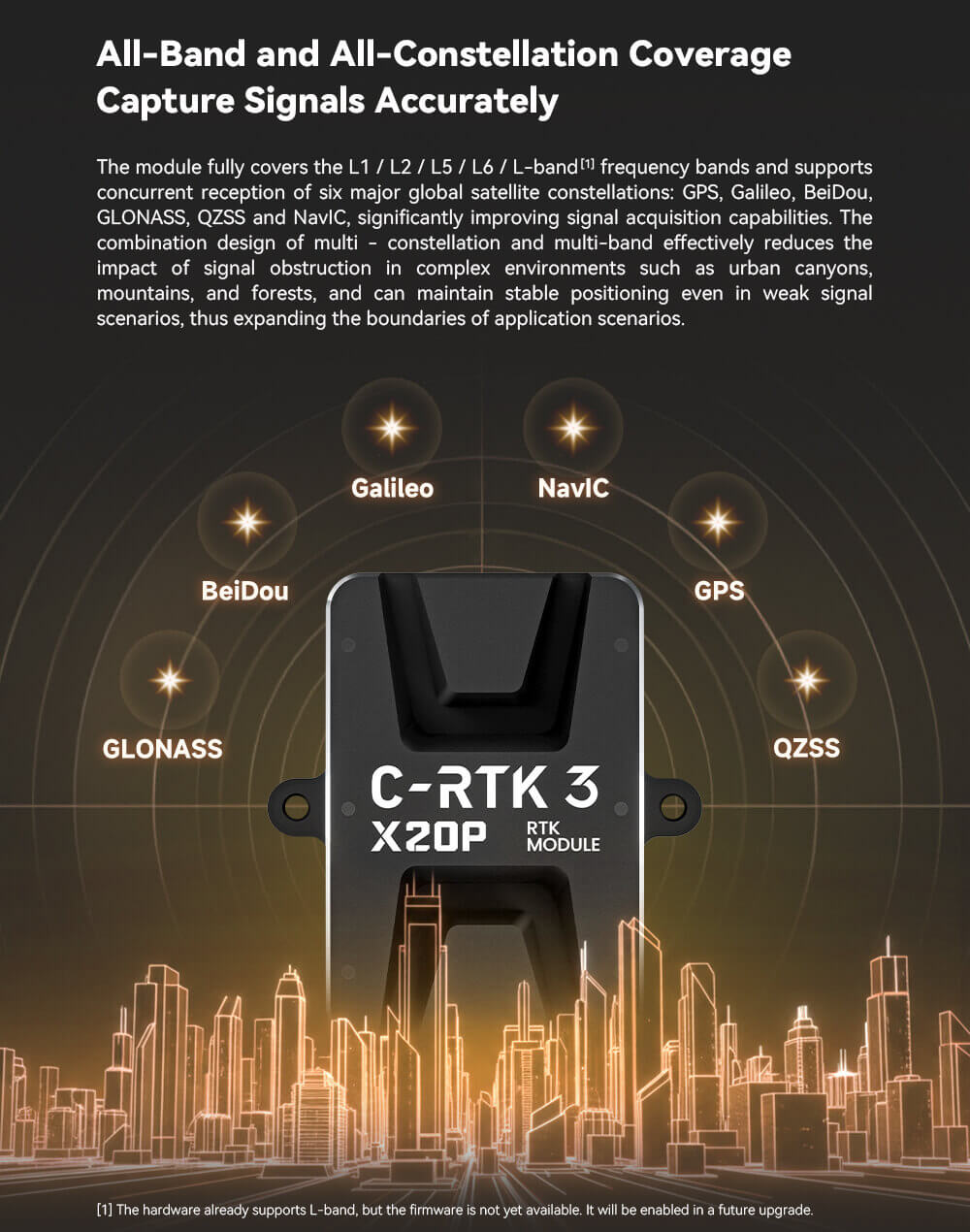

All-Band and All-Constellation Coverage | Capture Signals Accurately
The module fully covers the L1/L2/L5/L6/L-band frequency bands and supports concurrent reception of six major global satellite constellations: GPS, Galileo, BeiDou, GLONASS, QZSS, and NavIC. This is significantly improving signal acquisition capabilities. The combined design of multi-constellation and multi-band effectively reduces the impact of signal obstruction in complex environments such as urban canyons, mountains, and forests, and maintains stable positioning even in weak-signal scenarios, thereby expanding the range of applications.
Industrial-Grade Strong Adaptability | Undeterred by Harsh Environments
Adhering to industrial-grade design standards, the module operates in a temperature range of -15℃ to +85℃, easily coping with extreme environments such as high temperatures and extreme cold. Its anti-vibration meets the MIL-STD-810G standard (7.7g RMS) and is suitable for high-frequency vibration scenarios such as vehicles, agricultural machinery, and industrial robots.

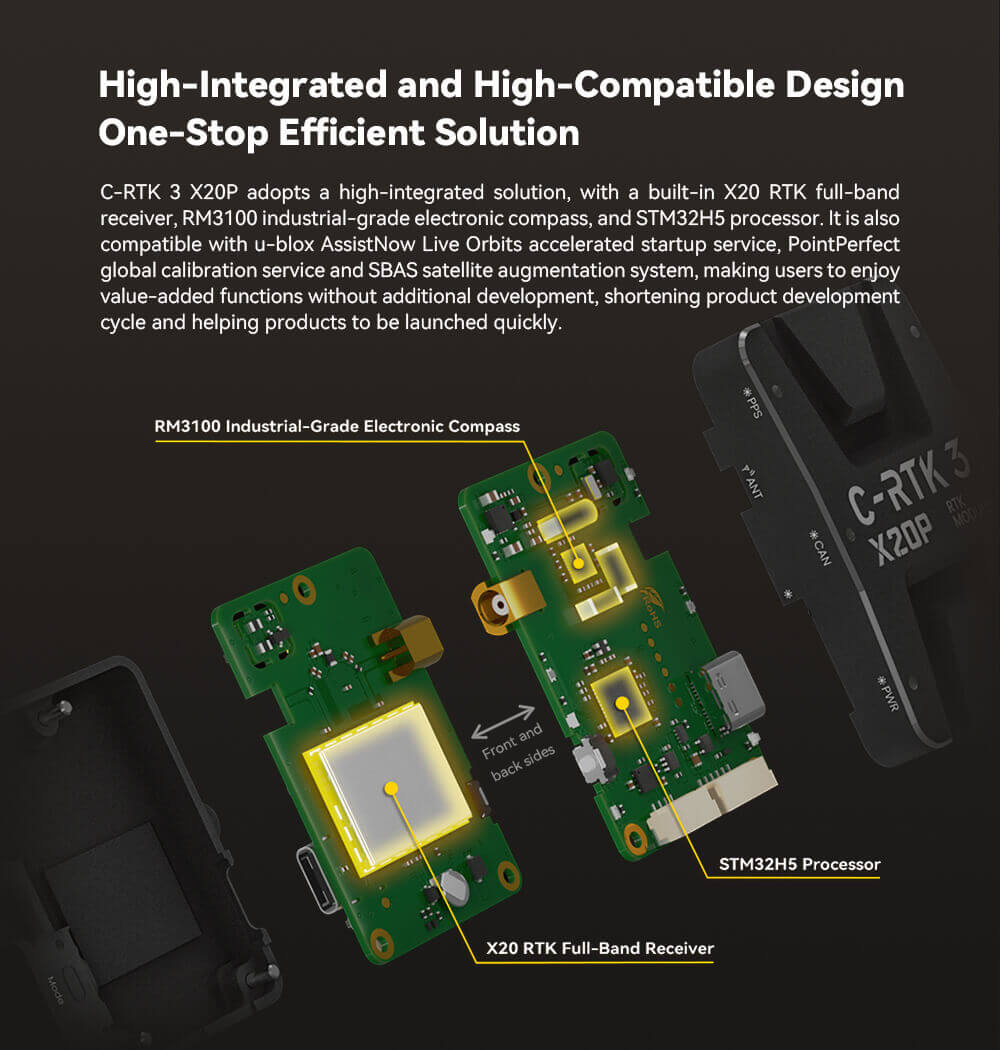

High-Integrated and High-Compatible Design | One-Stop Efficient Solution
C-RTK 3 X20P adopts a highly integrated solution, with a built-in X20 RTK full-band receiver, RM3100 industrial-grade electronic compass, and STM32H5 processor. It is also compatible with u-blox AssistNow Live Orbits accelerated startup service, PointPerfect global calibration service, and SBAS satellite augmentation system, enabling users to enjoy value-added functions without additional development, shortening product development cycle, and helping products to be launched quickly
End-to-End Full-Link Security Protection | Multiple Anti-Jamming Protection

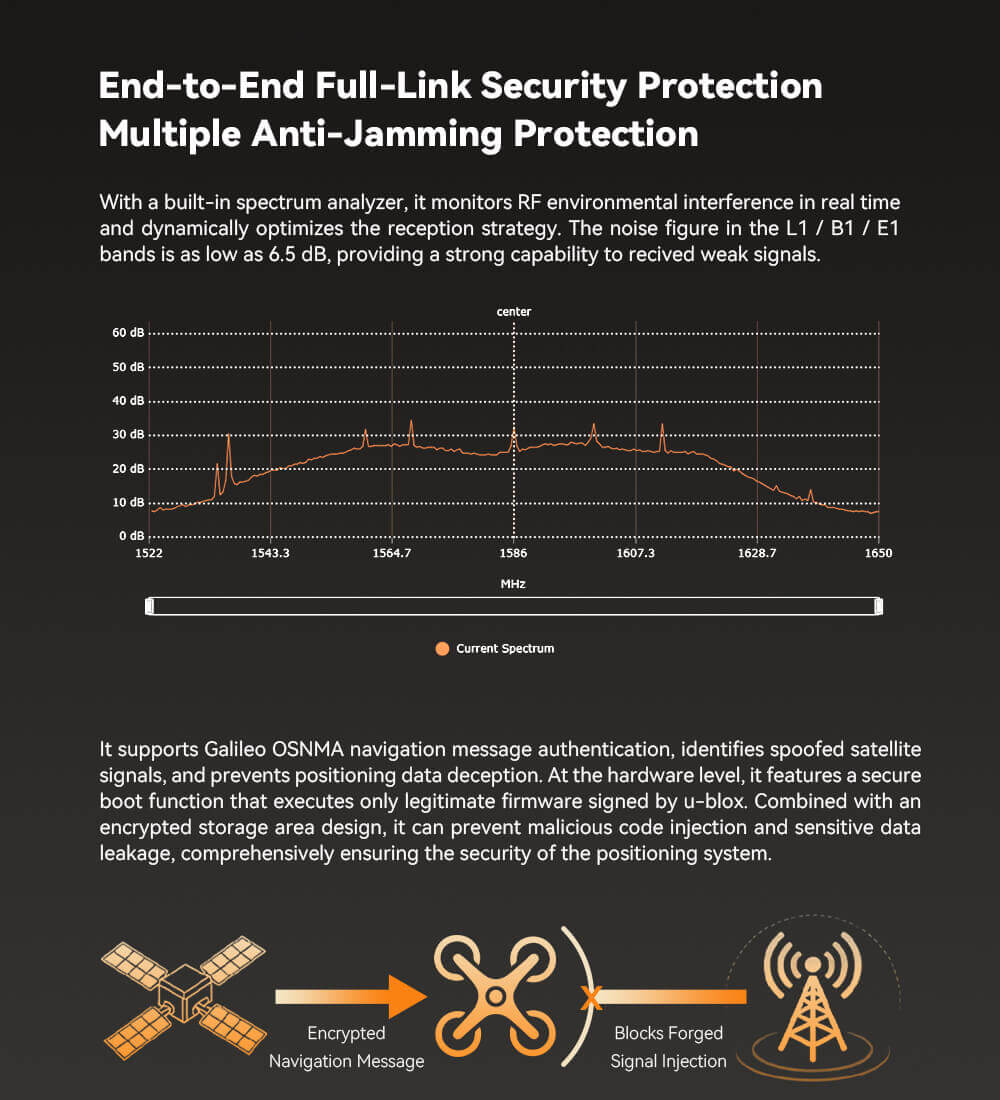

- With a built-in spectrum analyzer, it monitors RF environmental interference in real time and dynamically optimizes the reception strategy. The noise figure in the L1/B1/E1 bands is as low as 6.5dB, providing a strong capability to recived week signals.
- It supports Galileo OSNMA navigation message authentication, identifies spoofed satellite signals, and prevents positioning data deception. At the hardware level, it features a secure boot function that executes only legitimate firmware signed by u-blox. Combined with an encrypted storage area design, it can prevent malicious code injection and sensitive data leakage, comprehensively ensuring the security of the positioning system.

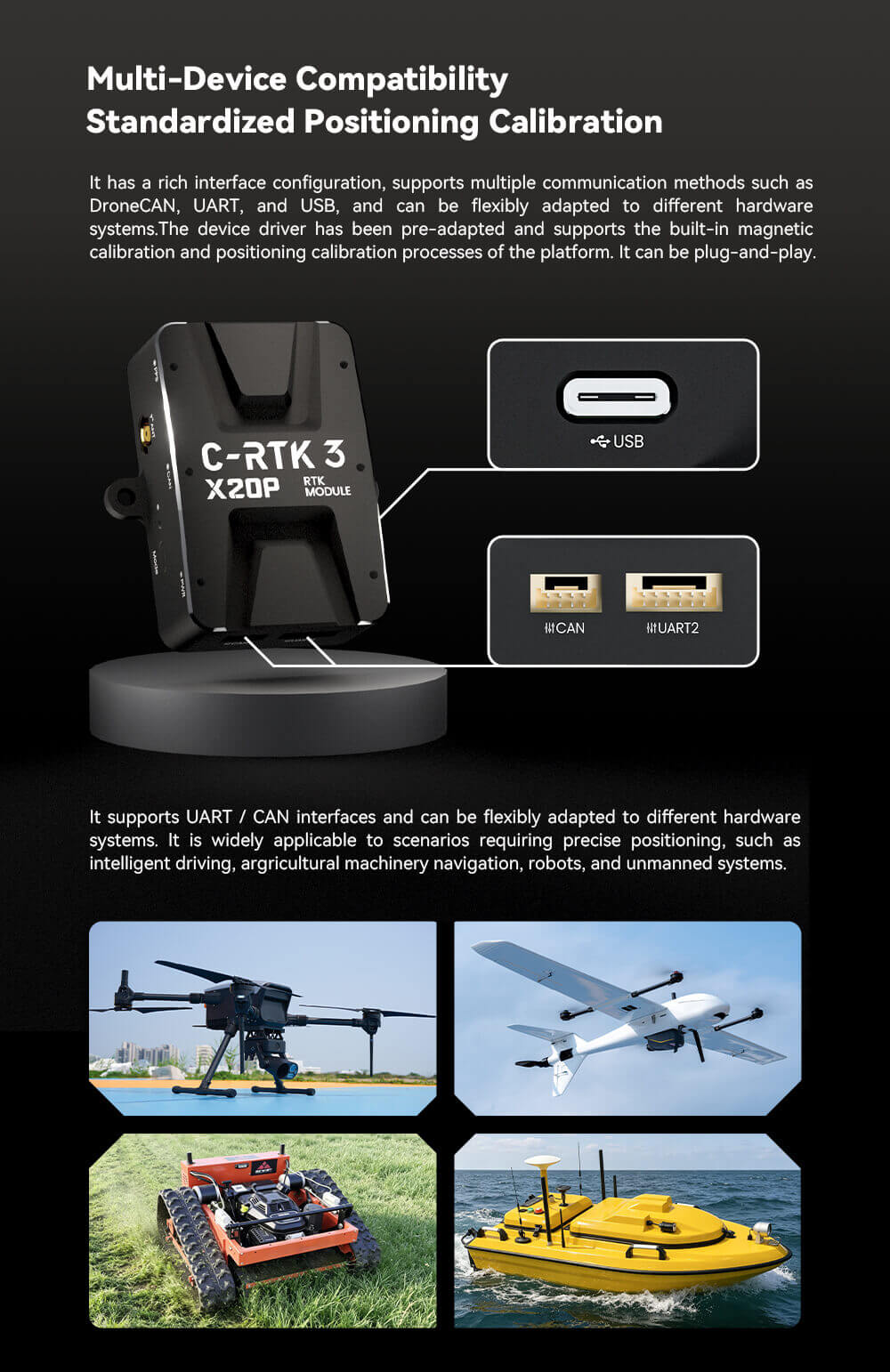

Multi-Device Compatibility | Standardized Positioning Calibration
- It has a rich interface configuration, supports multiple communication methods such as DroneCAN, UART, and USB, and can be flexibly adapted to different hardware systems. The device driver has been pre-adapted and supports the built-in magnetic calibration and positioning calibration processes of the platform. It can be plug-and-play.
- It supports UART/CAN interfaces and can be flexibly adapted to different hardware systems. It is widely applicable to scenarios requiring precise positioning, such as intelligent driving, agricultural machinery navigation, robots, and unmanned systems.
Specification:
Basic Parameters |
|
| Processor | STM32H5 (Main Band 280MHz, Flash 512KB, RAM 128KB) |
| Hardware Channel | 672 pcs |
| Support Constellation and Band | GPS: L1C / A / L2C / L5 GLONASS: L1OF、L2OF BeiDou: B1I、B1C、B2a、B3I Galileo: E1-B / C / E5a / E6 QZSS: L1C / A、L1C / B、L2C、L5 NavIC: L1 – SPS / L5 – SPS |
| Assisted and Enhanced Positioning | AssistNow™ Live Orbits: GPS L1C / A、Galileo E1、QZSS L1C / A、BeiDou B1I SBAS: EGNOS / GAGAN / MSAS / WAAS / BDSBAS u-blox PointPerfect Correction Service (Flex / Live / Global) |
| Security Protection | 1. Built-in CW Interference Detection and Spectrum Analysis Functions 2. Galileo OSNMA Navigation Message Authentication 3. Secure Boot (Only Execute Signed Firmware), Configuration Locking, Tamper-Proof Storage Area 4. Active Antenna Short Circuit / Open Circuit Detection |
| Positioning Accuracy | Standalone: Horizontal 1.2 m, Vertical 2.0 m DGNSS: Horizontal 0.6 m, Vertical 1.0 m PPP-RTK: Horizontal <0.06 m, Vertical <0.10 m RTK: Horizontal 0.006 m + 1 ppm, Vertical 0.01 m + 1 ppm |
| Max Update Rate | 25 Hz |
| Convergence Time | PPP-RTK: < 40 s RTK: < 7 s |
| Start Time | Cold Start: 25 s Hot Start: 2 s Aided Start: 2 s |
| Sensitivity | Tracking: -167 dBm Cold Start: -148 dBm Reacquisition: -160 dBm Hot Start: -158 dBm |
| PPS Timepulse | Pulse Accuracy RMS: 20 ns Pulse with 99% confidence: 60 ns Frequency: 1PPS (Default, 0.25 Hz~10 MHz Configurable) |
| Built-in Electronic Compass | RM3100 |
| Measurement Range | ±1100 μT (Wide Dynamic Magnetic Field Adaptation) |
| Resolution | 13 nT@200 Cycle Count; Detection Sensitivity 2.7 nT at 1 Hz |
| Noise Level | 15 nT@200 Cycle Count; Noise Floor 4 pT /√Hz (1Hz) |
| Linearity | 0.50% within ±200 μT |
| Protocol | CAN : DroneCAN/CAN FD |
| UART: NMEA 4.11/4.10/4.0、UBX、RTCM 3.4、SPARTN 2.0.2 | |
| Communication Rate | 1 Mbit/s (CAN) 8 Mbit/s (CAN FD) |
| Upgrade Support | Support |
| Firmware | C-RTK 3 M4C |

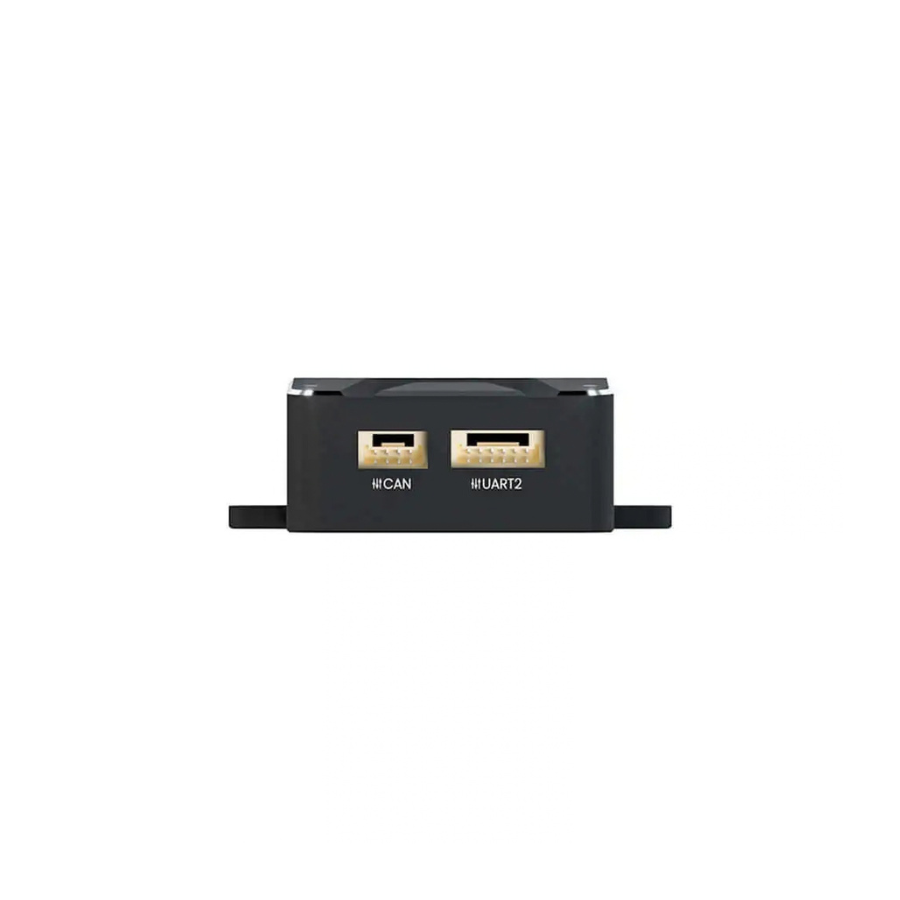

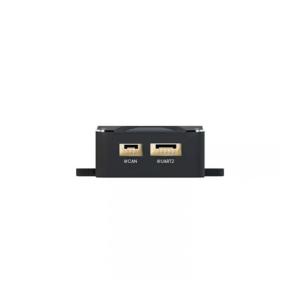

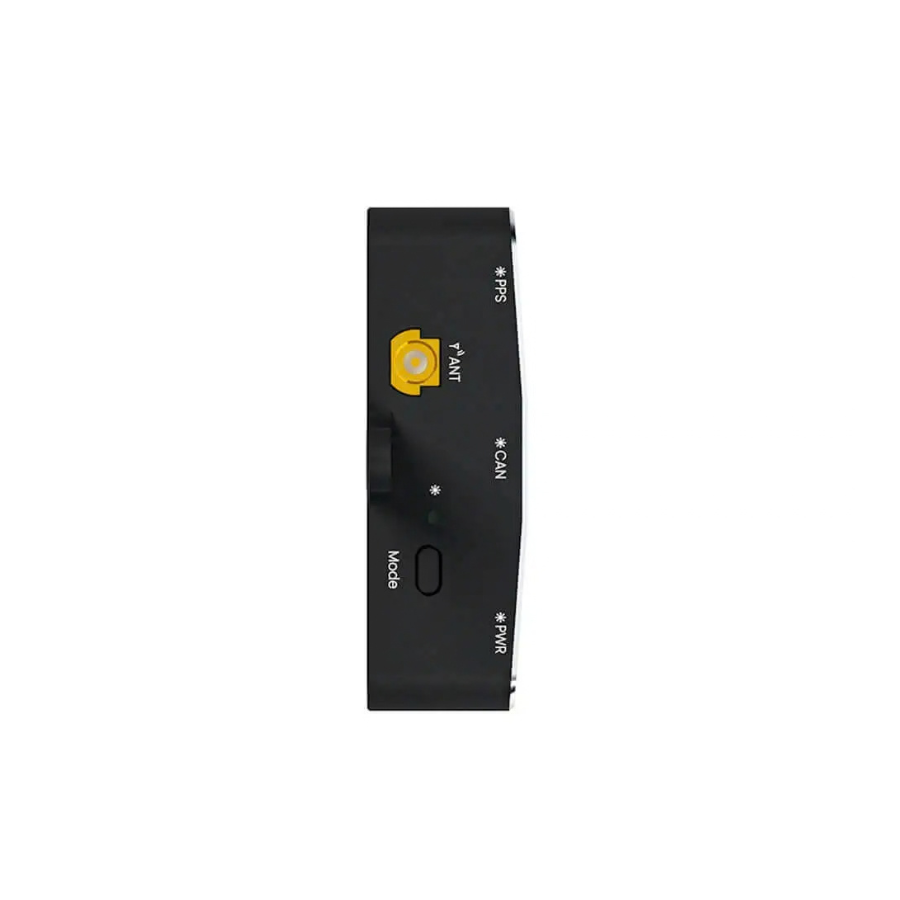

Port Type |
|
| UART | 1 × UART (JST GH 1.25 4P) |
| CAN | 1 × CAN (JST GH 1.25 4P) |
| USB | 1 × USB (TYPE-C) |
| Antenna Port | 1 × ANT (BWMCX-KEF) |
Hardware Parameters |
|
| Operating Voltage | 4.75 ~ 5.3V (200 mA) |
| Size | 52 × 48.5 × 16.5 mm (Includes screw holes) |
| Weight | 30 g (Excludes antenna and feeder cable) |
| Operating Temperature | -15 ~ +85 ℃ |
Additional Information:
| Weight | 0.5 kg |
|---|---|
| Dimensions | 10 × 10 × 5 cm |
| C-RTK 3 X20P Options | Rover Station(Includes antenna), Base Station(Includes antenna) |
| Processor | STM32H5 (Main Band 280MHz, Flash 512KB, RAM 128KB) |
| Hardware Channel | 672 pcs |
| Max Update Rate | 25 Hz |
| Built-in Electronic Compass | RM3100 |
| Operating Voltage | 4.75 ~ 5.3V (200 mA) |
| Size | 52 × 48.5 × 16.5 mm (Includes screw holes) |
| Weight | 30 g (Excludes antenna and feeder cable) |
| Operating Temperature | -15 ~ +85 ℃ |

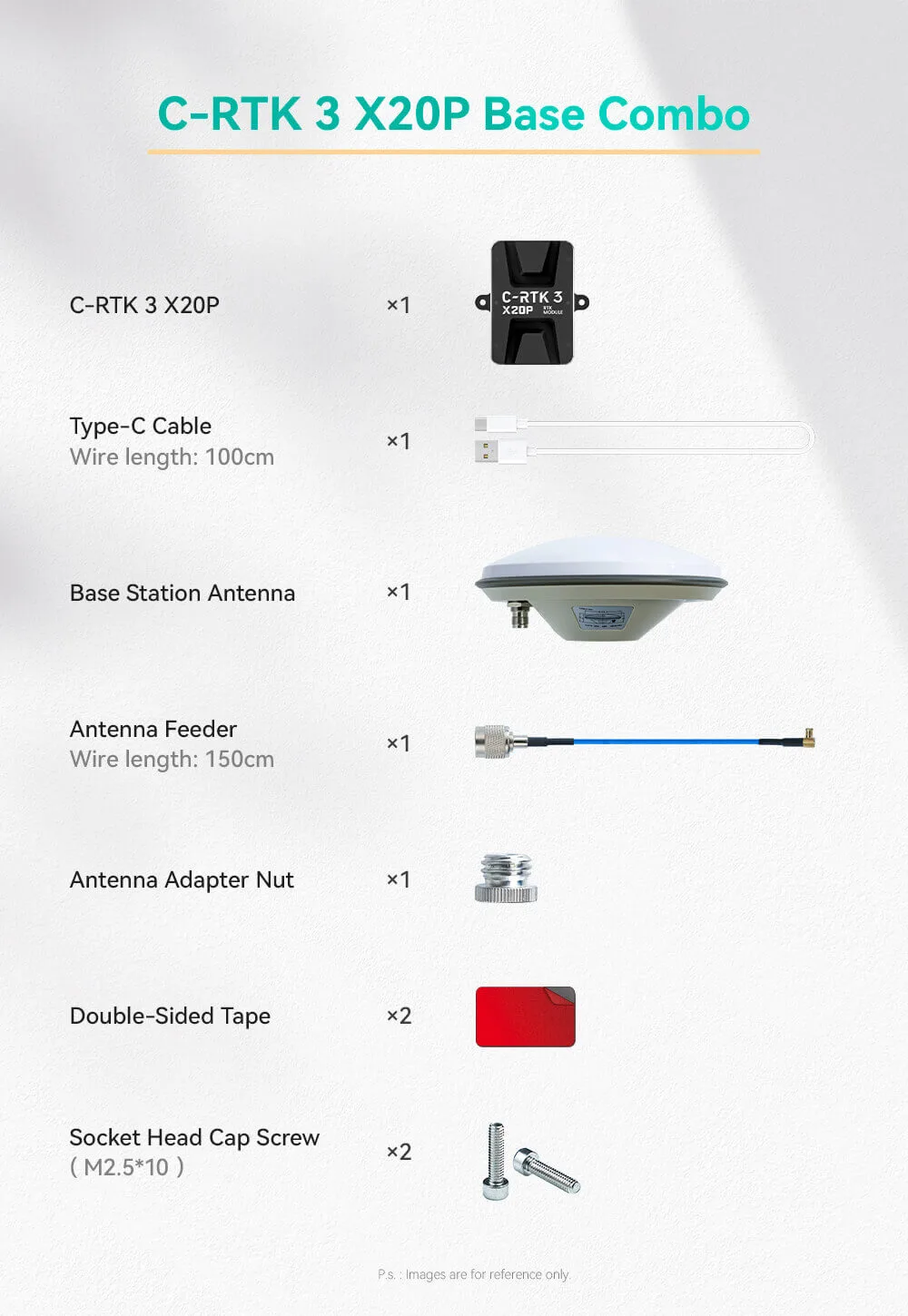

Pacakge Includes:
1xCUAV C-RTK 3 X20P High-Precision GNSS RTK Receiver
