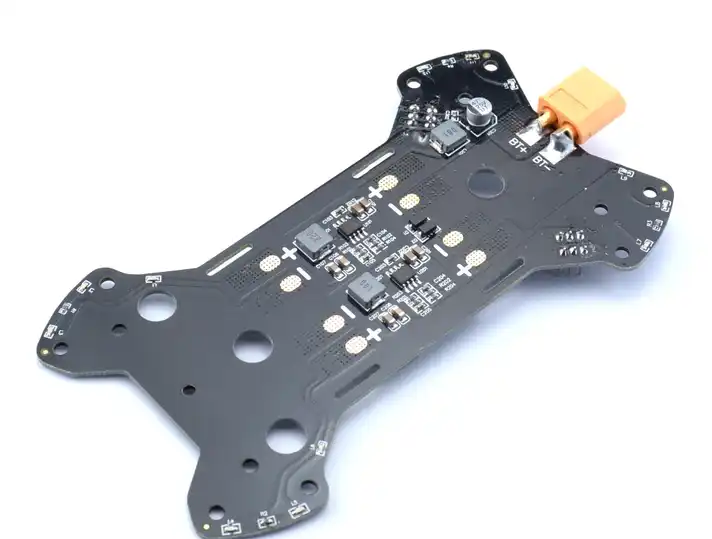

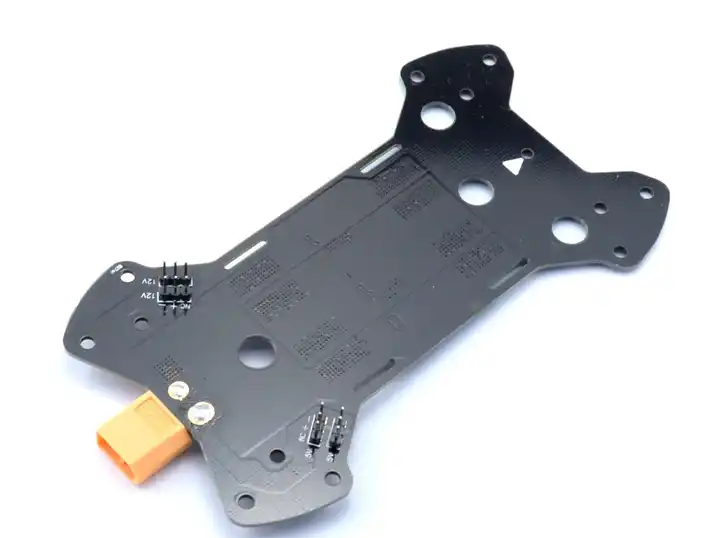

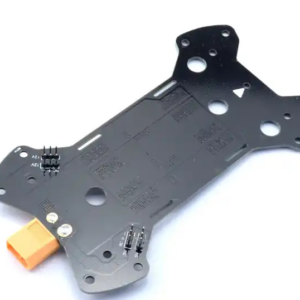

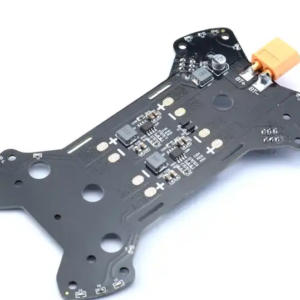

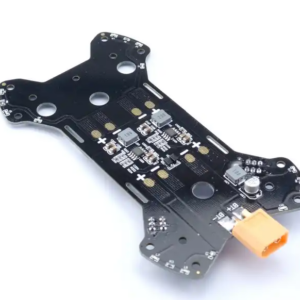

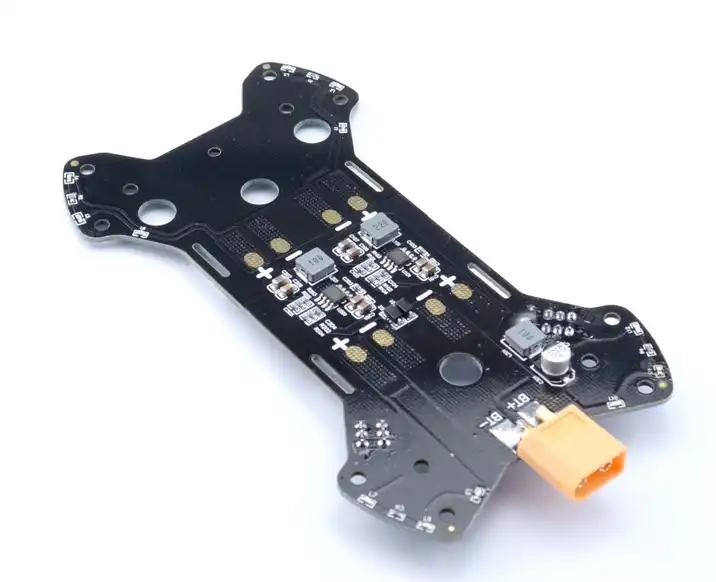

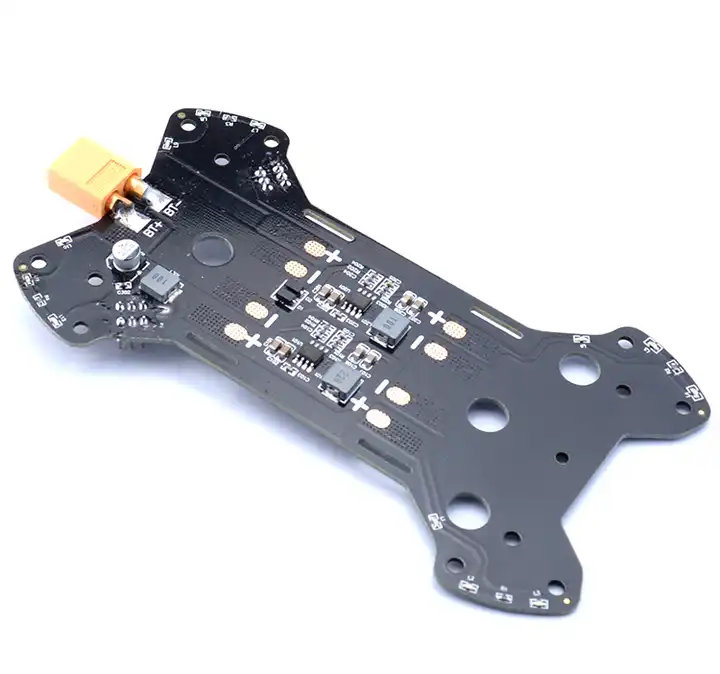

Robocat 270 Power Distribution Board

Looking for Robocat 270 Power Board? Robocat 270 Power Distribution Board is available at Zbotic with fast shipping across India.

The RoboCat 270mm mini FPV racing quad power distribution board has been designed to work with theRoboCat 270mm Glass Fiber Mini FPV Racing Quad & RoboCat 270mm 3K Carbon Fiber Mini FPV Racing Quads.

The PDB for the Robocat comes with a 5V & 12V BEC which has a power filter which helps to clean up any interference in the DC current, this interference is a known cause of lines seen in First Person View video signals. The LC filter type utilises a large value inductor and capacitor components to help clean the power before arriving at the video transmitter. The Robocat PDB can be used with many flight controllers like the KK, CC3D & Naze32 etc.

Specifications:
especial designed for robocat 270mm With 5V 12V BEC, power filter,

package Include-

1 X Robocat 270 Power Distribution Board

Robocat 270 Power Distribution Board Overview

The Robocat 270 Power Distribution Board is a dedicated PDB designed for 270mm mini FPV racing quads, including Robocat 270mm Glass Fiber and 3K Carbon Fiber frames. It delivers clean, regulated 5V and 12V power rails with an integrated LC filter to reduce electrical noise in your video feed.

Key Features of Robocat 270 Power Distribution Board

• Dual BEC outputs providing 5V and 12V regulated power for flight controller and video transmitter
• LC power filter with high-value inductor and capacitor for noise-free FPV video signals
• Multiple solder pads to distribute battery power to ESCs, FC and accessories
• Precision mounting holes to fit Robocat 270mm frames and standard mini-quad layouts
• Compatible with popular flight controllers such as KK, CC3D and Naze32
• Genuine product with fast shipping from Zbotic across India

Applications and Use Cases

• Building or repairing a Robocat 270mm Glass Fiber FPV racing quad
• Upgrading power distribution in 270mm carbon fiber mini-quad frames
• Powering 5V flight controllers and 12V video transmitters simultaneously
• Reducing video interference in high-RPM brushless motor setups

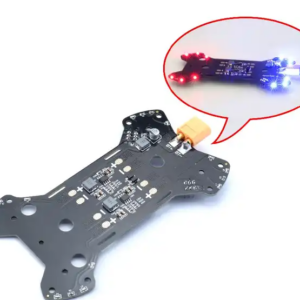

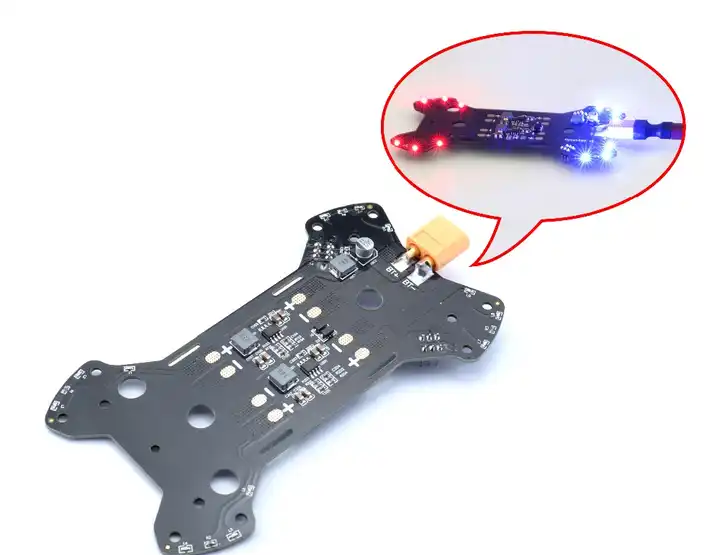

• Integrating clean power rails for onboard LED lighting or cameras
• Retrofit into custom-made 270mm quadcopter builds with similar mounting patterns

How to Use Robocat 270 Power Distribution Board

Once mounted on your 270mm quad frame, solder the main battery leads to the PDB’s input pads, then attach ESC power wires to the four motor output pads. Connect the 5V BEC output to your flight controller’s power input and the 12V output to the video transmitter. Ensure solid solder joints and secure wiring before powering up to enjoy stable voltage and reduced FPV noise.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

Can I use this PDB on other 270mm frames?

Yes, as long as the frame’s mounting holes match the Robocat 270mm layout and you can secure the PDB in place, it will distribute power reliably to your ESCs, flight controller and VTX.

What level of video noise reduction does the LC filter provide?

The built-in LC filter uses a large inductor and capacitor to smooth voltage spikes, significantly reducing the horizontal/vertical lines often seen in FPV feeds caused by motor and ESC noise.

Which flight controllers are compatible with this board?

The board provides standard 5V and 12V rails compatible with KK, CC3D, Naze32 and most mini-quad flight controllers that accept regulated BEC inputs.
