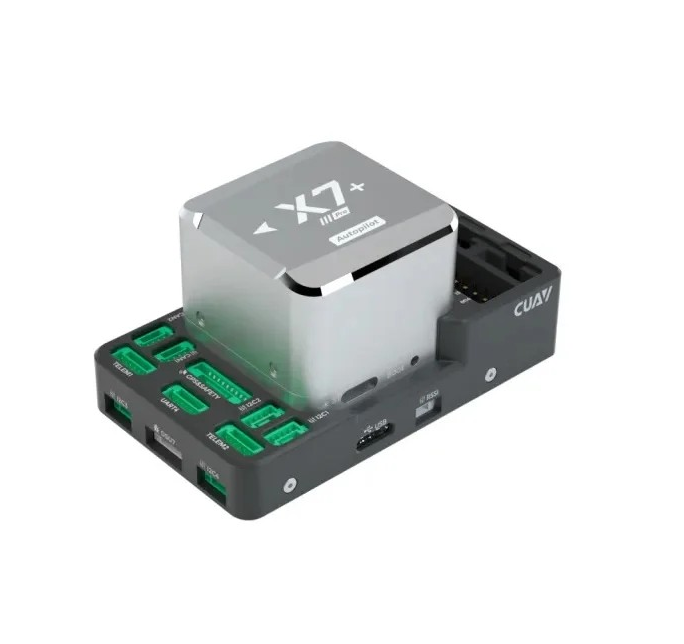

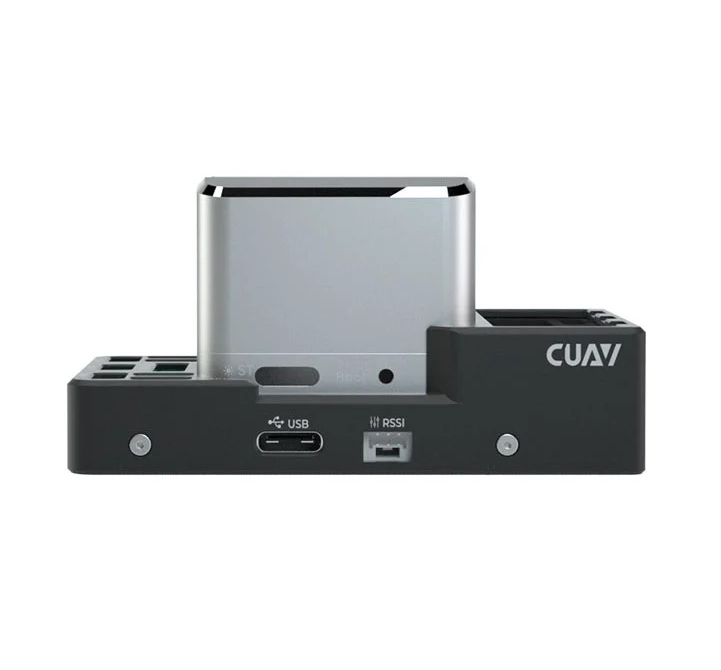

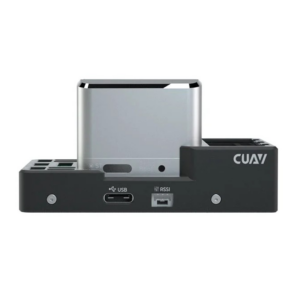

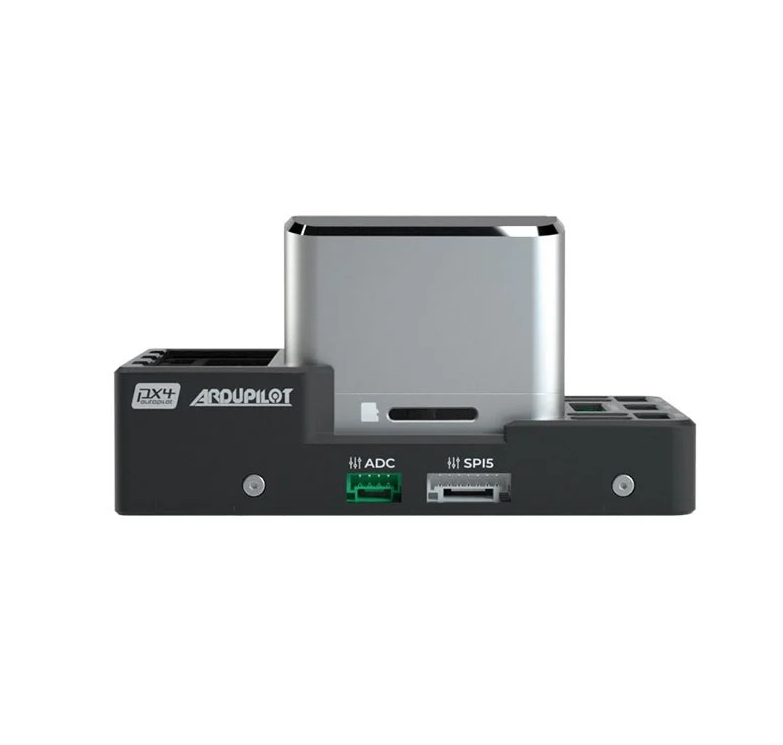

CUAV X7+ Pro Flight Controller | Autopilot For PX4 APM Drone Quadcopter Pixhawk

CUAV X7+ Pro Flight Controller | Autopilot For PX4 APM Drone Quadcopter Pixhawk

The X7+ Pro is a sophisticated autopilot system developed by CUAV. It is powered by an STM32H743 processor with processing speeds reaching 480MHz, and it includes 1MB of storage and 2MB of flash memory. The device is outfitted with three sets of state-of-the-art sensors from Invensense, Bosch, and TE series, as well as an industrial-grade RM3100 compass, ensuring outstanding stability and minimal interference.

Furthermore, the X7+ Pro integrates CUAV’s proprietary shock absorption design and a temperature compensation system, which significantly improves reliability under diverse operational conditions. It also employs a car gauge ADIS16470 sensor to enhance flight stability, delivering remarkable performance.

CUAV X7+ Pro Flight Controller Autopilot For PX4 APM Drone Quadcopter Pixhawk; it uses a higher performance STM32H7 series processor than the previous-generation flight controller (FMUv5) and integrates high-precision industrial-grade sensors and ultra-low temperature drift sensors, more stable and reliable. Compared with the previous flight controller, it has better performance and more reliability. This board can run ArduPilot firmware perfectly, and it will also be compatible with PX4 firmware.

X7+ Pro replaces the ICM-20689 chip on the X7+ with a high-end ADI16470 chip. Because of its excellent gyro and acceleration drift performance, it has been used in some cutting-edge aerospace projects in the past. This time, we introduced it into the open-source flight control, which is integrated into the IMU with triple redundancy and exerts excellent performance.

Features:

1. Aero-Grade ADI16470 Sensor
2. Built-in shock absorption
3. 3 sets of Imus support intelligent failover
4. Support temperature compensation.
5. Support CAN ammeter.
6. Modular design, support custom baseboard.
7. Modular design can be DIY carrier board.
8. Support USB_HS, download logs faster.
9. Support more dshot output.
10. Support IMU heating, make the sensor work better.
11. Dedicated Uavcan battery port
12. High-precision industrial sensor(ADIS16470+RM3100)

Note: X7+ Pro flight controller is compatible with ArduPilot 4.10/ PX4 1.12.3 or higher firmware.

Specification:

Package Includes:

1 x CUAV X7+ Pro Flight Controller

2 x 12C/CAN cable

1 x ADC3.3 cable

1 x RSSI cable (X7 series)

1 x CAN PMU Lite Power Module

1 x Dupont cable

1 x CAN extension board

1 x Pw-Link module

1 x USB-TypeC cable

1 x 16G Memory card

MANUAL
