This is the Blue variant of the MicoAir743 60A Bluejay Stack in Flight Controller & Accessories. Available at ₹20,624.63 (₹19,642.50 + GST) with free shipping across India.

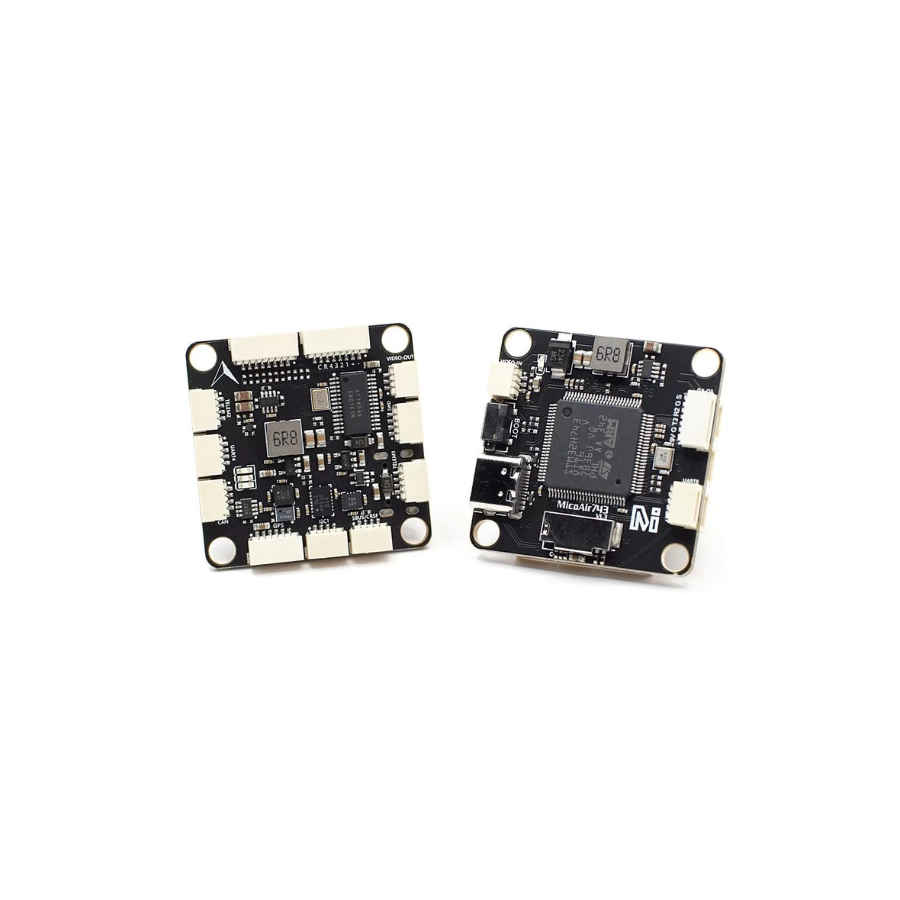

MicoAir743 60A Bluejay Stack
Description:

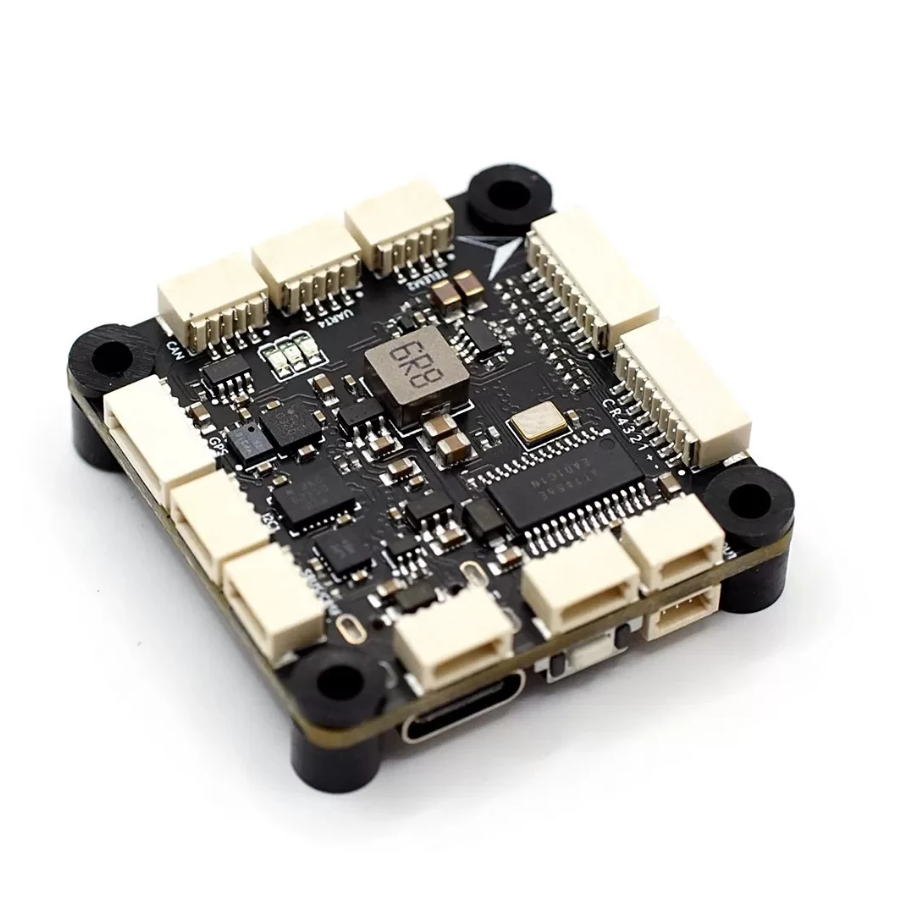

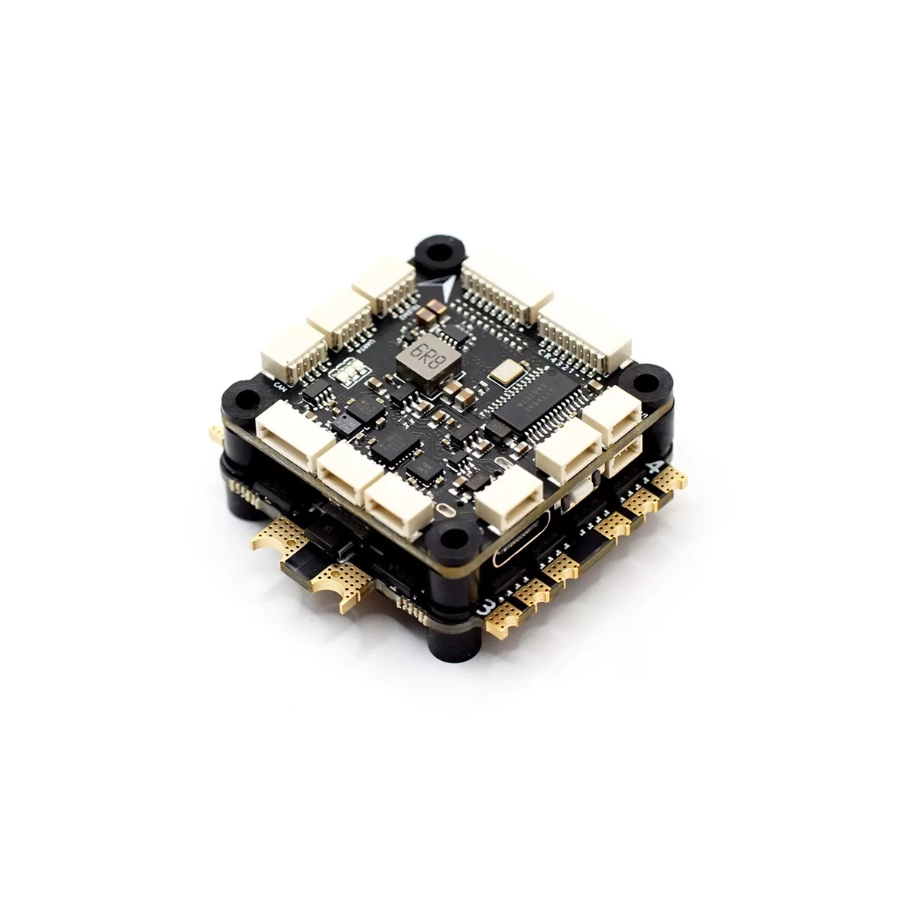

The MicoAir743 60A Bluejay Stack is a high-performance flight controller and 4-in-1 electronic speed controller (ESC) stack designed for multirotor UAVs, FPV drones, and advanced aerial applications. It features an STM32H743VIT6 processor running at 480 MHz, dual BMI088 and BMI270 IMU sensors, a DPS310 barometer, and an IST8310 compass for flight control and navigation support.

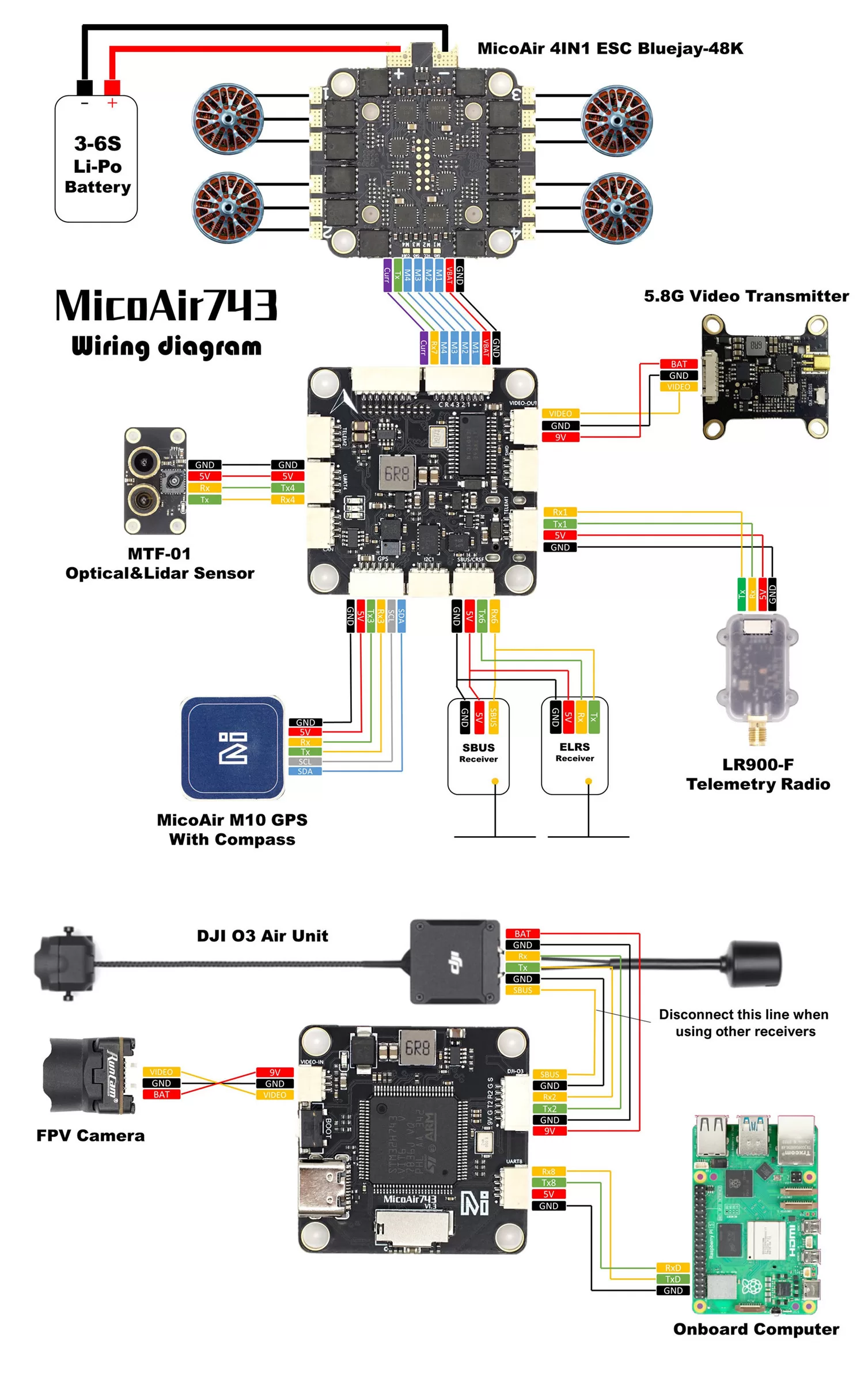

The integrated 60A 4-in-1 Bluejay ESC supports 3S–6S LiPo batteries and provides a continuous current rating of 60A per motor channel. Its high-current PCB design supports demanding drone builds, while DShot300, DShot600, and bidirectional DShot protocols enable digital motor control. With multiple UART ports, CAN, I²C, USB connectivity, microSD flight-log storage, and 5V/3A and 9V/3A BEC outputs, the stack supports integration with GPS modules, receivers, and other UAV peripherals.
Specifications:
| Specification | Details |
|---|---|
| Brand | MicoAir |
| Product Name | MicoAir743 60A Bluejay Stack |
| Product Type | Flight Controller + 4-in-1 ESC Stack |
| MCU / Processor | STM32H743VIT6 |
| Processor Speed | 480 MHz |
| Flash Memory | 2 MB |
| IMU Sensors | BMI088 + BMI270 |
| Barometer | DPS310 |
| Compass | IST8310 |
| OSD | AT7456E |
| ESC Type | 4-in-1 ESC |
| ESC Firmware | Bluejay |
| Continuous Current | 60A × 4 channels |
| Battery Input | 3S–6S LiPo |
| ESC Protocols | DShot300, DShot600, Bidirectional DShot |
| PWM Support | Not supported by the 60A Bluejay ESC |

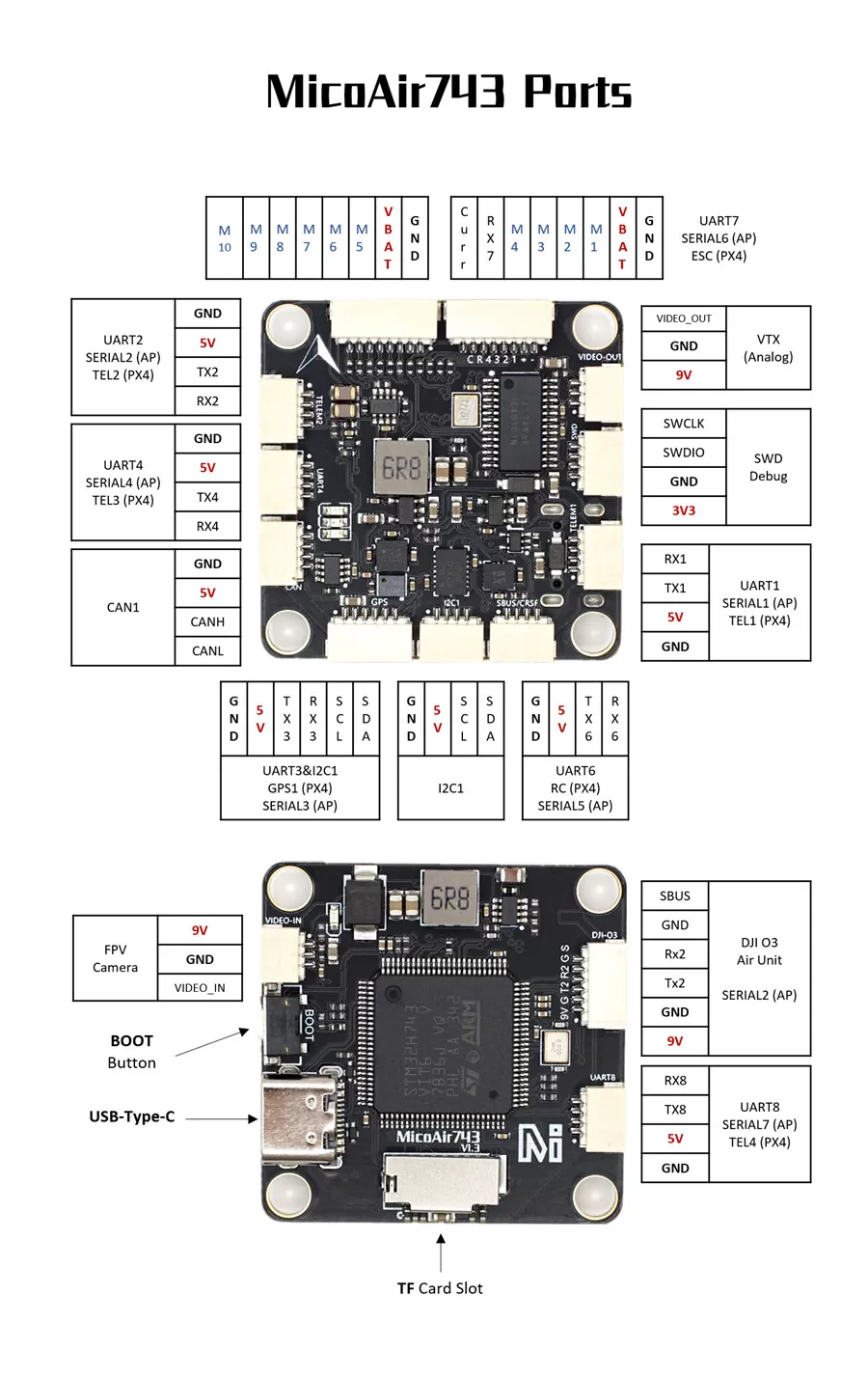

| UART Ports | 7 |
| PWM Outputs | 10 |
| CAN | 1 port |
| I²C | 1 port |
| USB | USB Type-C |
| Storage | MicroSD card slot |
| BEC Output | 5V/3A and 9V/3A |
| Mounting Pattern | 30.5 × 30.5 mm |
| Flight Controller Dimensions | 36 × 36 × 8 mm |
| Firmware Support | ArduPilot, PX4, INAV, Betaflight |

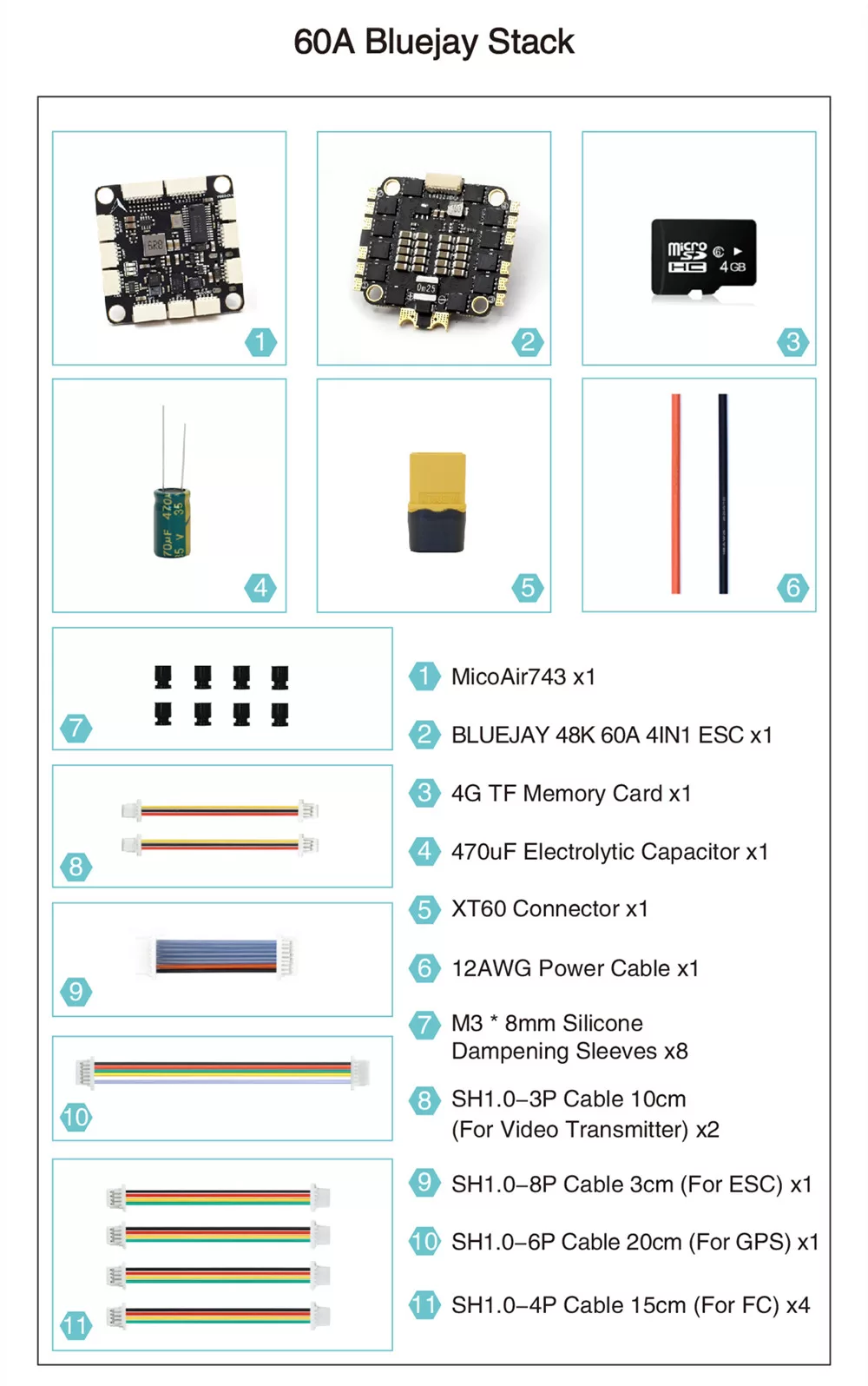

Pacakge Includes:
1xMicoAir743 60A Bluejay Stack
4-in-1 ESC vs Separate ESCs: Which is Better for FPV Racing Drones?
4-in-1 ESC vs Separate ESCs: Which is Better for FPV Racing Drones? Every FPV pilot who has built...
Read More →
Drone RTK GPS: Centimeter-Accurate Navigation Explained
Table of Contents What Is RTK GPS and How Does It Work? RTK vs Standard GPS: The Numbers...
Read More →
PX4 Autopilot: Open-Source Drone Software Guide
Table of Contents What is PX4 Autopilot PX4 vs ArduPilot Comparison Setting Up QGroundControl Supported Flight Controllers Airframe...
Read More →Technical Specifications
| Brand | MicoAir |
|---|---|
| Current Rating | 60A |
| Color | Blue |
| SKU | AI6830 |
| Weight | 0.0 kg |
| Availability | In Stock |
Applications & Use Cases
The MicoAir743 60A Bluejay Stack is a versatile flight controller & accessories used across a wide range of applications including autonomous drones, FPV racing quadcopters, agricultural drones, and surveying and mapping platforms.
Common use cases:
- Central brain for drone stabilization and navigation
- GPS waypoint missions for surveying
- Acro mode flying for FPV freestyle
This product is ideal for drone builders requiring precise flight control.
Technical Tip: F4 processors are good for basic builds; F7 or H7 recommended for advanced features. Ensure firmware compatibility (Betaflight, ArduPilot, iNAV).
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine MicoAir product sourced from authorized channels
