Mini OSD for Pixhawk Flight Controller
The Mini OSD for Pixhawk Flight Controller, accompanied by the MinimOSD board, processes all MAVLink data from the APM telemetry stream and integrates it with the video feed from an onboard camera and wireless video transmitter. This feature is particularly beneficial for those flying in First Person View (FPV) mode or for those who prefer not to use a laptop in the field to monitor telemetry data through the Mission Planner.
Compatible flight controller:
APM2.5
APM2.6
APM2.8
Pixhawk PX4
Important Note:
You cannot connect the OSD when your APM 2 is also connected via USB (they share the same port). Make sure you disconnect your USB cable from the APM 2 board before attempting to use the OSD.
Features:
- ATmega328P with Arduino bootloader.
- MAX7456 monochrome on-screen display.
- FTDI cable compatible pinout.
- Standard 6 pin ISP header.
- 2 independent power sections with an LED indicator on each.
- Solder jumpers for combining the power sections.
- +5V 500mA regulator for up to +12V supply input.
- Solder jumper for PAL video option.
- Exposed test points for HSYNC and LOS.
Note : Actual product will available in with casing or without casing
Package includes:

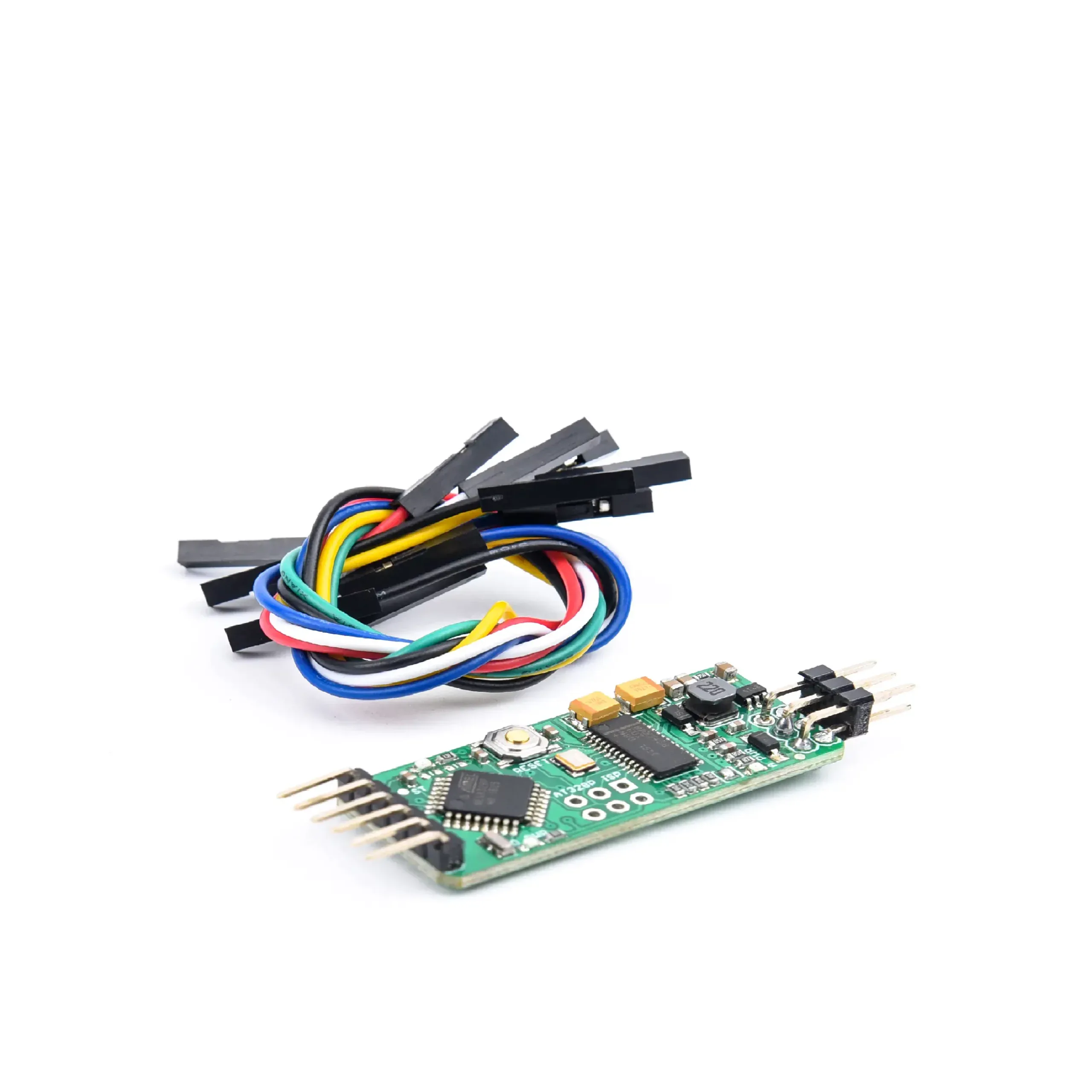

1 x Mini OSD for the Pixhawk Flight Controller module.
1 x Connecting Cables.
Mini OSD for Pixhawk Flight Controller Overview
The Mini OSD for Pixhawk Flight Controller integrates live MAVLink telemetry from APM or Pixhawk into your FPV video feed. Powered by an ATmega328P with Arduino bootloader and MAX7456 monochrome display chip, it overlays flight data directly on-screen without needing a laptop in the field.
Key Features of Mini OSD for Pixhawk Flight Controller
- ATmega328P microcontroller with Arduino bootloader for easy customization
- MAX7456 monochrome OSD chip overlays MAVLink telemetry onto video
- FTDI cable compatible pinout and standard 6-pin ISP header for firmware updates
- Two independent power sections with LED indicators and solder jumpers for combining rails
- Compatible with APM2.5, APM2.6, APM2.8 and Pixhawk PX4 flight controllers
- Genuine product with fast shipping from Zbotic across India
Applications and Use Cases
- First Person View (FPV) drone flights with real-time telemetry overlay
- Aerial photography and videography with embedded flight parameters
- UAV mapping and surveying missions requiring on-screen data
- Field deployments where laptop telemetry monitoring is impractical
- RC plane flying with integrated mission and sensor readouts
How to Use Mini OSD for Pixhawk Flight Controller
Connect the Mini OSD’s TX/RX pins to your Pixhawk or APM telemetry port, tie in the camera video input and VTX video output, and apply power to the two sections or bridge them via the solder jumpers. Then configure MAVLink settings in your ground station software, flash any custom overlay settings through the FTDI or ISP header, and mount the board near your video transmitter for an FPV-ready setup.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Which flight controllers are supported by the Mini OSD?
The Mini OSD is fully compatible with APM2.5, APM2.6, APM2.8 and Pixhawk PX4 controllers, processing MAVLink data from these platforms to overlay telemetry on your video feed.
Can I power the logic and video sections from a single supply?
Yes. The board features two independent power sections with LED indicators; if you prefer a single supply, simply close the solder jumper to combine both rails into one power source.
How do I update the firmware on the Mini OSD?
Use the standard 6-pin ISP header with an AVR ISP programmer or connect an FTDI cable to the compatible pinout to upload firmware via the Arduino IDE, thanks to the onboard Arduino bootloader.
