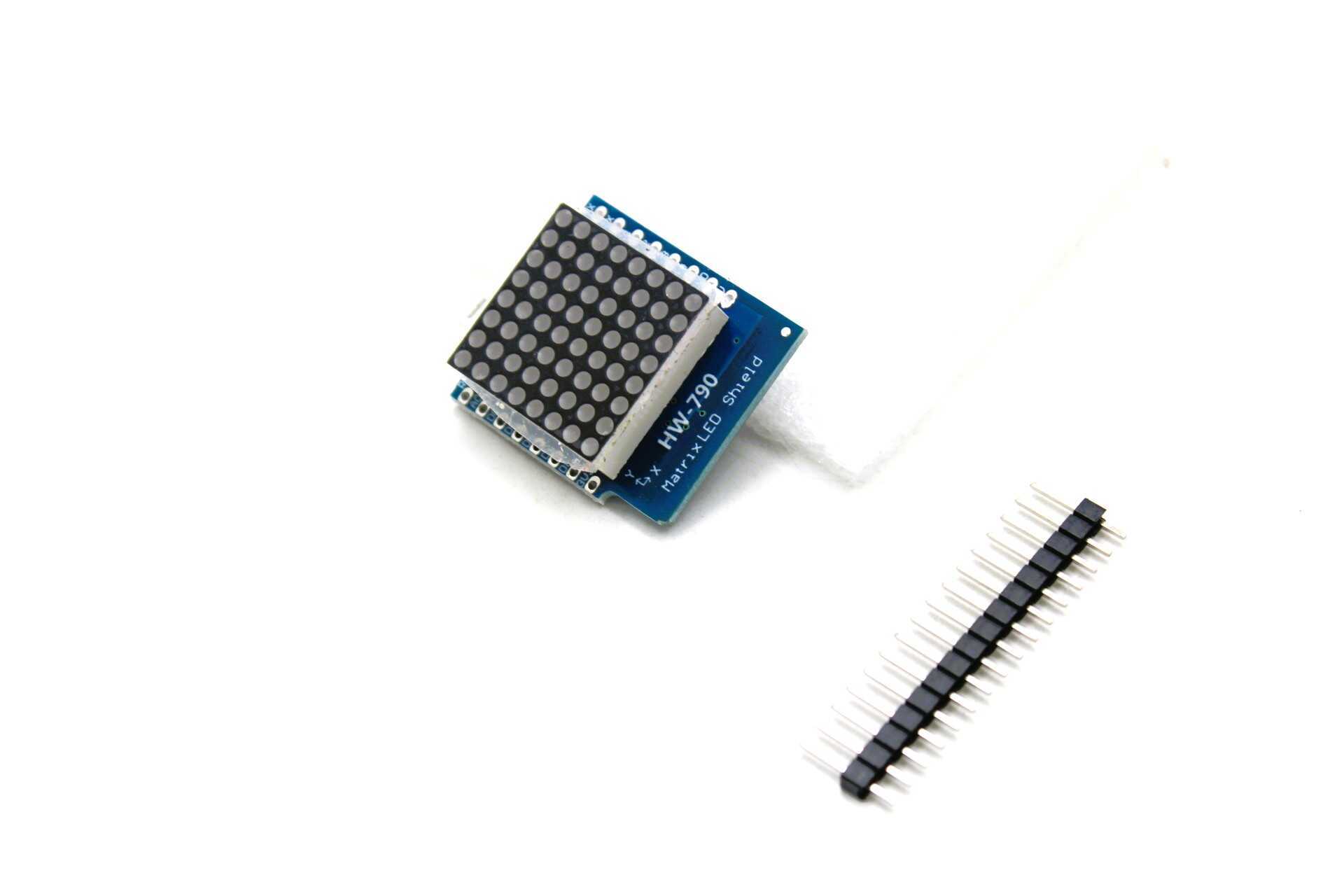

Matrix LED Shield V1.0.0 for WEMOS D1 Mini 8×8 Matrix Lattice Red LED Module

Matrix LED Shield V1.0.0 for WEMOS D1 Mini 8×8 Matrix Lattice Red LED Module

Introducing the LED Matrix Shield for the WeMod D1 Mini ESP8266 development board, now available from Solarbotics. This compact shield enables you to unleash your creativity by easily creating captivating displays, images, scrolling text, and more using its vibrant red LED matrix.

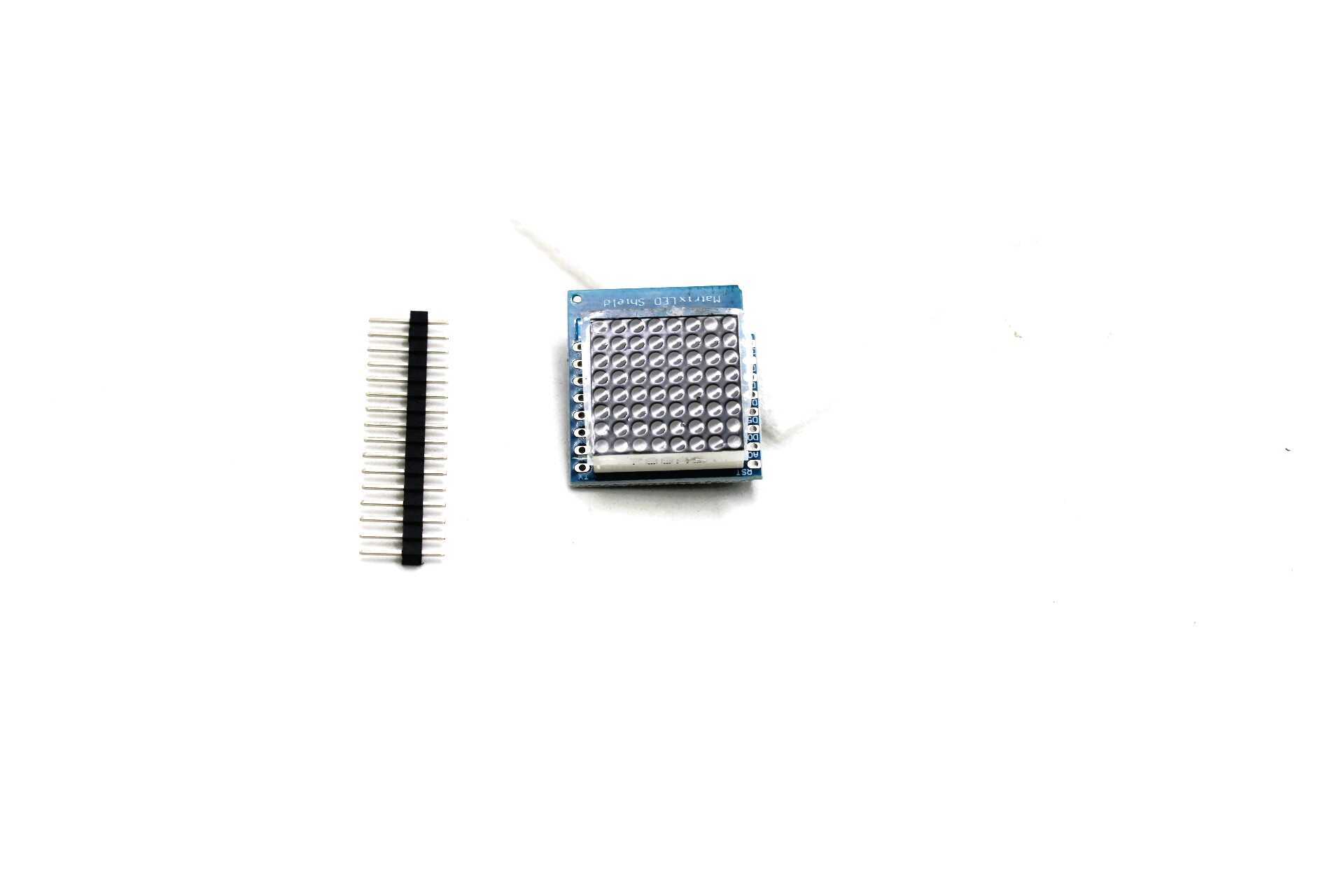

Enjoy seamless integration with your Arduino projects as an Arduino library is provided for effortless setup and usage (link provided below). The shield comes equipped with header pins for convenience, although they are not soldered to the shield, offering flexibility for your specific project needs.

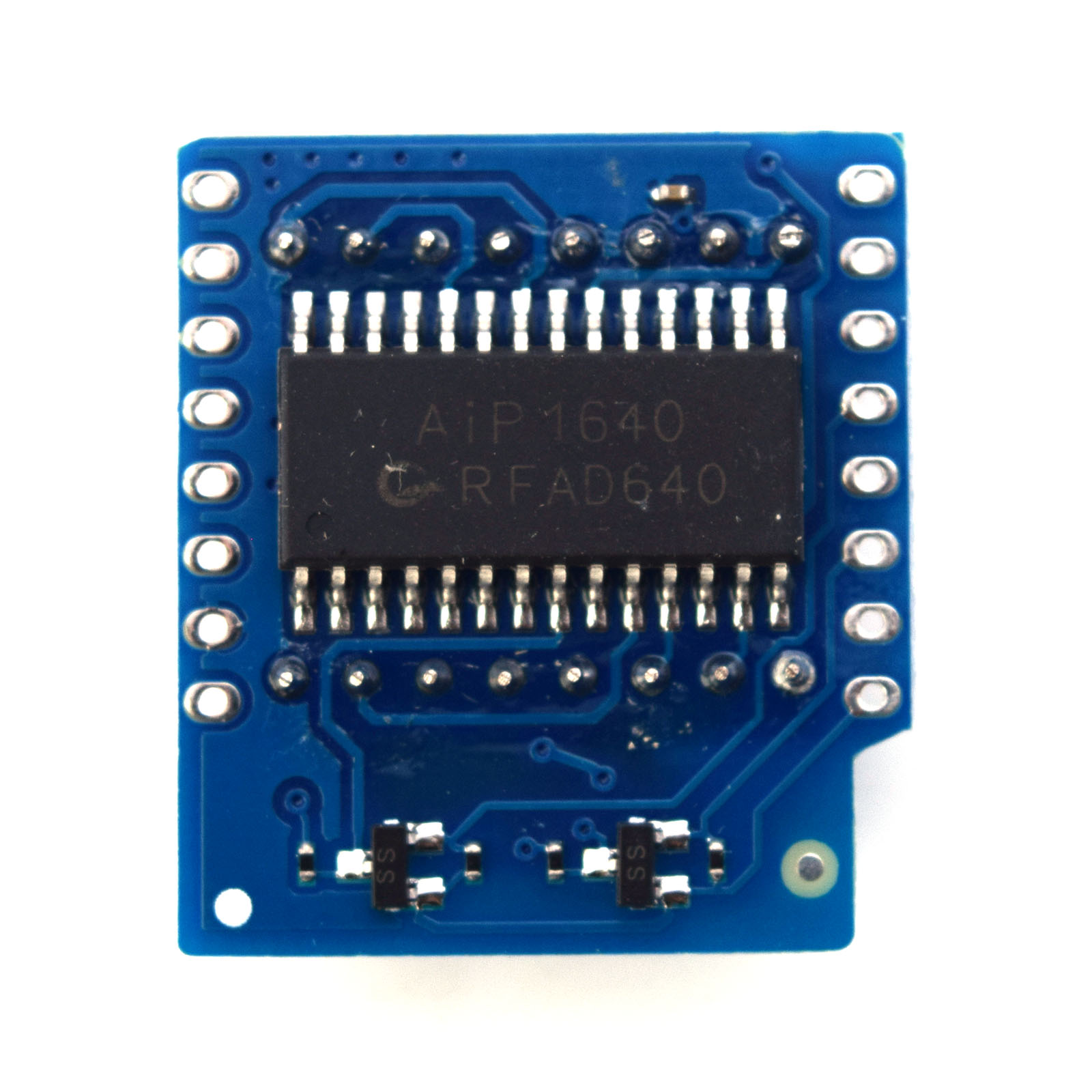

Powered by the Titan Micro TM1640 LED driver IC, this shield ensures reliable performance and smooth operation, allowing you to bring your ideas to life with ease. Elevate your projects with the LED Matrix Shield for the WeMod D1 Mini ESP8266 development board from Solarbotics.

Features:

1. Seamless Compatibility: Specifically designed for use with the WEMOS D1 Mini, ensuring easy integration and compatibility.
2. Vibrant Display: Features an 8×8 lattice red LED module, providing a vibrant and eye-catching display for your projects.
3. Versatile Functionality: Enables the creation of various displays, images, scrolling text, and more, allowing for endless creative possibilities.
4. Easy Setup: Comes with an Arduino library for effortless setup and usage, simplifying the programming process.
5. Header Pins: Includes header pins for convenient connection to the WEMOS D1 Mini, offering flexibility for different project configurations.
6. TM1640 LED Driver IC: Utilizes the Titan Micro TM1640 LED driver IC for reliable performance and smooth operation.
7. Compact Design: Compact size makes it suitable for projects with space constraints while maintaining functionality.
8. Shield Version: Version 1.0.0 ensures compatibility with the specified WEMOS D1 Mini and LED module configuration.

Specification:

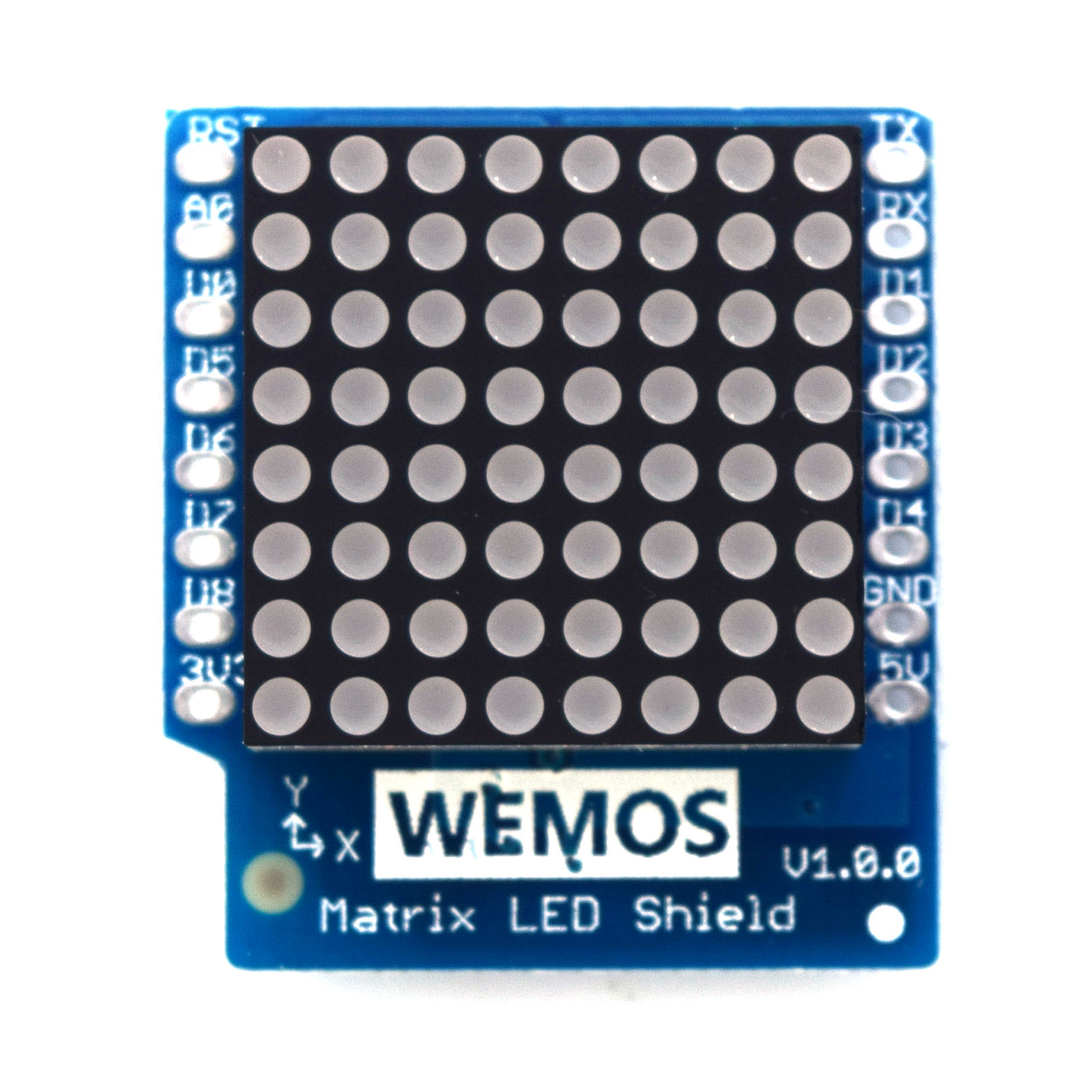

Product Name: Matrix LED Shield V1.0.0 for WEMOS D1 Mini 8×8 Matrix Lattice Red LED Module

Compatibility: WEMOS D1 Mini

LED Matrix: 8×8 lattice red LED module.

Shield Version: 1.0.0

Package Include:

1 x Matrix LED Shield V1.0.0 for WEMOS D1 Mini 8×8 Matrix Lattice Red LED Module
