Description:

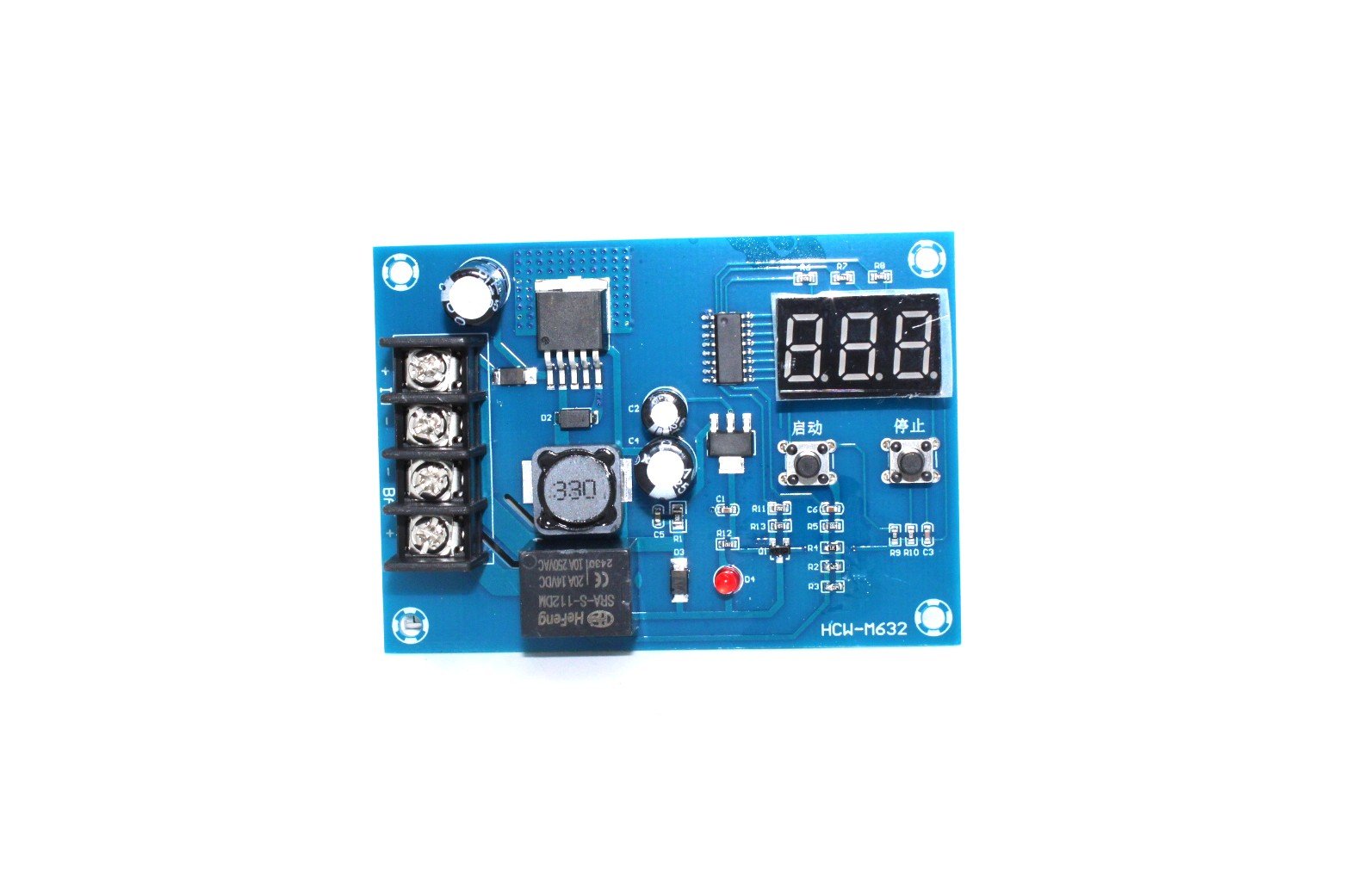

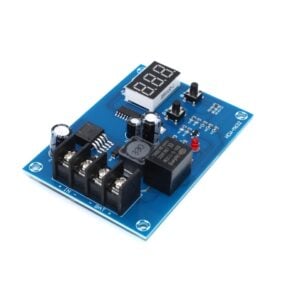

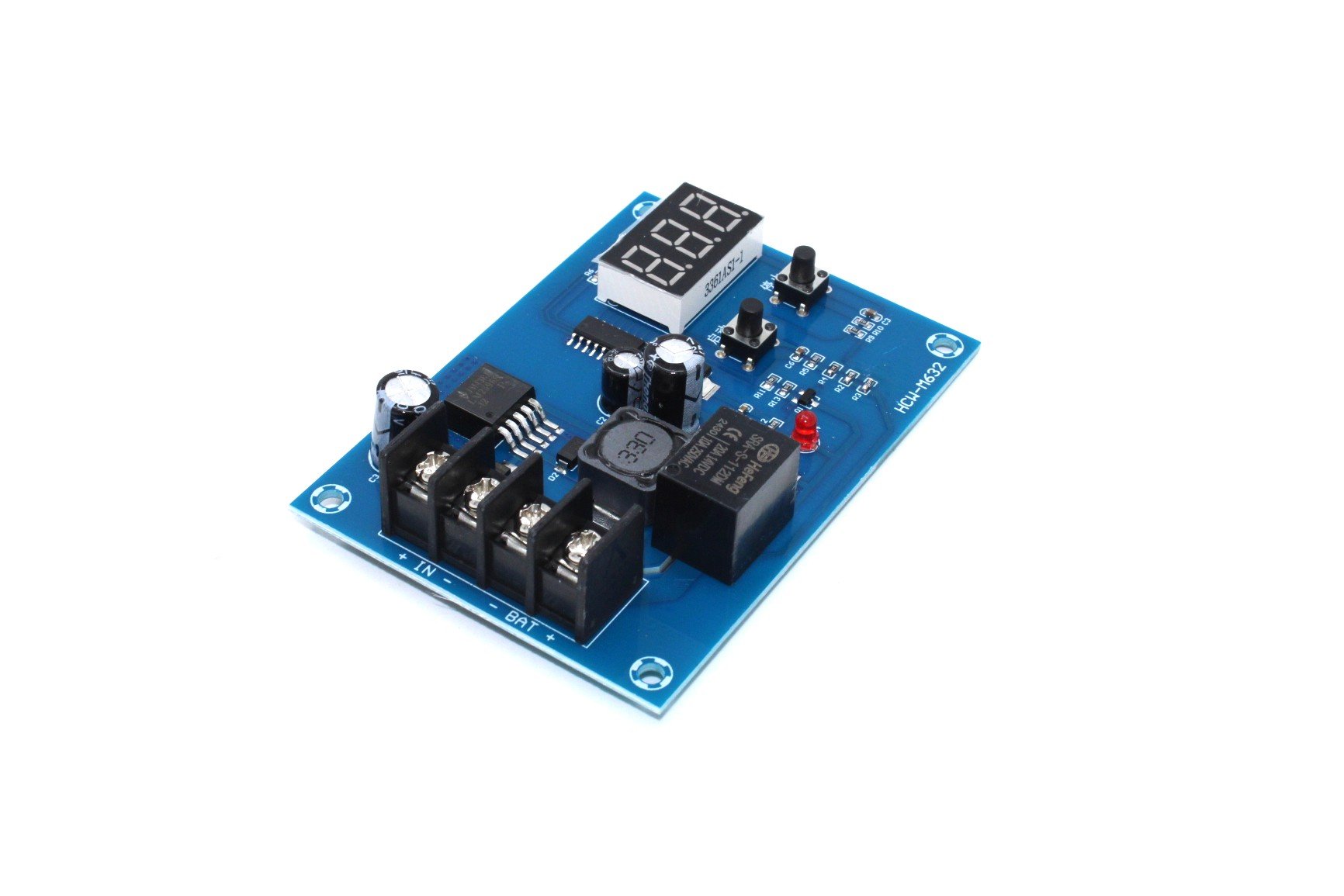

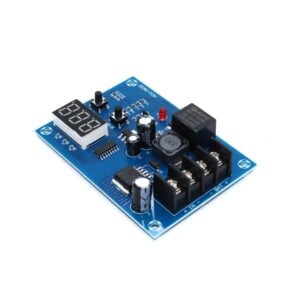

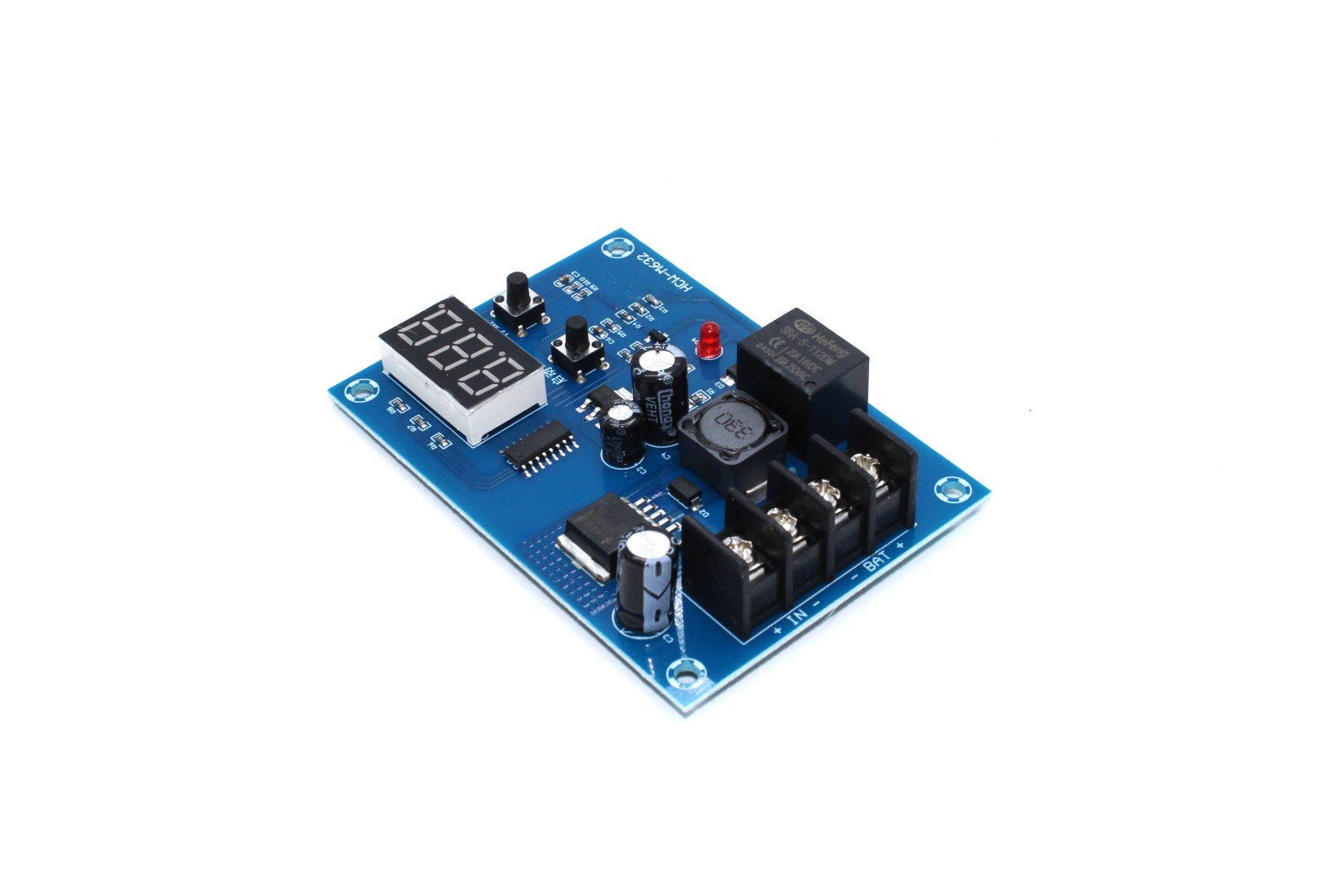

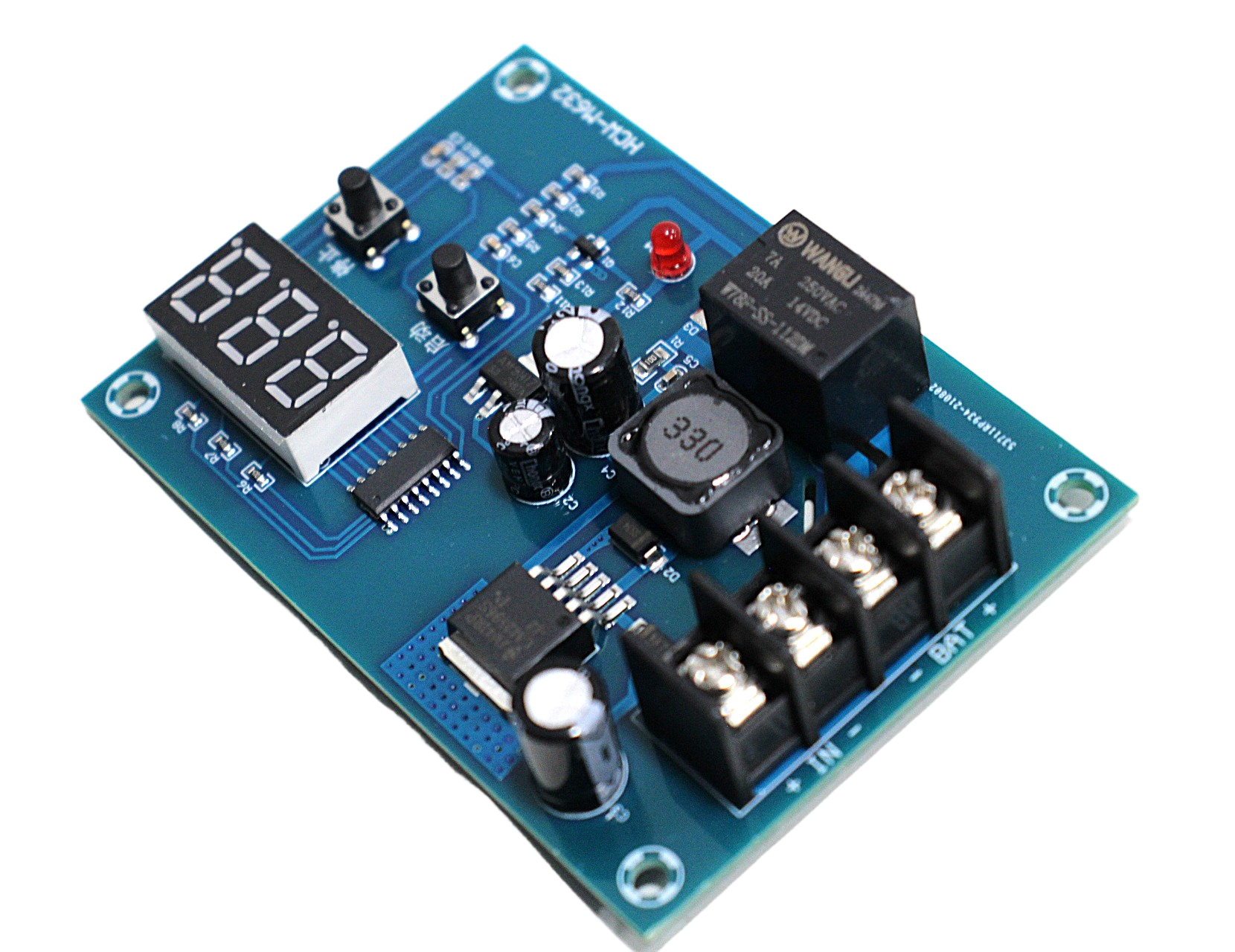

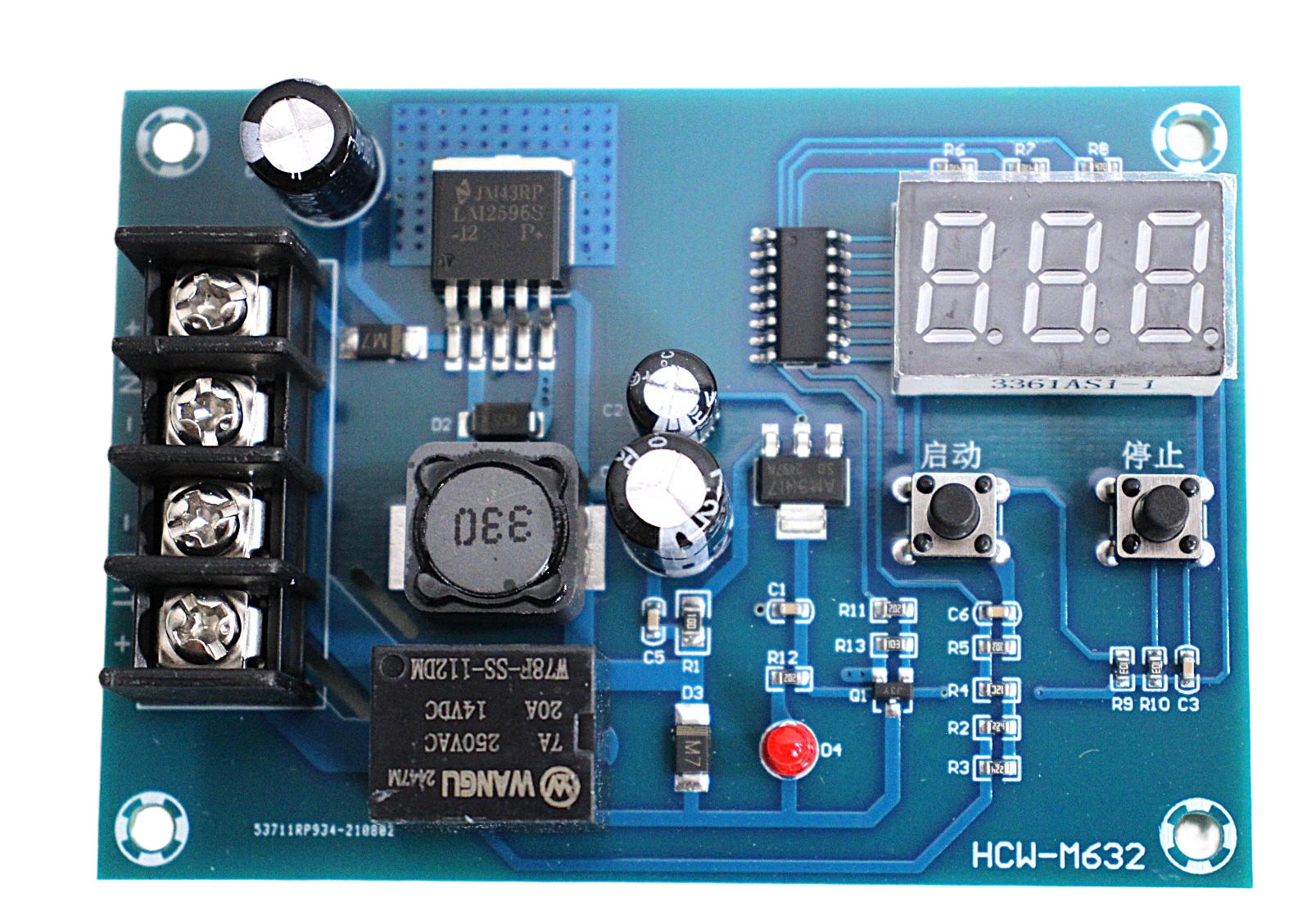

The XH-M603 HW-632 Charging Control Module is a protection board that controls the charging and switching of 12–24V storage lithium batteries. It also features an LED display that shows the battery status. This module can be used for various purposes.
Application Fields:
This device can be used with storage batteries that have a voltage range of 12–24V. It works with various types of batteries, including:
- Solar cells
- New energy batteries
- Lead-acid batteries
- Nickel-cadmium batteries
- Nickel-metal hydride batteries
- Lithium-ion batteries
- Polymer batteries
- Car batteries
- Electric car batteries
Using Method:
- Set Starting Voltage:
In normal display voltage state, press the button to display start charging voltage; long press for 3 seconds, the digital tube will flash. You can then use the start or stop button to set the starting charge voltage value. - Set Stop Voltage:
In normal display voltage state, press the button to display stopping charge voltage; long press for 3 seconds, the digital tube will flash. You can then use the start or stop button to set the stopping charge voltage value. - Factory Reset:
In power-on state, press the start/stop button at the same time. A digital tube will display 888, which represents factory reset settings.
Note: This Product is available in two different variant (XH-M603 and Hw-632) with same working we will ship it randomly.
Features:
- Automatic control circuit connection
- Automatic charging and power off
- Real-time voltage monitor
- Autosave setting
- ST core chip
- LM2596 switch voltage regulator
Specification:
| Display Precision | 0.1V |
|---|---|
| Control Precision | 0.1V |
| Output Type | direct output |
| Voltage Tolerance | ±0.1V |
| Dimension(mm) | 82 x 58 x 18 |
Package Includes:
- 1 x XH-M603 HW-632 Charging Control Module With LED Display
Videos:
Bench Power Supply Projects: Variable Voltage and Current
Table of ContentsWhat Is a Bench Power Supply Building a Variable Voltage Supply Constant Current Feature Using LM2596...
Read More →
USB-C PD Trigger: Get 5V-20V from Any USB-C Charger
Table of ContentsWhat Is USB Power Delivery How PD Trigger Boards Work Requesting 9V, 12V, and 20V QC...
Read More →
Fuel Gauge IC MAX17048: Battery Level Monitoring for Arduino Projects
Fuel Gauge IC MAX17048: Battery Level Monitoring for Arduino Projects If you've ever built a battery-powered Arduino project...
Read More →Technical Specifications
| Model | XH-M603 |
|---|---|
| SKU | AI0564 |
| Weight | 0.050001 kg |
| Availability | In Stock |
Applications & Use Cases
The XH-M603 Charging Control Module with LED Display is a versatile battery protection board used across a wide range of applications including lithium battery pack protection, power bank builds, e-bike battery management, solar energy storage, and UPS systems.
Common use cases:
- Building a custom lithium battery pack
- Adding overcharge/overdischarge protection
- Creating a DIY power bank
This product is ideal for battery pack builders and power electronics engineers.
Technical Tip: BMS boards prevent overcharge, overdischarge, overcurrent, and short circuit. Match cell count (S) and max current rating to your battery pack.
