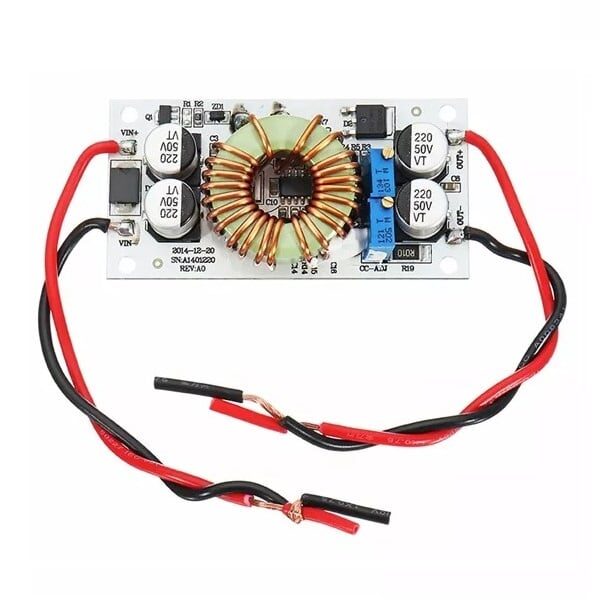

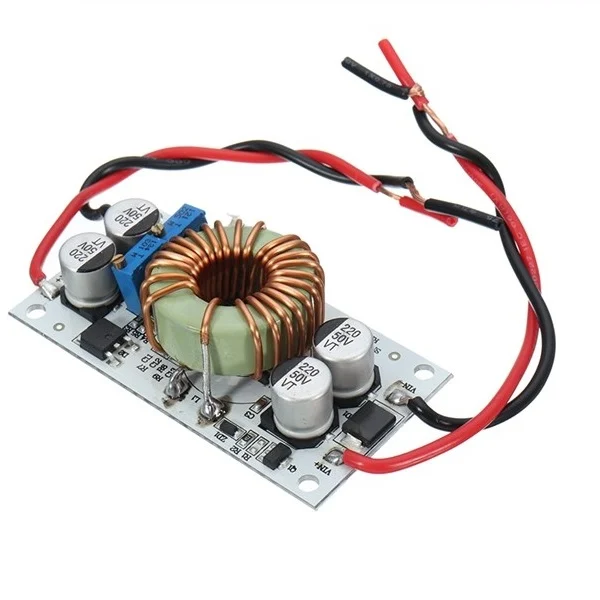

250W High Power Constant voltage Current Adjustable Aluminum Substrate LED Driver Module
Description:
Introducing the 250W High Power Constant Voltage Current Adjustable Aluminum Substrate LED Driver Module – your all-in-one solution for powering a wide array of electronic devices with precision and efficiency. Let’s delve into its remarkable specifications and features:
Exceptional Power Output:
- With adjustable output voltage ranging from 10V to 50V, this module offers unparalleled versatility to suit various applications.
- Harness a wide range of current output capabilities, up to 6A, ensuring robust performance even under demanding conditions.
Advanced Thermal Management:
- Featuring an aluminum substrate that doubles as a heat sink, this module efficiently dissipates heat, enabling continuous operation in high-power applications without compromising performance.
Stability and Precision:
- Crafted with a dedicated benchmark IC and high-precision current sensing resistor, this module delivers a stable constant current output, with temperature drift less than 1% between 20°C to 70°C, making it ideal for LED driver applications.
Enhanced Efficiency:
- Designed with MOS Schottky diode independent heat sinks, large size Sendust Core, and double pure copper wiring, this module maximizes efficiency, minimizing heat generation and improving overall working efficiency.
User-Friendly Adjustability:
- Equipped with onboard 3296 multiturn potentiometers, this module allows for high-accuracy voltage and current regulation, ensuring stability across various applications.
- Easily adjust voltage and current settings to meet your specific requirements, whether it’s battery charging, LED driver power supply, or vehicle power supply.
Wide Range of Applications:
- With its multipurpose design and low cost, this module finds its place in a myriad of applications, from DIY stabilized power supplies to high-power LED lighting systems and everything in between.
Comprehensive Protection and Precautions:
- Benefit from built-in protection against input reverse connection and comprehensive precautions, ensuring safe and reliable operation.
- Ensure proper ventilation and heat dissipation when operating at full load for extended periods, extending the module’s lifespan and reliability.
Applications:
- DIY stabilized power supplies
- Powering electronic equipment with adjustable voltage settings
- Providing power for laptops, PDAs, and digital devices from car power supplies
- Building high-power notebook mobile power systems with large-capacity lithium battery packs
- Regulating voltage for solar panels
- Charging storage batteries, lithium batteries, and more
- Driving high-power LED lights with precision and stability
Specifications:
| Static operating current (mA) | 10 |
|---|---|
| Output voltage (V) | DC 10 ~ 50 |
| Constant current range (A) | 0.2 ~ 6 |
| Operating Temperature (°C) | -40 ~+85 |
| Working Frequency (KHz) | 150 |
| Conversion efficiency | 92% ~ 96% |
Experience unmatched performance and versatility with the 250W High Power Constant Voltage Current Adjustable Aluminum Substrate LED Driver Module. Elevate your projects to new heights with its superior capabilities and reliability.
Package Includes:
1 x 250W High Power Constant voltage Current Adjustable Aluminum Substrate LED Driver Module.
250W High Power Constant voltage Current Adjustable Overview
The 250W High Power Constant voltage Current Adjustable Aluminum Substrate LED Driver Module is a versatile DC-DC converter designed to deliver a stable, adjustable output voltage and current for LED strips and other electronic devices. Housed on an aluminum substrate for efficient heat dissipation, it converts a 12V input into a user-set output between 12V and 50V with up to 6A of load current.
Key Features of 250W High Power Constant voltage Current Adjustable
- Wide Output Range: User-adjustable voltage from 12V up to 50V to suit varied device requirements.
- High Current Capability: Supports output currents up to 6A, delivering a total of 250W maximum power.
- Aluminum Substrate: Robust metal base ensures efficient heat spread and long-term reliability.
- Constant Voltage & Constant Current Modes: Easily switch between voltage regulation and current limiting for LEDs or sensitive electronics.
- DIY Power Supply: Ideal for building a lab bench supply or mobile power source from a 12V battery.
- Fast Shipping: Genuine module dispatched from Zbotic within 24 hours across India.
Applications and Use Cases
- Driving high-power LED strips with precise voltage and current control.
- Converting car battery 12V supply to power laptops, PDAs or USB chargers on the go.
- Creating a portable notebook power bank when paired with a 12V lithium battery pack.
- Regulating solar panel output for consistent performance in off-grid setups.
- Supplying stable voltage for DIY electronics testing and bench experiments.
- Powering CCTV cameras, routers or other 12V–48V telecom equipment.

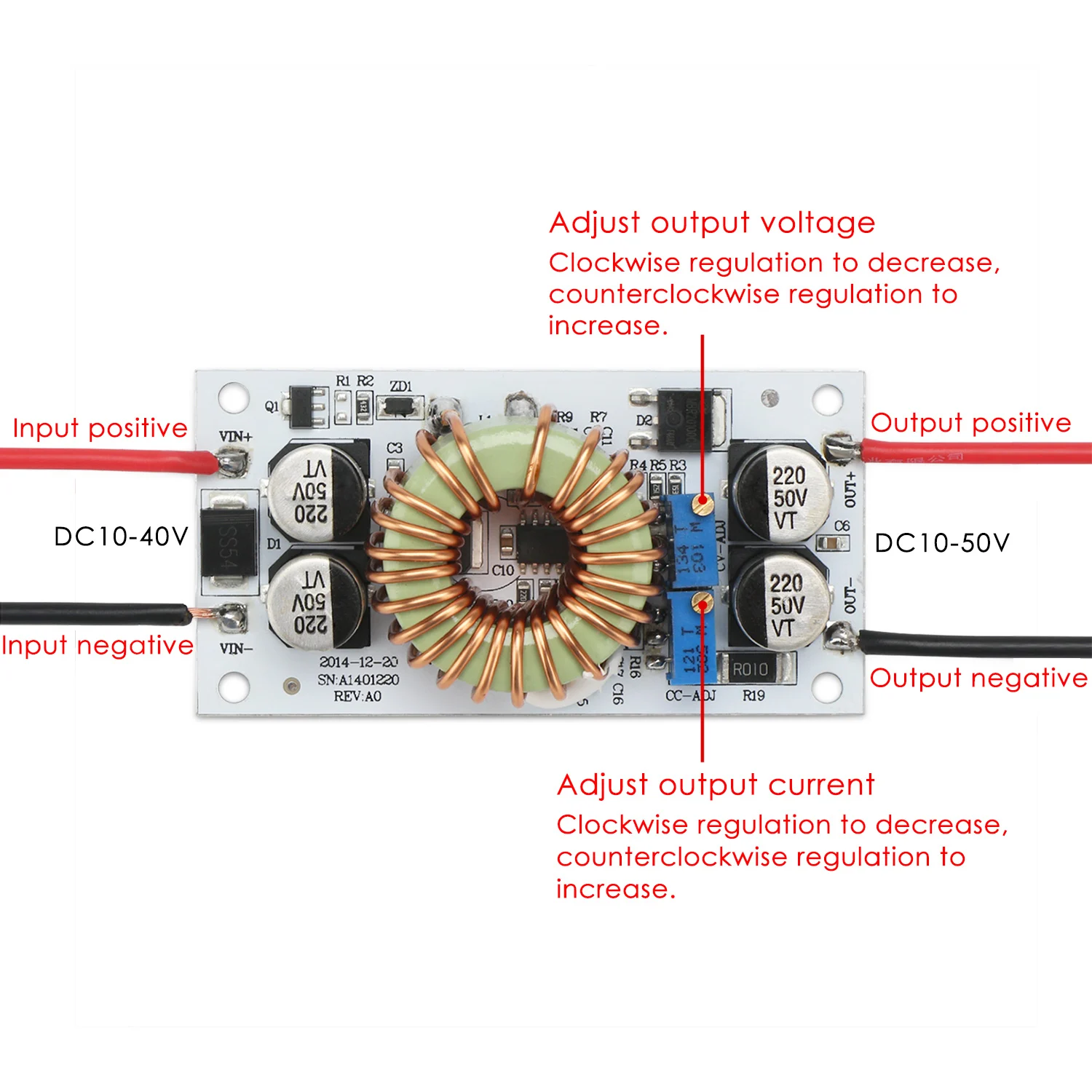

How to Use 250W High Power Constant voltage Current Adjustable
Connect a regulated 12V DC source to the module’s input terminals, then use the built-in potentiometers to adjust output voltage and set current limit. Attach your LED strip or device to the output terminals, monitor voltage and current via a multimeter, and fine-tune for optimal performance. Ensure proper ventilation of the aluminum substrate during operation.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What input voltage does this LED driver module require?
This module operates from a 12V DC input source, such as a car battery or dedicated DC adapter.
What is the maximum output current and power?
The driver delivers up to 6A of current for a maximum power output of 250W when the voltage is set appropriately.
Can I use this module to regulate solar panel output?
Yes. By feeding the panel’s 12V–18V output into the module, you can adjust and stabilize voltage up to 50V for consistent device operation.
