This is the Red variant of the 8×8 Red 64 LED Dot Matrix Displays in LED Dot Matrix Display. Available at ₹120.36 (₹102.00 + GST) with free shipping across India.

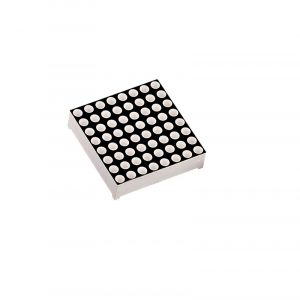

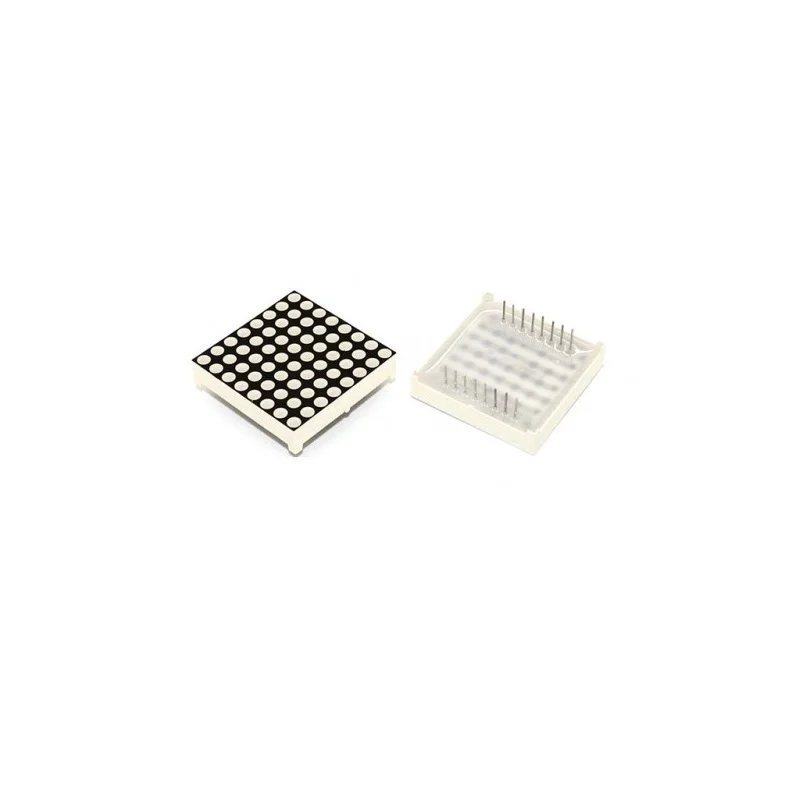

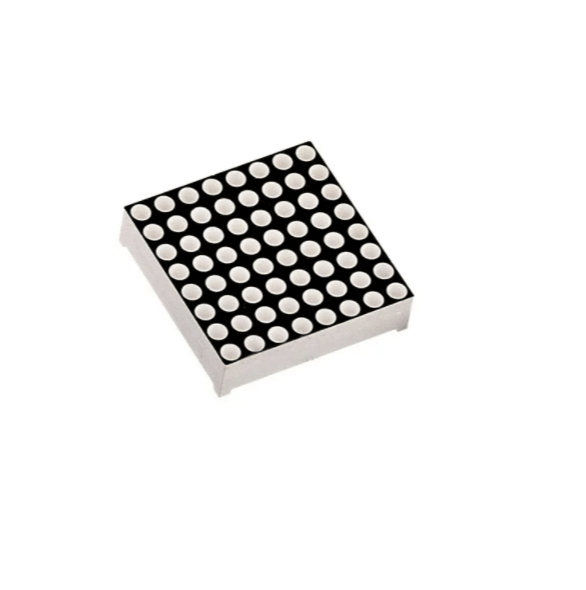

8×8 Red 64 LED Dot Matrix Displays
- The 8×8 LED matrix module is an affordable and versatile display solution for your electronic projects. With 16 pins, it allows you to control the ON/OFF state of individual LEDs, making it highly customizable. It fits easily into standard solderless breadboards and is ideal for use in electrical and test equipment.
- Each LED in the matrix has a diameter of approximately 3mm and operates in a common cathode configuration, emitting a red light. The schematic image provides the exact dimensions for precise integration into your project.
- This module is popular among DIY enthusiasts and in industrial applications due to its low cost and wide range of uses.
Applications:
Some applications of LED displays are:- Bar-graph displays for showing levels or trends
– 7-segment displays for showing numbers or letters
– Industrial controllers for monitoring and controlling processes
– Electronic panel meters for measuring voltage, current, power, etc.
– LED matrix displays for displaying symbols, simple graphics and texts
– PIXEL gaming for creating retro-style games
– Character design for making custom characters or animations
– Measuring instruments for showing readings or results
– Hobby projects for experimenting with LEDs and circuits
Features
- Easy to Install on Breadboard
- Bright LED lights
- Compact Design.
- LED Size: 3mm
- Configuration: Common Cathode
Specifications;
| LED Size | 3 mm |
|---|---|
| Type | Common Anode |
| Emitted Colour | Red |
| Face Color | Black |
| Wavelength | 625 ~ 630nm |
| Forward Voltage | 2.1V ~ 2.5V |
| Forward Current | 20mA |
| Operating Temperature (°C) | 40 to 85 |
| Length (mm) | 32 |
| Width (mm) | 32 |
| Height (mm) | 8 |
| Weight (g): | 6 each |
Package Includes
- 1 x 8×8 Red 64 LED Dot Matrix Displays
8×8 Red 64 LED Dot Matrix Displays Overview
The 8×8 Red 64 LED Dot Matrix Display is a compact common-cathode module featuring 64 bright red LEDs arranged in an 8×8 grid. Ideal for dynamic visual indicators, scrolling text, and graphic patterns, this module plugs directly into solderless breadboards for rapid prototyping and testing.
Key Features of 8×8 Red 64 LED Dot Matrix Displays
- 64 high-intensity red LEDs in an 8×8 arrangement
- 3 mm LED diameter for sharp, uniform brightness
- Common cathode design with 16 control pins
- Breadboard-friendly compact form factor
- Durable, low-cost construction for hobbyist and industrial use
- Fast shipping from Zbotic across India
Applications and Use Cases
- Scrolling text banners and message boards
- Bar-graph level meters for audio or sensor outputs
- Status indicators in control panels or machinery
- Animated graphics in robotics and wearable electronics
- Digital clocks, timers, and counters
- Educational kits for learning multiplexing techniques
How to Use 8×8 Red 64 LED Dot Matrix Displays
Place the matrix on a solderless breadboard, then wire its 16 pins to a microcontroller or dedicated LED driver through appropriate current-limiting resistors. Implement a scanning routine in your firmware to energize rows and columns in rapid succession, forming characters or patterns on the display.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How is the pin configuration arranged on the 8×8 matrix?
The module offers 16 pins: eight row pins (common cathodes) and eight column pins (individual anodes). Consult the included schematic to map each pin before wiring.
Is this LED matrix compatible with solderless breadboards?
Yes, its standard 0.1″ pin spacing and compact footprint allow easy insertion into most solderless breadboards for quick prototyping.
Do I need external resistors when driving this display?
Yes, use current-limiting resistors on each row or column line to protect the LEDs from overcurrent and maintain consistent brightness.
