PRODUCT DESCRIPTION

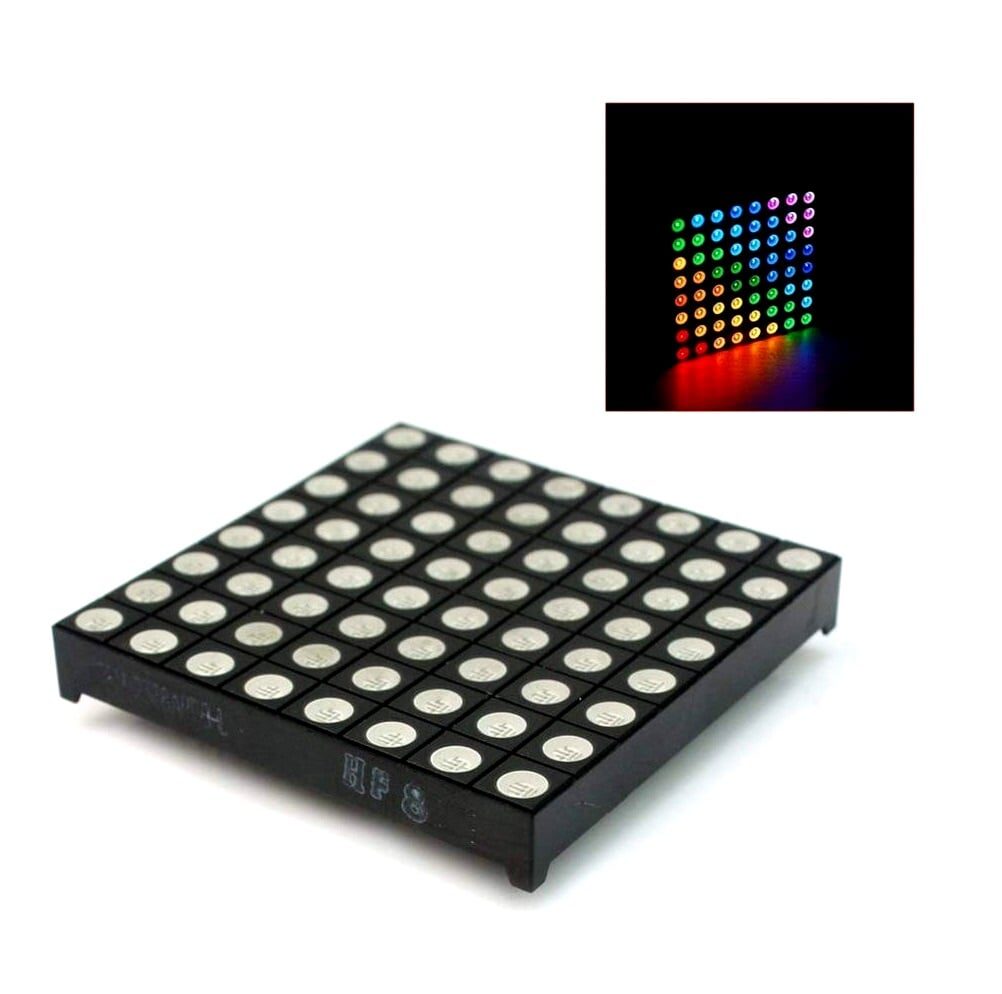

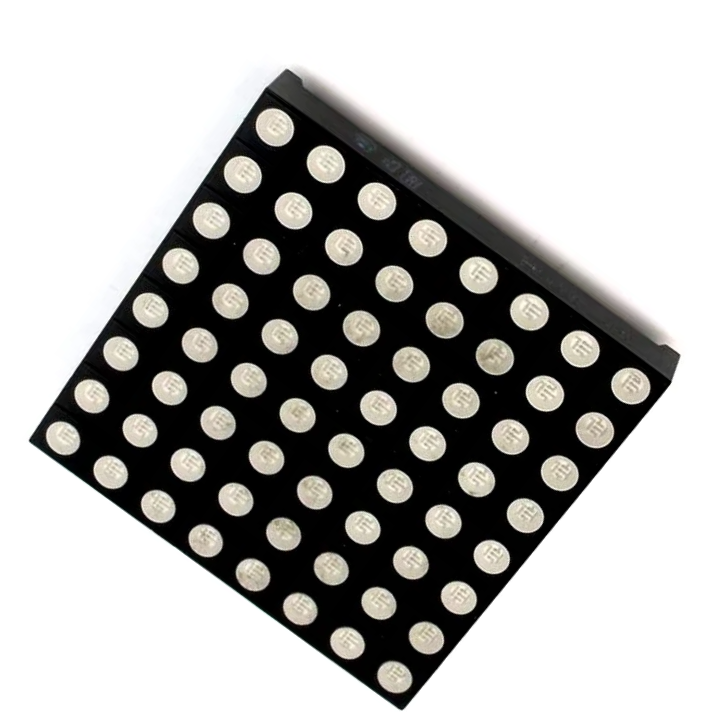

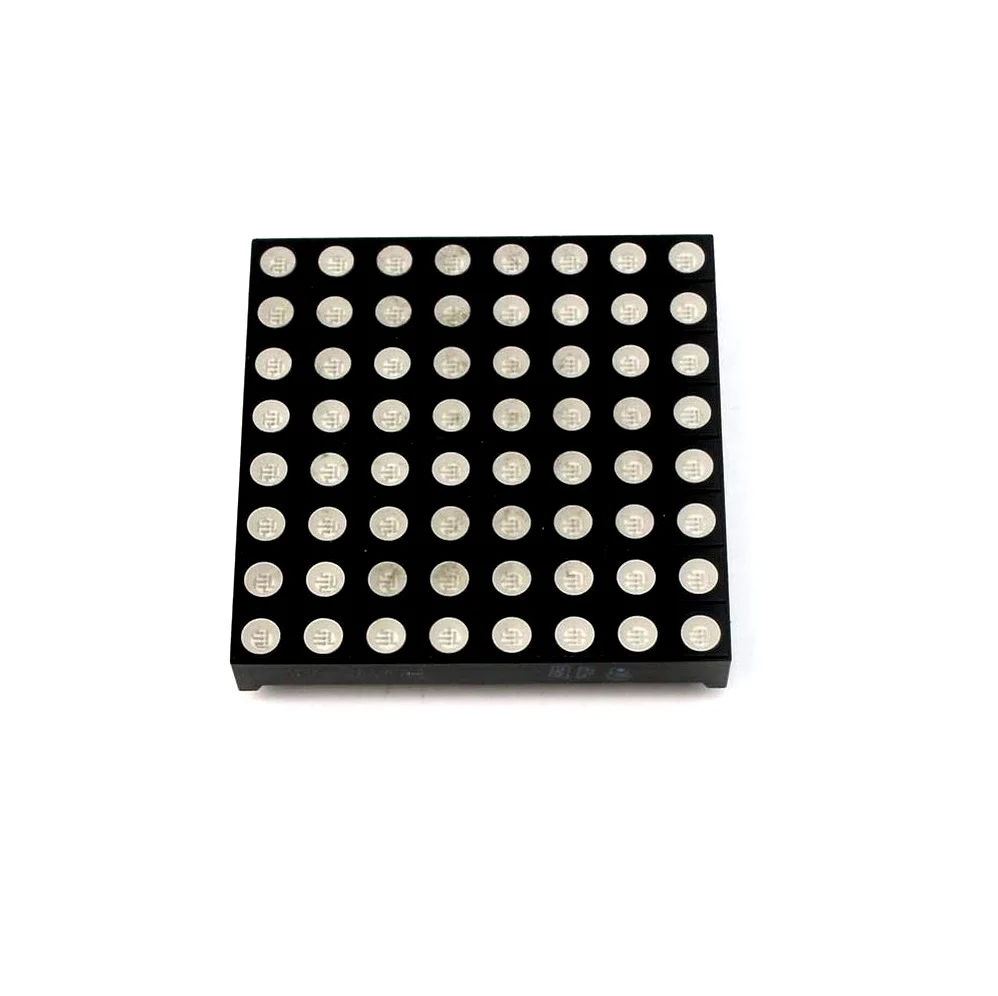

This is a large 8 x 8 RGB LED. At a time this matrix can produce 64 Red, 64 Green and 64 Blue LEDs built into one common cathode housing. You can also mix colours together to produce a lot more colours! This matrix LED is really great for a project the needs bright colourful LEDs and have fun!
Useful Links:
Interfacing 8×8 LED Matrix with Arduino
Specification:
| LED Color | RGB |
|---|---|
| Number of LED’s on board | 64 |
| LED layout | 8 x 8 |
| LED Diameter | 5 mm |
| Forward voltage | 2V |
| Forward current | 5 – 10mA |

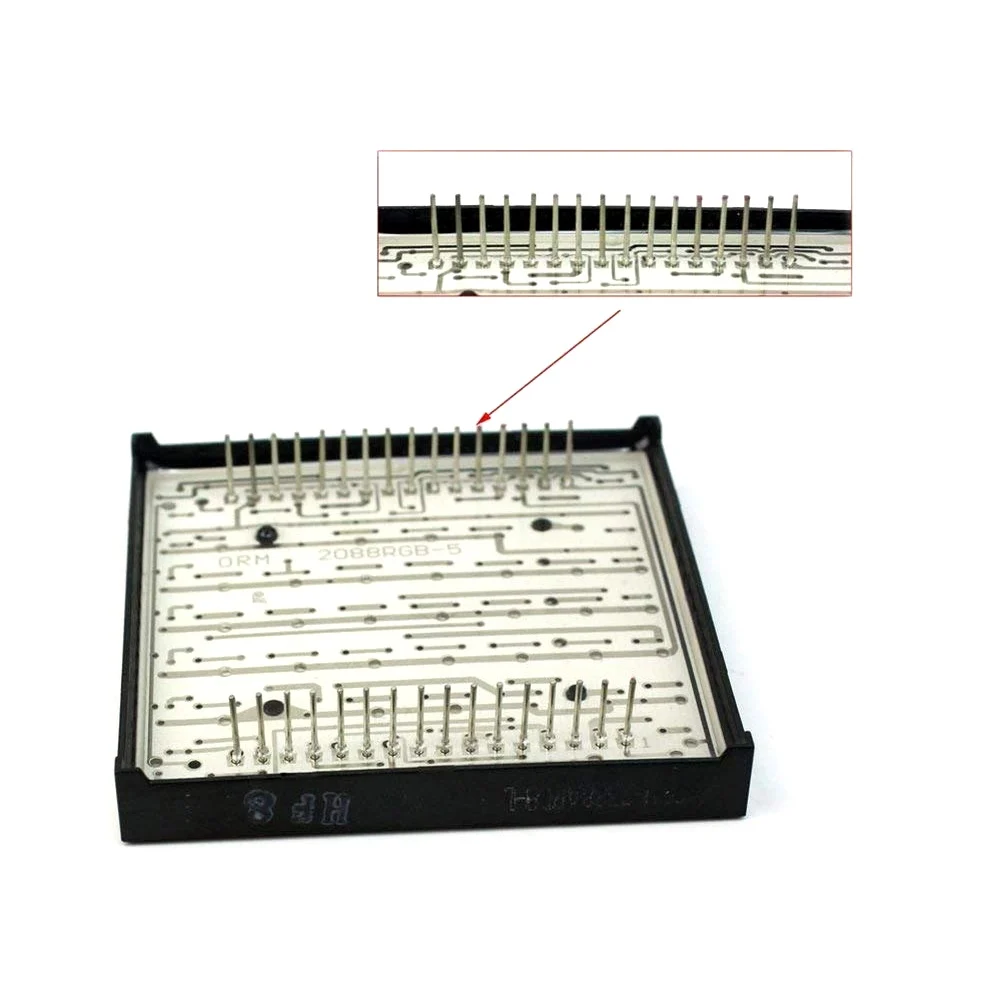

| Number of pins | 16 (8 x 8) |
| Module Color | Black |
| Pin Lenght | 6 mm |
| Length (mm): | 60 |
| Width (mm) | 60 |
| Shipping Weight | 0.03 kg |
| Shipping Dimensions | 6 × 6 × 1 cm |
Package Includes:
1 x 8×8 RGB 64 LED Dot Matrix Display Module
Overheating Protection: Thermal Shutdown Circuits
Table of Contents Why You Need Thermal Shutdown Thermal Fuse: One-Time Protection Bimetallic Thermostat: Resettable Protection Electronic Thermal...
Read More →
Integrator and Differentiator Op-Amp Circuits Explained
Among the most elegant circuits in analog electronics, the integrator and differentiator op-amp configurations literally perform calculus in...
Read More →
Proximity Switch: Non-Contact Detection Options
Understanding the proximity switch is essential for anyone working with electronics in India. This comprehensive guide covers proximity...
Read More →Technical Specifications
| Package Quantity | 8 pcs |
|---|---|
| SKU | AI2936 |
| Weight | 0.03 kg |
| Availability | In Stock |
Applications & Use Cases
The 8×8 RGB 64 LED Dot Matrix Display Module is a versatile led dot matrix display used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
