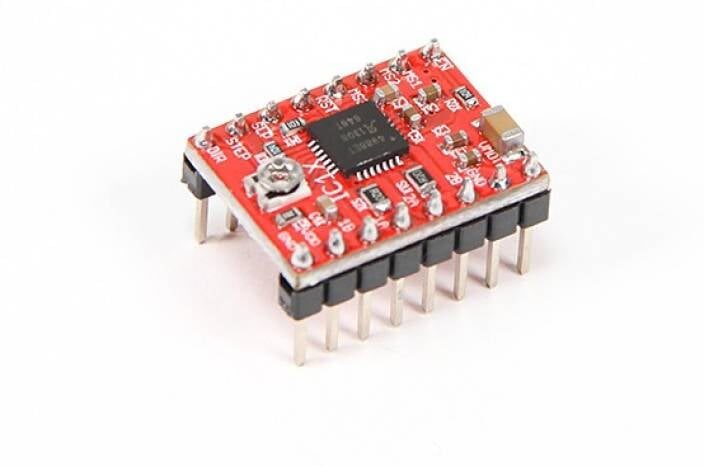

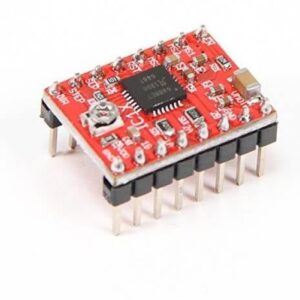

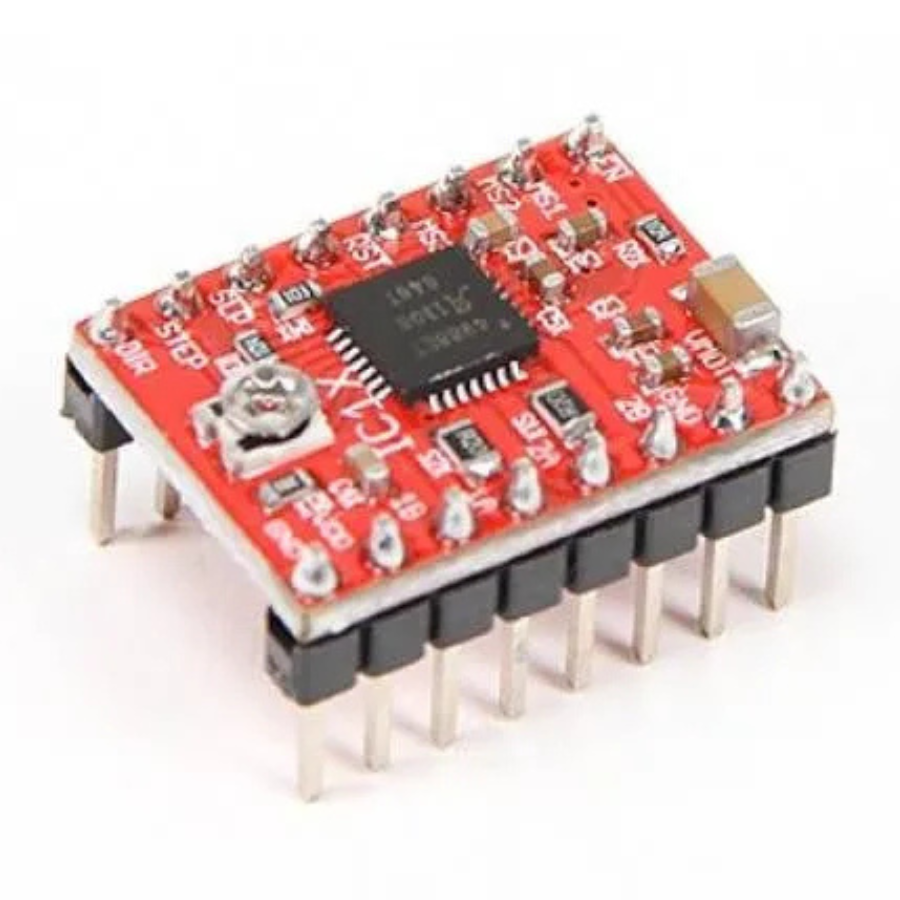

Original Chip with Retail Package Red A4988 Stepper Motor Driver (with Heatsink,1.5A)
The A4988 Stepper Motor Driver is a comprehensive micro-stepping motor driver featuring a built-in converter, ensuring straightforward operation. Operating within a voltage range of 8 V to 35 V, it can deliver approximately 1 A per phase without the need for a heat sink or forced air flow. With sufficient additional cooling, it’s rated for 2 A per coil.
This driver incorporates a fixed off-time current regulator, offering the flexibility of slow or mixed decay modes. The converter plays a pivotal role in facilitating the seamless integration of the A4988.
Unlike some drivers, there’s no requirement for phase sequence tables or complex high-frequency control interface programming. This makes the A4988 ideal for scenarios where a sophisticated microprocessor isn’t available or is overloaded. During stepping operations, the chopping control within the A4988 automatically selects the current decay mode, enhancing step accuracy while minimizing audible motor noise and reducing power consumption.
Furthermore, internal synchronous rectification control circuitry is provided to optimize pulse width modulation (PWM) power consumption during operation.
The A4988 is equipped with internal circuit protection mechanisms, including thermal shutdown with hysteresis, under-voltage lockout (UVLO), and crossover current protection. It doesn’t necessitate special power-up sequencing.
Packaged in a surface mount QFN package (ES) measuring 5 mm × 5 mm, with a nominal overall package height of 0.90 mm, it also features an exposed thermal pad to enhance heat dissipation capabilities.
Features:
- Automatic current decay mode detection/choice.
- Mixed with slow current decay mode.
- The low power dissipation of synchronous rectifier.
- Internal UVLO (ultra voltage lockout).
- Crossover current protection.
- Thermal shutdown circuit.
- Ground fault protection.
- Loading and short circuit protection.
- The optional five-step mode: full, 1/2, 1/4, 1/8 and 1/16.
Specification:
- Supply Voltage: 8-35 VDC.
- Current: 1.0A (no heatsink).
- Current: 2.0A (with heatsinking).
- logic input : 3 – 5.5V .
- Automatic current decay mode detection / choice.
- Mixed with slow current decay mode.

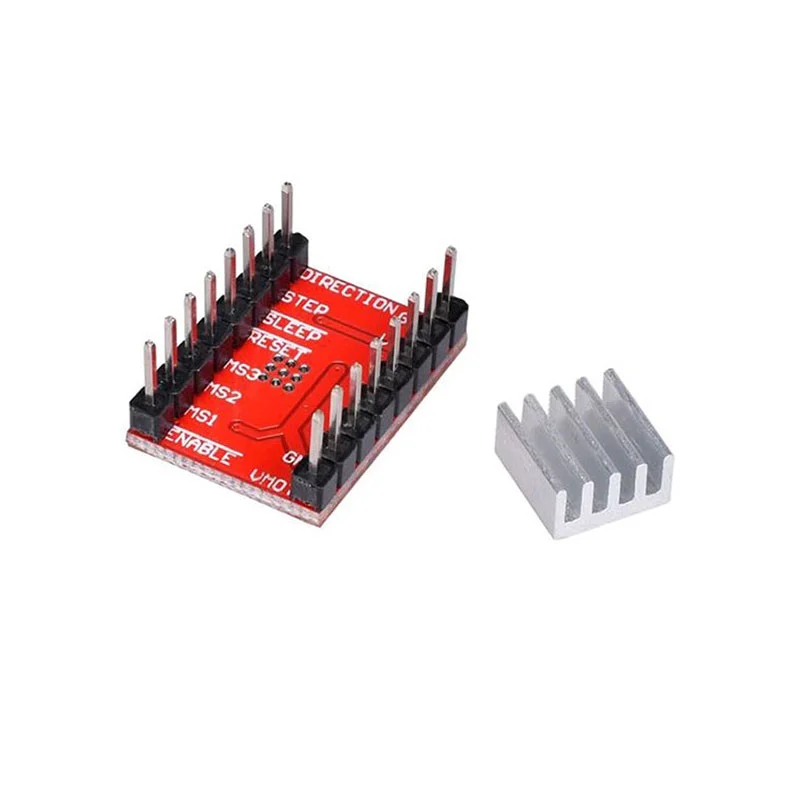

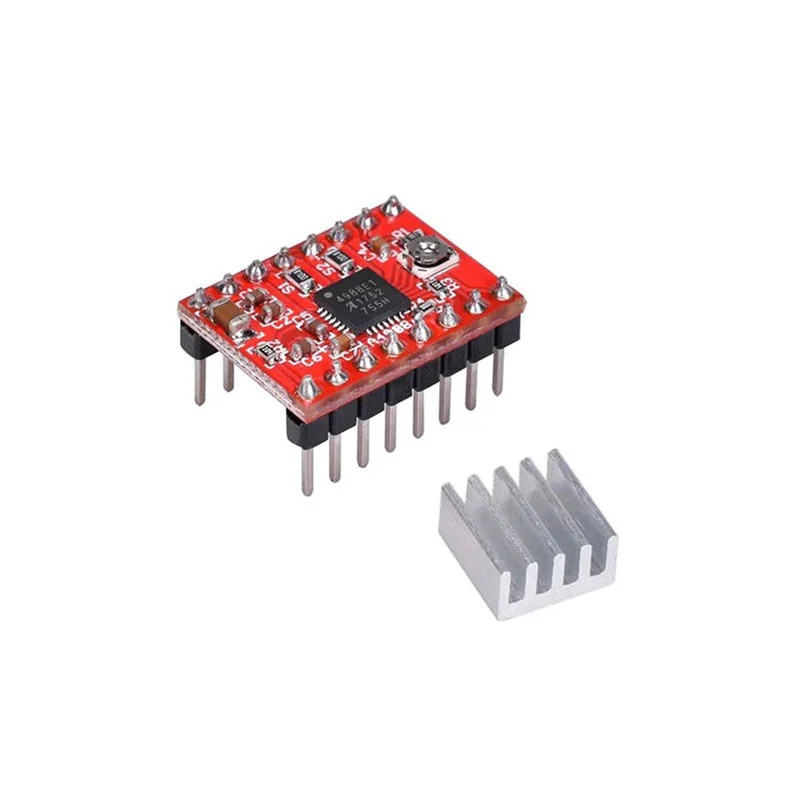

Package Includes:
1 x Original Chip with Retail Package Red A4988 Stepper Motor Driver (with Heatsink,1.5A)
1 x Heat sink.
Original Chip with Retail Package Red A4988 Stepper Motor Overview
The Original Chip with Retail Package Red A4988 Stepper Motor Driver is a compact micro-stepping driver module designed for precise control of bipolar stepper motors. Housed in a retail-ready enclosure and equipped with a heatsink, it handles supply voltages from 8 V to 35 V and delivers up to 1.5 A per coil under standard cooling.
Key Features of Original Chip with Retail Package Red A4988 Stepper Motor
- Supply voltage range: 8 V to 35 V DC for flexible power options
- Current output: 1.0 A per coil without heatsink, up to 2.0 A with sufficient heat dissipation
- Logic input levels: 3 V to 5.5 V, compatible with most microcontrollers
- Onboard automatic current decay mode detection with selectable slow or mixed decay
- Adjustable micro-stepping resolution via MS1–MS3 pins for 1, 2, 4, 8 or 16 micro-steps
- Includes aluminum heatsink and original driver chip on red PCB
- Genuine product with fast shipping from Zbotic
Applications and Use Cases
- 3D printers and CNC mills requiring smooth, accurate motor movement
- Robotic arms and automation platforms for repeatable positioning
- Camera sliders and pan–tilt heads demanding silent micro-stepping
- Textile machines, pick-and-place units, and lab instrument actuators
- Educational and hobbyist robotics projects with Arduino or Raspberry Pi
How to Use Original Chip with Retail Package Red A4988 Stepper Motor
Begin by mounting the heatsink onto the driver IC and wiring the module’s VMOT and GND to an 8–35 V DC supply. Connect STEP, DIR and ENABLE pins to your controller’s logic outputs (3–5.5 V). Set the desired micro-stepping mode via MS1–MS3 jumpers, adjust the current limit with the onboard potentiometer, then attach the stepper motor coils to the A1/A2 and B1/B2 terminals to start driving.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the recommended maximum current for this A4988 driver?
This A4988 board delivers around 1.0 A per phase without additional cooling. With the included heatsink and adequate airflow, you can safely push up to 2.0 A per coil. The retail package is rated for continuous 1.5 A use.
How do I select the micro-stepping resolution?
The module features three MS pins (MS1, MS2, MS3). Tie them high or low according to the truth table:
• Full step: all low
• Half step: MS1 high
• Quarter step: MS2 high
• Eighth step: MS1+MS2 high
• Sixteenth step: all high
Can I drive this board with a 12 V power supply?
Yes. The A4988 supports any DC input between 8 V and 35 V, so a 12 V supply is ideal for typical NEMA stepper motors while keeping heat generation manageable.
