Looking for Hex Pixhawk? Hex Pixhawk Cube+ Flight Controller Autopilot is available at Zbotic with fast shipping across India.

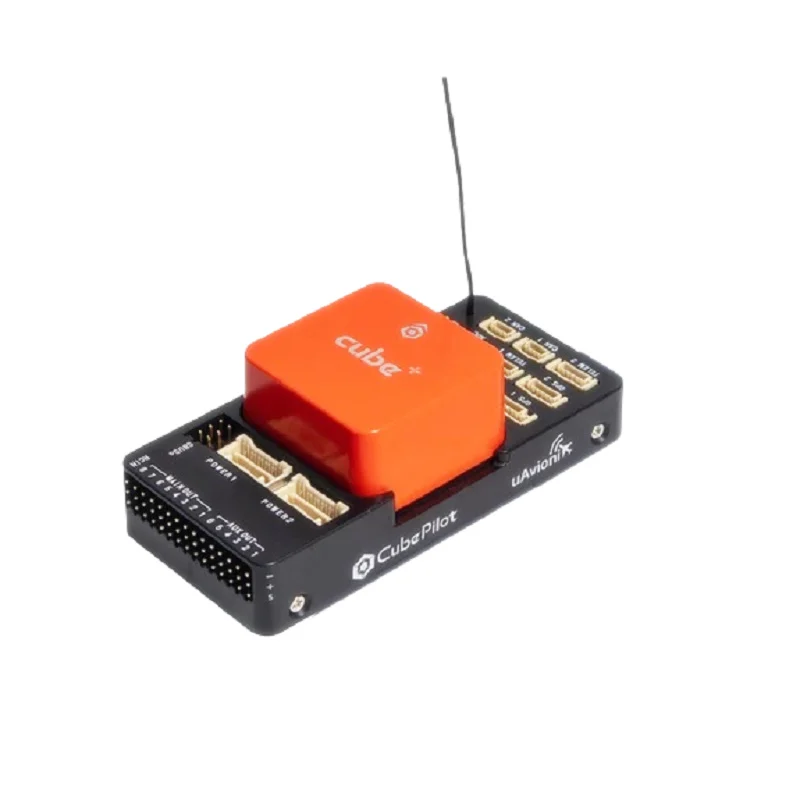

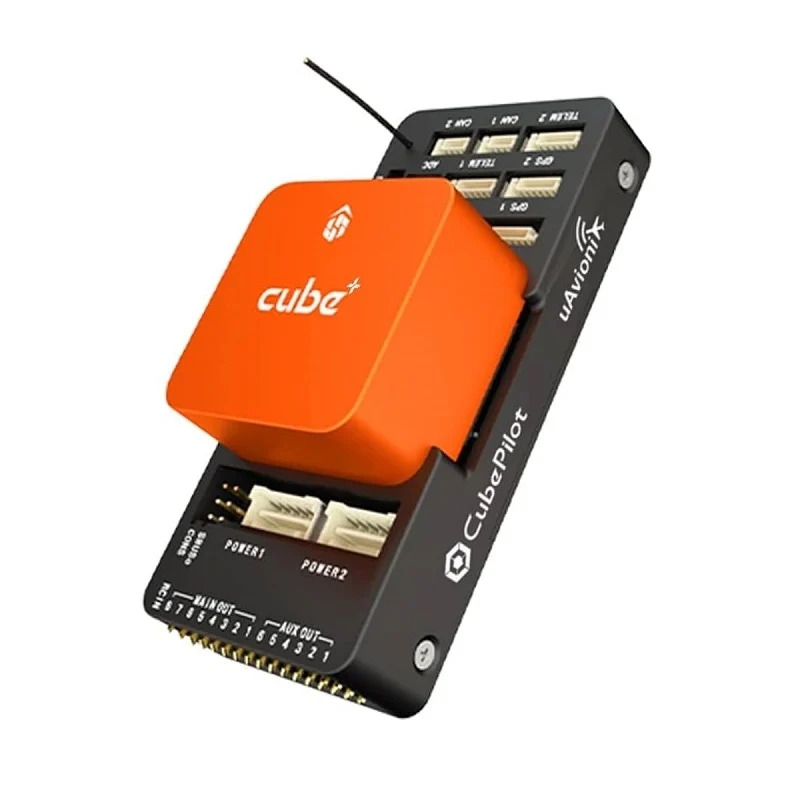

The Cube Orange Plus with ADSB Carrier Board is a flight controller that has an H7 processor and a 1,090 MHz ADS-B receiver from Avionic. It can automatically avoid aircraft by integrating with the new ADS-B carrier board. The pilot can set an exclusion zone for the autopilot through the parameter setting, and the cube will steer the vehicle away from any aircraft detected in that zone.
The Cube Orange
- Cube Orange targets education, amateur drone lovers, and professionals with cost-effective flight control hardware.
- Includes new generation of more powerful H7 processor, with stronger performance, faster processing, and increased security with built-in
- triple-redundant sensors, temperature control shock absorption IMU.
- With the help of flight software, Cube Orange can completely fly any remotely controlled aircraft, helicopter or multi-rotor vehicle and turn it into a more professional UAV platform.
ADS-B Carrier Board
- A standard carrier board with an integrated 1090MHz ADS-B receiver allows the software to receive information about the location of manned aircraft in the area.
- Receives information such as position, altitude, speed, etc, which can all be viewed in Mission Planner.
- Through settings, you can optionally set up your cube to allow the vehicle to automatically avoid aircraft that is within an exclusion zone set by you
Features:
- Built-in IMU Heating system, allowing flights at extreme temperatures (below freezing)
- Robust DF17 Interface connectors give enhanced drop and shock resistance
- Air-frames: VTOL, Plane, Multi-copter, Traditional Heli, Rover, Boat, Sub, General Robotics
specification-
| Supported RC signals | PPM/SBUS/DSM |
|---|---|
| Power redundancy | Triple redundancy |
| Sensors | Triple IMU System |
| Sensors details | IMUl(lsolated) ICM42688 IMU2(1solated) ICM20948 or ICM42688 IMU3(Fixed) ICM20649 or ICM45686 MS5611x 2(Baro) |
| Supported firmware Ardupilot | PX4, and Hionos 00-178C |
| Supported vehicle type | Fixed-wing plane Multicopters Helicopter VTOL-plane Rover/boat/submarine |
| Weight (gm) | 73 |
| Chassis Material | CNCAluminum Alloy(cube) +ABS Molding(Carrier Board) |
| Cube Size (mm) | 38.4 x 38.4 x 22 |
| Carrier Board Size (mm) | 94 x 44.3 x 7.3 |
| Operating Temperature | -10+55° IMU with temperature control |
| PWM I/Os | 14 |
| GPS/Serial interfaces | 4 |
| Debug interface | 2 |
| I2C interface | 2 |
| CAN FD interface | 2 |
| Shipping Weight | 0.335 kg |
| Shipping Dimensions | 17 × 10 × 7 cm |
Packages Includes:
1 x The Cube Orange Plus with ADSB Carrier Board
Kit Included
1x Cube Orange+
1x ADSB Carrier Board
1x Power Brick Mini
1x I2C Board
1x Buzzer Cable
2x CAN Cable
1x Power Brick Mini Cable
1x GPS1 Cable
1x Micro USB Cable
2x I2C Cable
4x Mounting Screw
3x 3M Large Sticker
2x 3M Medium Sticker
4x 3M Small Sticker
Hex Pixhawk Overview
Model: HX4-06222
Input voltage: 3.3 V / 5 V
Sensors: Accelerometer, Gyroscope, Compass, Barometric Pressure Sensor
Cube Orange targets education, amateur drones lovers, and professionals with cost-effective flight control hardware
The Hex Pixhawk is manufactured by Pixhawk and is designed for electronics enthusiasts, engineers, and hobbyists working on aerial photography, FPV racing, agricultural drones, and autonomous UAV systems. As a Flight Controller & Accessories product, it provides the performance and reliability needed for both prototyping and production-level projects. Whether you are building your first circuit or designing a complex system, the Hex Pixhawk delivers consistent results that you can depend on.
Key Features of Hex Pixhawk
- Quality Assured: Every unit is tested before shipping to ensure reliability
- Genuine Product: Authentic Pixhawk product sourced from authorized channels
- Wide Compatibility: Compatible with Arduino, ESP32, Raspberry Pi, STM32, and other development boards
- Easy Integration: Well-documented with community support and code examples available online
- Fast Shipping: Ships within 24 hours with tracking from Zbotic warehouse
Applications and Use Cases for Hex Pixhawk
The Hex Pixhawk is versatile and can be used in numerous applications across different industries and project types:
- Aerial photography and videography
- Agricultural crop monitoring and spraying
- Search and rescue operations
- Surveying and mapping large areas
- Infrastructure inspection (bridges, towers, pipelines)
- FPV racing and freestyle flying
These are just some of the most common applications. The Hex Pixhawk can be adapted for many other uses depending on your specific project requirements. Browse our full range of Flight Controller & Accessories products to find complementary components for your build.
How to Use Hex Pixhawk
Mount the component securely on your drone frame using appropriate hardware. For flight controllers, ensure proper orientation and secure mounting with vibration dampening. For ESCs, solder motor wires and signal connections, then calibrate throttle range. For motors, mount with appropriate screws and attach propellers with correct rotation direction. For FPV equipment, mount cameras at the desired tilt angle and connect video transmitters with suitable antennas. Always perform pre-flight checks.
For detailed wiring diagrams, code examples, and tutorials for the Hex Pixhawk, check the product documentation or search for community-created guides online. Our support team at Zbotic is also available to help with technical questions.
Why Buy Hex Pixhawk from Zbotic?
Zbotic is India’s trusted online store for electronics components, development boards, sensors, motors, and robotics parts. When you buy the Hex Pixhawk from Zbotic, you get:
- Genuine Products: All items are sourced from authorized distributors and quality-checked
- Fast Shipping: Orders ship within 24 hours with real-time tracking
- Free Shipping: Free delivery on orders above Rs.999 across India
- COD Available: Pay via Cash on Delivery, UPI, cards, or net banking
- Technical Support: Expert assistance for wiring, coding, and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions about Hex Pixhawk
Where can I buy Hex Pixhawk in India?
You can buy Hex Pixhawk online at Zbotic.in with fast shipping across India. We offer genuine products with COD and multiple online payment options.
What is the price of Hex Pixhawk?
The Hex Pixhawk is available at Rs.42,267 at Zbotic. Prices may vary based on availability and offers.
Is this product compatible with Arduino and Raspberry Pi?
Most electronic components and modules available at Zbotic are compatible with popular development boards including Arduino, ESP32, and Raspberry Pi. Check the specifications for voltage compatibility.
What is the warranty on this product?
All products at Zbotic come with a quality guarantee. If you receive a defective product, contact our support team for a replacement or refund within the return window.
Do you provide technical support?
Yes, our technical support team can help with wiring diagrams, code examples, and troubleshooting. Contact us through the website or email.
Related Products
- Holybro Kakute H743 Wing Flight Controller with Micro M10 GPS Module
- DJI Naza-M Lite Flight Controller with GPS Kit
- SP Racing F3 Flight Controller Deluxe
Learn more about Pixhawk products at Pixhawk official website.
Drone ESC Explained: How to Choose the Right Speed Controller
The drone ESC (Electronic Speed Controller) is the unsung hero of every multirotor build. It sits between your...
Read More →
DJI FPV System: Digital HD Video for Racing Drones
Table of Contents Overview of DJI FPV Video System DJI Air Unit and Vista Components DJI FPV Goggles...
Read More →
How to Build a VTOL Drone: Fixed Wing Meets Multirotor
How to Build a VTOL Drone: Fixed Wing Meets Multirotor VTOL — Vertical Take-Off and Landing — drones...
Read More →Technical Specifications
| Brand | Pixhawk |
|---|---|
| SKU | AI5182 |
| Weight | 0.33 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Hex Pixhawk Cube+ Flight Controller Autopilot is a versatile flight controller & accessories used across a wide range of applications including autonomous drones, FPV racing quadcopters, agricultural drones, and surveying and mapping platforms.
Common use cases:
- Central brain for drone stabilization and navigation
- GPS waypoint missions for surveying
- Acro mode flying for FPV freestyle
This product is ideal for drone builders requiring precise flight control.
Technical Tip: F4 processors are good for basic builds; F7 or H7 recommended for advanced features. Ensure firmware compatibility (Betaflight, ArduPilot, iNAV).
