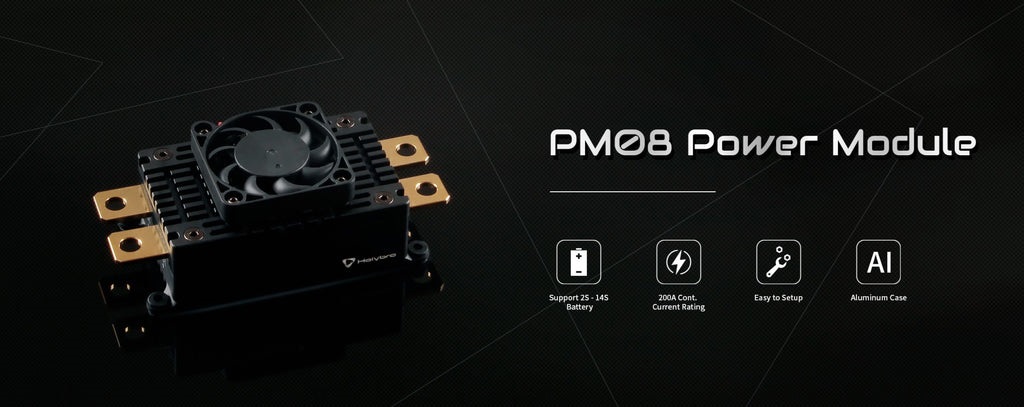

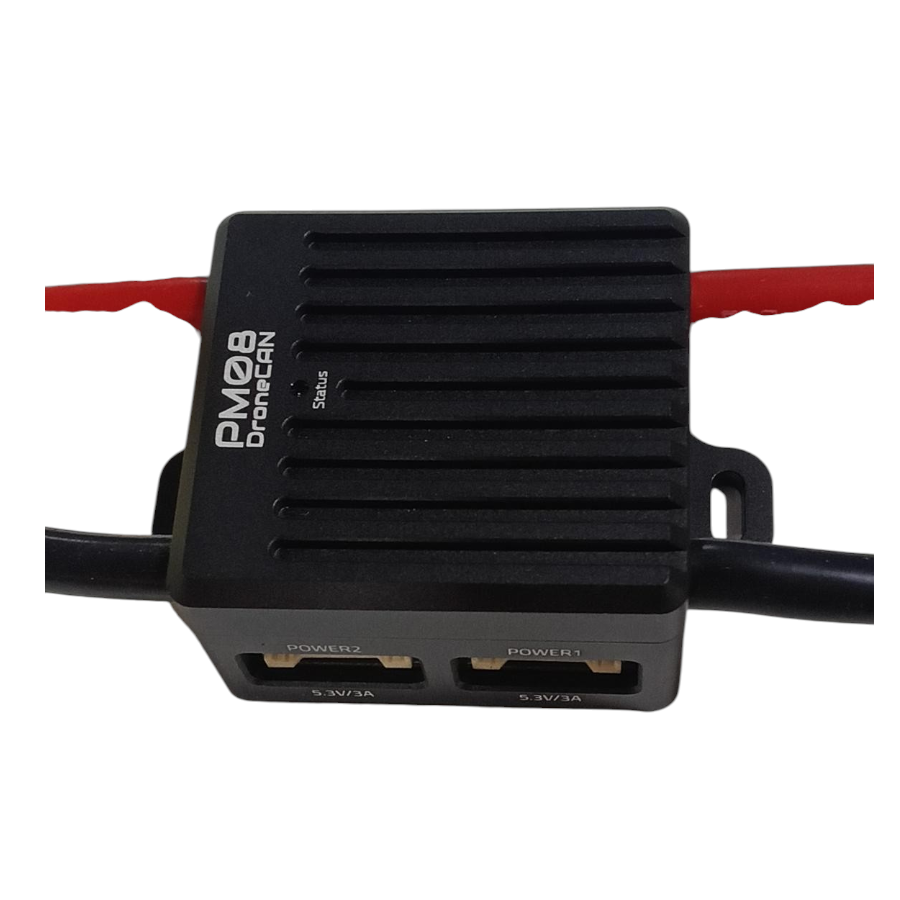

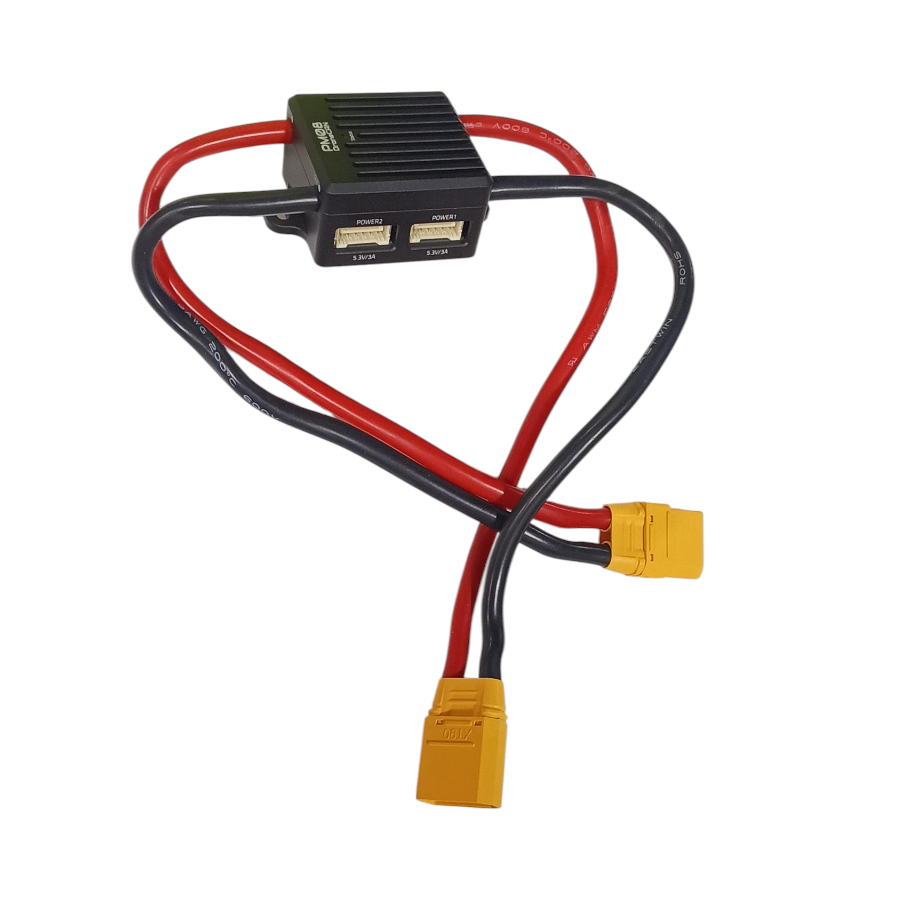

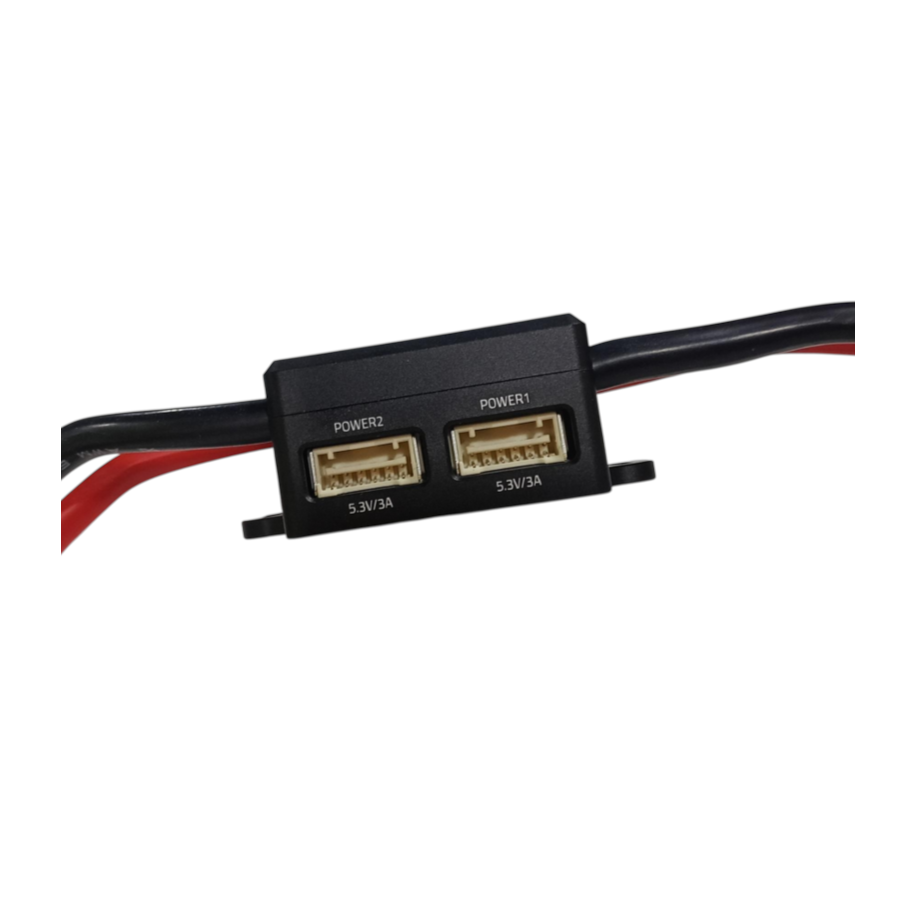

Holybro PM08-CAN Power Module (14S, 200A)
Description:
This PM08 Power Module supply regulated 5.2V to the flight controller from the battery while providing current consumption and battery voltage measurements via an analog signal through a 6 Pin JST-GH cable to the Autopilot. This power module is designed for vehicles with high power requirements. It comes housed in an aluminum heat sink case with a fan, protecting the module from external elements, and actively dissipates heat generated during operation to ensure durability and optimal performance. Please Note: – This analog power module is not compatible with Pixhawk 5X/6X. Please use digital power module that end with a “D” for the 5X/6X series. – Wire & connector sold separately
Features:
- Support 2S – 14S Battery
- 200A Cont. Current Rating
- Easy to Setup
- Aluminum Case for Heat dissipation
Specification:
| Item Type: | Module |
| Input Voltage (V): | 2S-14S |
| PCB Cont. Current Rating | 200A |
| PCB Burst Current Rating | 1000A (<1 Sec @25C) |
| Max current sensing | 237.6A |
| Output | DC 5.1-5.3V & 3A Max |
| Voltage Divider | 18.182 |
| Amperes per Volt | 72 |
| Dimensions (L x W x H) mm | 101*45*26mm |
Package Includes:
1x PM08 Power Module
1x 40x40mm Fan

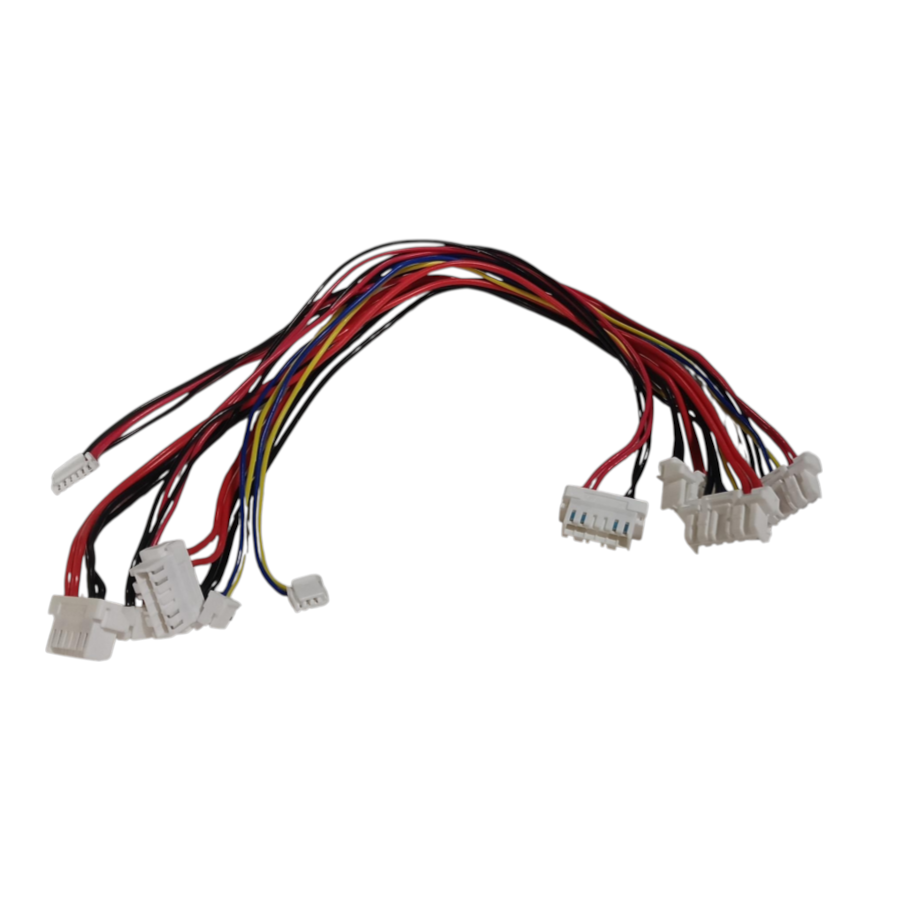

1x JST GH 6 Position Connector 15 cm
4x Sets of Screws, Washers, and Nuts
Drone Mapping with Photogrammetry in India: DroneDeploy vs WebODM Complete Guide 2025
Drone photogrammetry has transformed how Indian industries approach land surveying, construction monitoring, agricultural planning, and infrastructure inspection. Where...
Read More →
Tethered Drone Build: Unlimited Flight Time for Events and Surveillance
Tethered Drone Build: Unlimited Flight Time for Events and Surveillance Imagine a drone that can hover for eight...
Read More →
Tricopter Build Guide: Unique Y-Frame Drone Design
Tricopter Build Guide: Unique Y-Frame Drone Design In a world dominated by quadcopters, the tricopter is the odd...
Read More →Technical Specifications
| Brand | Holybro |
|---|---|
| Model | PM08-CAN |
| Current Rating | 200A |
| Interface / Protocol | CAN |
| SKU | AI3022 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Holybro PM08-CAN Power Module (14S, 200A) is a versatile flight controller & accessories used across a wide range of applications including autonomous drones, FPV racing quadcopters, agricultural drones, and surveying and mapping platforms.
Common use cases:
- Central brain for drone stabilization and navigation
- GPS waypoint missions for surveying
- Acro mode flying for FPV freestyle
This product is ideal for drone builders requiring precise flight control.
Technical Tip: F4 processors are good for basic builds; F7 or H7 recommended for advanced features. Ensure firmware compatibility (Betaflight, ArduPilot, iNAV).
