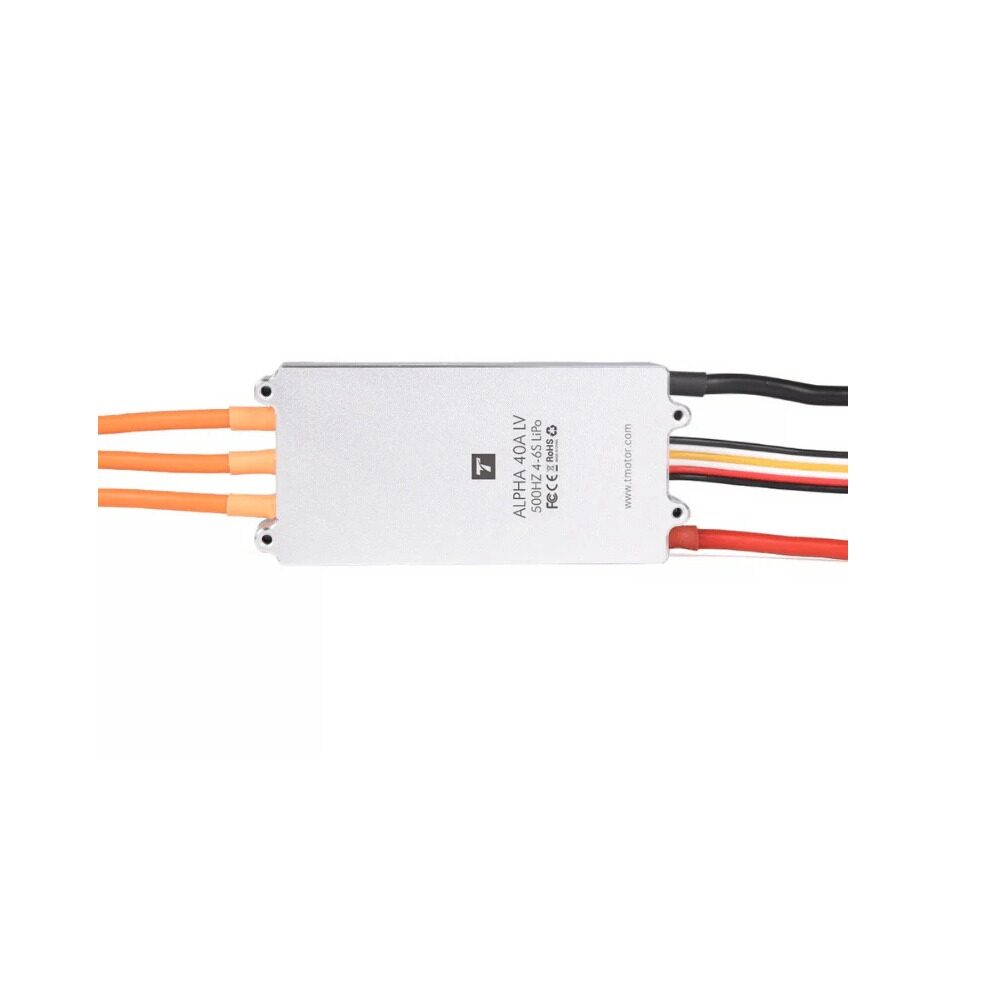

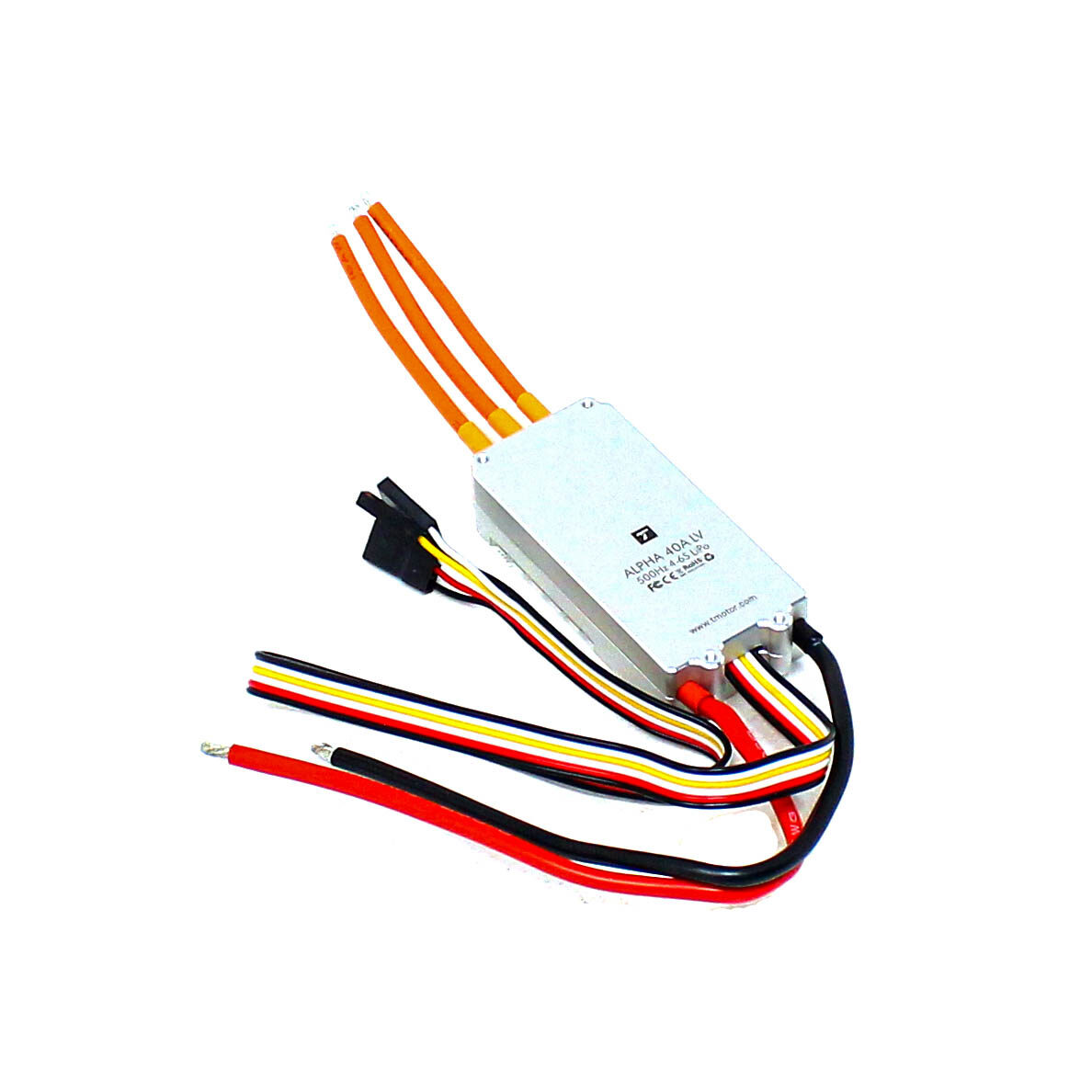

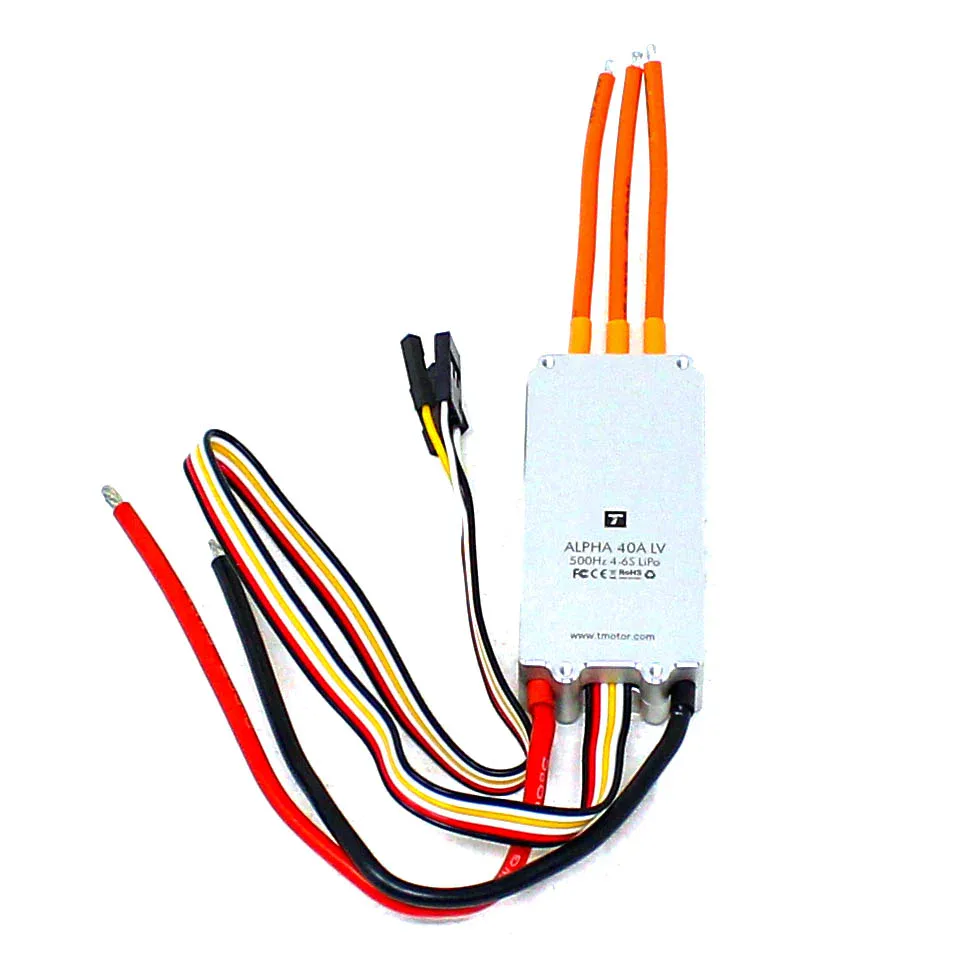

T Motor Alpha 40A 6S ESC
Looking for 40a Motor? T Motor Alpha 40A 6S ESC is available at Zbotic with fast shipping across India.
Description:
The ALPHA 40A 6S T-Motor ESC is a high-performance electronic speed controller designed for low noise operation, fast response, and linear throttle control. With low interference and high efficiency, this ESC outperforms traditional square wave controllers by offering faster response times, reduced pulse currents, and smoother startup.
This ESC is equipped with multiple protective features, including over-current, motor lock-up, short circuit, and low voltage protection, ensuring reliable and safe operation. Its intelligent design continuously monitors key parameters such as voltage, current, and temperature for real-time adjustments and optimal performance.
Featuring an IP55 rating, the ALPHA ESC is protected against dust and water, safeguarding it from damage caused by liquid exposure, such as corrosion from pesticides. Additionally, its lightweight design, which is 15-20% lighter than previous models, enhances overall efficiency without compromising durability.
Features:
- Special core program for multi-rotor controller greatly improve throttle response
- Power by independence stabilivolt IC supply microprocessor is with better antijamming performance for stability
- FOC sine driving is adopted for less noise and torque ripple , and better motor and ESC protection
- FOC ESCs are with output interface of RPM signal and error status signal
- Parameter as to real-time output throttle, RPM, current, capacity temperature and MOSFET temperature are available
- 30KHz PWM driving frequency
- Online upgrading of ESC firmware is available (Data LINK is needed)
Packages Includes:
1 x T Motor ALPHA 40A 6S ESC
1 x User Manual
T Motor Alpha 40A 6S ESC Overview
The T Motor Alpha 40A 6S ESC is a high-performance electronic speed controller designed specifically for multi-rotor drones. It handles continuous currents up to 40 A and supports 4S–6S LiPo batteries (18–25.2 V), delivering linear throttle control, low noise operation, and rapid response times.
Key Features of T Motor Alpha 40A 6S ESC
- 40 A continuous current rating with peak performance for demanding drone applications
- Compatible with 4S–6S LiPo batteries (18–25.2 V) and throttle pulse range of 1100–1940 μs
- Special core program optimised for multi-rotor controllers to improve throttle response and flight stability
- Independent Stabilivolt IC powering the microprocessor for superior anti-jamming and voltage stability
- Comprehensive protections: over-current, motor lock-up, short circuit and low voltage cut-off
- IP55-rated design for reliable dust and water resistance in outdoor flight environments
- Fast shipping from Zbotic across India with genuine T Motor products
Applications and Use Cases
- High-speed FPV racing quadcopters requiring precise throttle control
- Professional aerial photography and videography drones with smooth take-off characteristics
- Heavy-lift multi-rotor platforms for industrial inspection and mapping
- Custom drone builds and DIY projects demanding reliable ESC performance
- Educational and research drone prototypes evaluating flight controller tuning
How to Use T Motor Alpha 40A 6S ESC
Mount the ESC close to your flight controller and solder the motor phase wires securely. Connect the 4-6S LiPo battery leads to the ESC’s power input, then plug the signal and ground wires into your flight controller’s ESC ports. Calibrate your throttle range (1100–1940 μs) in the flight controller software, power up the system, and verify directional rotation before first flight.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What battery voltage range does the Alpha 40A 6S ESC support?
The Alpha 40A ESC supports 4S to 6S LiPo battery packs, operating between 18 V and 25.2 V for a wide range of drone configurations.
What protection features are built into this ESC?
This ESC includes over-current protection, motor lock-up prevention, short-circuit shutdown and low-voltage cut-off to safeguard both the ESC and your motors during flight.
How does the Stabilivolt IC enhance performance?
The independent Stabilivolt IC supplies clean, stable power to the microprocessor, improving anti-jamming capability and ensuring consistent throttle response under varying load conditions.
Betaflight RPM Filter: Eliminate Motor Noise for Smooth FPV Flying
Table of ContentsWhat Is the Betaflight RPM Filter?Why Motor Noise Ruins Your FPV ExperienceHardware Requirements for RPM FilterEnabling...
Read More →
Drone Mapping with Photogrammetry in India: DroneDeploy vs WebODM Complete Guide 2025
Drone photogrammetry has transformed how Indian industries approach land surveying, construction monitoring, agricultural planning, and infrastructure inspection. Where...
Read More →
Where to Buy Drone Parts in India: Complete Guide 2026
Whether you are building your first FPV racing quad or assembling a heavy-lift aerial photography rig, knowing where...
Read More →Technical Specifications
| Brand | T -Motor |
|---|---|
| Current Rating | 40A |
| Cell Configuration | 6S |
| SKU | AI1632 |
| Weight | 0.2366 kg |
| Availability | In Stock |
Applications & Use Cases
The T Motor Alpha 40A 6S ESC is a versatile (esc) drone speed controller used across a wide range of applications including brushless motor speed control, FPV drone builds, multirotor platforms, and RC aircraft.
Common use cases:
- Controlling motor speed in a quadcopter
- Replacing a burnt ESC after a short
- Upgrading to BLHeli_32 for smoother throttle response
This product is ideal for drone builders and RC enthusiasts.
Technical Tip: Choose ESC amperage 20% above your motor's max draw. DShot600 protocol recommended for modern builds.
