Product Description:

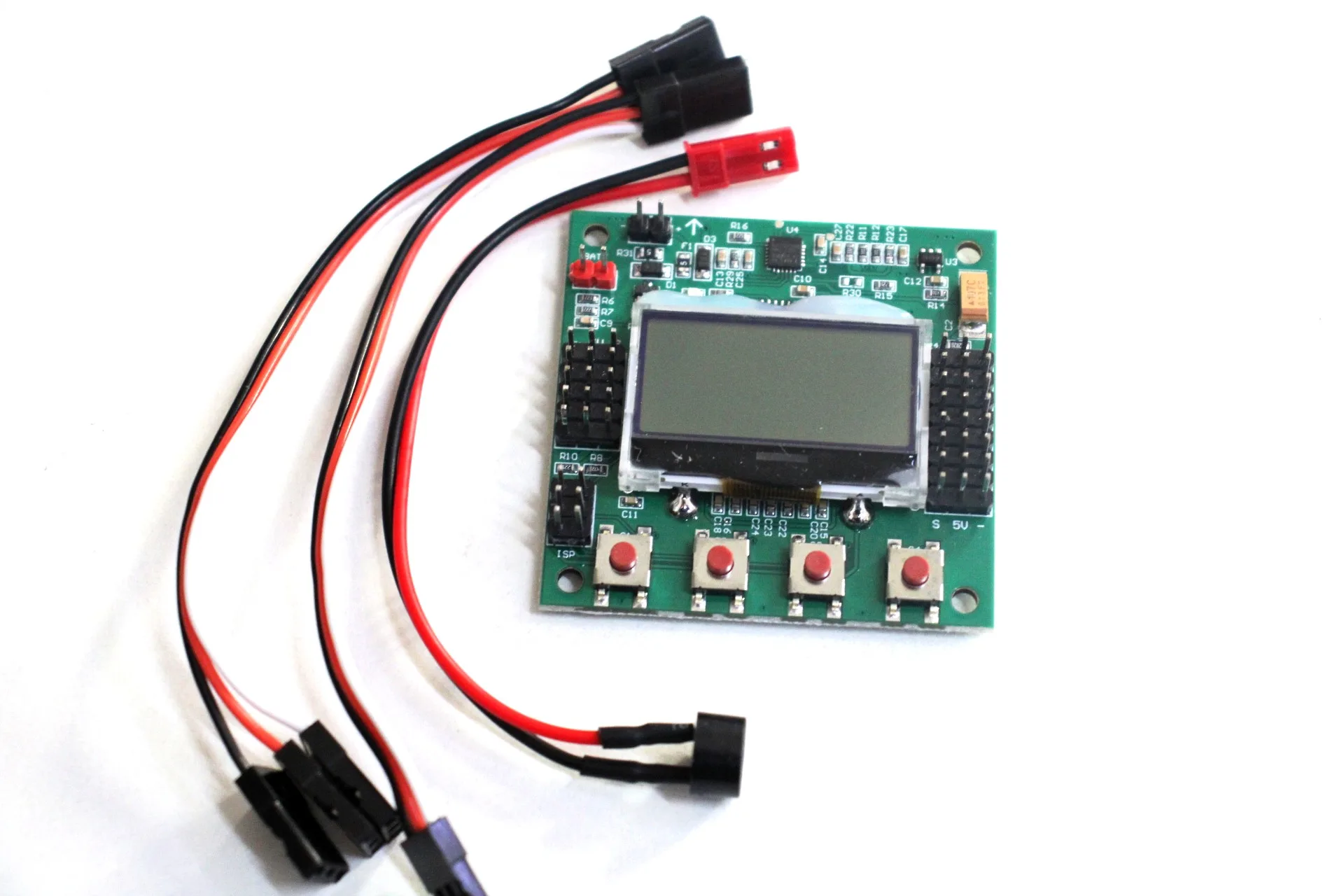

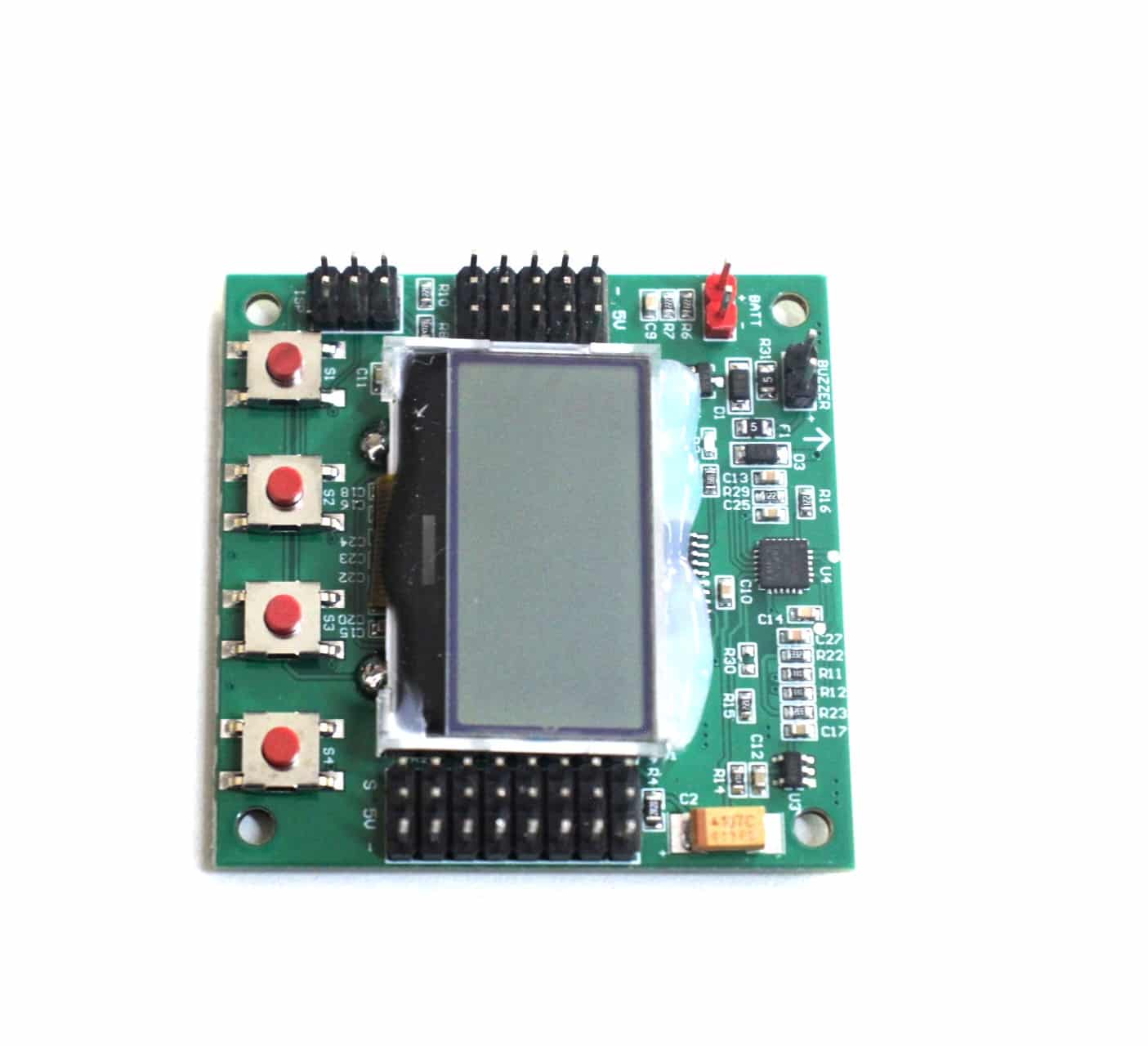

KK2.1.5 Multi-rotor LCD Flight Control Board with 6050MPU and Atmel 644PA
The KK2 1.5 Flight Controller Board, equipped with a 6050 MPU and an Atmel 644PA, is an enhanced version of the original KK flight control boards. Featuring a user-friendly LCD screen and intuitive software, it simplifies installation and configuration. Users can select from a variety of pre-installed multi-rotor craft types, verify motor layout and propeller direction, calibrate ESCs and radio, and follow on-screen instructions for setup.
The gyro system of the KK2 has been upgraded to a more sensitive 6050 MPU system, offering increased stability and an auto-level feature. The KK2 1.5 operates on an Atmel Mega644PA 8-bit AVR RISC-based microcontroller with 64KB of memory.
For guidance on using the KK2 1.5 Flight Controller, please refer to the manual.
Note:
- This product is available in 2 types, having black & pink buttons, which will be shipped randomly. Most probably, you’ll get a board with pink buttons.
- It is always recommended to update to the latest software version as part of your initial setup. (this is different than v1.6 for 2.0)
Features:
- Auto Level
- Standard 6 Pin AVR Interface
- 1520us (5 channels) Signal from the receiver
Firmware Version: 1.6:
- Pre-installed firmware., Dualcopter, Tricopter.
- Y6, Quadcopter +, Quadcopter X, Hexcopter +, Hexcopter X, Octocopter +, Octocopter X.
- X8 +, X8 X, H8, H6, V8, V6.
- Flying Wing.
- Singlecopter 2M 2S, Singlecopter 1M 4S.
- Custom Mix via the “Mixer Editor” option:
- The Mixer Editor allows you to adjust where and how much signal the motors receive from stick input and sensors. This allows you to create any configuration possible with up to 8 motors or servos.
Specifications:
| Model | KK2 |
|---|---|
| Input Voltage (V) | 4.8V-6.0V |
| Firmware | Pre-installed firmware |
| Sensor | 6050 MCU |
| Processor | Atmel 644PA |
| Micro-SD Card Slot | No |
| Length (mm): | 52 |
| Width (mm): | 52 |
| Height (mm): | 12 |
| Weight (g): | 26 |
Package Includes

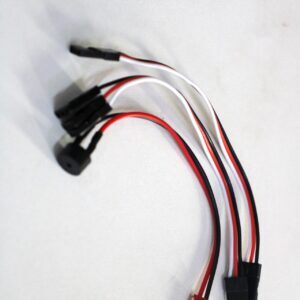

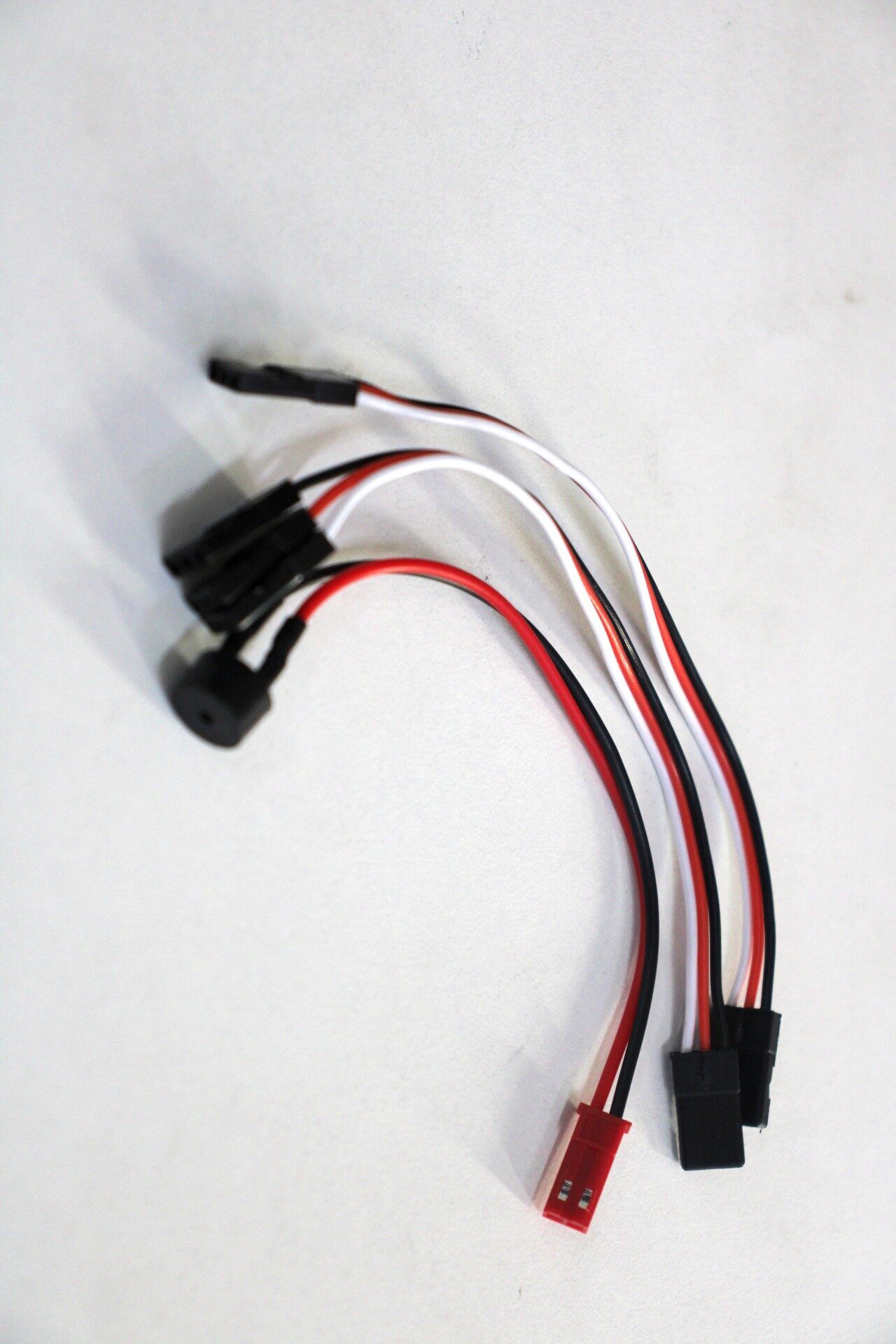

- 1 x KK2 1.5 Flight Controller Board W/ 6050 MPU BOARD.
- 1 x Piezo buzzer.

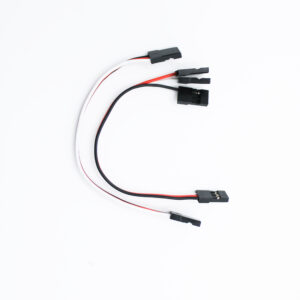

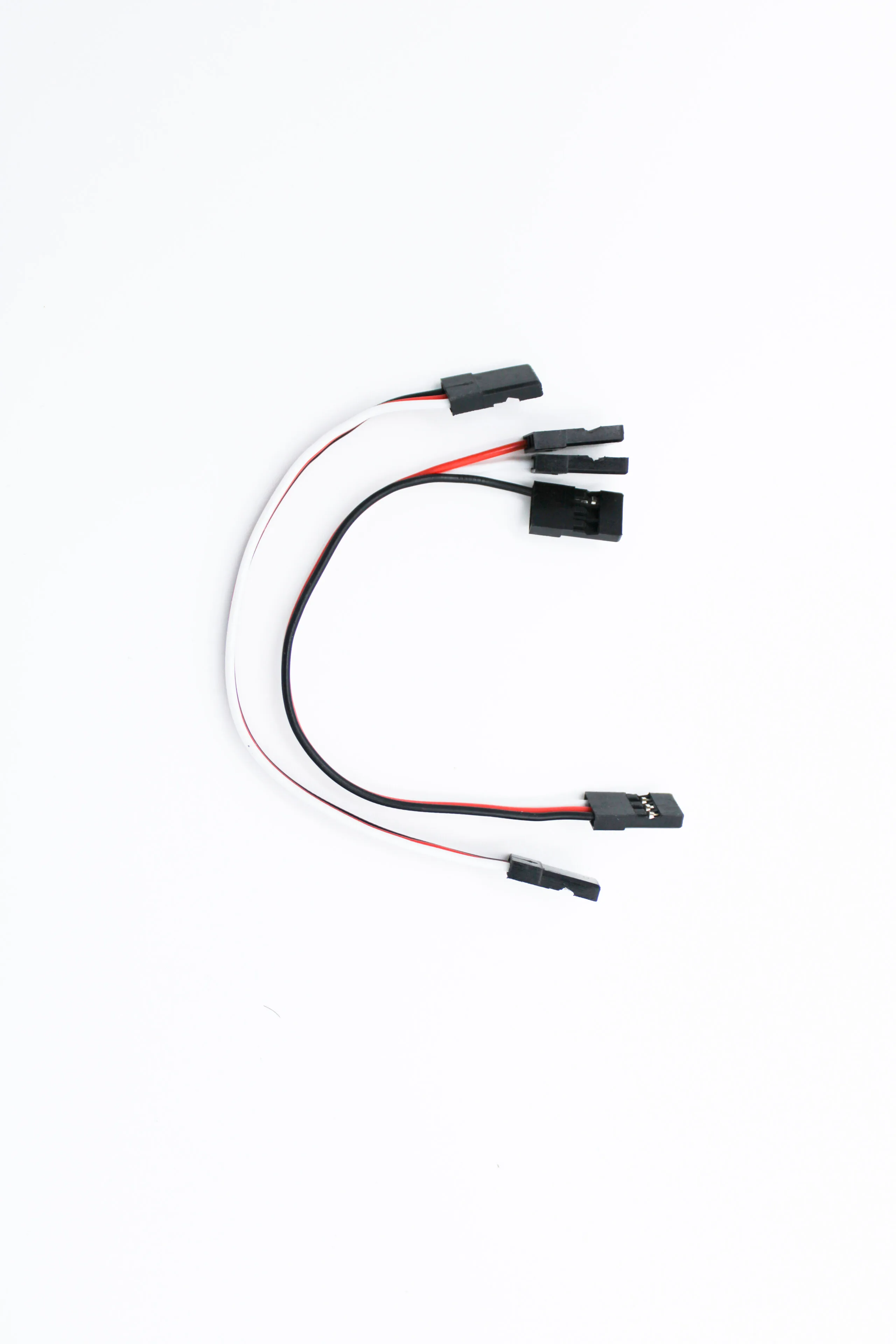

- 2 x servo wire
