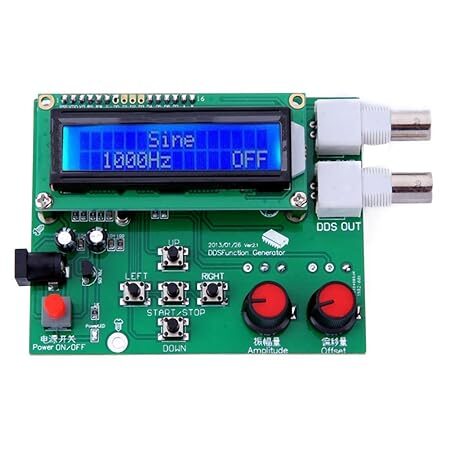

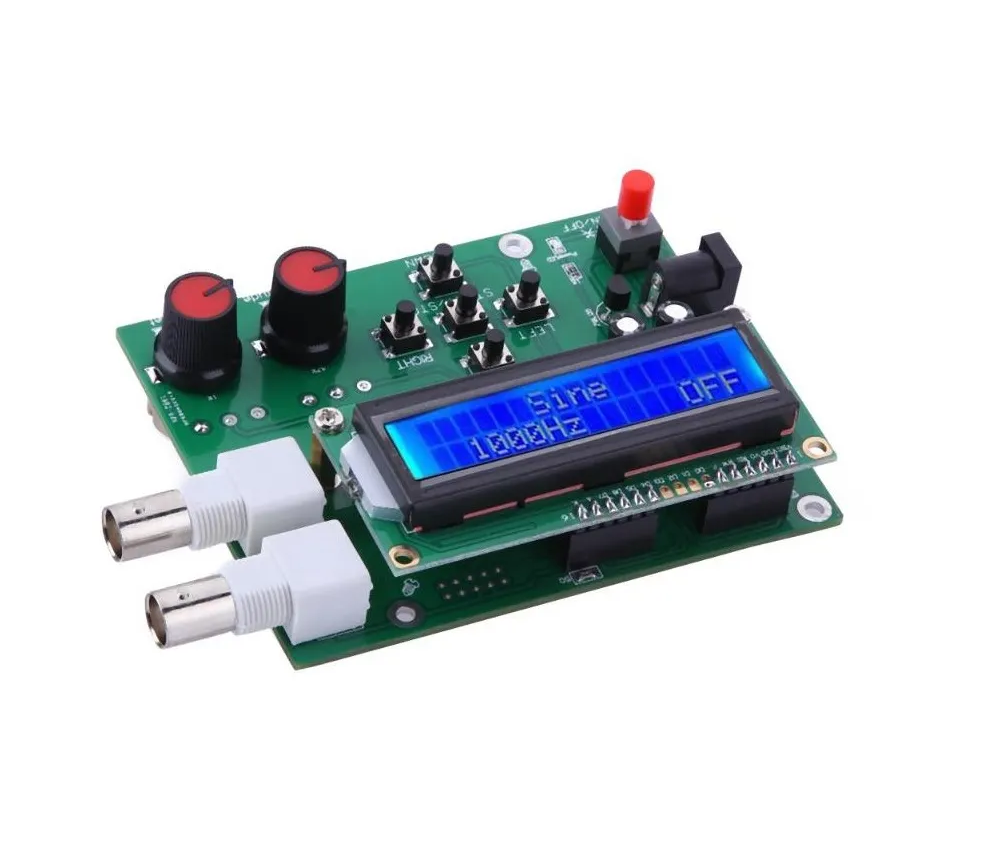

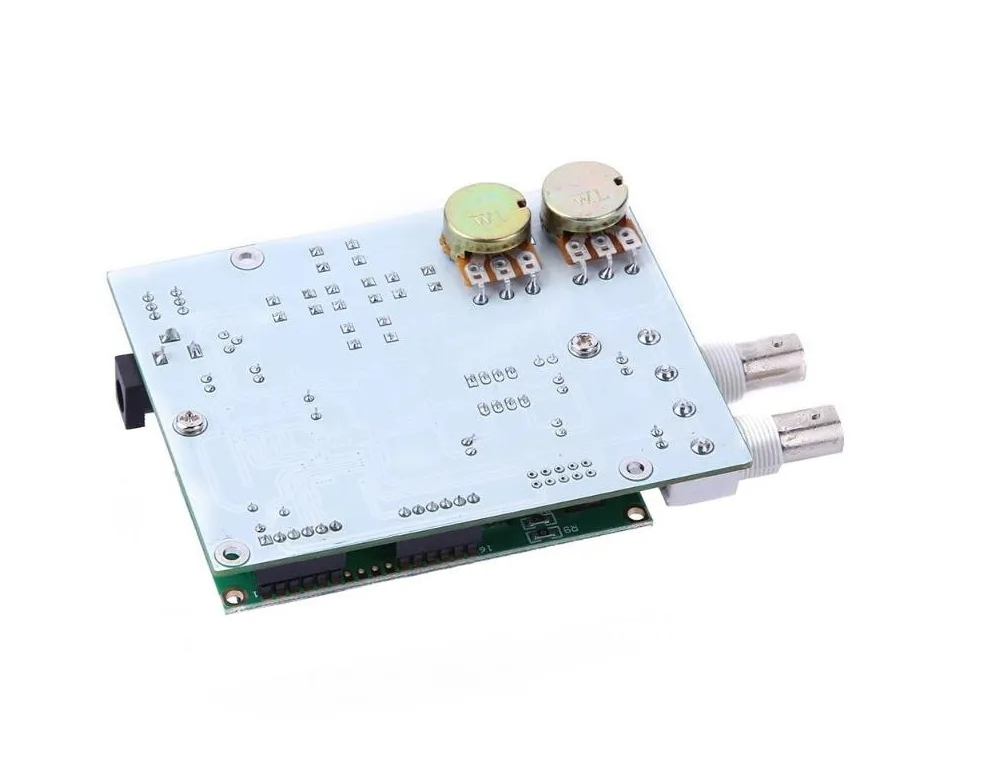

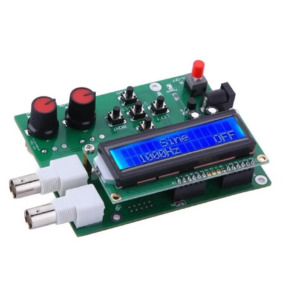

DDS Signal Generator Trigonometric Wave Sinusoidal Square Sawtooth Wave Kit 1Hz-65534Hz
The DDS Signal Generator Trigonometric Wave Kit is a versatile tool for generating a variety of waveforms, including sinusoidal, square, and sawtooth waves. Offering a frequency range from 1Hz to 65,534Hz, it provides precise control over output frequency, making it ideal for a broad spectrum of applications. Utilizing Direct Digital Synthesis (DDS) technology, this kit ensures high accuracy and stable waveform generation. Whether you’re working on educational projects, conducting experiments, or testing equipment, this kit is an essential solution for all your signal generation requirements.
Features:
Small size, powered by DC 7V-9V, easy and portable for use.
DDS frequency range: 1Hz-65534Hz, high-speed frequency (HS) output up to 8MHz.
DDS signal amplitude of the offset amount can be adjusted separately by two potentiometers.
DDS signals: sine wave, square wave, sawtooth, reverse sawtooth, triangle wave, the ECG wave and noise wave.
LCD display for clear reading, intuitive 5 buttons for convenient operation.
The power automatically restore the last used configuration.
“UP” key waveforms order:
ECG = electrocardiogram wave (in the OFF state, the “left” and “right” keys to set the output frequency.
Middle button start, all of the following waveform set).
Rev Sawtooth = reverse sawtooth.
SawTooth = sawtooth.
Triangle = triangle wave.
Square = square wave.
Specifications:
Display: 1602 LCD
Operating Voltage: DC 7V-9V
DDS Frequency Range: 1Hz-65534Hz
Frequency (HS) Output: up to 8MHz
Section into the Value: 1, 10, 100, 1000, 10000 Hz
Offset: 0.5pp-5Vpp
Amplitude Amount: 0.5Vpp-14Vpp
Note:
Please allow 1-3 cm differs due to manual measurement.
Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
