NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator
Click to enlarge
Home Electronic Instruments and Tools Oscilloscope & Signal Generator NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator
LM2596 DC-DC Adjustable Step Down Buck Converter Power Supply Module ₹47.0 ( +GST 18% )
Back to products
400 Points Solderless Breadboard
400 Points Solderless Breadboard ₹41.0 ( +GST 18% )

NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator

Rated 5.00 out of 5 based on 3 customer ratings
(3 customer reviews)

₹62.0 ₹56.0 ( +GST 18% )

  • ⚡ Dispatched within 24 hours*
  • 💸 COD Orders above 250rs*
  • ✅15 days warranty*
  • 🛠️ Dedicated Technical Support Team
  • 🚚 Free shipping on orders above Rs 499/- for b2c customers

QUICK OVERVIEW

  1. Main chip: NE555
  2. Input Voltage: 5V-15V DC.
  3. Generate an adjustable pulse for MCU.
  4. Generate an adjustable pulse, to control circuitry associated.

For B2B Enquiry Email Us:- [email protected]

56 in stock

Compare
Add to wishlist
SKU: AI0169 Categories: Breakout Boards, Oscilloscope & Signal Generator Tags: NE555, Pulse Frequency Adjustable Module, Square Wave Generator
Share:
  • Description
  • Additional information
  • Reviews (3)
  • COO Info
Description

Product Description

NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator is 5 V square wave signal generator. It generates a square wave signal used for experimental development. Also, use to drive a stepper motor for generating a square wave drive signal.

The output duty cycle can fine-tune. Duty cycle and frequency is not separately adjustable, adjusting the duty cycle will change the frequency.

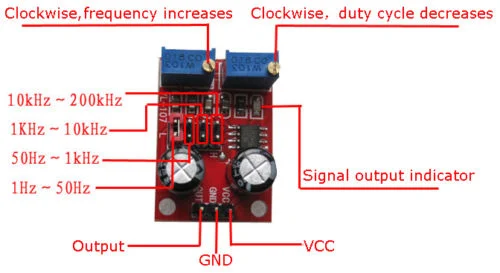

The output frequency is adjustable:

  • Period T = 0.7 (RA +2 RB) C
  • RA, RB is 0-10K adjustable;
  • Low profile when C = 0.001UF;
  • IF stalls C = 0.1UF;
  • High-frequency file C = 1UF;
  • HF stalls C = 100UF;
  • So buyers can calculate the frequency of the waveform.

Features

  • Generate an adjustable pulse for MCU.
  • Generate an adjustable pulse, to control circuitry associated.
  • The output current can be 15 MA around; when 12V power supply, the output current can 35 MA around
  • Output with LED indication(low level, LED will on; high level, LED will off; low frequency, the LED flashes).
  • Max Output Current: >= ≥15MA (5V power supply, V-PP greater than 50%), >=35MA (12V power supply, V-PP greater than 50%)

Application

  • As a square wave signal generator generates a square wave signal used for experimental development.
  • Used to drive a stepper motor for generating a square wave drive signal.
  • Generate an adjustable pulse for MCU.
  • Generate an adjustable pulse, to control circuitry associated.

Package Includes

  • 1 x NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator
