Digital PWM Generator with Display

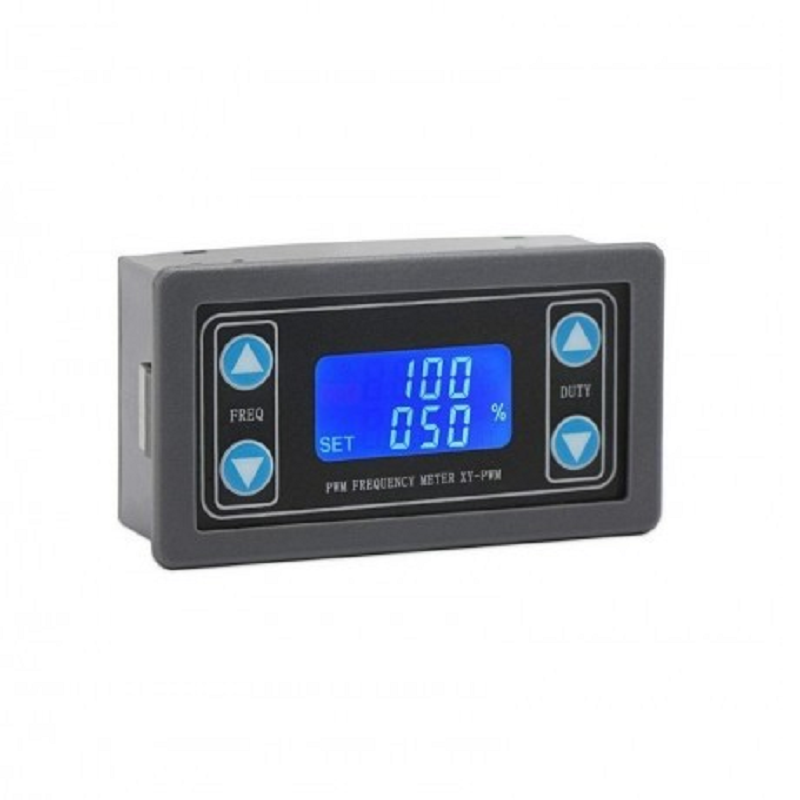

This is a PWM generator, which is housed in a protective shell. It can generate a PWM frequency from 1Hz to 150KHz. This device can be used where an accurate and reliable source of PWM is required.
Note : QYF-PWM on case working remains same.

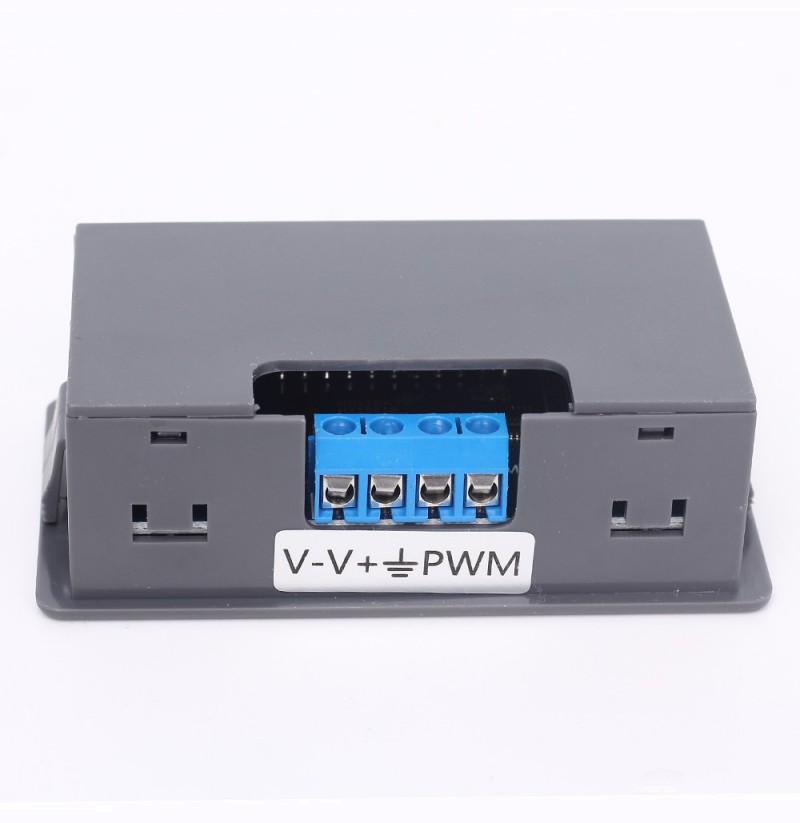

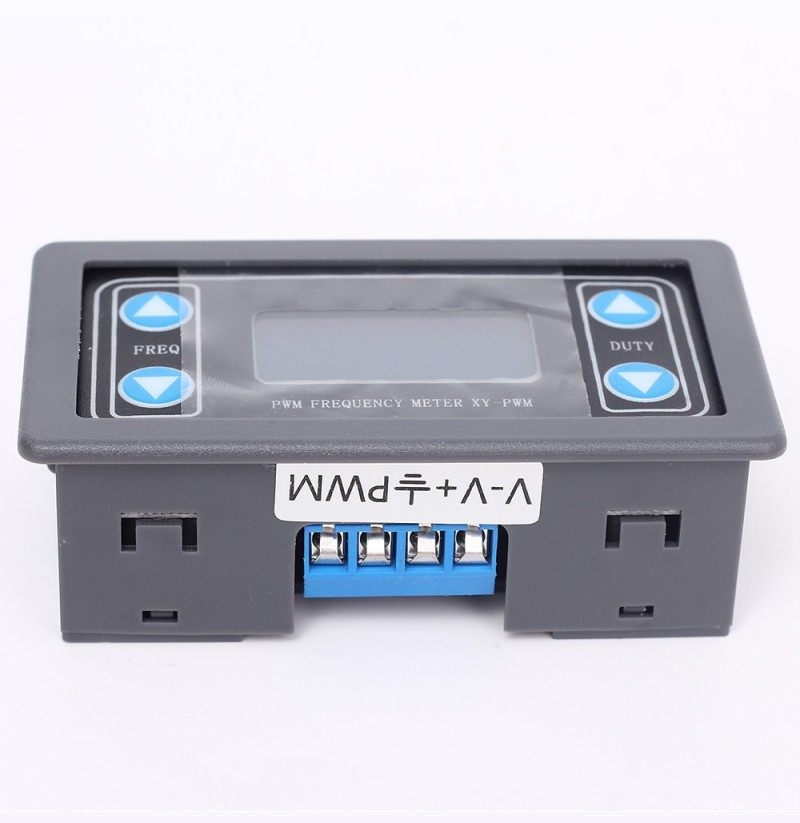

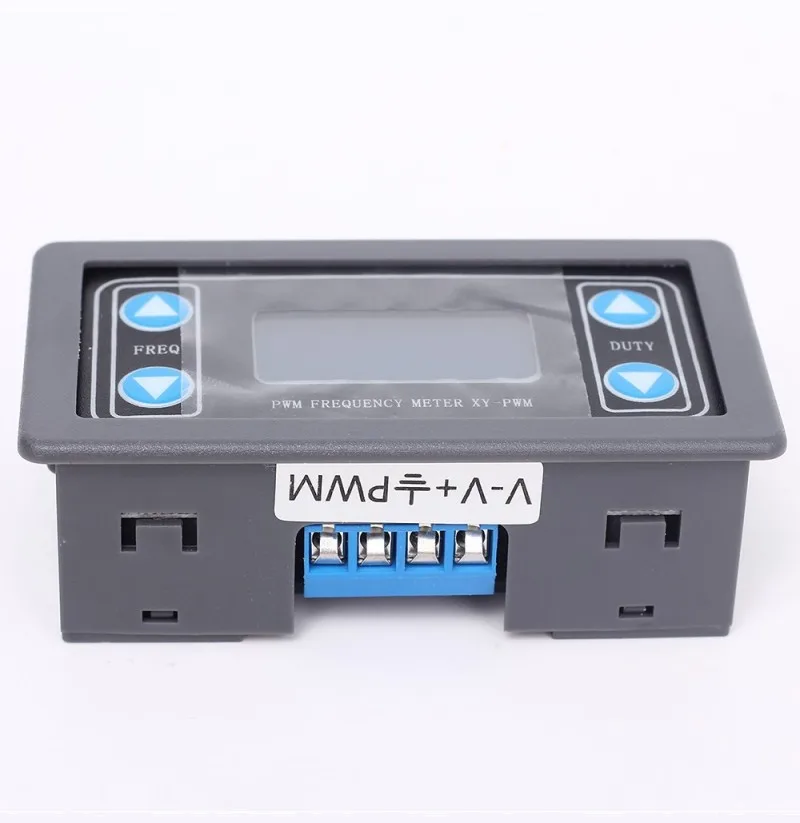

Connection Diagram:
Features:
- Bright LCD Display
- Supports UART
- Adjustable Frequency Output
- High Accuracy Detection
- Supporting Power-OFF Memory Function
- Supports Duty Cycle Adjustment
Specifications:
| Model | XY-PWM |
|---|---|
| Microcontroller IC | N76E003AT20 |
| Operating Voltage (VDC): | 3.3 ~ 30 |
| Frequency Range | 1Hz~150KHz |
| Frequency Accuracy | 2% |
| Signal Load Capacity | output current can be around 5~30ma |
| Output Amplitude | PWM amplitude is equal to supply voltage |
| Operating Temperature (°C) | -20 to 70 |
| Length (mm): | 79 |
| Width (mm): | 43 |
| Height (mm): | 27 |
| Weight (g): | 36 |
Package Includes:
1 x Digital PWM Generator with Display
Technical Specifications
| SKU | AI5936 |
|---|---|
| Weight | 0.04 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Digital PWM Generator with Display is a versatile signal generator module & oscilloscopes used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
