Description:
ST-Link V2 Programmer For STM8 and STM32 is fully consistent with the official version, support for automatic upgrades, support the full range STM32 SWD (only 4pins including SWCLK, SWDIO, and power) and a full range STM8 SWIM (only 4pins including SWIM, Reset and power) download and debug.
Use this device to send program code to the 32-bit STM32 ARM Cortex or 8-bit STM8 microcontrollers. The header for this ST-Link v2 programmer contains connections for 5V, 3.3V, SWCLK, SWDIO, SWIM, Reset (RST/NRST) and GND. The connector on the opposite side of this device is a USB connector and is intended to be plugged into the computer.
You can download the Drivers by clicking here.

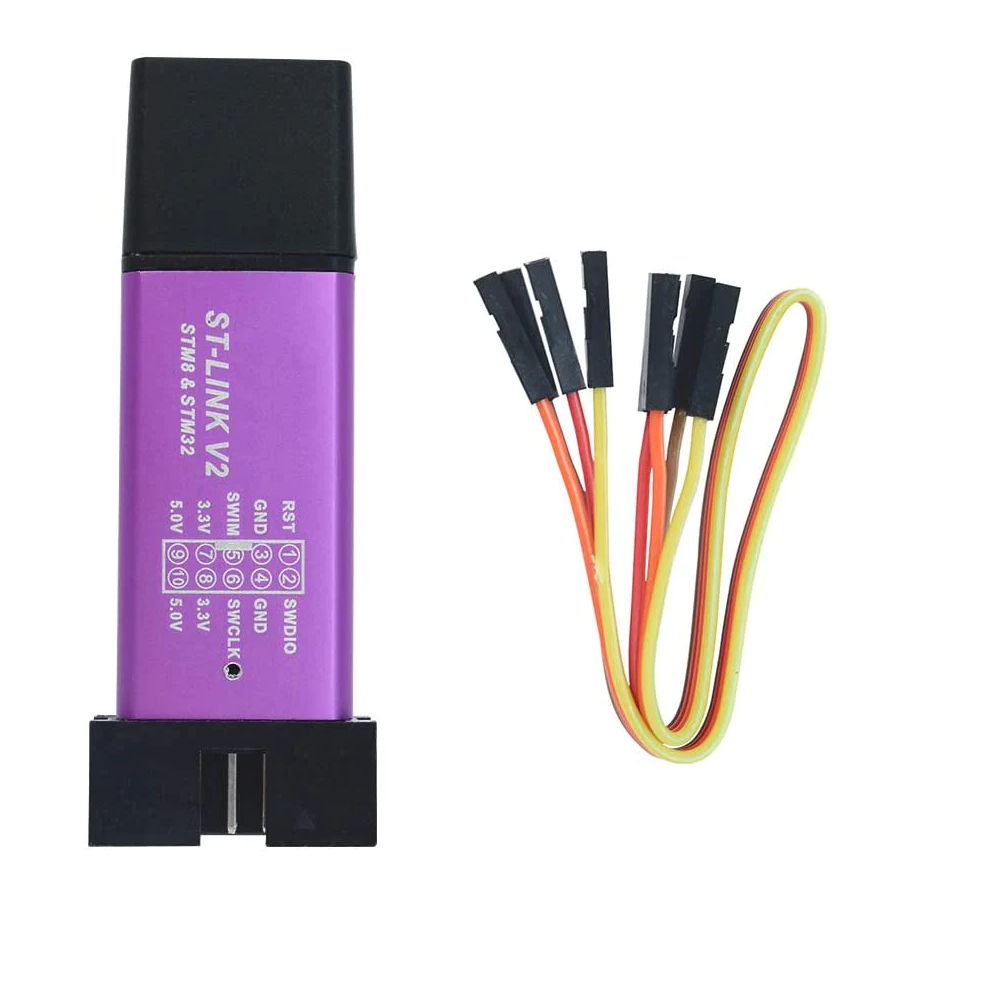

Note: The product is available in Multiple colors Will be shipped randomly.
Supports For ST-LINK V2:
- ST-LINK Utility 2.0 and above.
- STVD 4.2.1 and above.
- STVP 3.2.3 and above.
- IAR EWARM V6.20 and above.
- IAR EWSTM8 V1.30 and above.
- KEIL RVMDK V4.21 and above.
Features:
- Fully compatible with the official version, ensuring reliability and performance.
- Supports automatic upgrades for hassle-free maintenance.
- Compatible with the complete range of STM32 SWD (SWCLK, SWDIO, power) and STM8 SWIM (SWIM, Reset, power) interfaces.
- Enables easy sending of program code to both 32-bit STM32 ARM Cortex and 8-bit STM8 microcontrollers.

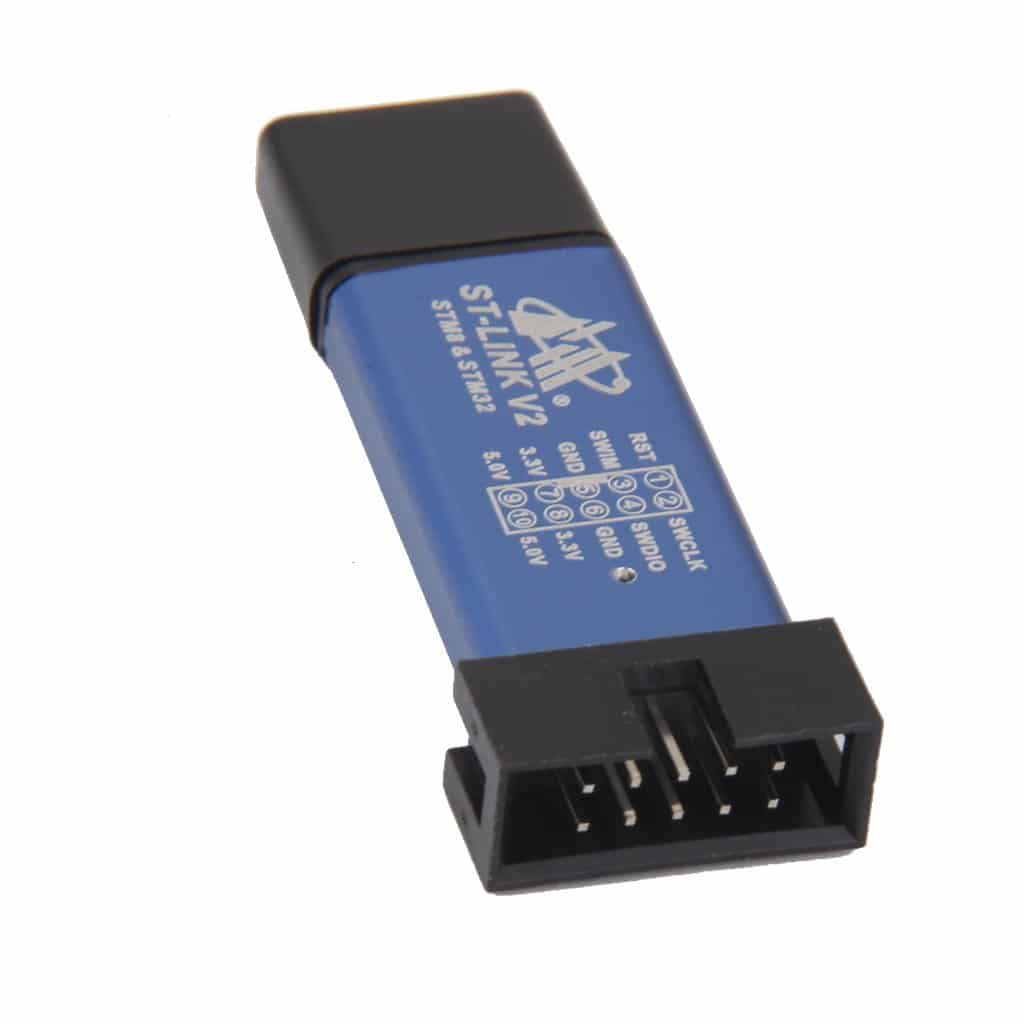

- Header includes connections for 5V, 3.3V, SWCLK, SWDIO, SWIM, Reset (RST/NRST), and GND.
- USB connector for convenient connection to your computer.
- Available in multiple colors (randomly shipped).
- Supports various software including:
- ST-LINK Utility 2.0 and above
- STVD 4.2.1 and above
- STVP 3.2.3 and above
- IAR EWARM V6.20 and above
- IAR EWSTM8 V1.30 and above
- KEIL RVMDK V4.21 and above

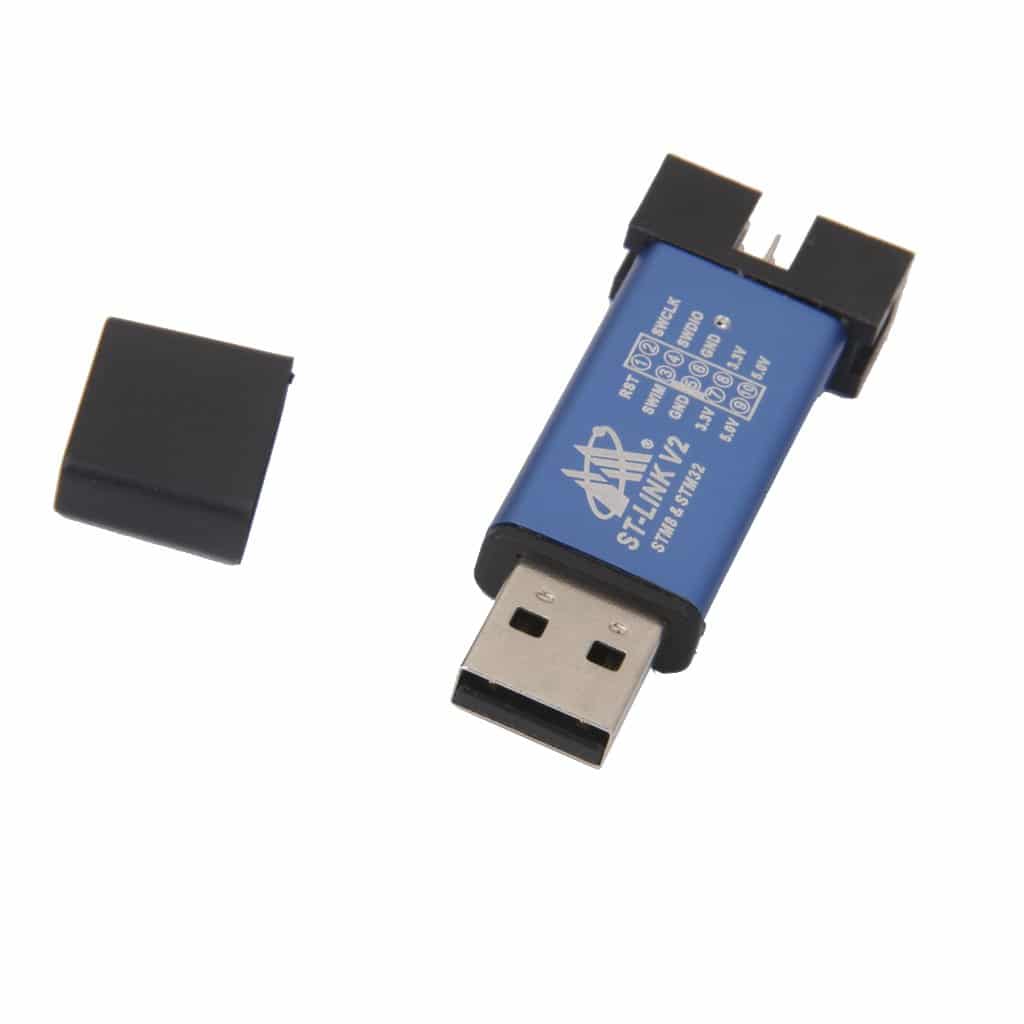

- PCB installed inside a durable aluminum alloy U disk shell, ensuring portability and reliability.

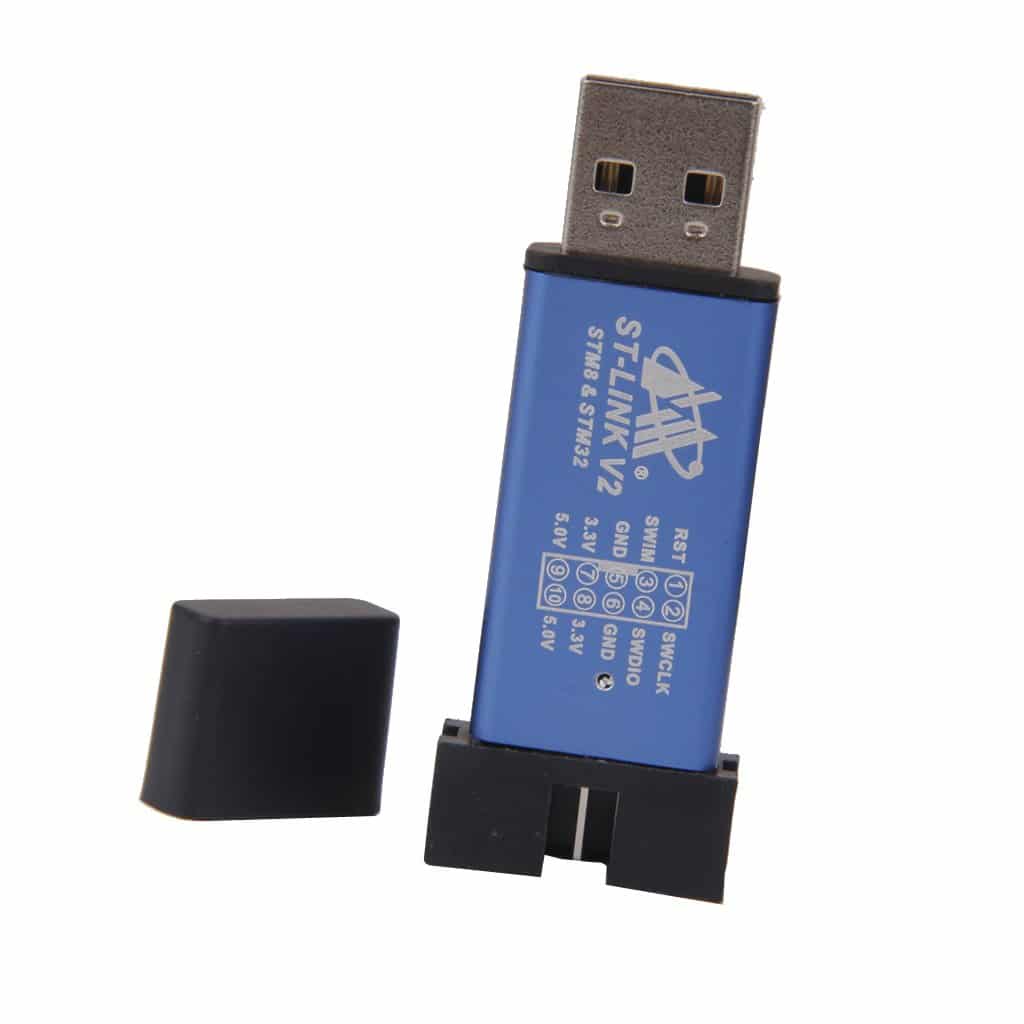

- Clear interface definition directly marked on the shell for easy reference.
- Provides both 5V and 3.3V simultaneously, allowing programming of target boards with different voltage requirements.
- Shell characters are laser-engraved for permanent clarity and durability.
- Internal 500mA resettable fuse for complete protection of your computer motherboard.
- Red and blue LED indicator lights for easy monitoring of ST-Link V2 status.

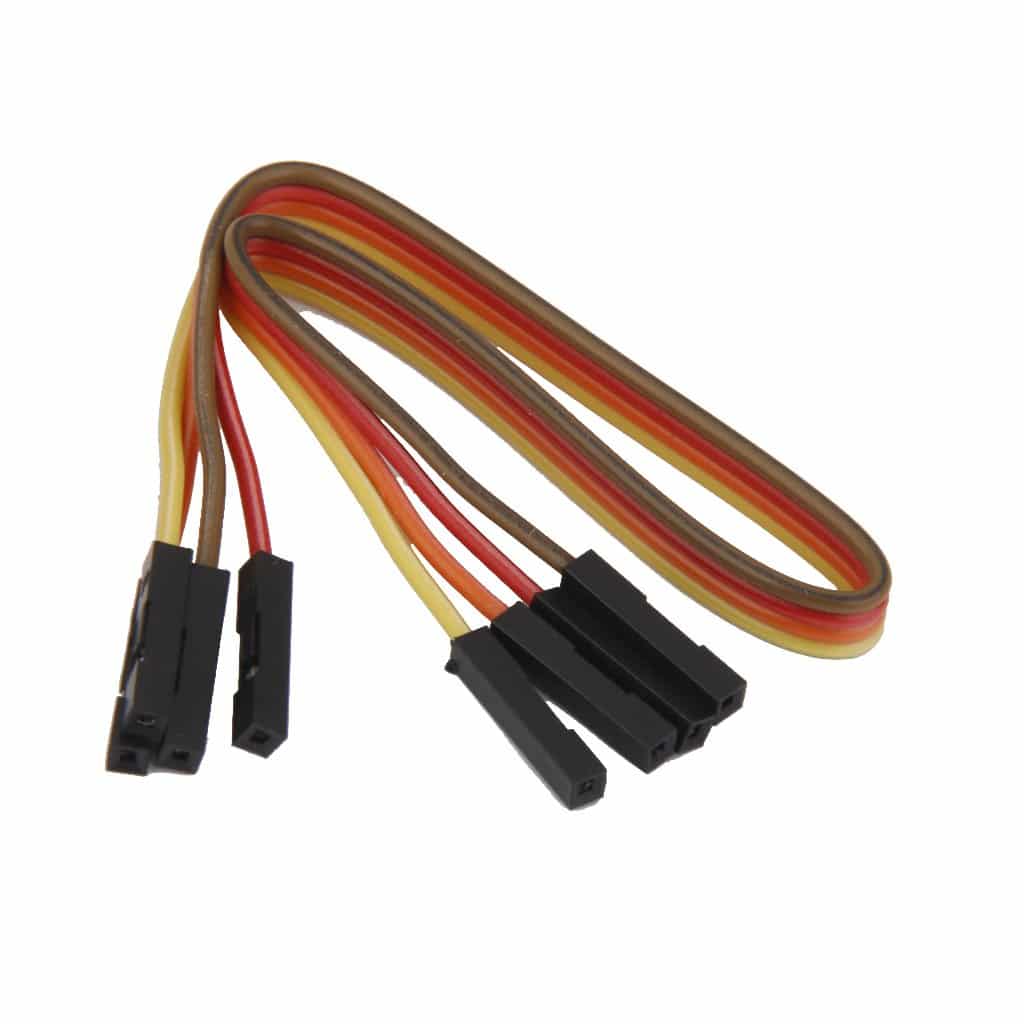

- Includes 4 DuPont lines for flexible connection to different target boards.
- Anti-static bag packaging ensures safe transportation.
Additionally, SWIM specific features include:
- SWIM cable for connection to the application via a pin header or a 2.54 mm pitch connector.
- Supports application voltage from 1.65V to 5.5V on the SWIM interface.
- Supports SWIM low-speed and high-speed modes.
- SWIM programming speed rate:
- 9.7 Kbytes/s in low speed
- 12.8 Kbytes/s in high speed
- Direct firmware update feature supported (DFU).
- Status LED blinks during communication with the PC.
- Operating temperature range: 0 to 50°C.
Specification:
| Item Type: | Programmer |
|---|---|
| Based On: | STM32 Based, STM8 Based |
| Height (mm): | 8.5 |
| Shipping Dimensions | 7 × 3 × 3 cm |
Package Includes:
1 x ST-Link V2 Programmer For STM8 and STM32.
1 x Connecting Wires.
Tutorials:
Videos:
Technical Specifications
| SKU | AI0012 |
|---|---|
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The ST-Link V2 Programmer For STM8 and STM32 is a versatile pic programmer used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
