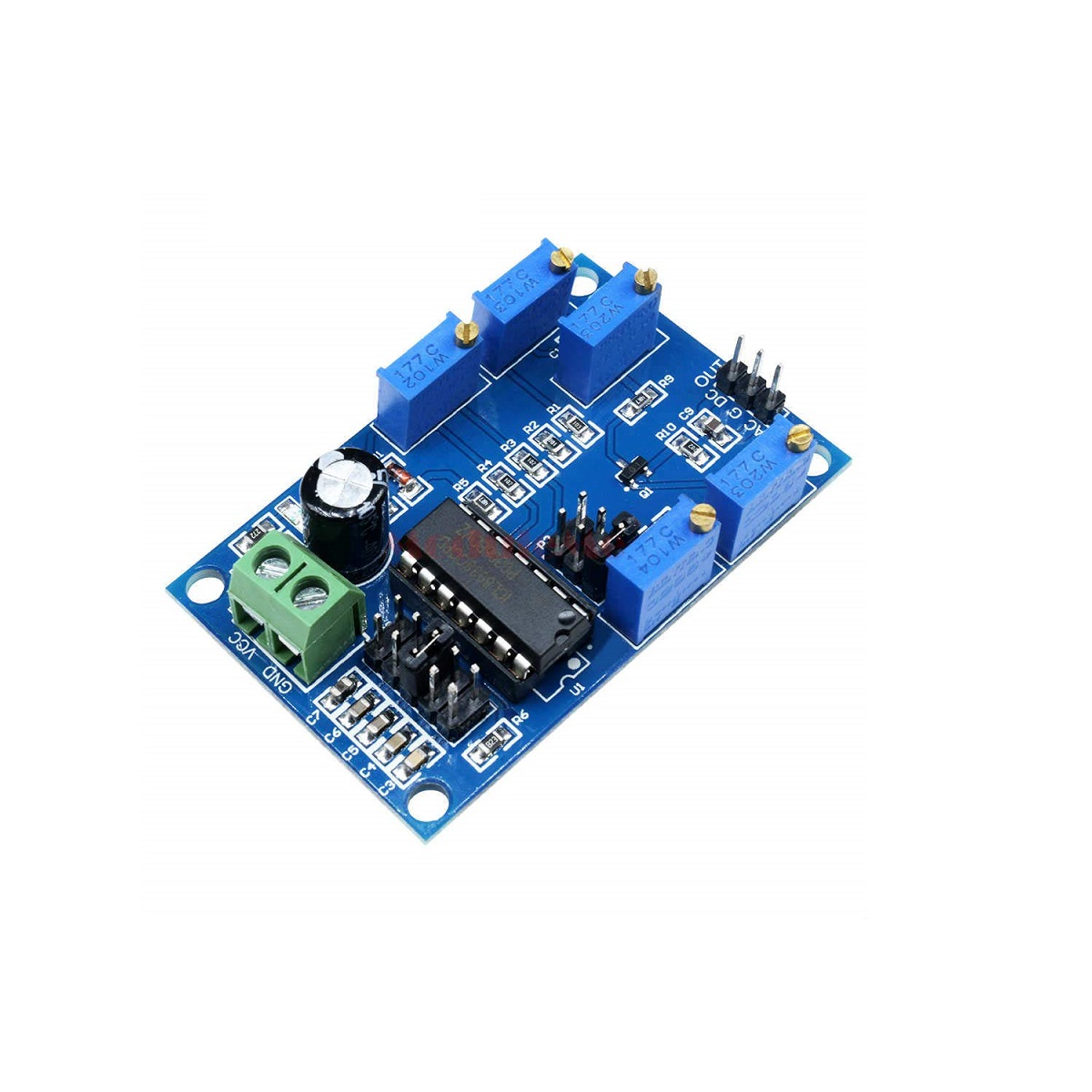

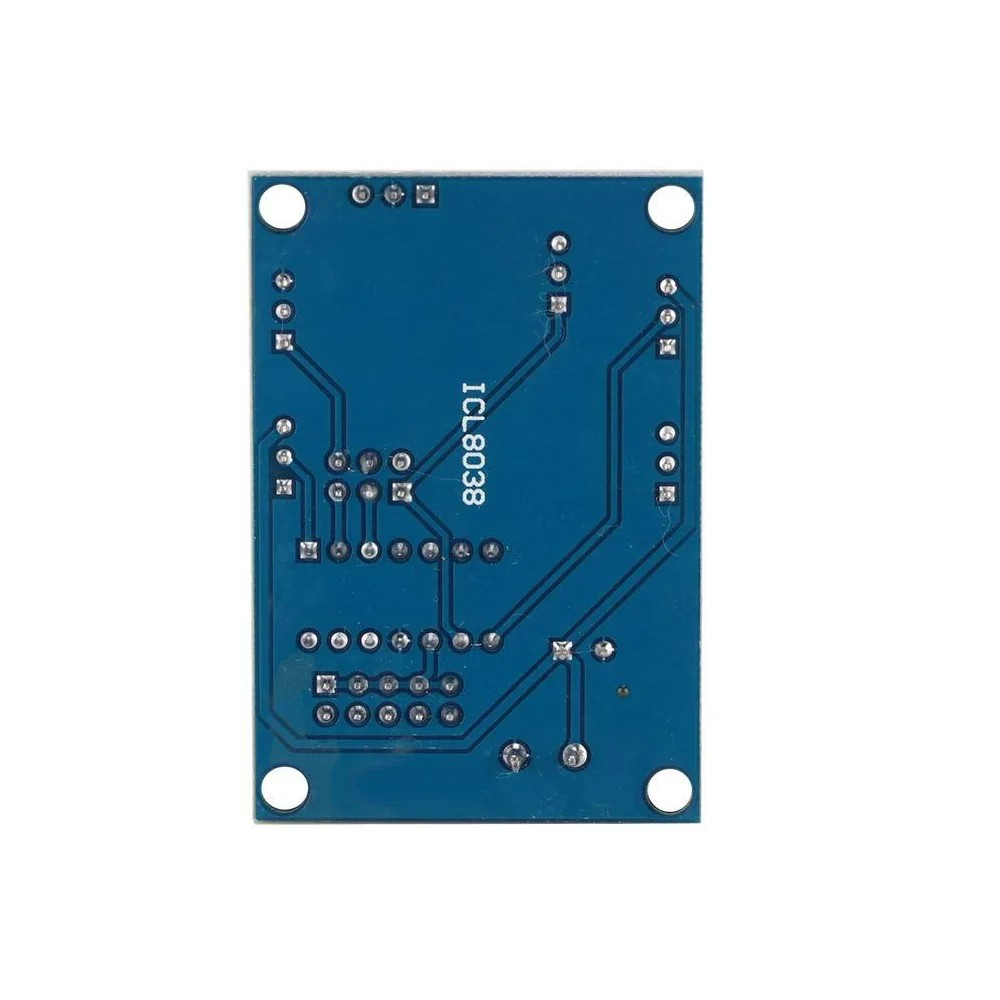

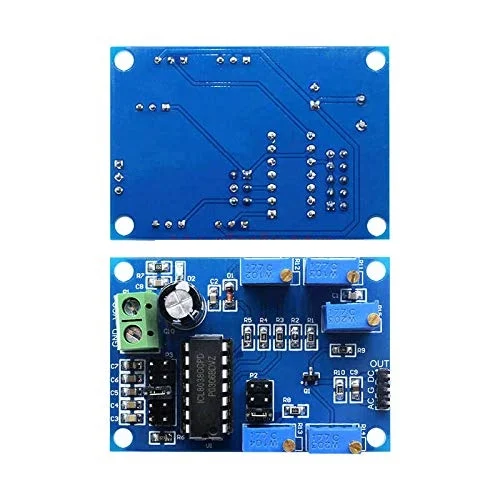

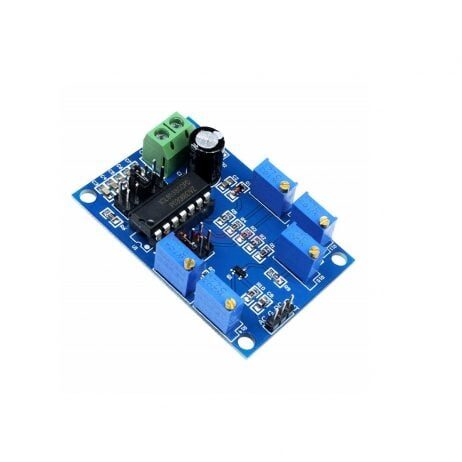

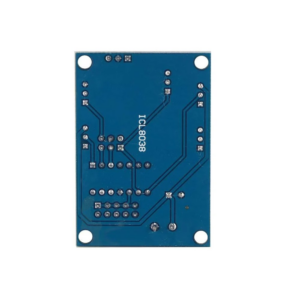

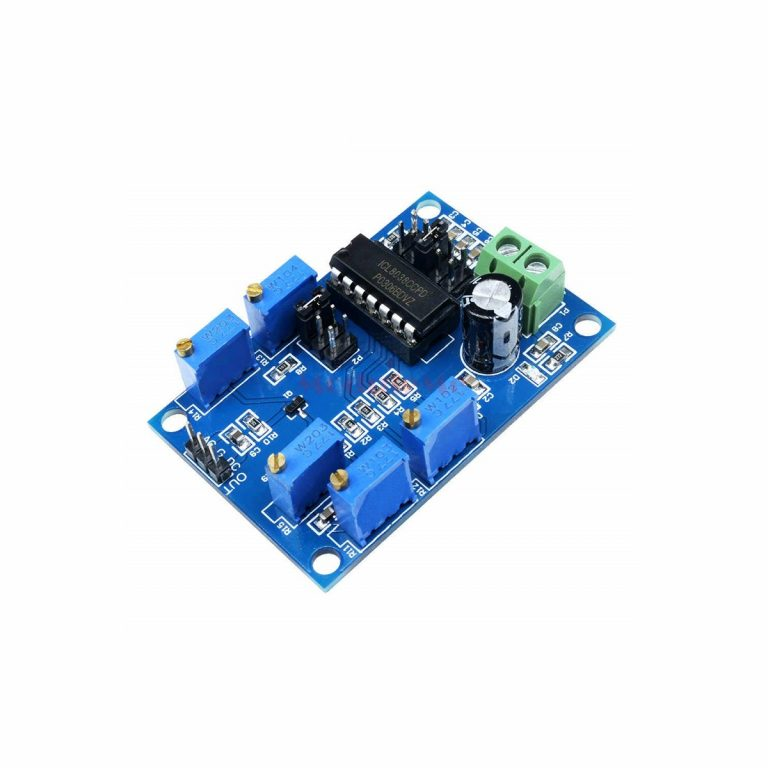

ICL8038 12V to 15V, Signal Generator, Medium/Low Signal, Frequency 10Hz-450KHz, Triangular/Rectangular/S, ine Wave Generator, Module

Product Description:

The LC ICL8038 module can produce different frequency ranges. It has five adjustable gears and can generate triangular waves, square waves and sine waves with low distortion from 10Hz to 450KHz. The sine wave is useful for test signals, drive signals, carrier frequency signals and more; the square wave is suitable for switching signals, trigger signals and so on; the triangular wave is mainly for scanning signals.

Function:

1. VCC, GND: working voltage
2. AC: with DC bias output
3. G: ground
4. DC: pure signal output
5. R11: Frequency adjustment
6. R12: Square wave duty cycle adjustment
7. R13: Sine wave linear adjustment
8. R14: Amplitude adjustment
9. R15: Square wave linear adjustment
10. Jumper P2: select different wave-forms(triangular, square or sine waves)
11. Jumper P3: select different frequency ranges
    10Hz-450Hz,90Hz-1.5KHz,940Hz-15KHz,6KHz-120KHz,20KHz-450KHz

Features:

1. The LC ICL8038 module is designed for common frequency ranges.
2.  It is adjustable from 5 gears and generates low-distortion triangular waves, square and sine waves from 0Hz to 450KHz.
3. Sine waves can be used for test signals, drive signals, carrier frequency signals, etc.
4. A square wave can be used for switching signals, trigger signals, etc; the triangular wave is mainly used for scanning signals.
5.  Portable design, easy to operate.

Package Includes :

1 x ICL8038 12V to 15V Signal Generator 10Hz-450KHz Module
