This is the 10V variant of the PWM to Voltage 0-100% to-10V Converter Module in Signal Generator Module & Oscilloscopes. Available at ₹68.44 (₹58.00 + GST) with free shipping across India.

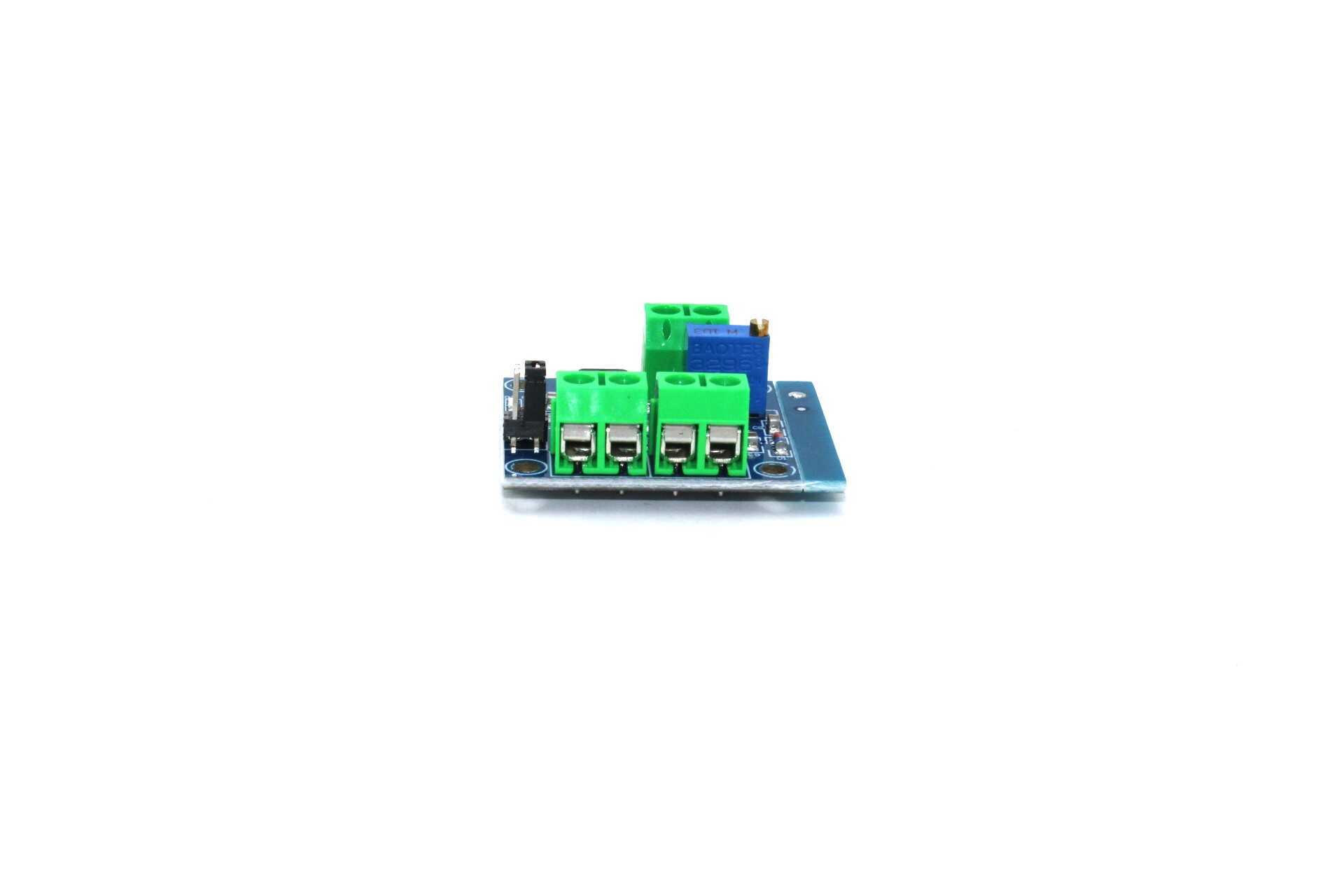

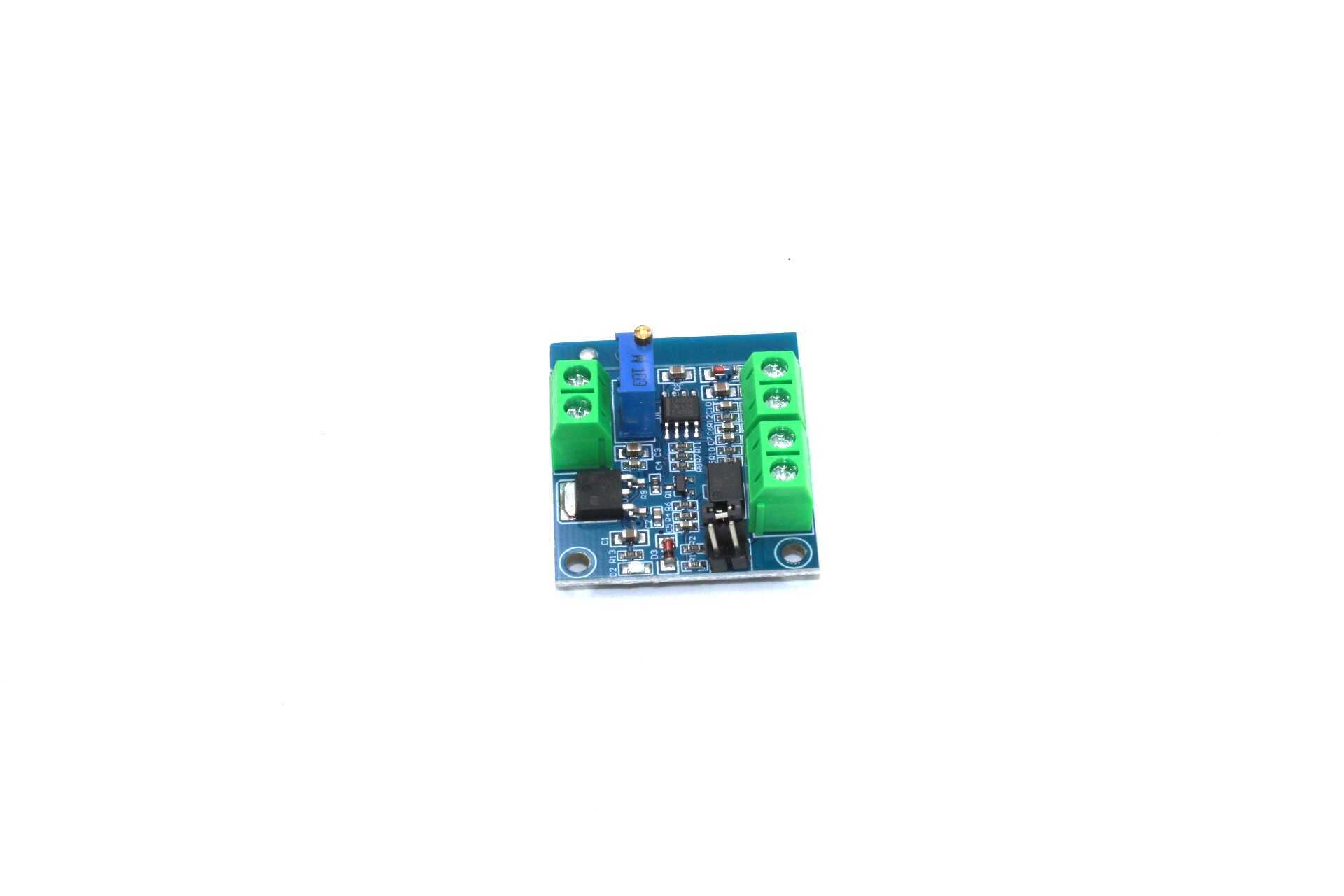

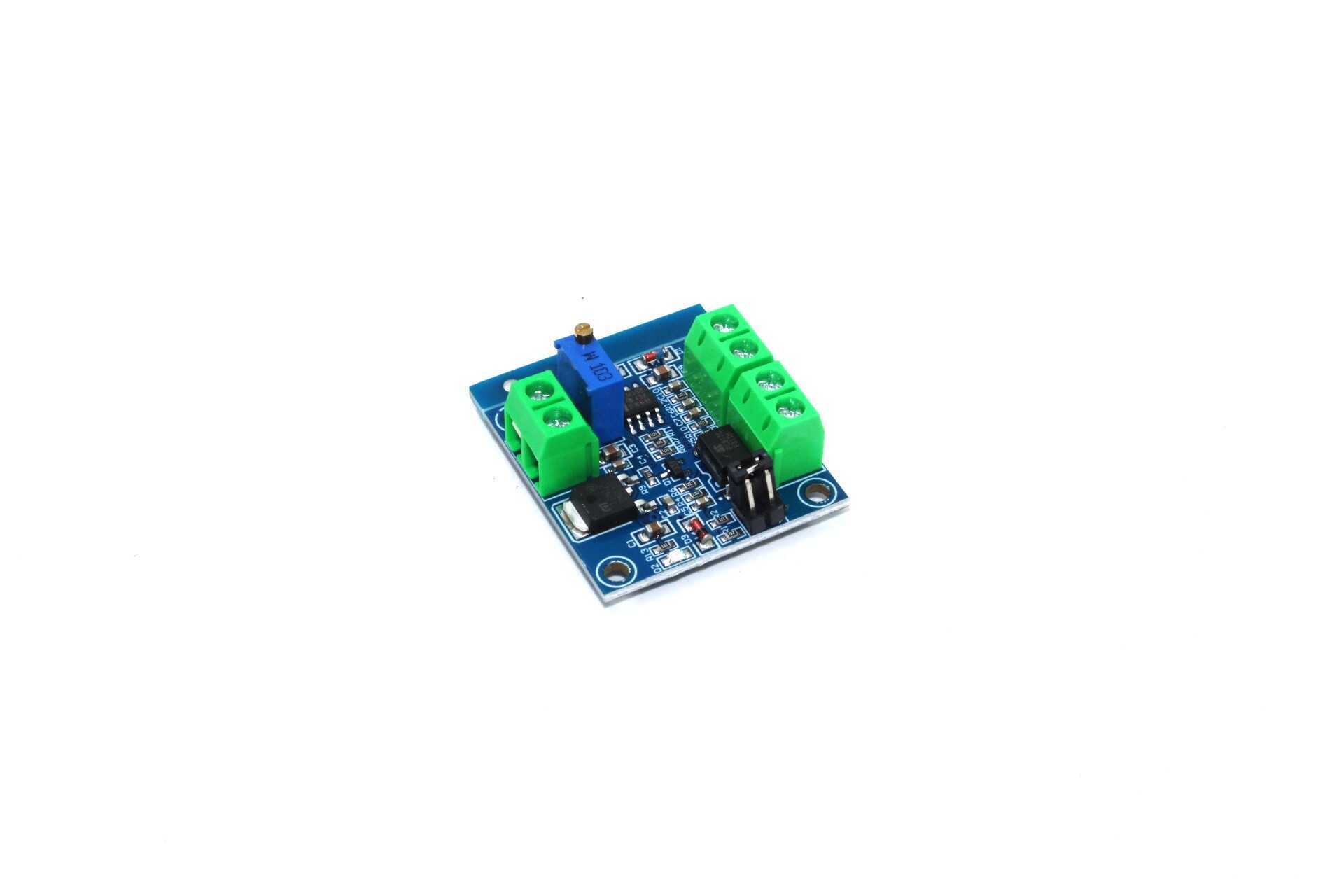

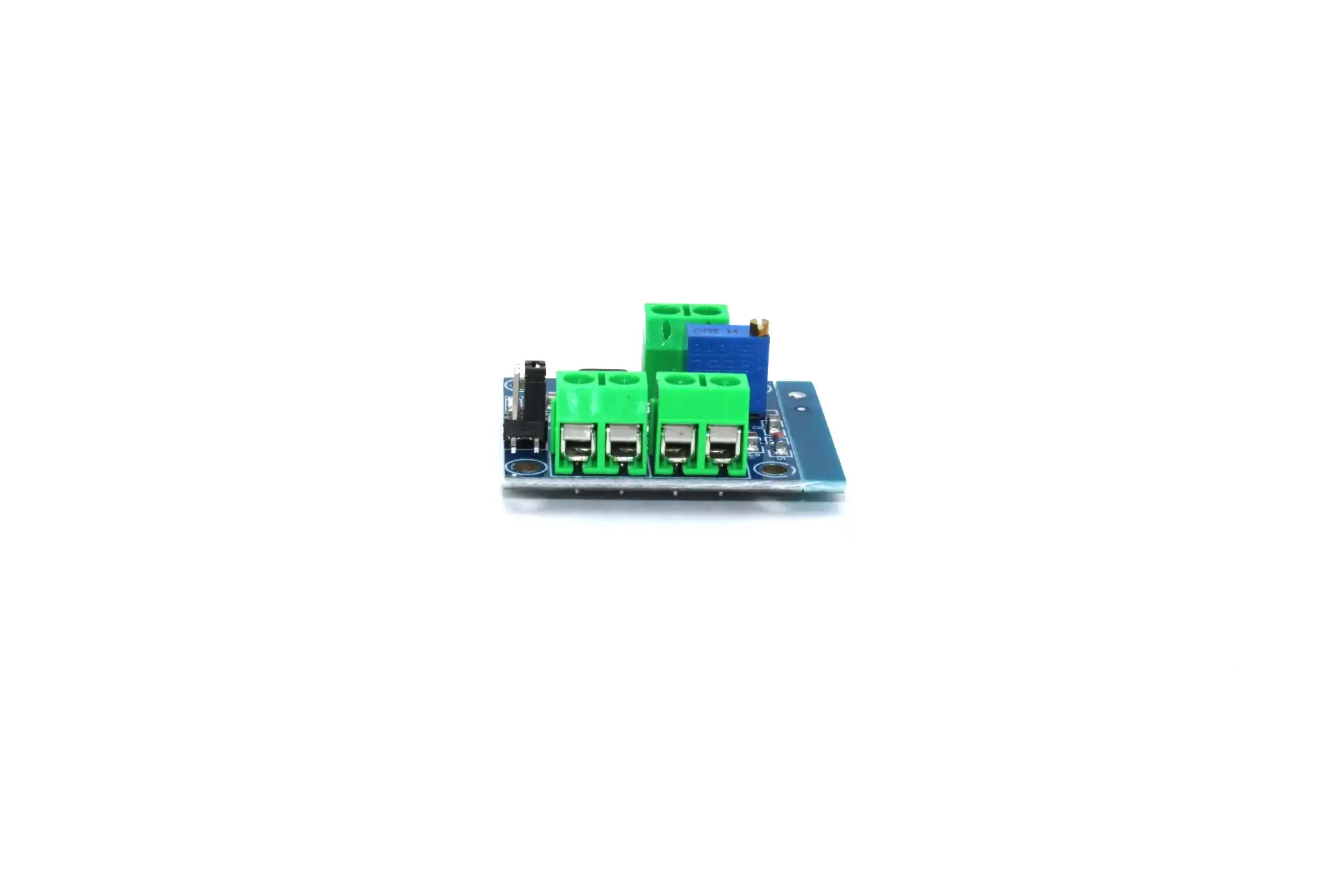

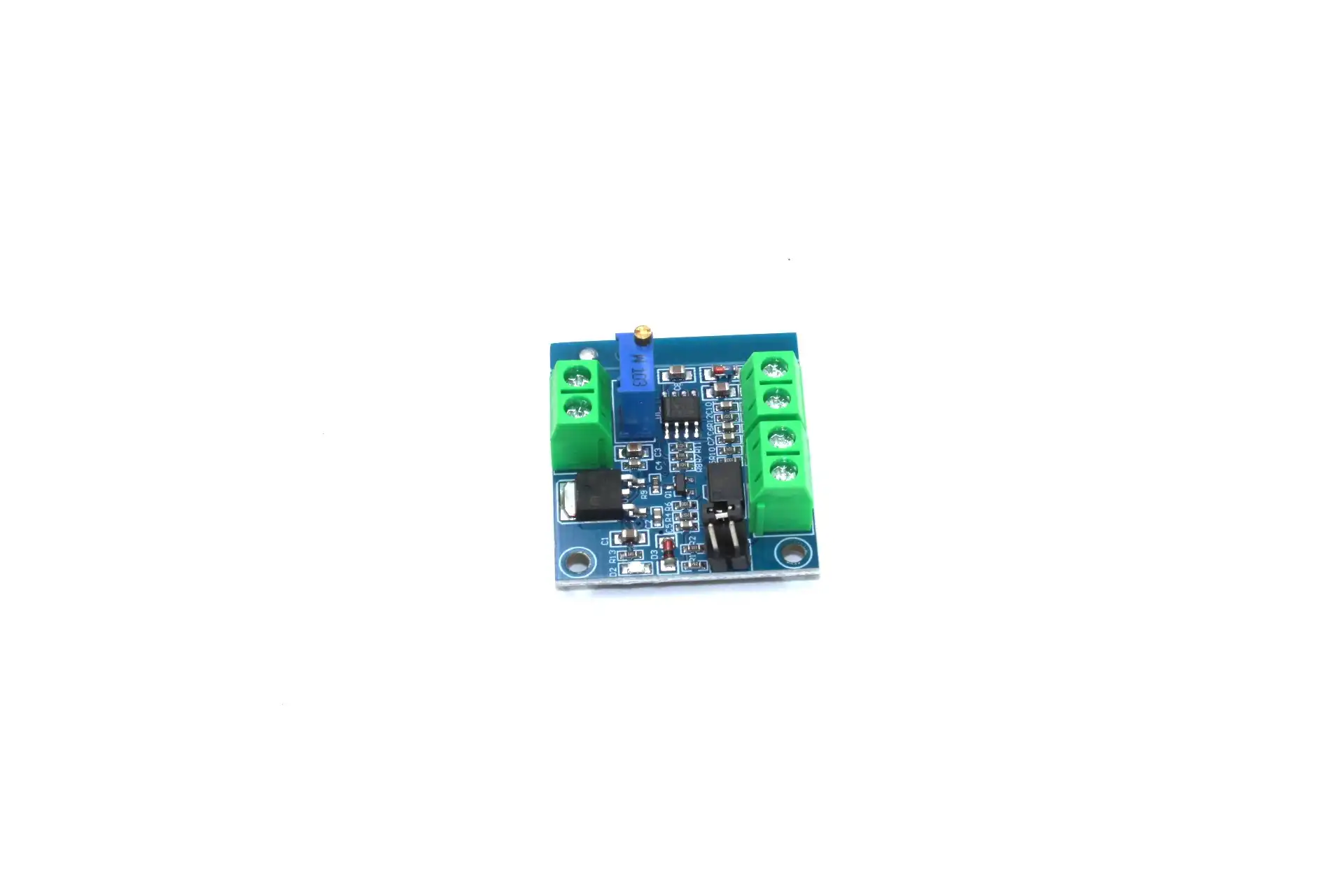

PWM to Voltage 0-100% to-10V Converter Module

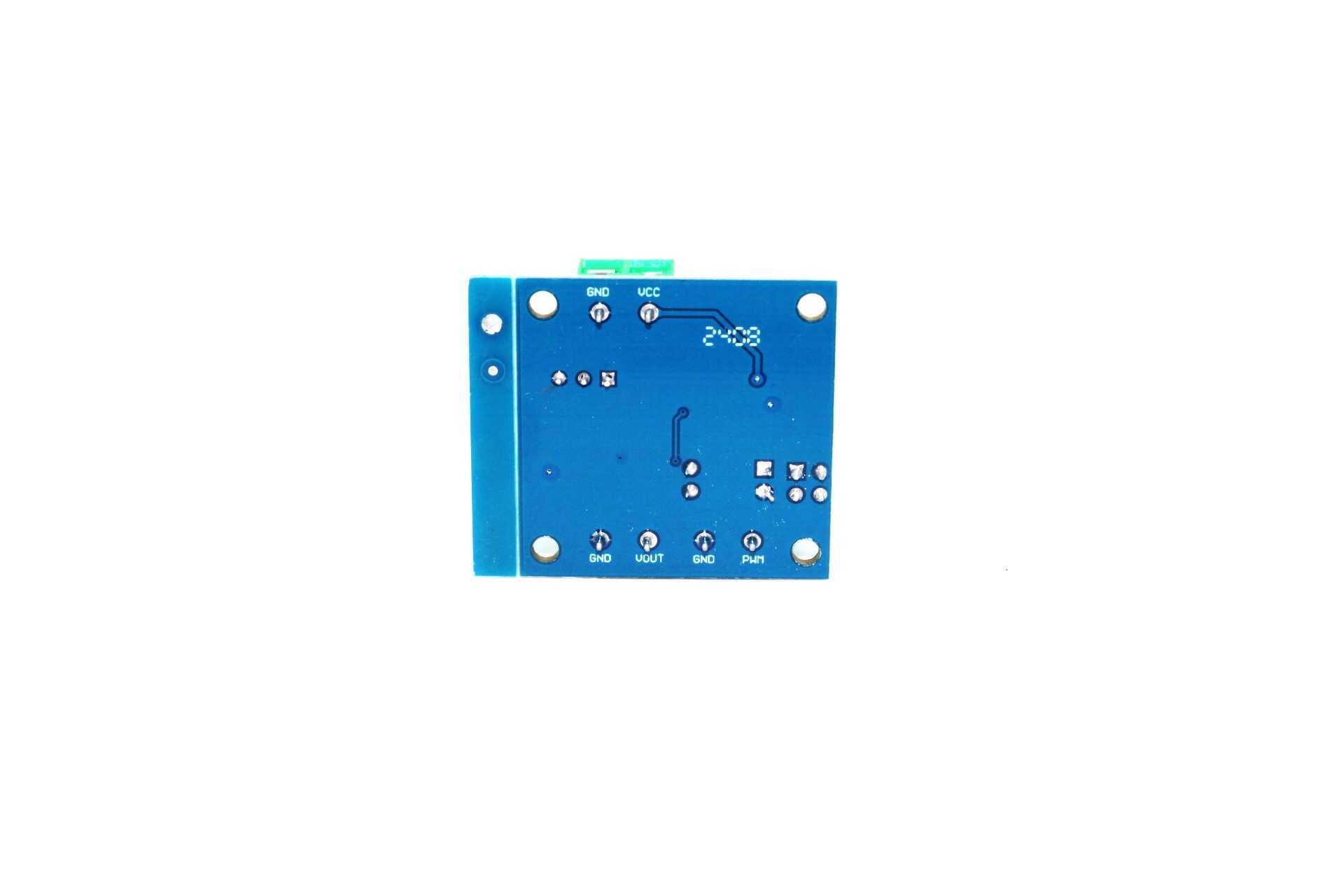

- VCC -Working power 12-30V
- GND -Ground
- PWM – Input PWM signal positive
- GND -Input voltage ground
- VOUT-Output voltage: 0-10V
- GND – Output ground
- This product can be used in the PLC or other industrial panel switch signal interface by adjusting the PWM duty ratios to adjust the output voltage
Features
- Using single-chip embedded technology
- Easy to operate, can be fine-tuned by potentiometer
- Select the PWM signal input level range through the short cap
- The module is small, easy to carry and use
- PWM signal input level range: The peak of 4.5V to 10V level. The short cap installs in ‘5V’. This level is used for the normal controllers or 5V MCU. Insert jumper in the inner side.
- PWM signal input level range: The peak of 12V to 24V level, so inserted in 24V. The short cap installs in ‘24V’. This level is used for normal PLC controllers. Insert jumper in the outer side.
Specifications:
| Operating voltage | 12V – 30V DC |
|---|---|
| Allowable error | 5% |
| Length (mm): | 33 |
| Width (mm): | 33 |
| Height (mm): | 20 |
| Weight (g): | 20 |
Package Includes
1 x PWM to Voltage 0-100% to-10V Converter Module
Technical Specifications
| SKU | AI1122 |
|---|---|
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The PWM to Voltage 0-100% to-10V Converter Module is a versatile signal generator module & oscilloscopes used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
