This is the 420mm variant of the B3950 10K NTC Thermistor Temperature Sensor 4*20mm with XH2.54 Connector with 1 Meter Cable in Temperature & Humidity Sensor. Available at Original price was: ₹71.98.₹56.64Current price is: ₹56.64. (₹48.00 + GST) with free shipping across India.
Looking for B3950 Sensor 20mm? B3950 10K NTC Thermistor Temperature Sensor 4*20mm with XH2.54 Connector with 1 Meter Cable is available at Zbotic with fast shipping across India.
B3950 Sensor 20mm – Product Description

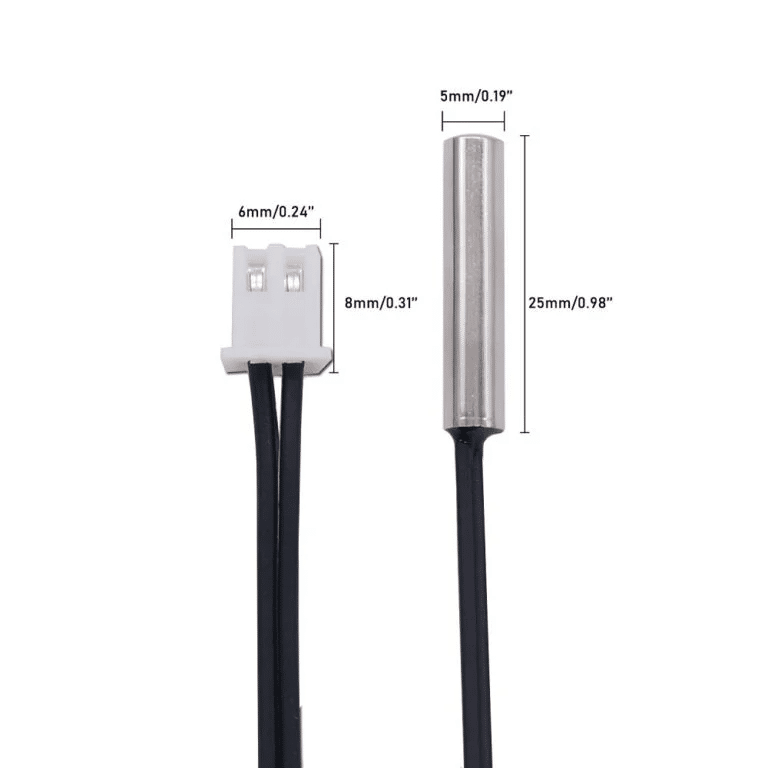

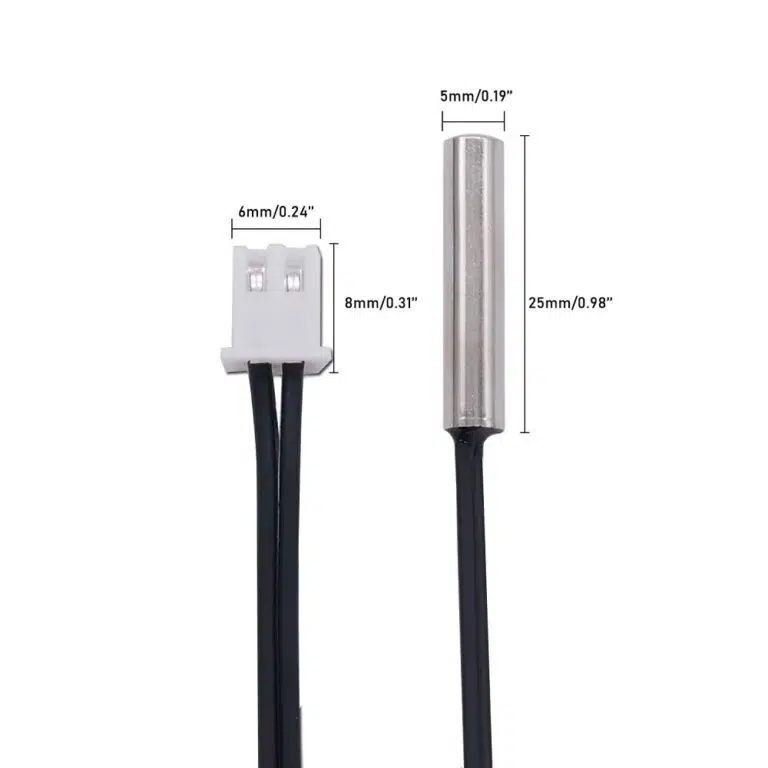

This sensor is a B3950 10K NTC waterproof high-precision thermistor that can measure temperature in various applications. It has a stainless-steel tip of 5 x 25mm with an XH2.54 connector and a 2-meter cable. Its negative thermal coefficient (NTC) means that its resistance decreases as the temperature increases. However, the relationship between resistance and temperature is not linear, so it is better to use a table of measurements than a linear formula. The table of measurements can be found in the datasheet that comes with the thermistor.
Features:
- Probe sheath material: Stainless Steel
- Style: B3950 10K
- Resistance value: 10K ± 1%
- Measurement range: -20 to 105 °C
- Cable Length: 1 Meter
- Size of probe: 4 x 20 mm
- Output wires: 2
- Typical Dissipation Constant: 5mW/ °C
- Probe insulation: >100MOhm.
Package Includes:

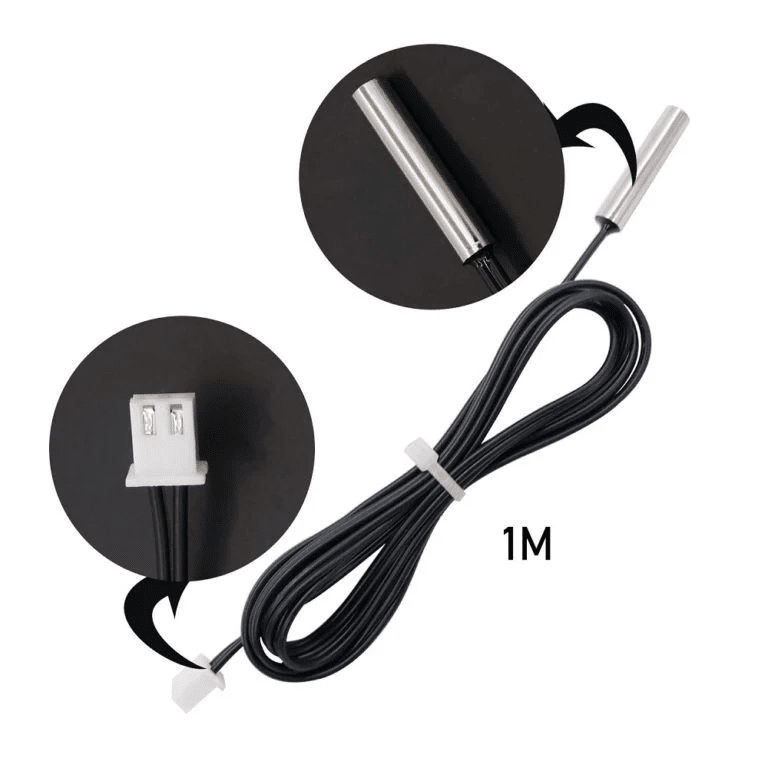

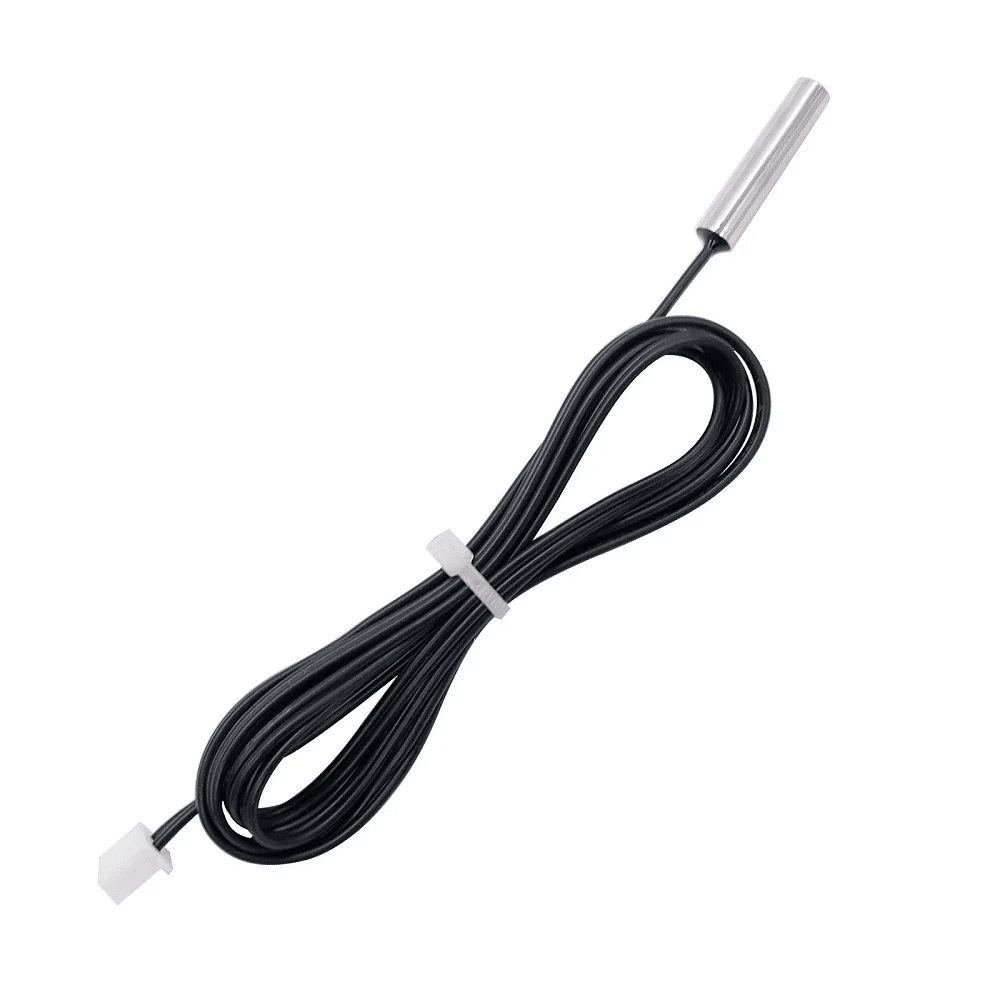

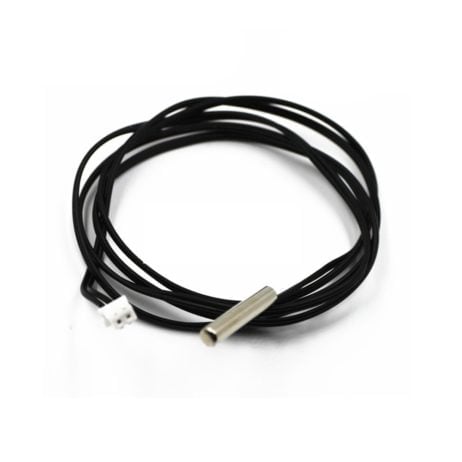

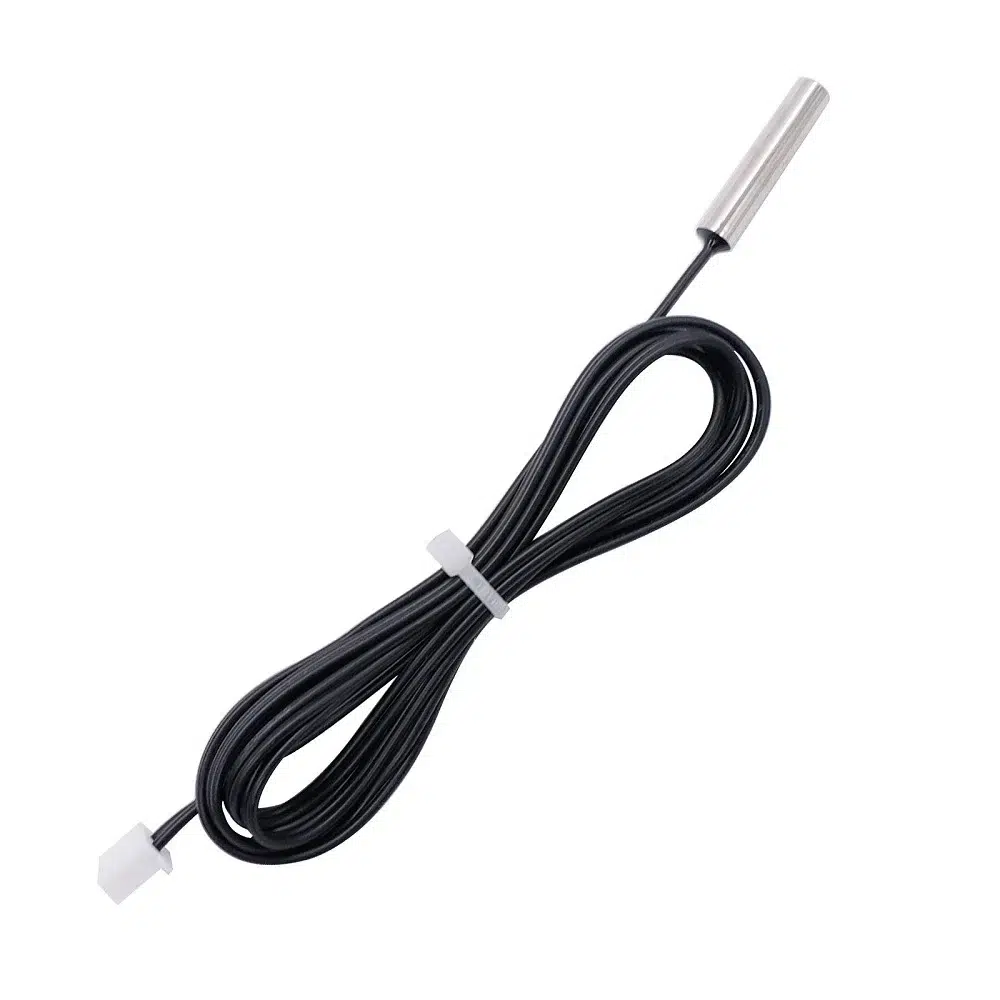

- 1 x B3950 10K NTC Thermistor Temperature Sensor 4*20mm with XH2.54 Connector with 1 Meter Cable
B3950 10K NTC Thermistor Temperature Sensor 4*20mm with Overview
The B3950 10K NTC Thermistor Temperature Sensor features a 4×20 mm stainless-steel probe and a 1 meter cable terminated with an XH2.54 connector. Its high-precision 10 KΩ ±1% NTC element reliably measures temperatures from –20 °C to 105 °C in a variety of environments.
Key Features of B3950 10K NTC Thermistor Temperature Sensor 4*20mm with
- High-precision B3950 NTC element with 10 KΩ ±1% tolerance for accurate readings

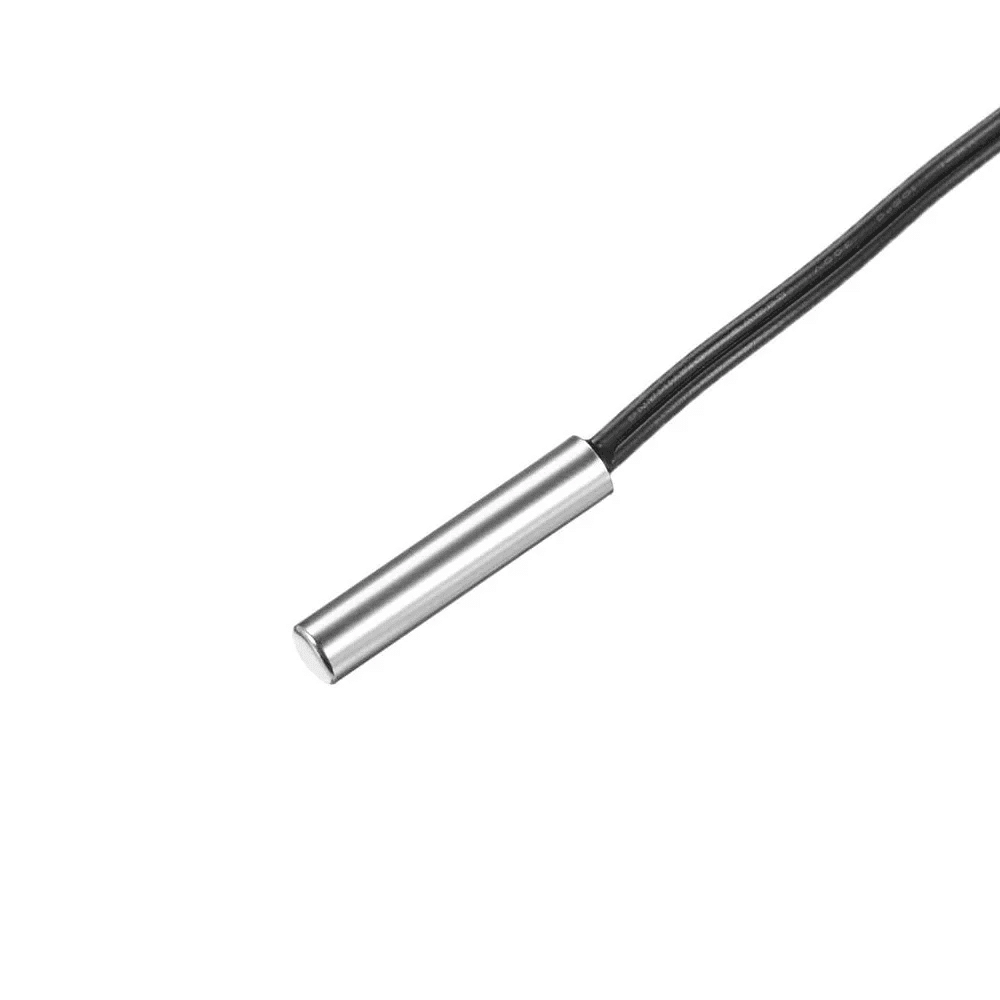

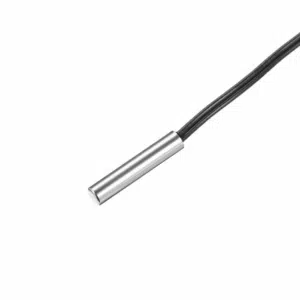

- Stainless-steel probe sheath (4 mm Ø × 20 mm length) for durability and corrosion resistance
- Wide measurement range from –20 °C up to 105 °C
- 1 meter PVC-insulated cable with standard XH2.54 connector for easy plug-and-play
- NTC characteristic curve optimized for smooth resistance-to-temperature conversion
- Fast shipping from Zbotic across India ensures you get your sensor quickly
Applications and Use Cases
- Integrating into 3D printer extruder or heated bed temperature control
- Environmental monitoring in HVAC systems or climate chambers
- Aquarium or terrarium temperature logging where splash-resistance is needed
- Food and beverage equipment for process temperature checks
- Battery pack and power electronics thermal management
How to Use B3950 10K NTC Thermistor Temperature Sensor 4*20mm with
Mount the stainless-steel probe in contact with the medium to be measured, then plug the XH2.54 connector into your data acquisition board or breadboard harness. Use a resistor-divider circuit or dedicated thermistor input channel, refer to the B3950 resistance-temperature table in the datasheet, and convert measured voltage into temperature using your microcontroller’s ADC.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Is the B3950 thermistor waterproof?
The probe’s stainless-steel sheath provides water resistance suitable for splashes and immersion in liquids. For prolonged submersion or high-pressure applications, verify compatibility with your enclosure.
How do I interface this sensor with a microcontroller?
Connect the XH2.54 plug into your board’s two-pin socket, form a resistor divider using a known reference resistor, then measure the voltage drop with an ADC input. Convert voltage to resistance and use the B3950 lookup table to derive temperature.
Can this thermistor read temperatures below 0 °C?
Yes. The measurement range covers –20 °C to 105 °C, making it suitable for sub-zero environments such as refrigeration chambers and outdoor monitoring.
HX711 Load Cell Interface: Weight Scale Project Step-by-Step
Table of Contents What Is the HX711 and How Does It Work? Load Cell Basics: Strain Gauges and...
Read More →
Best Pressure Sensors for Arduino: BMP280 vs BME280 vs BMP388
Atmospheric pressure sensors have become essential components in weather stations, altitude trackers, drone flight controllers, and IoT environmental...
Read More →
EMG Muscle Sensor: MyoWare 2.0 and Prosthetic Control with Arduino
Electromyography (EMG) sensors detect the electrical signals produced by your muscles when they contract. This technology — once...
Read More →Technical Specifications
| Model | B3950 |
|---|---|
| Size | 20mm |
| Interface / Protocol | BLE |
| SKU | AI7416 |
| Weight | 0.0 kg |
| Availability | In Stock |
Applications & Use Cases
The B3950 10K NTC Thermistor Temperature Sensor 4*20mm with XH2.54 Connector with 1 Meter Cable is a versatile temperature & humidity sensor used across a wide range of applications including weather stations, greenhouse monitoring, HVAC systems, cold chain logistics, and server room monitoring.
Common use cases:
- Building a home weather station with Arduino
- Monitoring greenhouse conditions via IoT
- Alerting when server room temperature exceeds threshold
This product is ideal for IoT developers, agricultural engineers, and home automation enthusiasts.
Technical Tip: DHT22 offers better accuracy than DHT11. For precision applications, use SHT31 or BME280. Ensure adequate ventilation around the sensor.
