Description:

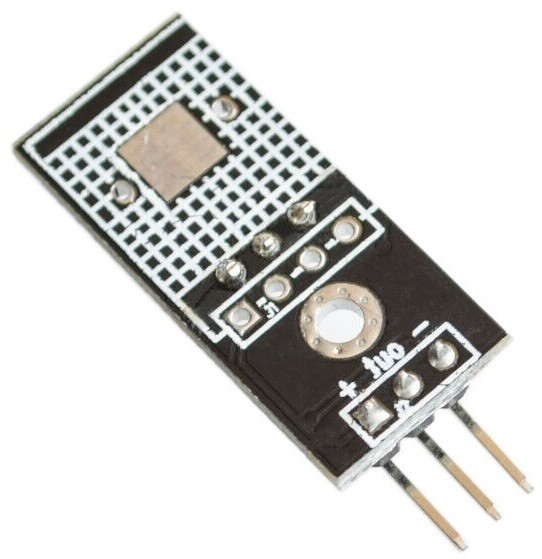

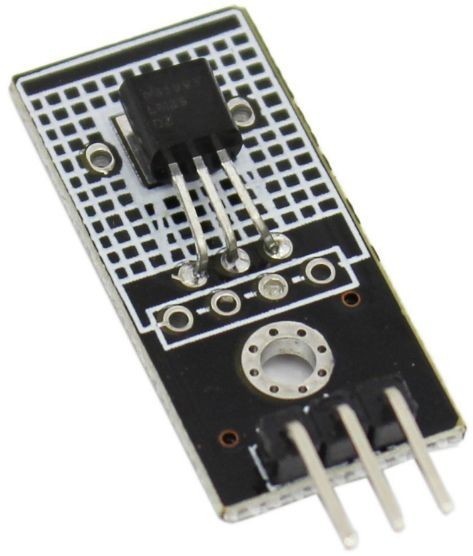

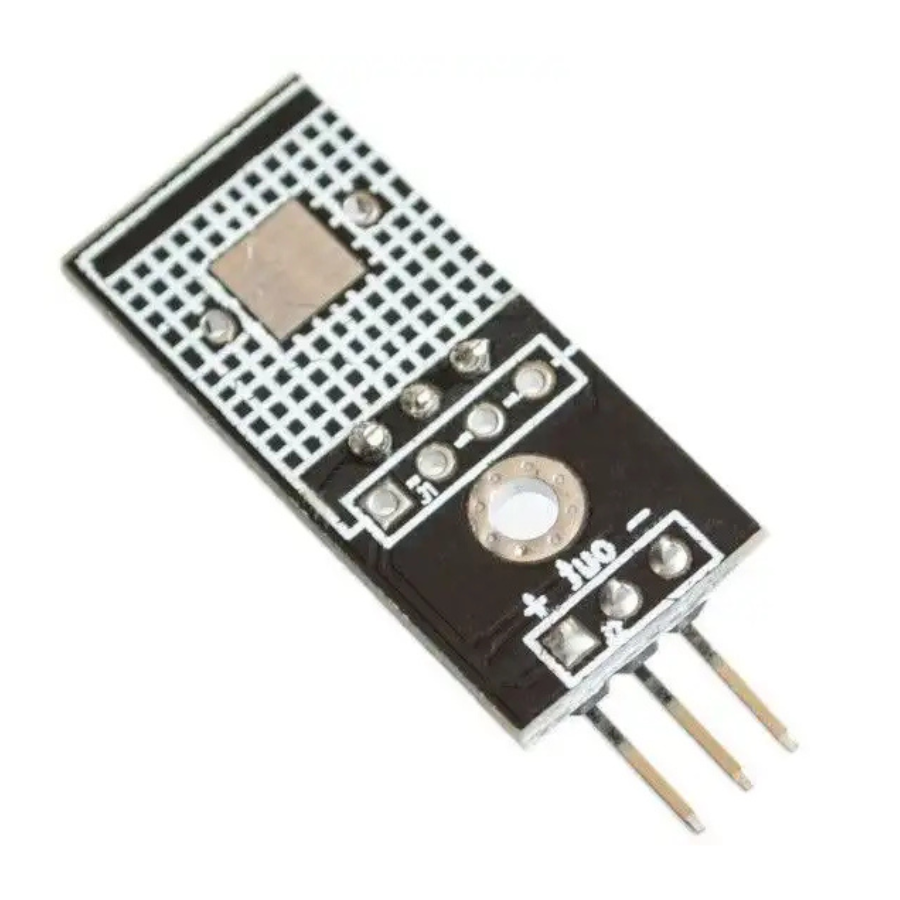

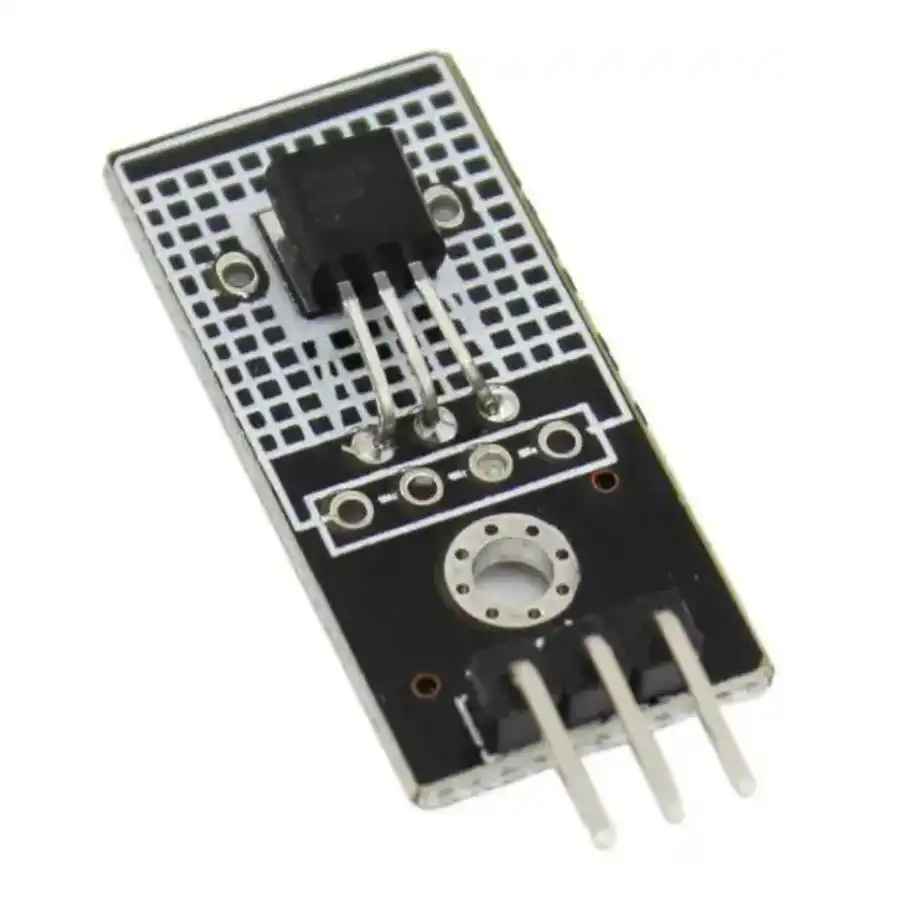

LM35D Analog Temperature Sensor Module
This LM35D Analog Temperature Sensor Module is based on the semiconductor LM35 temperature sensor. The LM35 Linear Temperature Sensor module is useful in detecting ambient air temperature. Sensitivity is 10mV per degree Celsius. The output voltage is proportional to the temperature.
LM35 is a precision IC temperature sensor with its output proportional to the temperature (in °C). The sensor circuitry is sealed and therefore it is not subjected to oxidation and other processes. With LM35, the temperature can be measured more accurately than with a thermistor!!!
It also possesses low self-heating and does not cause more than 0.1 °C temperature rise in still air. The operating temperature range is from -55°C to 150°C. The output voltage varies by 10mV in response to every °C rise/fall in ambient temperature, i.e., its scale factor is 0.01V/°C.
It is commonly used as a temperature measurement sensor. It includes thermocouples, platinum resistance, thermal resistance and temperature semiconductor chips, which are commonly used in high-temperature measurement thermocouples. The LM35D linear temperature sensor and sensor-specific expansion of Arduino board, in combination, can be very easy to achieve.

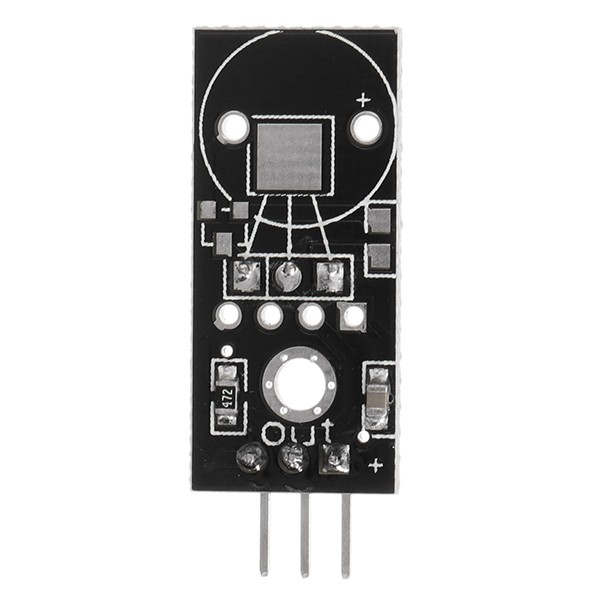

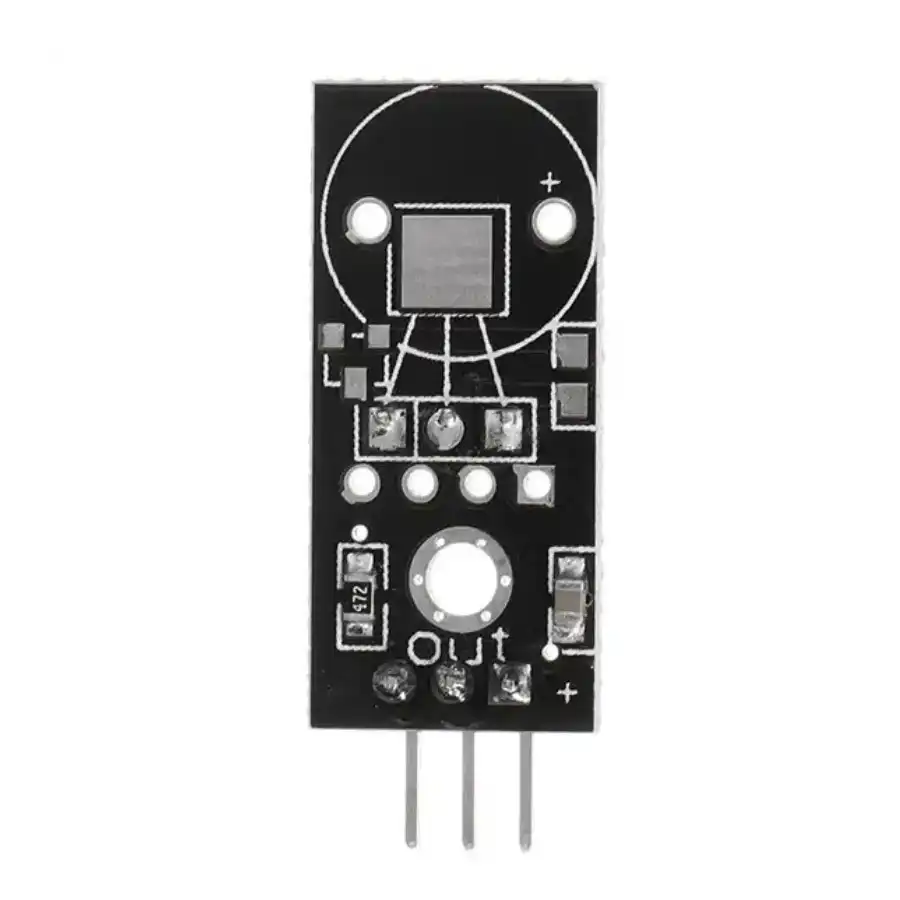

Wiring Instructions:
“+”: Positive power supply
“–“: Negative one
“out”: pick AD converter module analog signal input terminal or directly connected to the multimeter to measure
Features:
- Based on the semiconductor LM35 temperature sensor
- Useful in detecting ambient air temperature
- Calibrated directly in ° Celsius (Centigrade)
- Linear + 10 mV/°C Scale Factor
- 0.5°C Ensure accuracy (at +25°C)
- Low power consumption, less than 60uA
- Low output impedance, 1mA current through only 0.1Ω
- With screw holes for easy installation and fixed. Aperture 2.6mm
Specification:
| Item Type: | Sensor Module |
|---|---|
| Rated Voltage (V): | 4 to 30 |
| Current consumption | 60μA |
| Scale Factor | +10 mV/°C |
| Measuring Accuracy | 0.5°C |
| Operating Temperature (°C): | −55 ~ +150°C |
| Signal Output | Analog |
| Length (mm): | 35 |
| Width (mm): | 13 |
| Height (mm): | 5 |
| Weight (g): | 15 |
| Shipping Weight | 0.018 kg |
Package Includes :
1 x LM35D Analog Temperature Sensor Module.
3 X 20cm DuPont line (Random Color).
Infrared Obstacle Sensor: Line Follower and Object Detection
Infrared obstacle sensors are the building blocks of line-following robots, edge detection systems, and proximity triggers. These tiny...
Read More →
HCSR501 PIR Sensor: Sensitivity and Time Delay Tuning
Table of Contents Introduction to HC-SR501 PIR Sensor How PIR Sensors Detect Motion Hardware Overview and Pinout Sensitivity...
Read More →
Conductivity Sensor: Measure TDS and Water Quality DIY
Electrical conductivity (EC) measurement is the backbone of water quality monitoring. Whether you are testing drinking water purity,...
Read More →Technical Specifications
| Model | LM35D |
|---|---|
| Interface / Protocol | BLE |
| SKU | AI7078 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The LM35D Analog Temperature Sensor Module without cable is a versatile temperature & humidity sensor used across a wide range of applications including weather stations, greenhouse monitoring, HVAC systems, cold chain logistics, and server room monitoring.
Common use cases:
- Building a home weather station with Arduino
- Monitoring greenhouse conditions via IoT
- Alerting when server room temperature exceeds threshold
This product is ideal for IoT developers, agricultural engineers, and home automation enthusiasts.
Technical Tip: DHT22 offers better accuracy than DHT11. For precision applications, use SHT31 or BME280. Ensure adequate ventilation around the sensor.
