Product Description

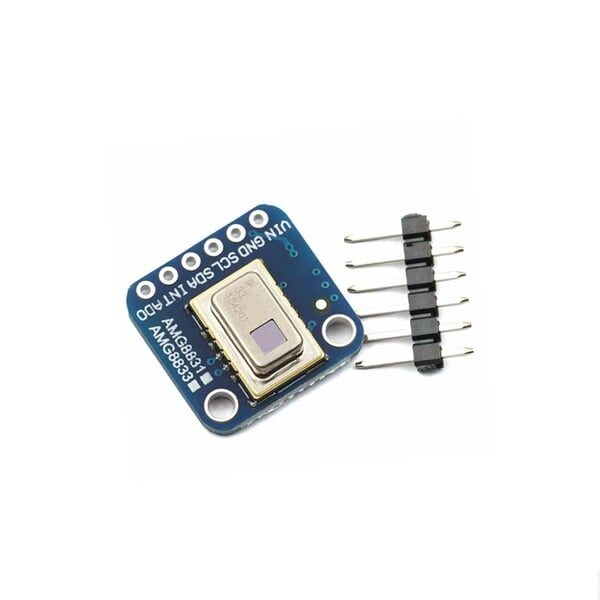

AMG8833 IR 8*8 Thermal Imager Array Temperature Sensor Module is a device that can measure the infrared radiation emitted by objects in an 8×8 grid. It can be connected to a microcontroller (or Raspberry Pi) via I2C and return 64 individual temperature values. It is similar to a thermal camera, but smaller and simpler to use.
This module can measure temperatures from 0°C to 80°C (32°F to 176°F) with an accuracy of – 2.5°C (4.5°F). It can detect human presence up to 7 meters (23 feet) away. It has a maximum frame rate of 10Hz, which makes it ideal for creating a human detector or a mini thermal camera. You can use it with an Arduino or compatible board (using I2C communication) or with a Raspberry Pi and Python. On the Pi, you can use the SciPy python library to process the images and interpolate the 8×8 grid to get better results.
The AMG8833 is an improved version of the previous AMG8831 sensor and has higher performance. The sensor only supports I2C and has an interrupt pin that you can configure to trigger when any pixel goes above or below a certain threshold.

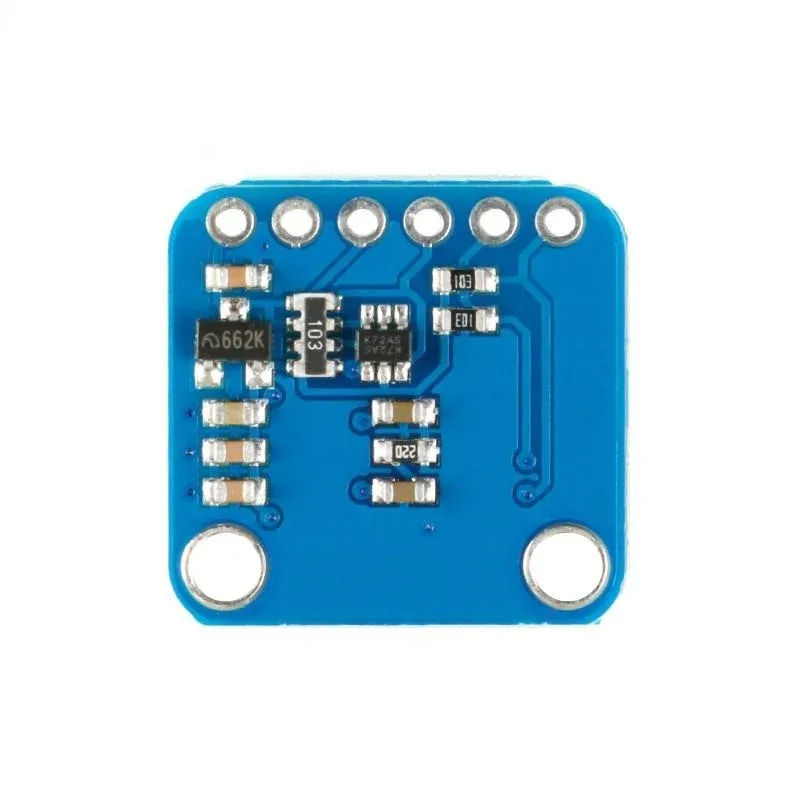

To make it easy to use, we put it on a breakout board with a 3.3V regulator and level shifting. This way, you can use it with any 3V or 5V microcontroller or computer.

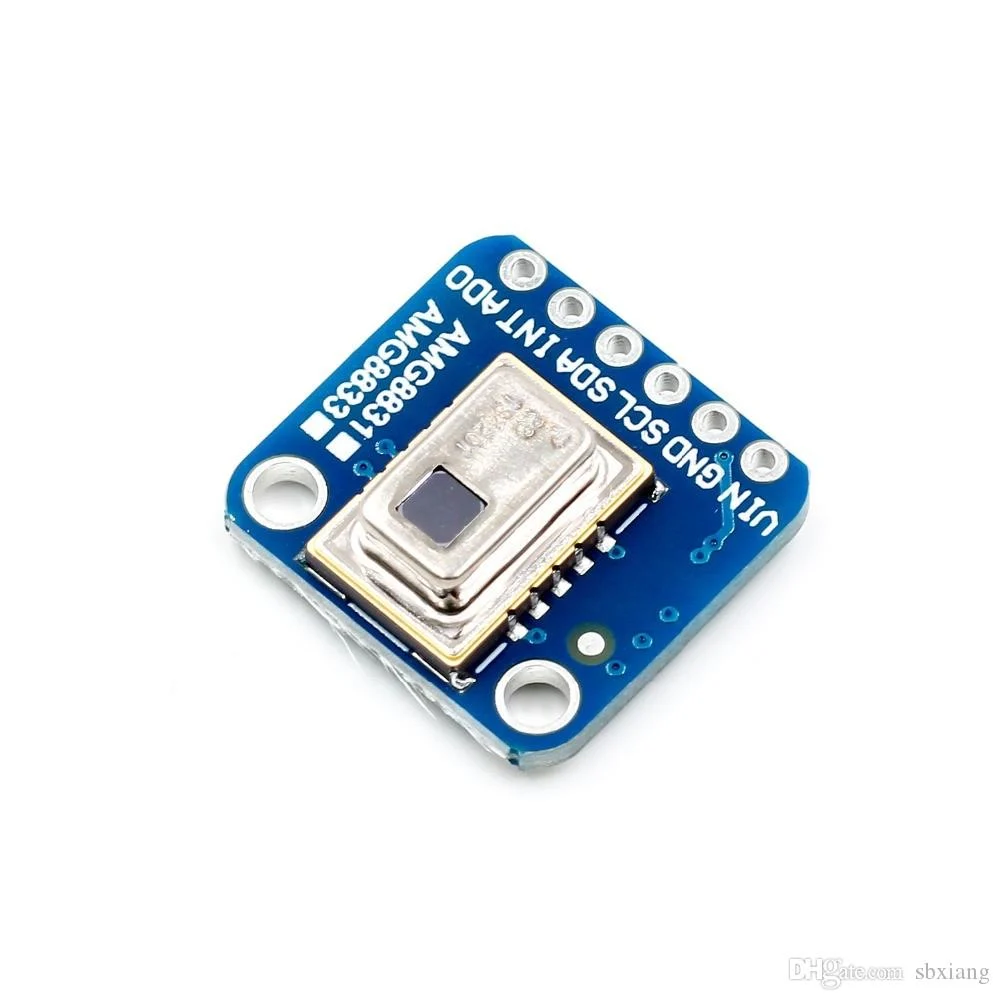

Pin Description :
Power Pins:
- Vin – this is the power pin. Since the sensor uses 3.3V, we have included an onboard voltage regulator that will take 3-5VDC and safely convert it down. To power, the board, give it the same power as the logic level of your microcontroller – e.g. for a 5V micro like Arduino, use 5V
- 3Vo – this is the 3.3V output from the voltage regulator, you can grab up to 100mA from this if you like
- GND – common ground for power and logic
Logic pins:
- SCL – this is the I2C clock pin, connect to your microcontrollers I2C clock line. There is a 10K pull-up on this pin and it is level shifted so you can use 3 – 5VDC.
- SDA – this is the I2C data pin, connect to your microcontrollers I2C data line. There is a 10K pull-up on this pin and it is level shifted so you can use 3 – 5VDC.
- INT – this is the interrupt-output pin. It is 3V logic and you can use it to detect when something moves or changes in the sensor vision path.
For Code and Wiring, testing Visit learn.adafruit.com.
How thermal camera detects :
Features :
- Temperature detection of the two-dimensional area: 8 × 8 (64 pixels).
- Digital output (capability of temperature value output).
- Compact SMD package (adaptively to reflow mounting).
- RoHS compliant.
- High function home appliances (microwaves and air-conditioners).
- Energy saving at the office (air-conditioning/lighting control).
- Digital signage.
- Automatic doors/elevators.
Package Includes :
1 x AMG8833 IR 8*8 Thermal Imager Array Temperature Sensor Module.
1 x Header Set ( Without Soldered).
VCNL4040 Proximity Sensor: IR Distance and Ambient Light Sensing with Arduino
The VCNL4040 is a fully integrated proximity and ambient light sensor from Vishay Semiconductors. Combining an IR LED,...
Read More →
Analog vs Digital Sensor Output: ADC Resolution Explained
Table of Contents Why Sensor Output Type Matters Analog Sensor Output Fundamentals Digital Sensor Output Fundamentals ADC Resolution:...
Read More →
APDS-9960 Gesture Sensor: Hand Motion Control for Arduino
Imagine controlling a robot, changing a music track, or adjusting a smart light — all without touching a...
Read More →Technical Specifications
| Model | AMG8833 |
|---|---|
| SKU | AI2552 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The AMG8833 IR 8*8 Thermal Imager Array Temperature Sensor Module is a versatile temperature & humidity sensor used across a wide range of applications including weather stations, greenhouse monitoring, HVAC systems, cold chain logistics, and server room monitoring.
Common use cases:
- Building a home weather station with Arduino
- Monitoring greenhouse conditions via IoT
- Alerting when server room temperature exceeds threshold
This product is ideal for IoT developers, agricultural engineers, and home automation enthusiasts.
Technical Tip: DHT22 offers better accuracy than DHT11. For precision applications, use SHT31 or BME280. Ensure adequate ventilation around the sensor.
