Description:

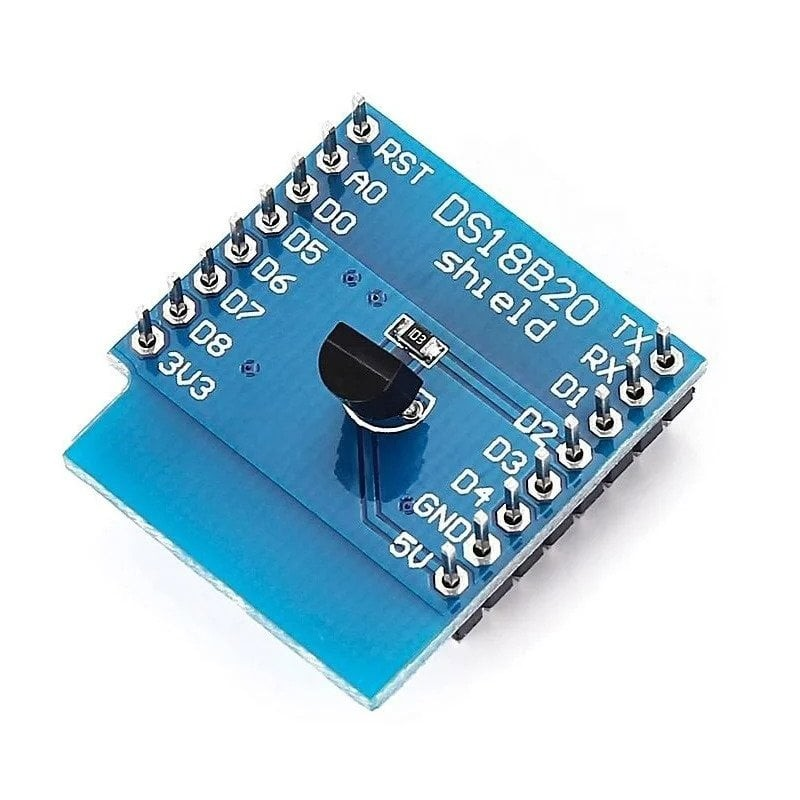

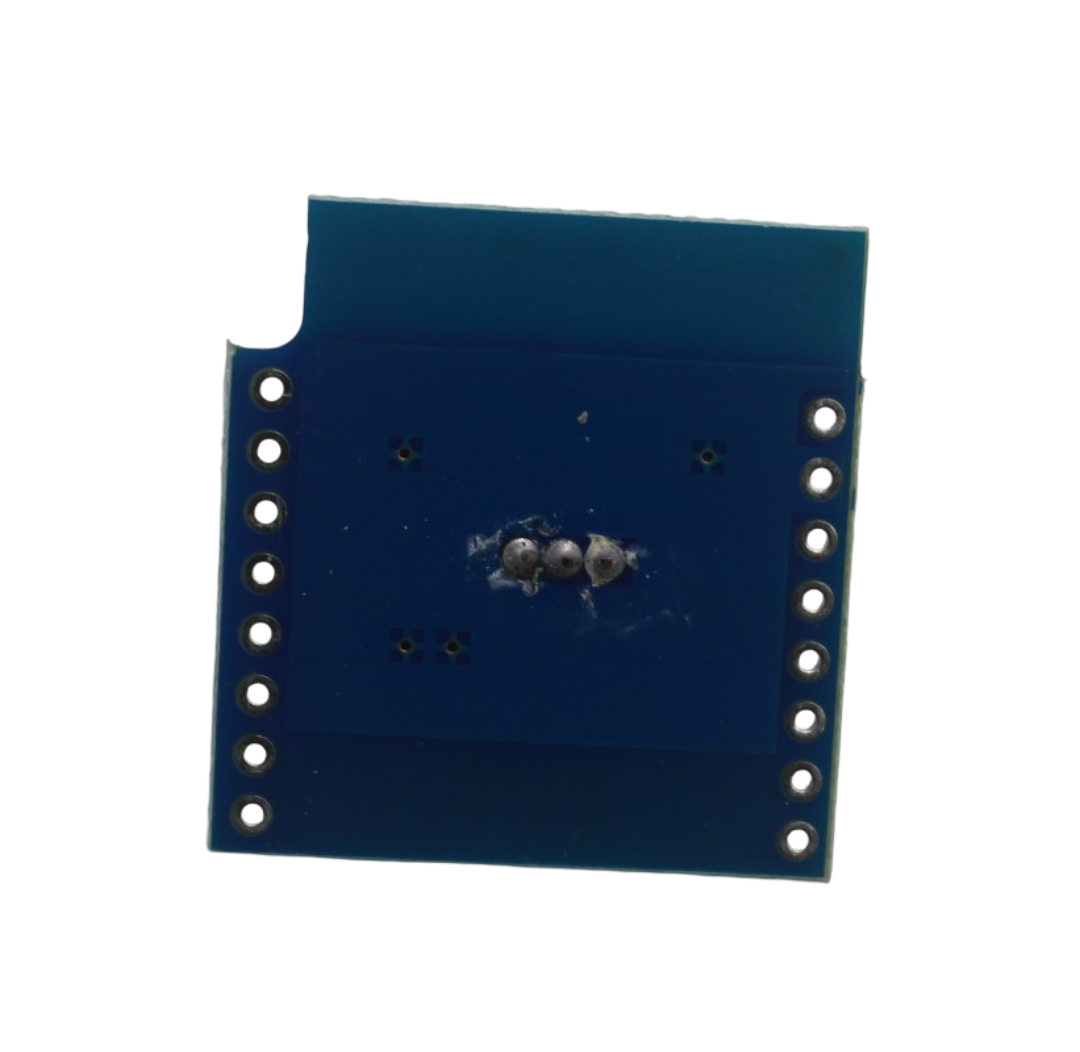

DS18B20 Module for D1 Mini Temperature Measurement Sensor Module
This is a DS18B20 Module for D1 MINI DS18B20 Temperature Measurement Sensor Module. The module is used to sense the temperature from the environment also for the tiny size its compatibility is so huge.
Features:
- Supporting the D1 MINI
- The Arduino Compatible, Using Arduino IDE Programming
- 11 the XI/O Pins
- 1 XADC Pin (0-3.3 V)
- Support the OTA online
Specifications:
| Input Voltage (V) | 0 to 3.3 |
|---|---|
| X i/o Pins | 11 |
| Length (mm): | 27 |
| Width (mm): | 25 |
| Height (mm): | 1.4 |
| Weight (g): | 6 |
Package Includes:
- 1 x DS18B20 Module for D1 MINI DS18B20 Temperature Measurement Sensor Module
DS18B20 Module for D1 Mini Temperature Measurement Sensor Overview
The DS18B20 Module for D1 Mini is a compact temperature measurement sensor board designed specifically for the D1 Mini development board. It integrates the DS18B20 digital temperature sensor and provides easy connection via 11 I/O pins and one XADC pin, all operating at 0–3.3 V. Ideal for Arduino IDE users, it also supports Over-The-Air (OTA) firmware updates for remote management.
Key Features of DS18B20 Module for D1 Mini Temperature Measurement Sensor
- Built-in DS18B20 digital temperature sensor for accurate readings from -55 °C to +125 °C
- Seamless plug-and-play support for the D1 Mini board with 11 XI/O pins
- Single XADC pin (0–3.3 V) for analog measurements or sensor expansion
- Fully compatible with Arduino IDE and common OneWire libraries
- OTA firmware update support to deploy code without physical access
- Ultra-small form factor (27 × 25 × 1.4 mm) and only 6 g weight
- Fast shipping available from Zbotic for prompt project deployment
Applications and Use Cases
- Home automation: integrate into smart thermostats and HVAC controls
- Weather stations: real-time outdoor temperature logging
- Agriculture: greenhouse and poultry farm temperature monitoring
- Server room or data center environment sensing
- 3D printer enclosure or filament storage box temperature checks
- Aquarium or terrarium habitat control systems
How to Use DS18B20 Module for D1 Mini Temperature Measurement Sensor
To begin, solder or plug the DS18B20 module onto your D1 Mini’s header pins, ensuring proper alignment of VCC (3.3 V), GND, and the Data pin. Open Arduino IDE, install the OneWire and DallasTemperature libraries, and load a sample sketch mapping the data pin to the chosen XI/O pin. Power the D1 Mini with 3.3 V, upload via USB or OTA, and monitor temperature readings in the serial console or send data to your IoT dashboard.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I power the DS18B20 module at 5 V?
No. This module is designed for 0–3.3 V operation to match the D1 Mini’s voltage levels. Supplying 5 V may damage the onboard DS18B20 sensor and the D1 Mini interface.
Which pin on the D1 Mini should I use for data?
Any digital XI/O pin can be used for the DS18B20 data line. Common choices are D2 or D4. Just update the pin definition in your Arduino sketch to match your wiring.
How do I set up OTA updates for this module?
Install the ArduinoOTA library, include it in your sketch, and configure your Wi-Fi credentials. After uploading the initial firmware via USB, further updates can be sent wirelessly through the Arduino IDE’s OTA port.
