This is the 5V variant of the 5V 1 Channel Without Light Coupling Relay in Relay Modules. Available at ₹69.62 (₹59.00 + GST) with free shipping across India.

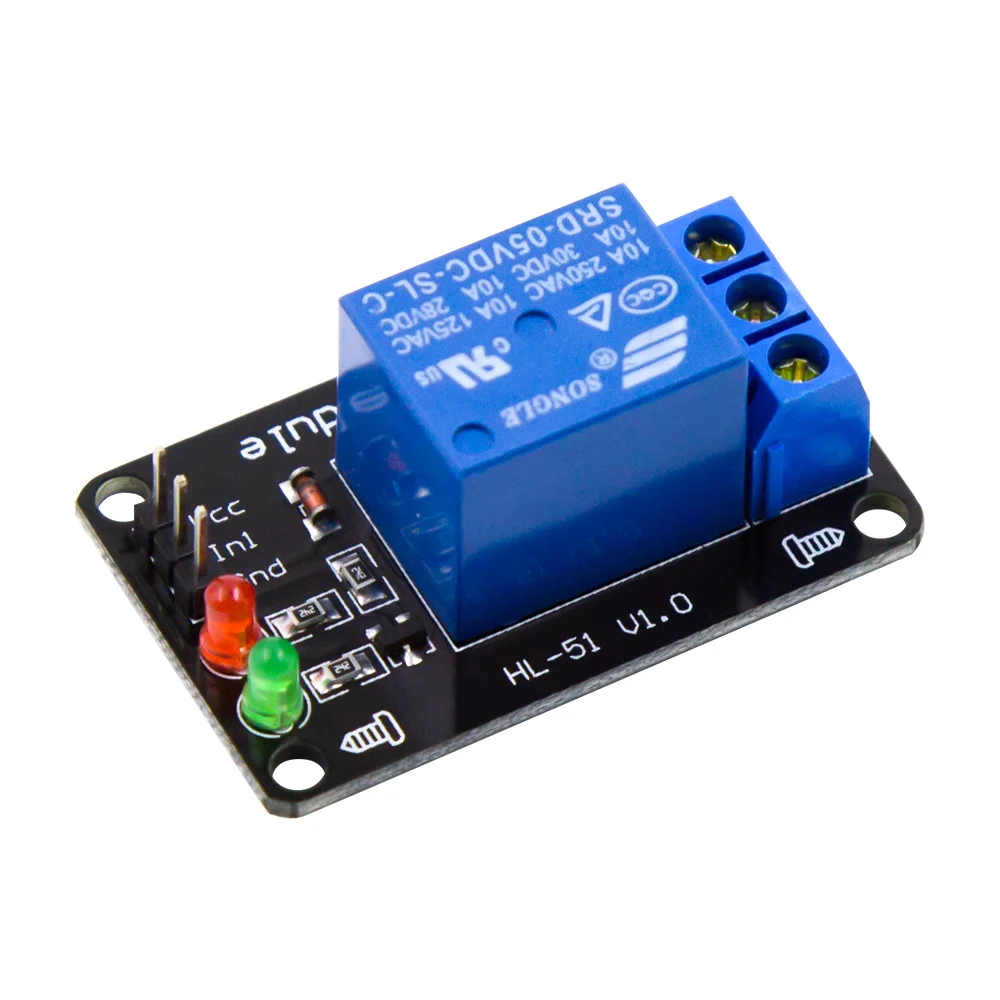

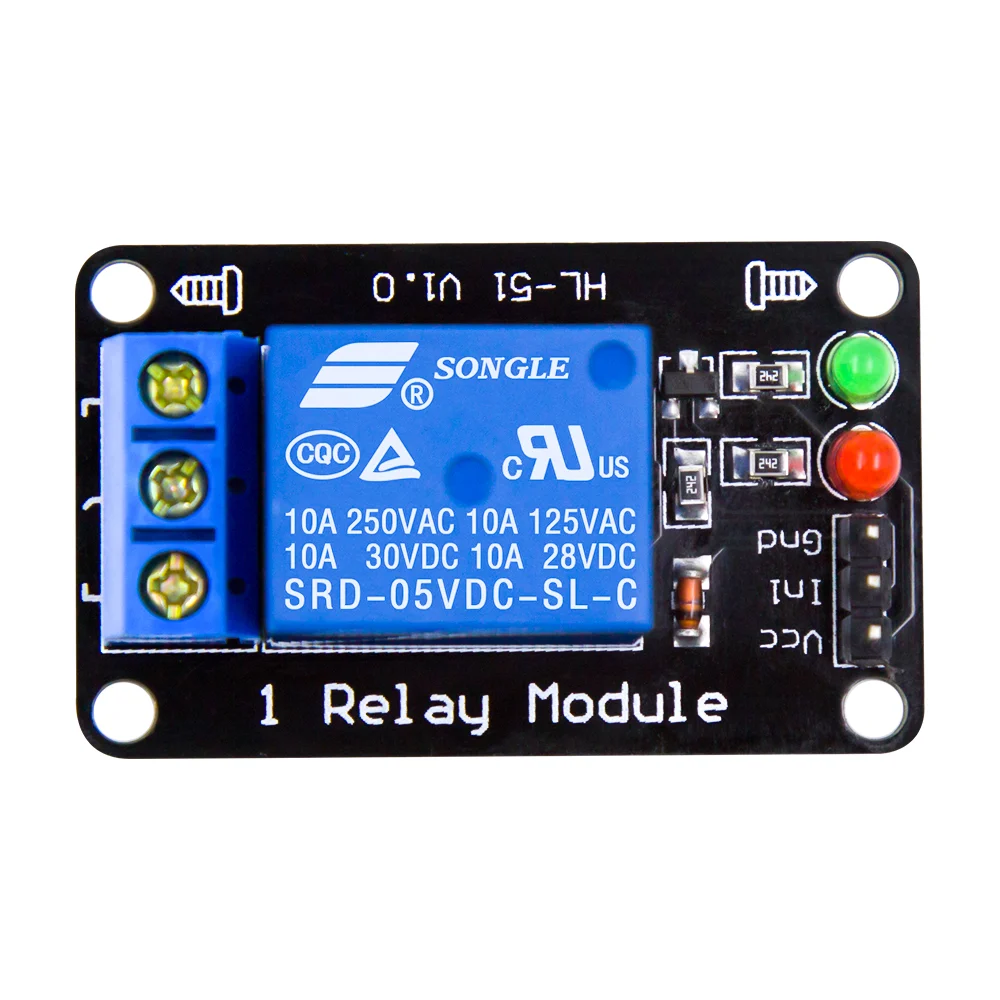

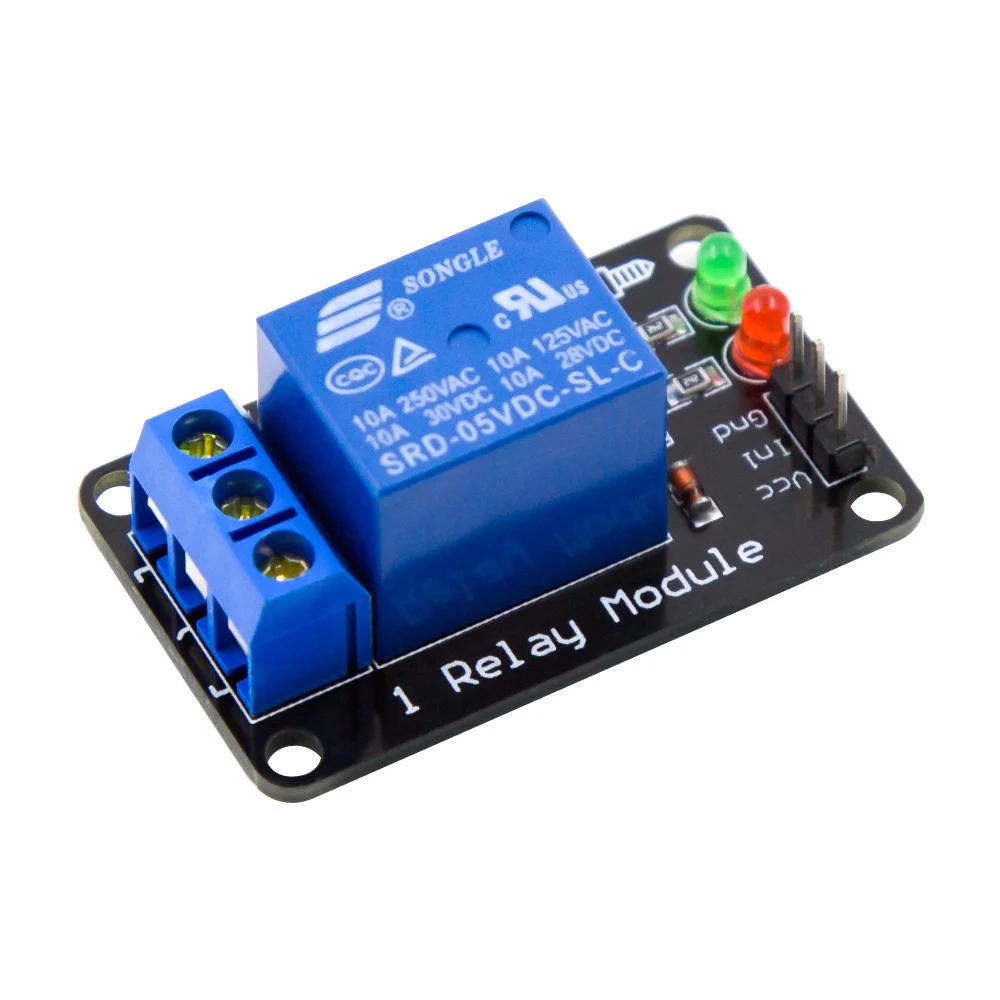

5V 1 Channel Without Light Coupling Relay
The 5V 1-Channel Relay Module without light coupling is designed for various applications. Here are its specifications:
– Supply Voltage: 5V
– Logic Signal Voltage: 3.3V or 5V
– Quiescent Current: 2mA
– Current When the Relay is Active: Approximately 70mA
– Maximum Contact Voltage: 250VAC or 30VDC
– Maximum Current: 10A
The relay normally opens the interface, with a maximum load of AC 250V/10A or DC 30V/10A. It has a trigger current of 5mA and operates at a module working voltage of DC 5V. Each channel of the module can be triggered by a jumper to set either a high level or a low level. The module’s fault-tolerant design ensures that even if the control line is disconnected, the relay will not move. Additionally, it features status indicators: a green power indicator and a red indicator for the 1-channel relay status. All module size interfaces can be directly connected through the terminal block, making it convenient and practical.
Features:
- The 8550 transistor drive, driveability.
- A fixed bolt holes for easy installation.
- It has a relay status indicator led Power LED(Green), 1 relay status indicator LED(Red)
- Relay control interface by single-chip IO.
- Low-level suction close, high-level release.
- Easy to use, simple 3 line structure.
Specification:
| Operating Voltage (VDC) | 3 ~ 5 |
|---|---|
| Trigger Voltage (VDC) | 5 |
| Trigger Current (mA) | 20 |
| Switching Voltage (VAC) | 250@10A |
| Switching Voltage (VDC) | 30@10A |
| Operating Temperature (°C): | -40 to 85 |
| Opt. Relative Humidity(RH) | 20% ～ 85% |
| Storage condition (℃) | – 65 to 175 |
| Length (mm): | 43 |
| Width (mm): | 26.3 |
| Height (mm): | 17 |
| Weight (g): | 14 |
| Shipping Weight | 0.018 kg |
| Shipping Dimensions | 8 × 5 × 2 cm |
Package Includes:
1 x 5V 1 Channel Without Light Coupling Relay.
ESP32-S3 Complete Guide: Features, Pinout and Projects
ESP32-S3 Complete Guide: Features, Pinout and Projects The ESP32-S3 is Espressif's most powerful single-chip IoT solution — a...
Read More →
Telegram Bot with ESP32: Remote Control via Messaging App
Building a Telegram bot with ESP32 for remote control via a messaging app is one of the most...
Read More →
ESP32 Multiple WiFi Networks: Fallback Connection Logic
When building robust IoT projects with the ESP32 multiple WiFi networks fallback system, one of the most critical...
Read More →Technical Specifications
| Operating Voltage | 5V |
|---|---|
| Channels | 1-channel |
| SKU | AI5246 |
| Weight | 0.02 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 5V 1 Channel Without Light Coupling Relay is a versatile relay modules used across a wide range of applications including home automation, industrial control, IoT projects, Arduino/Raspberry Pi interfacing, and motor control.
Common use cases:
- Switching high-voltage AC appliances with a microcontroller
- Building a smart home relay board
- Automating irrigation pumps in agriculture
This product is ideal for electronics engineers, IoT developers, and automation hobbyists.
Technical Tip: Use optocoupler-isolated relay modules to protect your microcontroller. Match relay coil voltage to your MCU logic level (3.3V or 5V).
