This is the 24V variant of the 2 Channel 24V Relay Module Solid State High Level SSR DC Control 250V 2A with Resistive Fuse in Relay Modules. Available at ₹234.82 (₹199.00 + GST) with free shipping across India.
Looking for 24v Module? 2 Channel 24V Relay Module Solid State High Level SSR DC Control 250V 2A with Resistive Fuse is available at Zbotic with fast shipping across India.

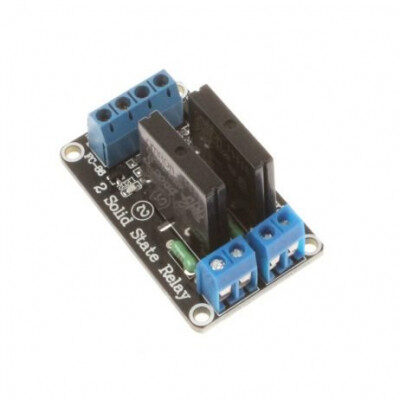

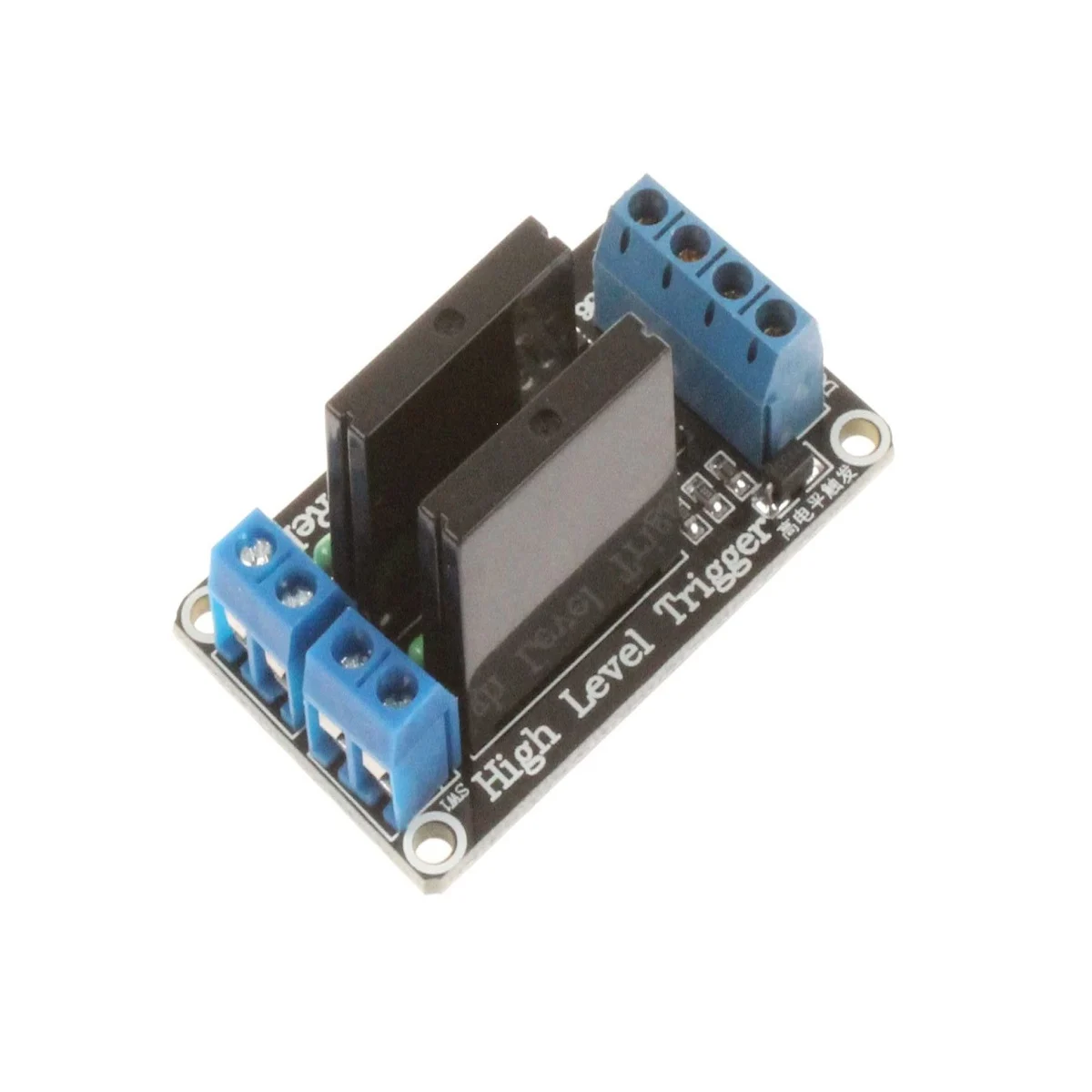

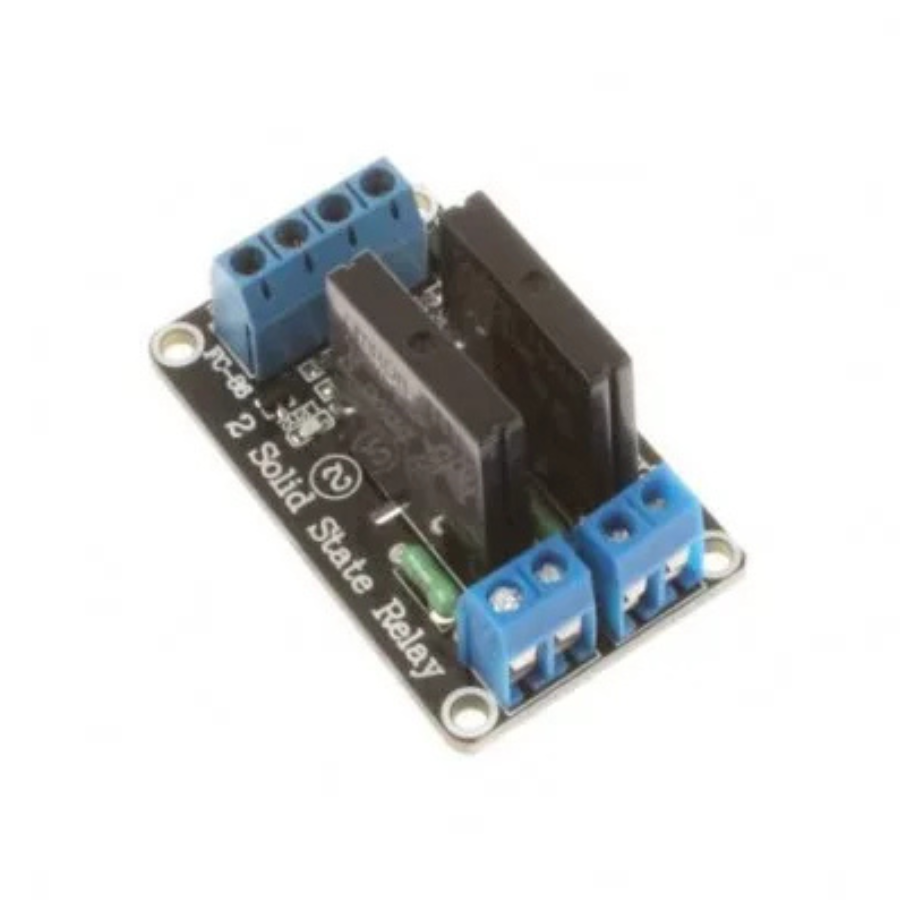

2 Channel 24V Relay Module Solid State High Level SSR DC Control 250V 2A with Resistive Fuse
This is 2 Channel 24V Solid State Relay Module. A solid-state relay (SSR) is just what it sounds like; an IC that acts like a mechanical relay. They allow you to control high-voltage AC loads from lower voltage DC control circuitry. They accomplish this by using infrared light as the contact, a solid-state relay is really just an IR LED and a photo Triac sealed up into a little box. Solid-state relays have several advantages over mechanical relays.
A Solid State Relay is similar 2 Channel 5V Relay Module Solid State High Level SSR DC Control 250V 2A with Resistive to a mechanic relay where it can be controlled through a digital signal. Solid State Relay generates no noise and has a much longer lifespan compared to the traditional mechanic relay.
One such advantage is that they can be switched by a much lower voltage and at a much lower current than most mechanical relays. Also, because there are no moving contacts, solid-state relays can be switched much faster and for much longer periods without wearing out.
Input Parts :
- DC+: connected to VCC (Supply power according to relay voltage)
- DC-: connected to GND
- IN1: CH1 Signal triggering the end of 1-channel relay module (active at the high level)
- IN2: CH2 Signal triggering the end of 2-channel relay module (active at the high level)
Features:
- 2-channel 2 AMP Solid State Relay board.
- Control 2 loads of up to 2 amps each at 240 V AC.
- Good for lighting, Holiday displays, etc.
- Has been assembled, and the electrical test passed.
- Led indicator for each relay.
- Use it to control various appliances and other equipment with a large current.
- It can be controlled directly by a Microcontroller
Specification:
- Power supply:24VDC/160mA
- Trigger Voltage (VDC):24
- Switching Voltage (VAC):5060@2A
- Isolation: Phototriac
PACKAGE INCLUDES
1 X 2 Channel 24V Relay Module Solid State High Level SSR DC Control 250V 2A with Resistive Fuse
2 Channel 24V Relay Module Solid State High Level SSR DC Overview
This 2 Channel 24V Solid State Relay (SSR) Module allows you to switch AC loads up to 250VAC at 2A using a 24V DC high-level control signal. Each channel uses an infrared LED and photo-triac for reliable, contact-free switching and includes a built-in resistive fuse for overcurrent protection.
Key Features of 2 Channel 24V Relay Module Solid State High Level SSR DC
- Dual SSR channels for independent AC load control
- High-level DC trigger at 24VDC, 160mA supply current
- Switching capacity: up to 250VAC (50/60Hz) at 2A per channel
- Phototriac isolation ensures low electromagnetic interference
- Integrated resistive fuse on each output for overcurrent protection
- Compact PCB mounting design with clear input/output terminals
- Genuine product with fast shipping across India from Zbotic
Applications and Use Cases
- Home automation: switching lighting circuits, fans or water heaters
- Industrial control panels for conveyor belts and small motors
- HVAC equipment control, such as valves and blowers
- Laboratory setups requiring silent, contact-free AC switching
- Building management systems for timed or sensor-driven loads
- Prototyping AC circuits without bulky mechanical relays
How to Use 2 Channel 24V Relay Module Solid State High Level SSR DC
Supply the module with 24VDC across the power input terminals, then apply a 24VDC high-level signal to the desired input channel. Connect your AC load (up to 250VAC/2A) to the corresponding output terminals. The built-in phototriac provides isolation; ensure proper wiring and observe the resistive fuse indicator for overcurrent status.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What input voltage and current does this SSR module require?
This module requires a 24VDC supply and draws approximately 160mA. Each control input must receive a 24V high-level signal to activate the respective SSR channel.
What AC load ratings can I switch with this module?
Each channel can switch up to 250VAC at 2A (50/60Hz), suitable for resistive and moderate inductive loads. Ensure your total current per channel does not exceed 2A to avoid tripping the built-in fuse.
Do I need additional protection or heat sinking?
The integrated resistive fuse guards against overcurrent, but for continuous loads near 2A, provide adequate ventilation. For inductive loads, consider adding a snubber or external overcurrent device for extra safety.
